Cat C32 IMO III

Marine Generator Sets

Request quotation

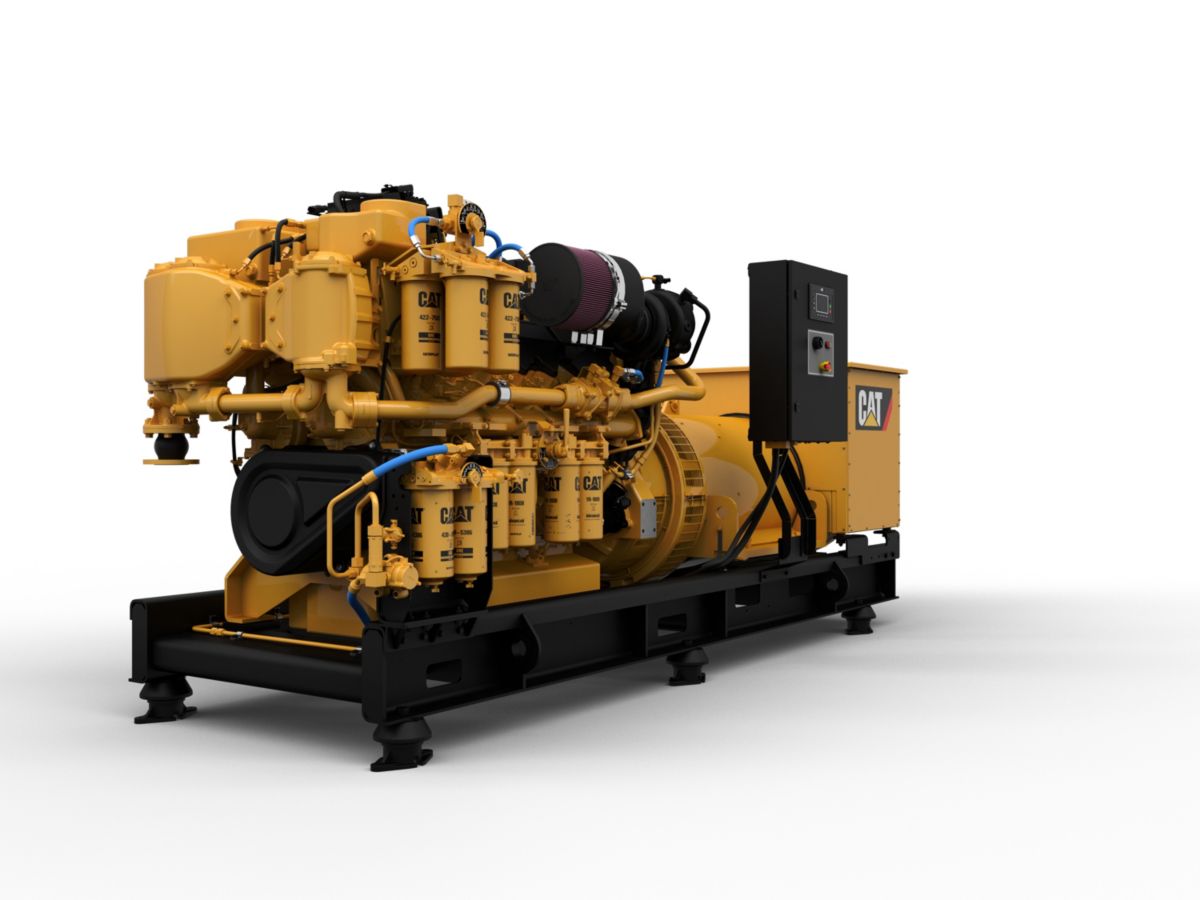

About the Cat C32 IMO III



Cat C32 Generator Set, IMO III emissions certified (SCR required)

Specifications

Generator Set Specifications
Minimum Rating 219 ekW
Maximum Rating 940 ekW
Frequency 60hz
Engine Specifications
Rated Engine Speed 1500 rpm
Configuration Vee-12, 4-stroke-Cycle-Diesel
Aspiration Turbocharged-aftercooled aspiration
Bore 5.71 in
Stroke 6.38 in
Displacement 1959 in³
Governor Electronic (A5 ECM)
Emissions IMO III emissions certified (SCR required)
Cooling Heat exchanger, keel or radiator cooled
Generator SR5 - Form Wound
Oil Change Interval 750 hrs
Refill Capacity Lube Oil System w/ oil filter change: 146 L (38.5 gal)
Generator Set Dimensions
Length 167.2 in/4245 mm (minimum), 226.1 in/5742 mm (maximum)
Width 59.9 in/1521 mm (minimum), 89.8 in/2280 mm (maximum)
Height 70.4 in/1747 mm (minimum), 92.8 in/2356 mm (maximum)
Package Dry Weight 15721 lb/7131 kg (minimum), 21998 lb/9978 kg (maximum)

Features

Emissions

Emissions
Utilizes SCR Technology to enable IMO III emission regulations compliance while lowering operational costs

Control Strategy

Control Strategy
Utilizes closed loop air assisted DEF dosing control strategy that delivers: Highest efficiency mixing and control to lower operational costs; Extends emissions useful life; Ensures compliance; Flexible to urea quality

Fuel System

Fuel System
Enhanced control of fuel injection optimized through crank timing and the A5 ECM technology

Power Reserve

Power Reserve
Industry leading power reserve

Certifications

Certifications
Wide range of available Marine Society certifications

Warranty

Warranty
Industry-leading warranty coverage for factory packaged components

Service

Service
Global dealer network for service in any location
