Asfaltvalser

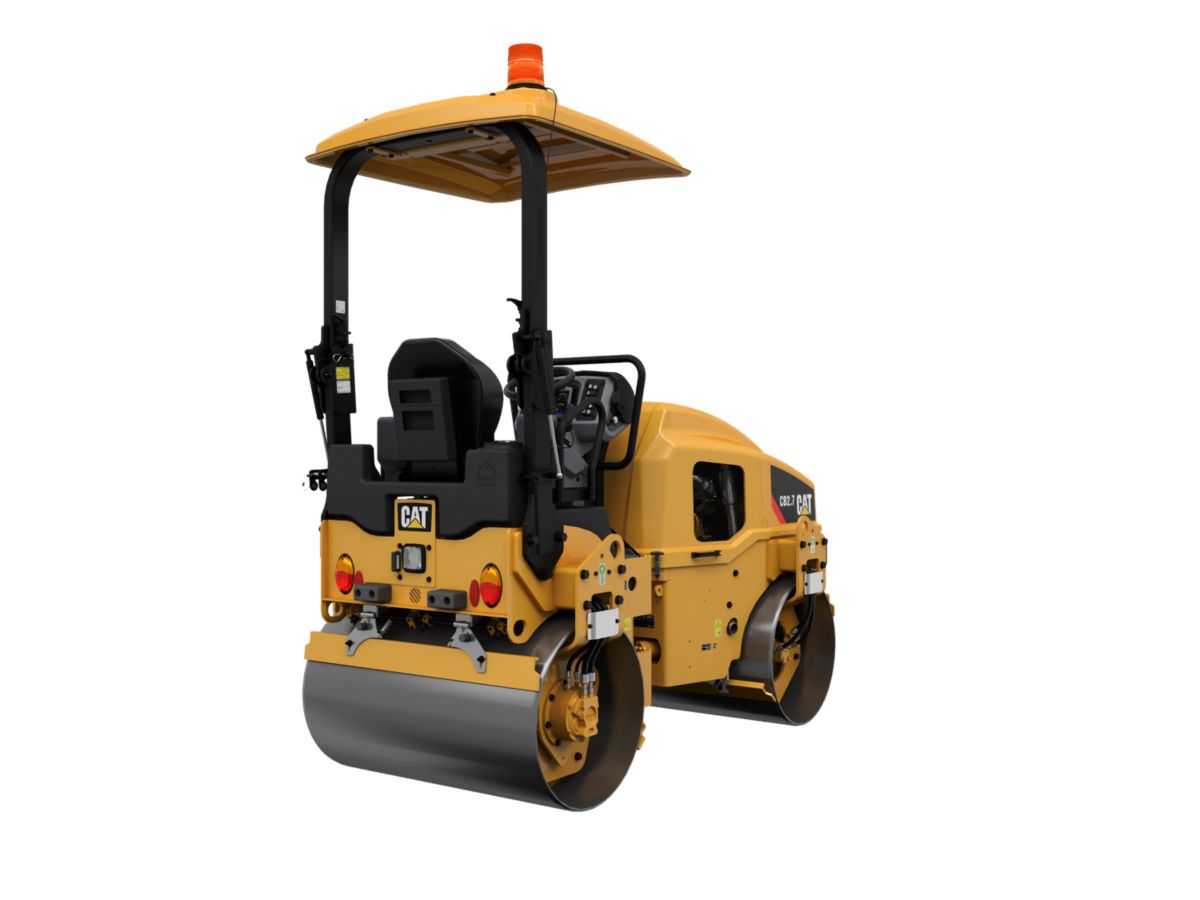

The CB2.9 is a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. It provides greater production capabilities with its 1300 mm (51 in) wide drums. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions or other similar sized jobs.
Intuitive, multi-function control panel with vandal protection enables good performance. Easy viewing analog display and vibrant LED lights on the control panel simplify operation in both day and night operation. The integrated vandal cover provides protection.
The analog display provides quick reference to fuel level, coolant temperature, and hour meter.
Roading and working lights include front lights with turn signals, a single rear working light with turn signals, and a warning beacon.
Powerful lift cylinders enable a single person to raise and lower without the use of tools. A fixed ROPS is also available. The foldable canopy is compatible with the foldable ROPS.
The vibratory system is equipped with automatic vibration de-activation when the propel lever is in the neutral position. Vibration is available on front only or both drums. The exclusive eccentric weight shaft delivers quick starting and stopping times and a bearing service interval of 3 years or 3000 hours.
Two frequency selections deliver excellent compaction performance and low sound levels. Selections of 60 Hz (3,600 vpm), 48 Hz (2,880 vpm) are available.
A 40 mm (1.5“) drum offset capability enhances control near curbs and offers more coverage.
The protected spray bar is designed to fight winds, while a low water level indicator keeps the operator informed. A single water tank with a capacity of 200 L (53 gallons) provides more hours of operation between refills. The intermittent and continuous modes increase control and efficiency. Triple filtration in the tank, before the water pump, and in spray nozzles provides reliability. A single point drain and filter simplifies service.
Spring loaded scrapers keep the drums clean and distribute water evenly for reduced consumption. Robust, retractable hinges help maintain contact with the drum and retract when roading to reduce unnecessary wear. Scrapers are located at the front and rear of each drum.
An electronic control module (ECM) helps enable steady operation. The Cat C1.5 engine includes an electric fuel-transfer pump and fuel tank sized for 8-12 hours of runtime. Two engine speed settings enable operators to customize to the specific application and environment.
A traction control option is available in a pin-on design that offers quick installation. Field retrofitting can be completed in an hour.
The cooling system provides ambient capability of 49°C (120°F) @ 80 percent load. The hydraulically driven fan motor enables variable speeds and reduces sound levels.
