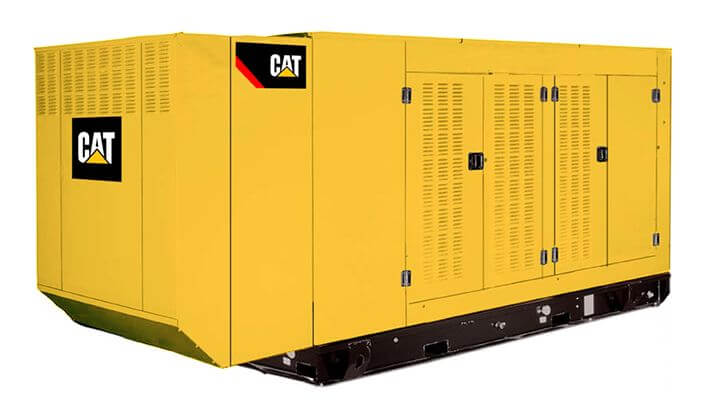

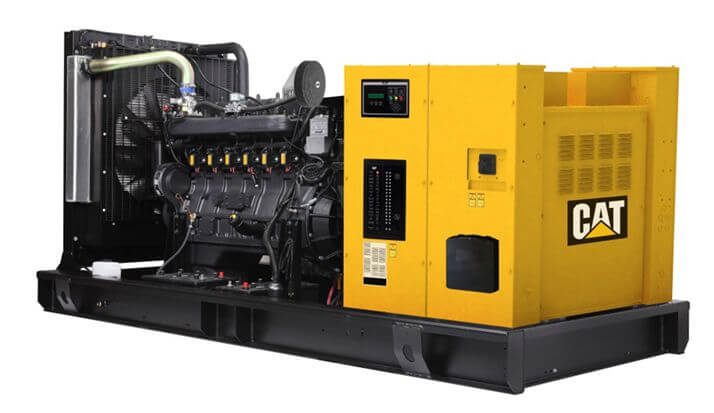

Cat DG175 GC (3 phase)

Gassgeneratorer

Om Cat DG175 GC (3 phase)



The Cat® spark-ignited generator product line for stationary applications feature permanent magnet excitation, amortisseur winding, skewed stator, voltage adjustment through the EMCP controller, Class H winding insulation and 2/3 pitch incorporated. The EMCP controller features the reliability and durability you have come to expect from your Cat equipment, it is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. To meet your needs through programming and expansion modules the EMCP4.2B system can be further customized to meet your needs through programming and expansion modules. The reliable power that Cat gensets produce is matched only by the power that backs them. More than 1,800 Cat dealer outlets in 200 countries are equipped with everything you need, from installing and configuring your Cat genset to maintaining peak performance for the life of the product. System selection assistance, equipment training, parts, service expertise, and maintenance programs are available wherever and whenever you need them.

Spesifikasjoner

Generator Set Specifications
Frequency 60 Hz
Natural Gas Rating 175 eKW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency Application
Speed 1800 rpm
Displacement 864.71 l
Fuel Type Natural Gas
Engine Specifications
Motormodel G14.2L Spark Ignited
Fuel System Carburetor, Down Draft
Aspiration Turbocharged - Aftercooled
Governor Type Electronic
Compression Ratio 9.5:1
Bore 134.87 mm
Stroke 6.5 in
Generator Set Dimensions
Length 127.95 in
Width 1344.5 mm
Height 67.37 in
Weight 5756 lb

Egenskaper

Engine

  • Four-stroke-cycle gas engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine

Generator

  • Matched to the performance and output characteristics of Cat engines
  • Industry leading mechanical and electrical design
  • Industry leading motor starting capabilities
  • High Efficiency
Cat Generator

EMCP Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements
Cat EMCP Control Panel

Design Criteria

  • The generator set facilitates compliance with NFPA 110 and meets ISO 8528-5 requirements for transient response
  • Cooling system designed to operate in 50˚C/122˚F ambient temperatures with an air flow restriction of 0.5 in. water
Design Criteria

UL 2200 / CSA - Optional

  • UL 2200 Listed packages
  • CSA Certified
  • Certain restrictions may apply
  • Consult with your Cat® Dealer
UL 2200 / CSA - Optional

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
