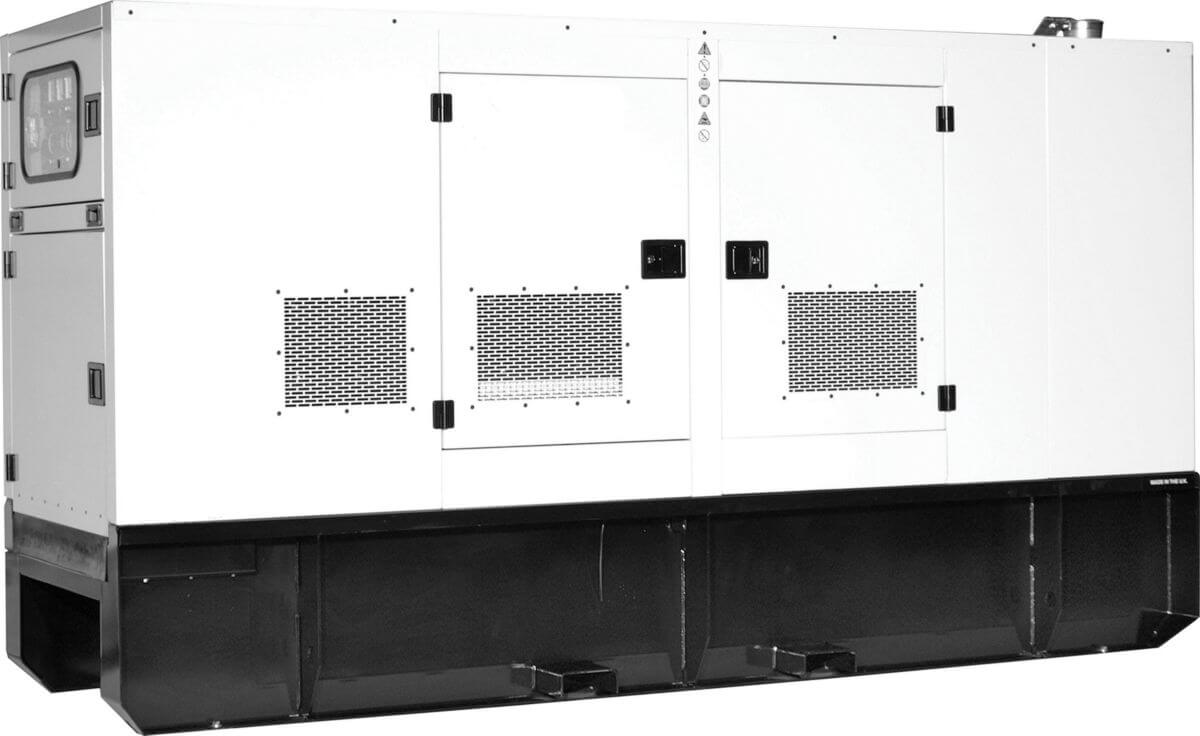

Cat XQE20

Mobile Generator Sets

Om Cat XQE20



Whether or not the outage was expected, Cat® Rental Power is here to keep your operation running.

Spesifikasjoner

Generator
Voltage 220 - 415V
Prime Rating 20 kVA (16 kW) Prime
Frequency 50/60 Hz
Standby Run Time (Full Load) 7.3 Hours
Prime Run Time - Full Load 7.3 Hours
Motor
Engine 404D-22G
Fuel Diesel
Dimensjoner
Width 33.9 in
Height 49.3 in
Length 66.3 in
Weight 1585 lb

Egenskaper

Fuel / Emissions Strategy

EU Stage IIIA Nonroad Emission Standards

GENERATOR SET

Heavy duty industrial Tier 4 EPA approved emissions certified diesel engine
Complete system designed and built at ISO 9001 certified facility
Factory tested to design specifications at full load conditions
new master
tdfggfk

ENGINE

Governor, mechanical
Electrical system, 12V DC
Cartridge type filters
Fuel/water separator
Battery, rack and cables

GENERATOR

Insulation system, class H
Screen protected and drip-proof, self exciting, self-regulating with fully interconnected damper windings, IC06 cooling system and sealed-for-life bearings
Electrical design in accordance with BS5000 Part 99, IEC60034-1, EN61000-6, NEMA MG-1.22

CONTROL SYSTEM

Manual/Autostart control panel
Vibration isolated, NEMA 1 enclosure with lockable hinged door
DC and AC wiring harnesses

MULTI-VOLTAGE DISTRIBUTION PANEL

Switchable voltage output:

480/277V 3 phase

208/120V 3 phase

240/120V 1 phase
Convenience receptacles
Hinged door over main connectors
NEMA 1 steel enclosure, vibration isolated

CIRCUIT BREAKER

Dual, 3-pole with solid neutral, UL/CSA listed

MOUNTING ARRANGEMENT

Heavy-duty fabricated steel base raised for forklift access
Anti-Vibration mounting pads
Complete OSHA guarding
Three-way valves to allow connection of auxiliary fuel tank
UL listed single walled fuel tank base with 24 hour minimum fuel supply.
Containment area for oil, coolant and fuel spill.

SOUND ATTENUATED ENCLOSURE

Fully weatherproof sound attenuated enclosure with internal exhaust silencer
Highly corrosion resistant construction
Body made from sheet steel components pretreated with zinc phosphate prior to polyester powder coating at 200° C (392° F)

EQUIPMENT FINISH

All electroplated hardware
Anti-corrosive protection prior to painting
High gloss polyurethane paint for durability and scuff resistance

DOCUMENTATION

Operation and maintenance manuals provided
Wiring diagrams included
WARRANTY
All equipment carries full manufacturers warranty
