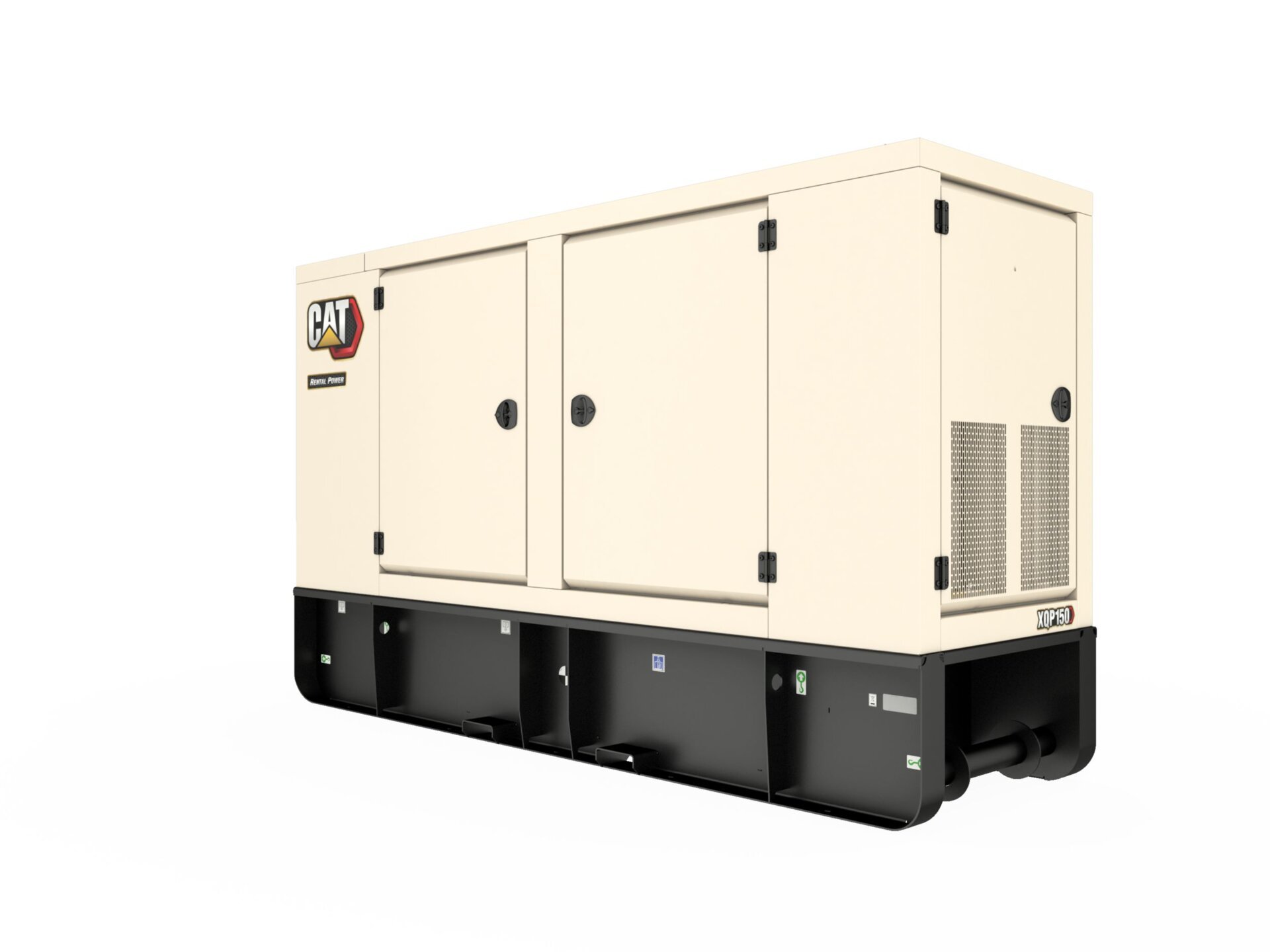

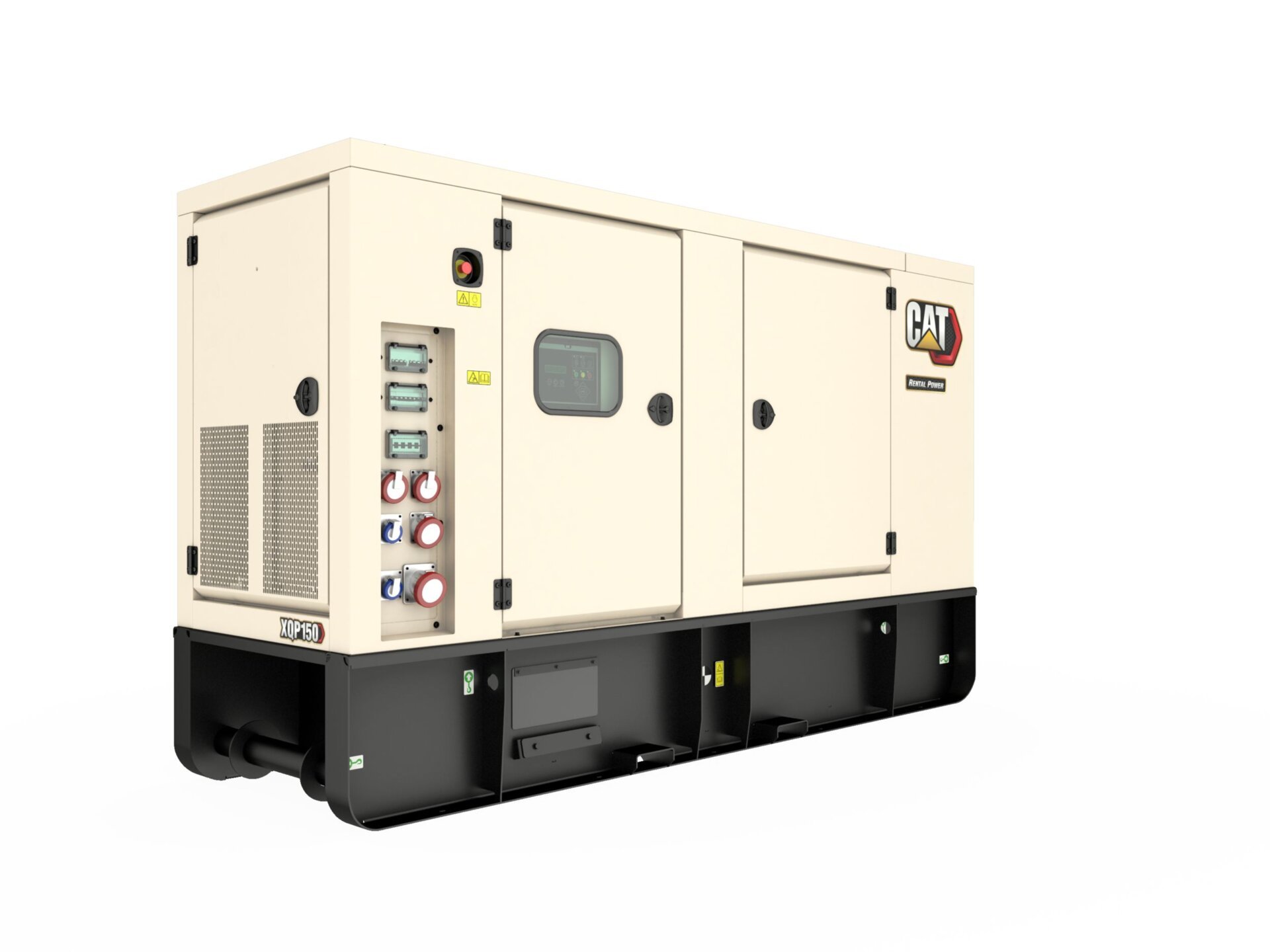

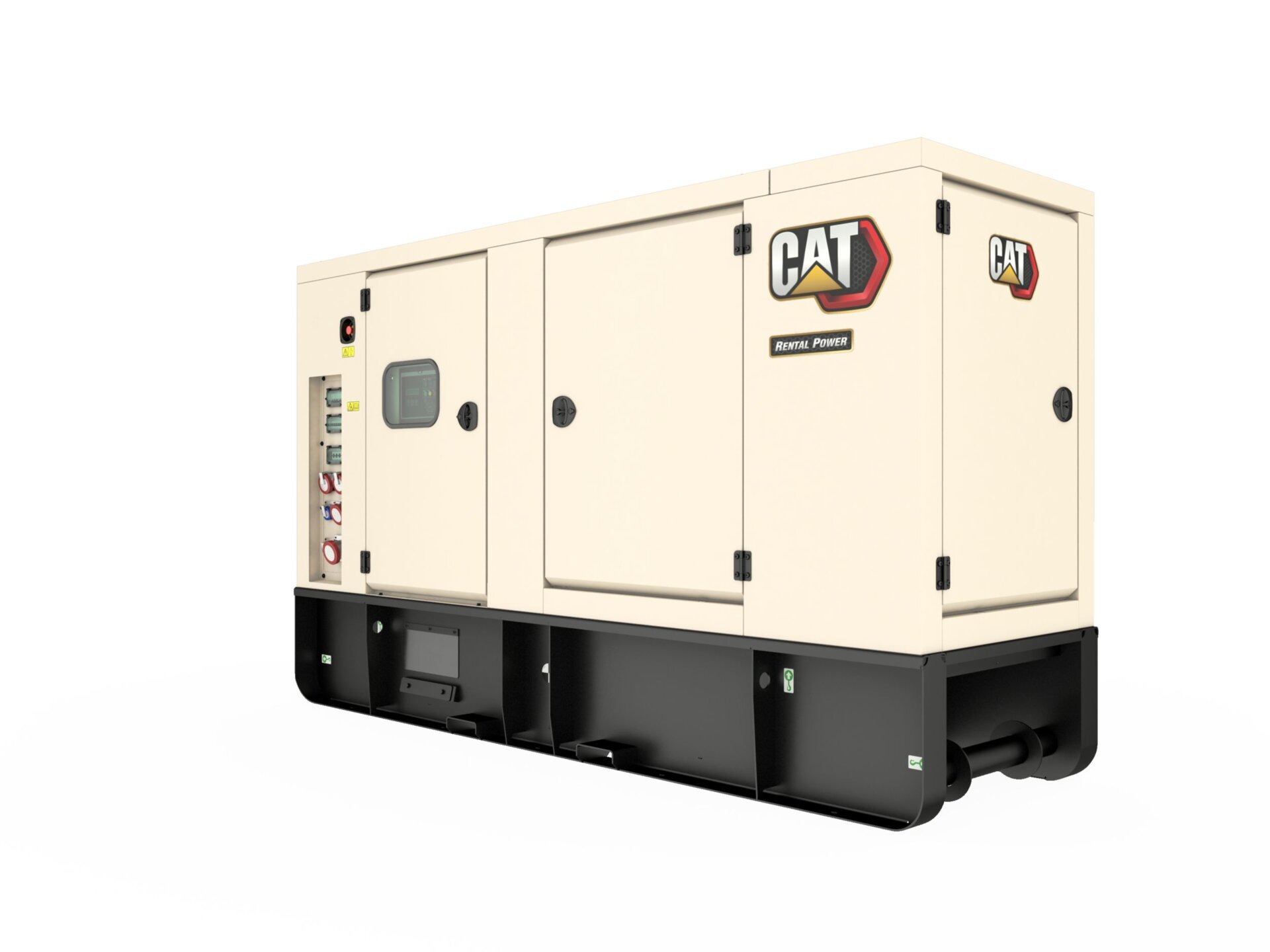

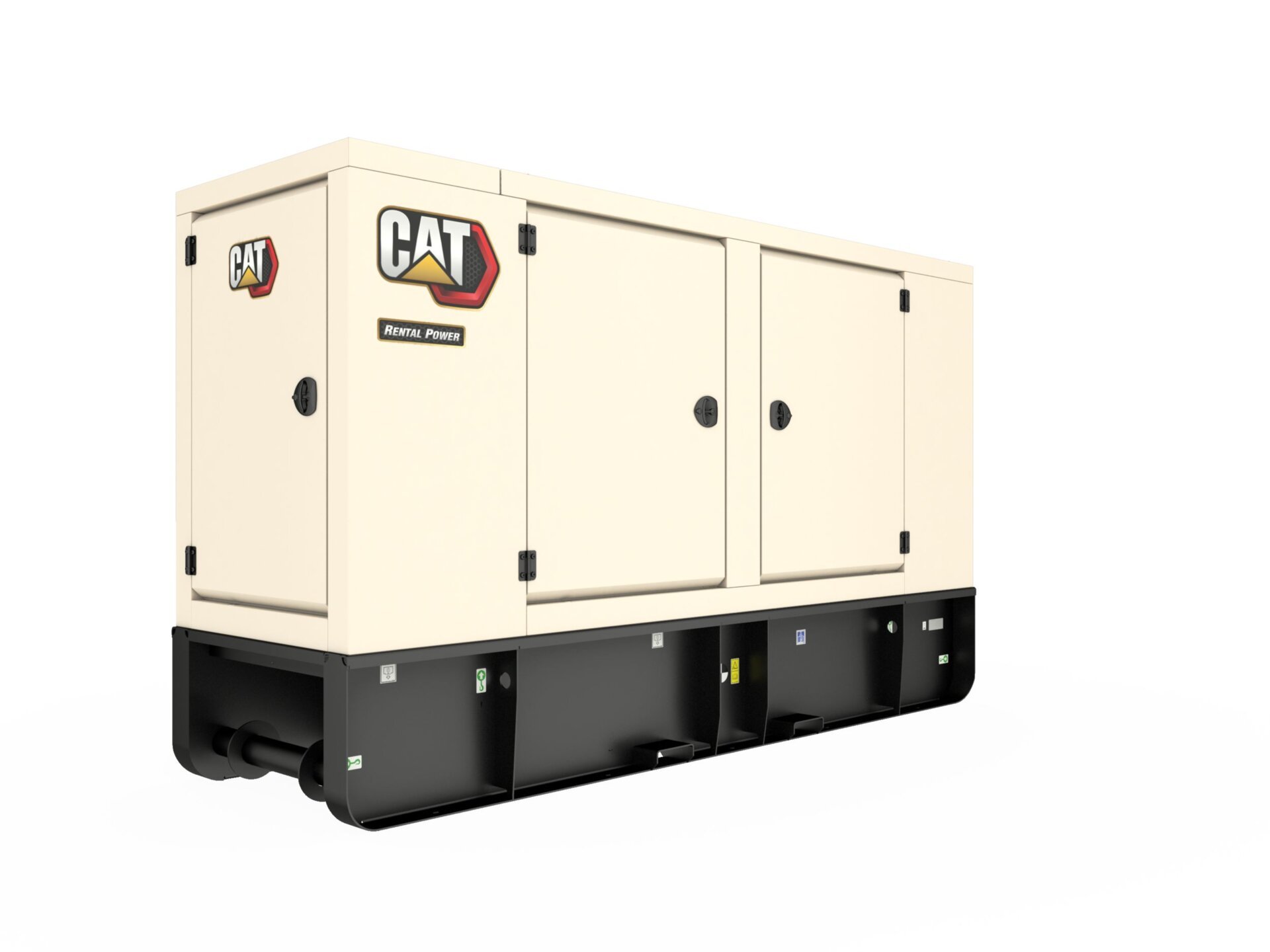

Cat XQP150

Mobile Generator Sets

Last ned spesifikasjoner Send Forespørsel

Om Cat XQP150

The 150 kVA model comes in two versions. The Stage IIIA product is emission-optimized and legally required on all mobile applications in Europe, while the fuel-optimized product is ideal for customers interested in consuming the least amount of fuel. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Spesifikasjoner

Generator Set

Rating Prime	150 kVA
Frequency	50/60 Hz
Voltage	127 - 480 V

Motor

Engine	Cat C7.1
Fuel	Diesel

Dimensjoner

Width	1120 mm
Height	2226 mm
Length	3520 mm
Weight - With Lube Oil and Coolant	2547 kg

Fuel Consumption EU Stage IIIA

100% Load 50Hz	37.5 l/hr
100% Load 60Hz	42.3 l/hr
75% Load 50Hz	29.6 l/hr
75% Load 60Hz	34.7 l/hr
50% Load 50Hz	20.3 l/hr
50% Load 60Hz	23.8 l/hr

Fuel consumption Best Fuel Efficiency

100% Load 50Hz	33.3 l/hr
100% Load 60Hz	38.2 l/hr
75% Load 50Hz	24.7 l/hr
75% Load 60Hz	29.1 l/hr
50% Load 50Hz	16.4 l/hr
50% Load 60Hz	19.1 l/hr

Noise rating (with enclosure) EU Stage IIIA

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)	73.1 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)	76.4 dB(A)

Noise rating (with enclosure) Best Fuel Efficiency

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)	74.7 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)	78.3 dB(A)

Egenskaper

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.

Cat C7.1 Diesel Engine

Industry proven reliability.

Reliable, Fuel Efficient Cat Diesel Engine

XQCP Control Panel

Easy to use digital controls.

Cat LC3114J Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countries
Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
