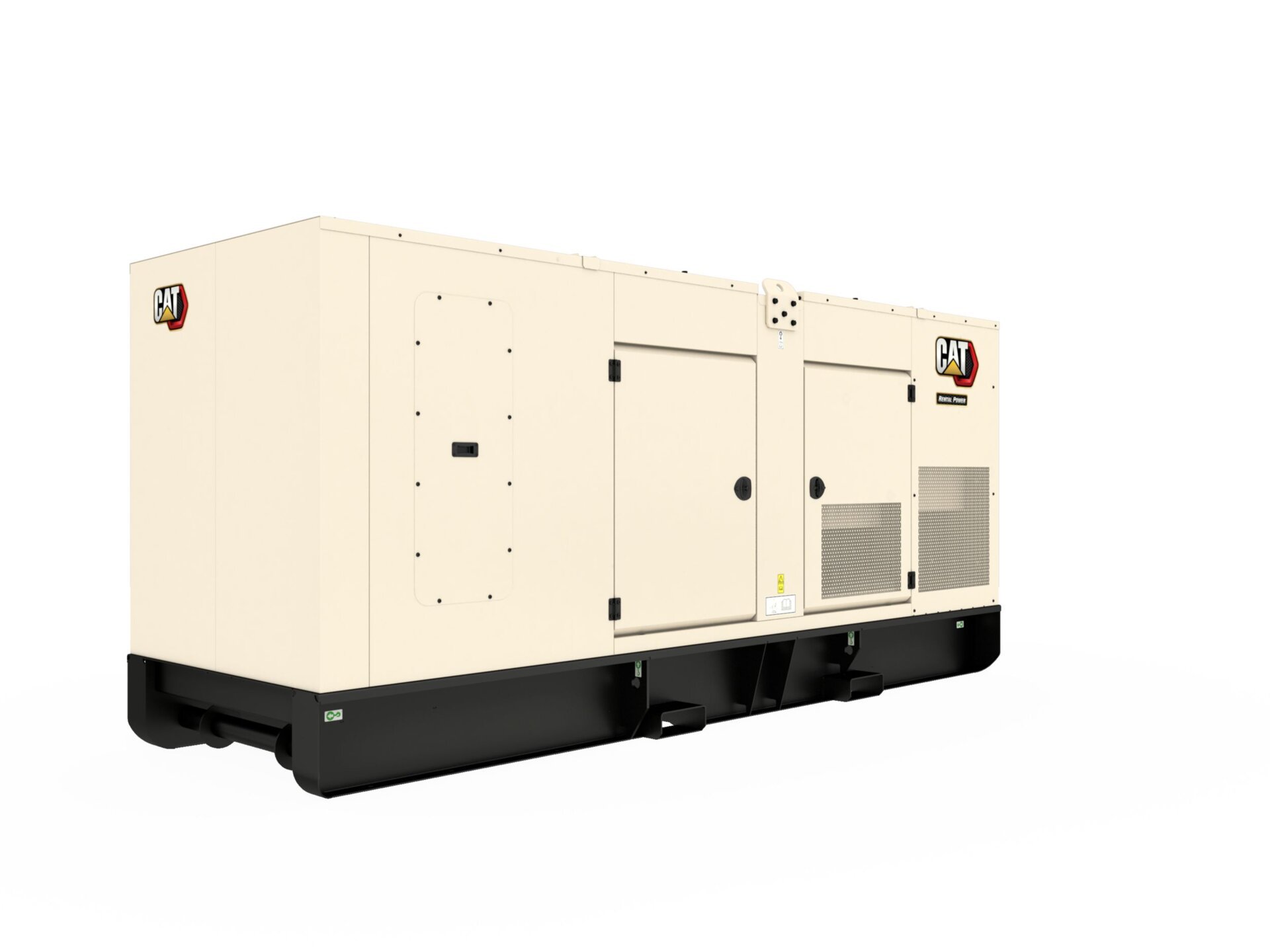

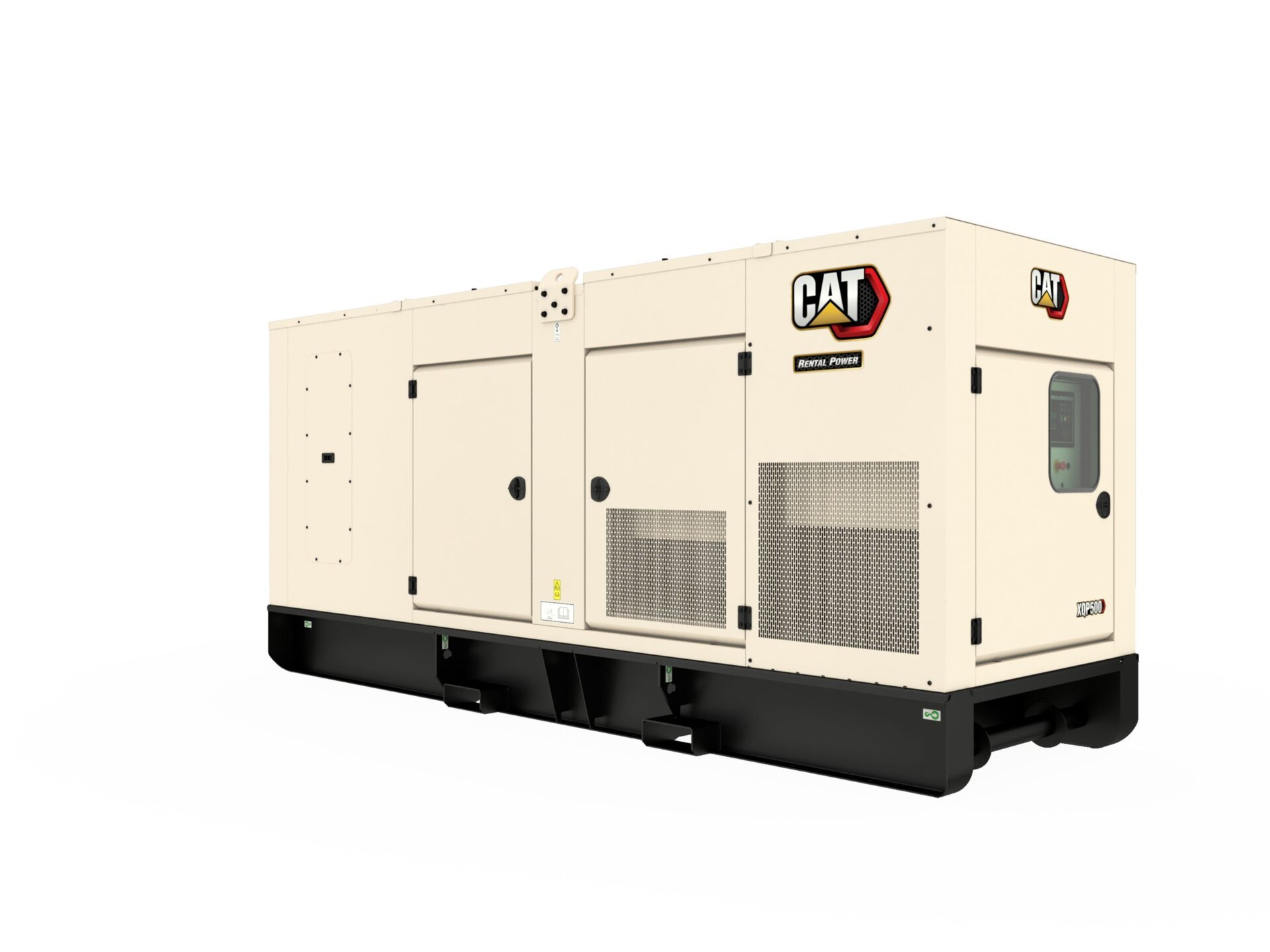

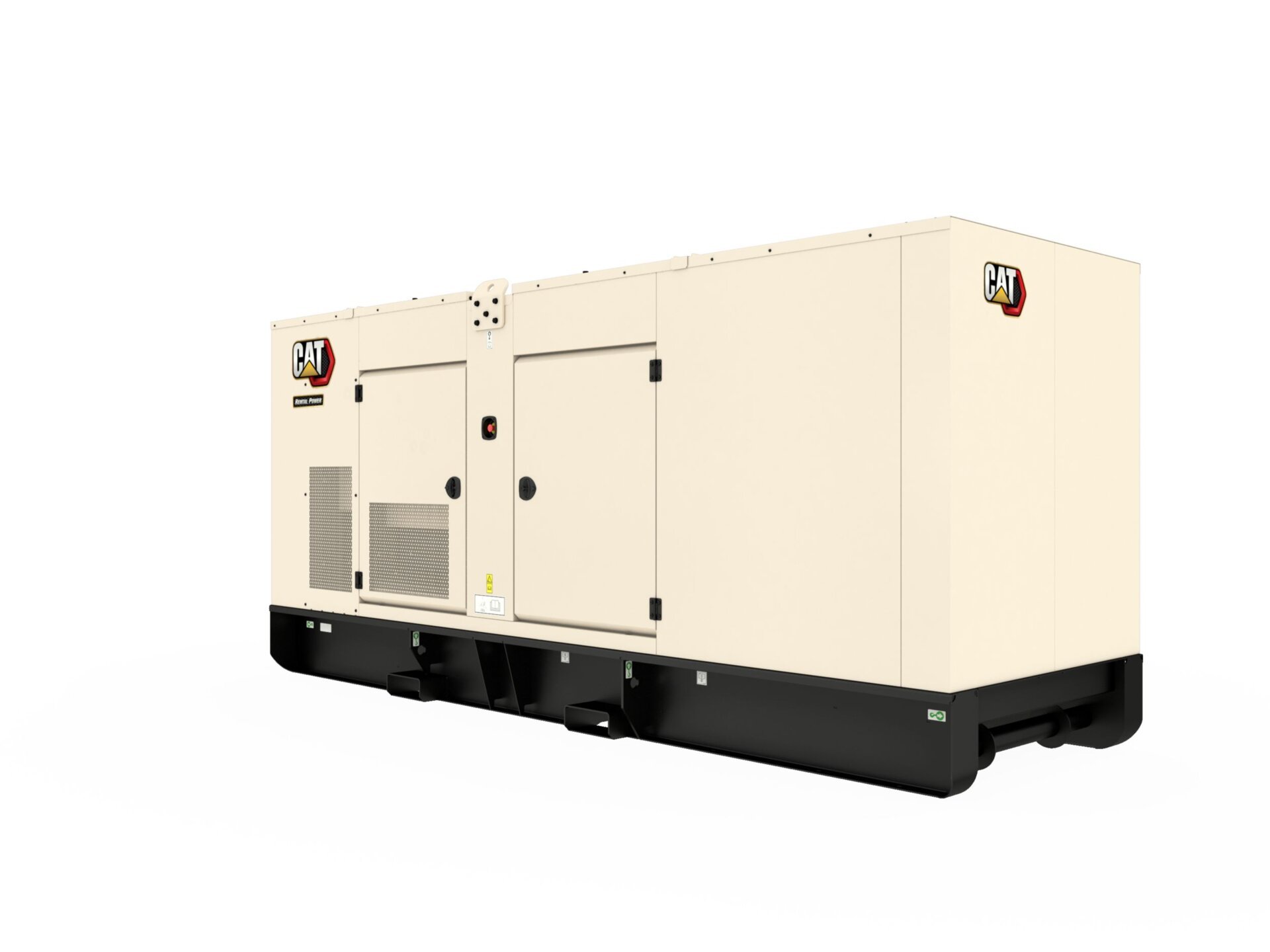

Cat XQP500

Mobile Generator Sets

Last ned spesifikasjoner Send Forespørsel

Om Cat XQP500

The XQP500 generator set will either meet EU Stage IIIA emission standards or provide low fuel consumption performance for customers in non-regulated territories. A unique feature is the introduction of clutch fan drive technology, where the fan no longer needs to runs continuously at full speed and power. This saves additional fuel, while also lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures, or most importantly, in evenings when noise levels are most noticeable.

Spesifikasjoner

Generator Set

Rating Prime	500 kVA
Frequency	50/60 Hz
Voltage	127 - 480 V

Motor

Engine	Cat C15
Fuel	Diesel

Dimensjoner

Width	1954 mm
Height	2292 mm
Length	5103 mm
Weight - With Lube Oil and Coolant	5977 kg

Fuel Consumption EU Stage IIIA

100% Load 50Hz	110.2 l/hr
100% Load 60Hz	121 l/hr
75% Load 50Hz	86.8 l/hr
75% Load 60Hz	99.7 l/hr
50% Load 50Hz	62 l/hr
50% Load 60Hz	69.2 l/hr

Fuel consumption Best Fuel Efficiency

100% Load 50Hz	102 l/hr
100% Load 60Hz	107 l/hr
75% Load 50Hz	76.2 l/hr
75% Load 60Hz	83 l/hr
50% Load 50Hz	54 l/hr
50% Load 60Hz	59.3 l/hr

Noise rating (with enclosure) EU Stage IIIA

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)	77.5 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)	79.8 dB(A)

Noise rating (with enclosure) Best Fuel Efficiency

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)	80.1 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)	80 dB(A)

Egenskaper

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Emissions Equivalent to R96 EU Stage IIIA or Best Fuel Efficiency.

Cat C15 Diesel Engine

Industry proven reliability.

Cat EMCP 4.2B Control Panel

Easy to use digital controls.

Cat LC6100 Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countries
Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
