Cat C9.3 ACERT™

Om Cat C9.3 ACERT™

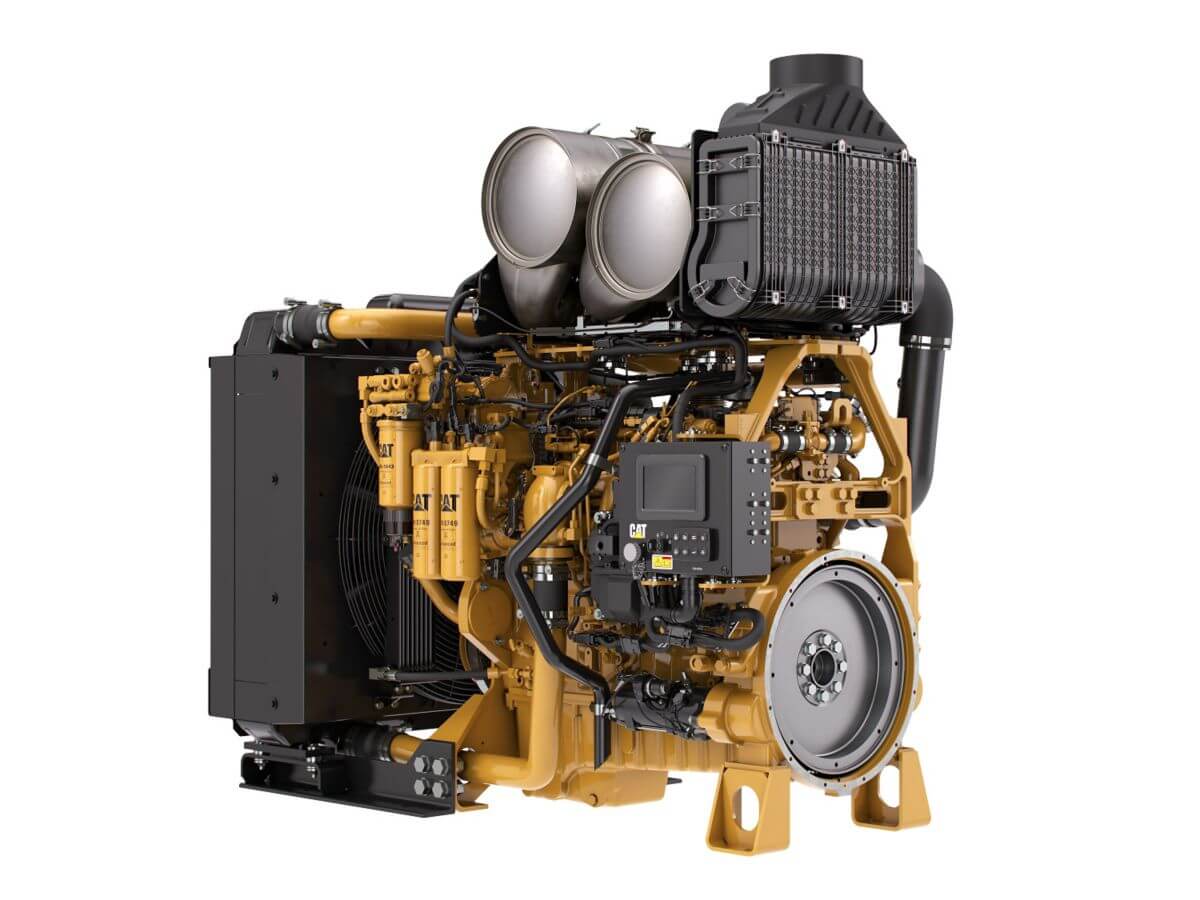

The Cat^® C9.3 ACERT™ Industrial Diesel Power Unit is offered in ratings ranging from 224-298 bkW (300-400 bhp) @ 1800-2200 rpm and meet U.S. EPA Tier 4 Final, EU Stage IV emission standards. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Spesifikasjoner

Power Rating

Minimum Power	300 BHP
Maximum Power	400 BHP
Rated Speed	1800-2200 rpm

Emission Standards

Emissions

U.S. EPA Tier 4 Final, EU Stage IV

Generell

Engine Configuration	Inline 6, 4-Stroke-Cycle-Diesel
Bore	115 mm (4.53 in)
Stroke	149 mm (5.87 in)
Displacement	9.3 L (567.5 in³)
Aspiration	Turbocharged Aftercooled (TA)
Compression Ratio	17:1
Rotation from Flywheel End	Counterclockwise
Cooling System - Capacity	64 L (68 qt)
Lube System - Refill	30 L (31.7 qt)

Power Unit Dimensions - Approximate

Height	1554-1741 mm (61.2- 68.5 in)
Length	1845-2042 mm (72.6-80.4 in)
Weight - Approximate, Net Dry - Standard Configuration Without Oil, Cooling, Clutch, Compressor, A/C	1678-1839 kg (3699-4055 lb)
Width	1094-1118 mm (43.1-44 in)

Aftertreatment Dimensions - Approximate

Diameter	304.8-330.2 mm (12-13 in)
Height	392.21-570 mm (15.44-22.4 in)
Weight	130-212 kg (287-467 lb)
Width	714.4-870 mm (28.12-34.25 in)

PETU Dimensions - Tier 4 Final, Stage IV Only

Height	551 mm (21.7 in)
Length	854 mm (33.6 in)
Volume Capacity	48.4 L (51.1 qt)
Weight	19.42 kg (42.8 lb)
Width	287 mm (11.3 in)

Egenskaper

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Simple and efficient turbocharger with balance valve provides optimal air management and improved fuel efficiency.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Fuel & Oil

Tier 4 Interim or Tier 4 Final, Stage IIIB or Stage IV engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 15 ppm sulfur, and new oil formulations to support the new technology. Cat^® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

World-class Product Support Offered Through Global Cat Dealer Network

Scheduled maintenance, including SOS^SM sample
Customer Support Agreements (CSA)
Caterpillar Extended Service Coverage (ESC)
Superior dealer service network
Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Tier 4 Final, Stage IV Aftertreatment Features

Regeneration. Cat Regeneration System maximizes fuel efficiency during regeneration. Transparent regeneration maximizes uptime. Aftertreatment life is twice as long as engine rebuild

Mounting. Industrial power units have standard horizontal mounting.

Service. Minimum 5000-hour diesel particulate filter ash service interval. PETU filter service is 5000 hours.
