Cat 3512C

Offshore Generator Sets

Last ned spesifikasjoner Send Forespørsel

Om Cat 3512C

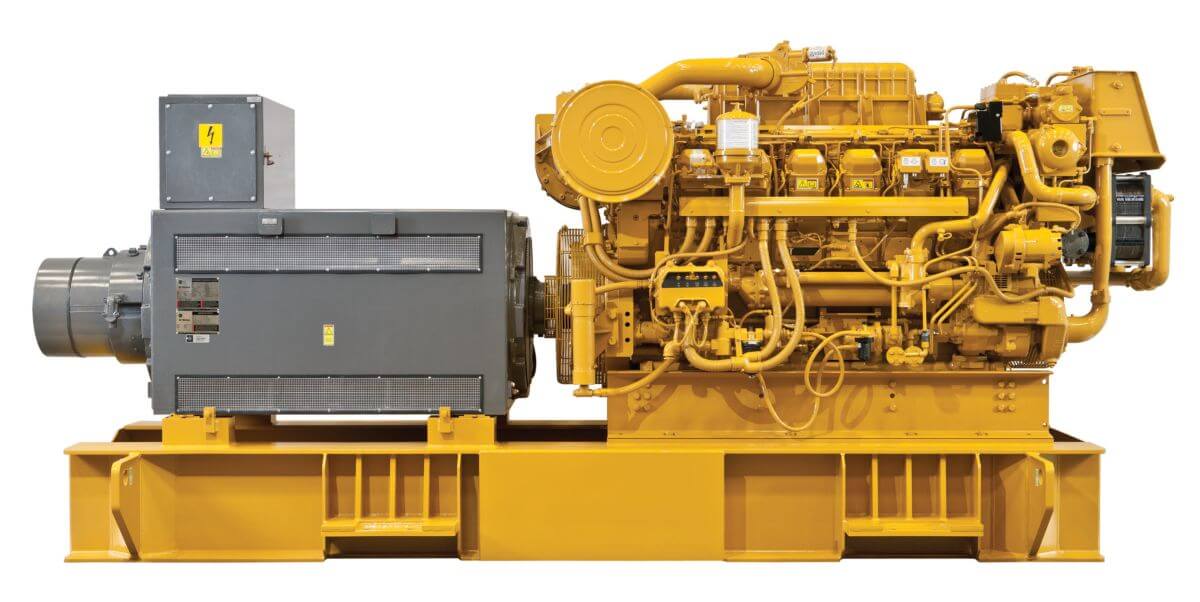

Cat 3500 offshore generator sets are specifically designed for drilling and production operations offshore. Decades of experience powering offshore vessels and platforms make have evolved into a product that offers proven performance, low emissions, high durability, and low owning and operating costs.Applications for 3500 offshore generator sets include main power, essential services power, and emergency power on-board drilling and production rigs and vessels.Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat 3512C offshore generator set. Ratings: 1030-1360 ekW (1470-1700 kVA) @ 60 Hz (1200/1800 rpm). Meets IMO Tier II emission standards.

Spesifikasjoner

Engine Specifications

Minimum Rating	1470 kV·A
Maximum Rating	1700 kV·A
Emissions	EPA Tier 2, IMO II
Aspiration	Turbocharged-Aftercooled
Bore	6.7 in
Displacement	3161 in³
Engine Control	ADEM A3
Fuel System	EUI
Oil Change Interval	500 h
Stroke	7.5 in
Weight	33300 lb

Dimensjoner

Height	91 in
Length	214.5 in
Width	71.9 in

Capacity for Liquids

Cooling System - Engine	41.5 gal (US)
Lube Oil System - Refill	84 gal (US)

Egenskaper

Product Design

- Developed specifically to meet the demands of oil and gas applications - Proven reliability and durability - Robust diesel strength design prolongs life and lowers owning and operating costs - Market-leading power density - Designed to perform in oilfield conditions, including high ambient and high altitude applications - Long overhaul life proven in oilfield applications - Core engine components designed for reconditioning and reuse at overhaul

Ease of Installation

- Inner-outer base mounting configuration simplifies rig integration - Wide range of attachments enable configuration flexibility - Inner base three-point generator mounting maintains factory alignment - Single lifting point simplifies installation work

Advanced Digital Engine Management

- ADEM A3 engine management system provided engine control, monitoring, and protection.

Safety

- E-stop pushbutton on instrument panel - Air shutoff and explosion relief valves available - Configurable alarm, derate, and shutdown set points - Extra alarms, inputs, and outputs available

Custom Packaging

For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.

Product Support Offered Through the Global Cat Dealer Network

- More than 2,200 dealer outlets- Cat factory-trained dealer technicians service everyaspect of your Cat petroleum product- Worldwide parts availability, service, and warranty- Preventive maintenance agreements available for repairbefore-failure options- S•O•SSM program matches your oil and coolant samplesagainst Caterpillar set standards to determine:• Internal engine component condition• Presence of unwanted fluids• Presence of combustion by-products• Site-specific oil change interval
