Om Cat CX35-P800

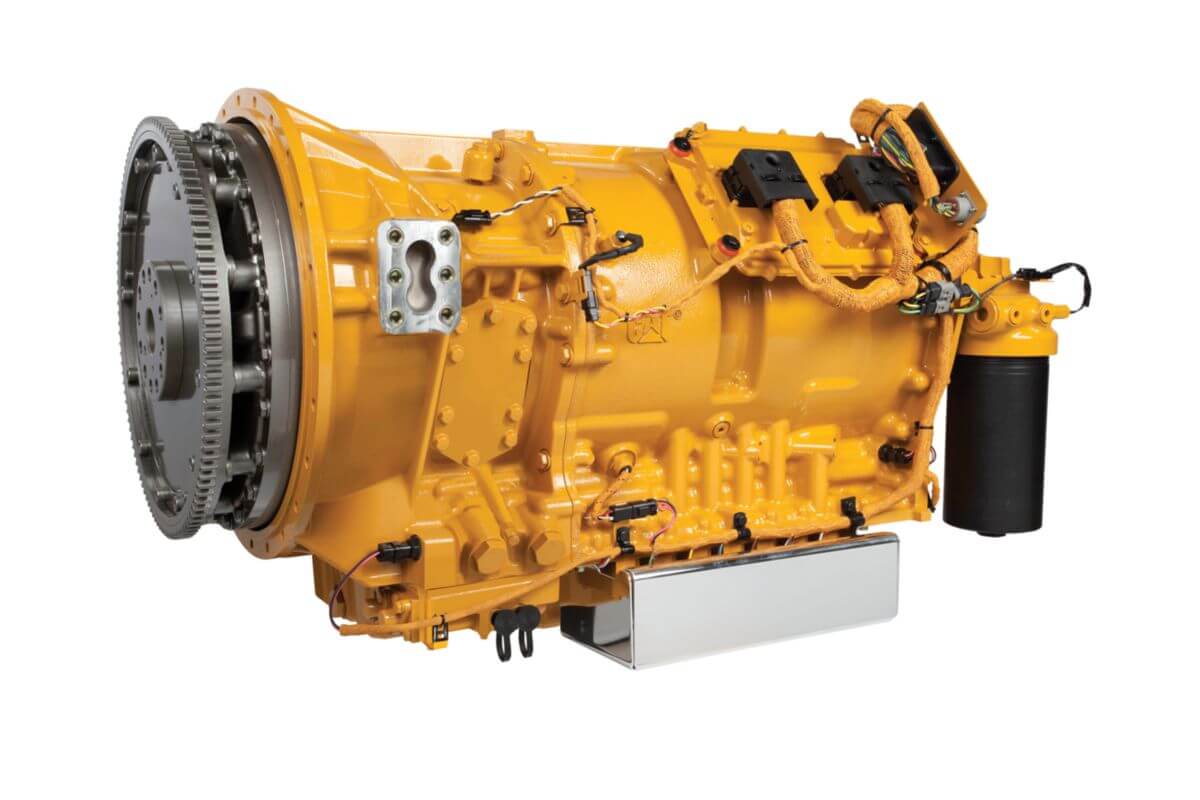

Your operation depends on the power driving it. And your transmission is as crucial to your power solution as the engine. Cat transmissions are proven in the oil and gas industry and widely known for their exceptional power, leading durability, ease of operation, and shifting options.Ideal applications for Cat CX35-P800 transmissions include workover rigs, hydraulic fracturing, kill mud pumps, coil tubing pump support, nitrogen units, acidizing units, and cementing units. CX35-P800 transmissions are optimized for use with C15 ACERT, C18 ACERT, and C27 ACERT engines (A ratings).Cat CX35-P800 oilfield transmission. Gross input power: 597 bkW (800 bhp). Configurations available include basic and integral pump drives.

Spesifikasjoner

Engine Specifications

Gross Input Power	800 BHP
Gross Peak Input Torque	2700 ft-lb
Rated Input Speed	2100 r/min
Maximum Turbine Torque	2700 ft-lb
Minimum Input Speed	600 r/min
Electrical System	24 V
Gear Type	Planetary Spur
Gears	8F/1R
1F Gear Ration	5.73
2F Gear Ration	3.57
3F Gear Ration	2.72
4F Gear Ration	1.95
5F Gear Ration	1.43
6F Gear Ration	1.00
7F Gear Ration	0.74
8F Gear Ration	0.63
1R Gear Ration	-4.46
Overall Gear Ration	9.10
