Cat CX48-P2300

Transmissions

Om Cat CX48-P2300

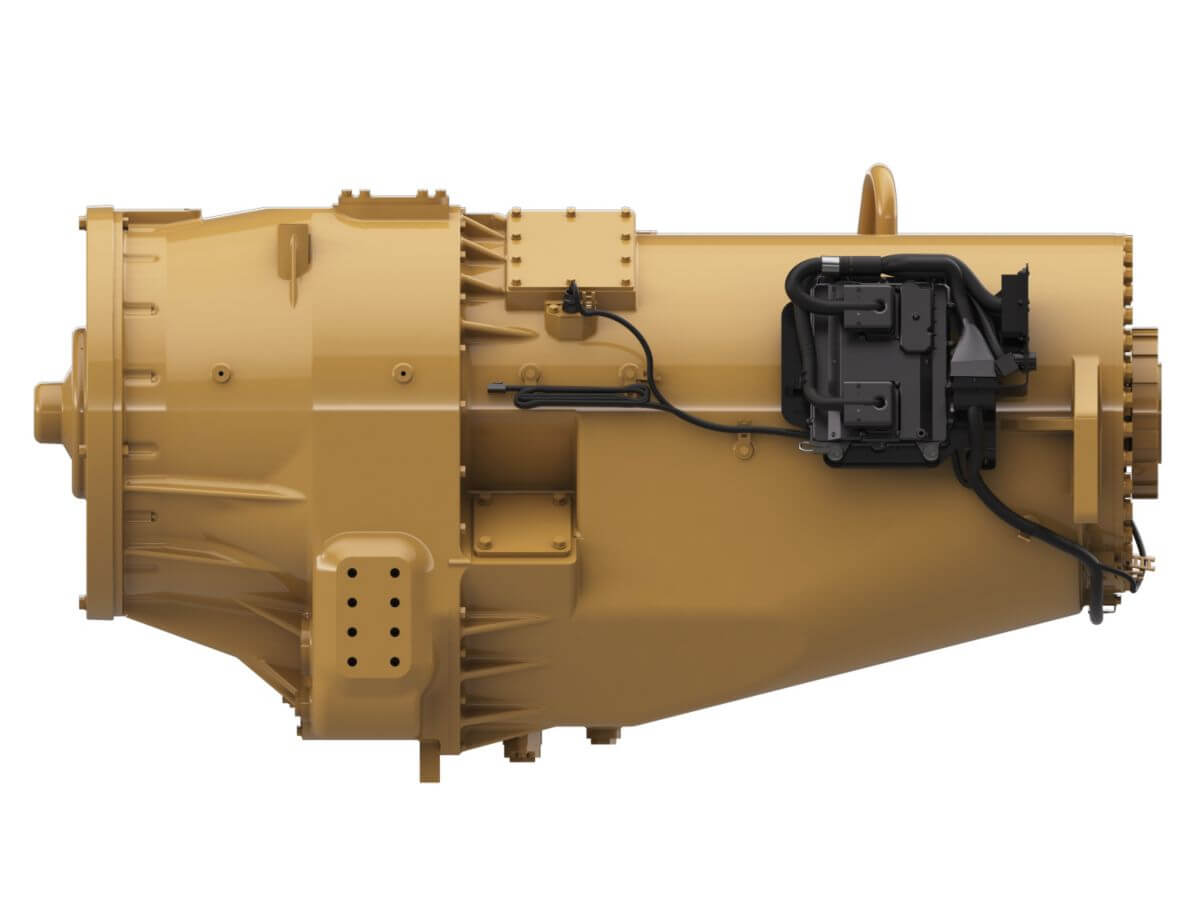

Your operation depends on the power driving it. And your transmission is as crucial to your power solution as the engine. Cat transmissions are proven in the oil and gas industry and widely known for their exceptional power, leading durability, ease of operation, and shifting options. Ideal applications for Cat CX48-P2300 transmissions include pressure pumping, kill mud pumps, coil tubing pump support, nitrogen units, and acidizing units. CX48-P2300 transmissions are optimized for use with Cat 3512B and 3512C engines as well as with Cummins QSK45, Cummins QSK50, and MTU 12V4000 engines. Cat transmissions are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. Cat CX48-P2300 oilfield transmission. Gross input power: 1715 bkW (2300 bhp).

Spesifikasjoner

Engine Specifications
Gross Input Power 2300 BHP
Gross Peak Input Torque 6656 ft-lb
Rated Input Speed 1900 r/min
Gear Type Straight Planetary Spur
Gears 8F/0R
1F Gear Ration 3.34
2F Gear Ration 2.45
3F Gear Ration 2.20
4F Gear Ration 1.81
5F Gear Ration 1.62
6F Gear Ration 1.36
7F Gear Ration 1.19
8F Gear Ration 1.00
Dimensjoner
Width 44.4 in
Height 41.3 in
Weight 3873 lb
Length 74.5 in

Egenskaper

Features

Benefits

Benefits
• Lightweight frame increases mobility • Improved durability to meet industry needs • Built upon TH55 advanced controls, providing industry-leading performance • Designed with eight usable gears ideally suited for heavy-duty frac application • Designed to simplify maintenance

Product Support Offered Through the Global Cat Dealer Network

Product Support Offered Through the Global Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure options - SOSSM program matches your oil and coolant samples against Caterpillar set standards to determine: Internal engine component condition Presence of unwanted fluids Presence of combustion by-products Site-specific oil change interval

Website

Website
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
