Cat 24

About the Cat 24

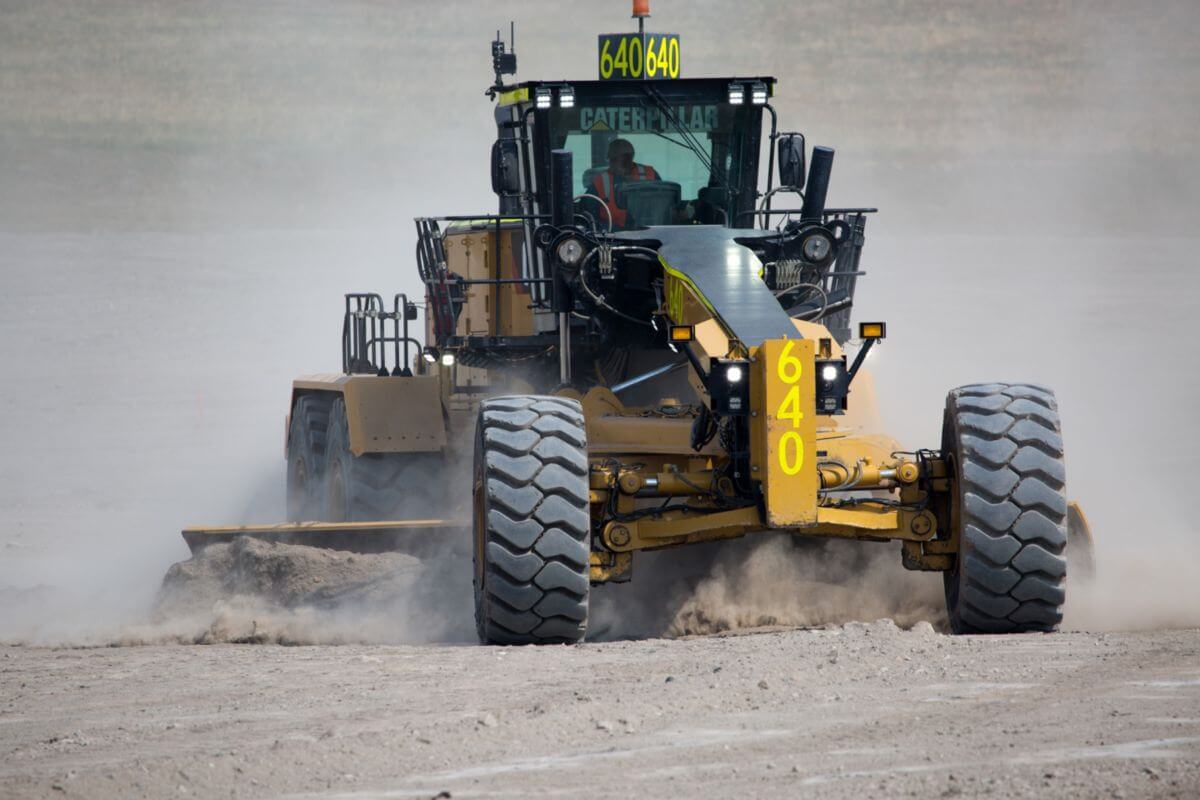

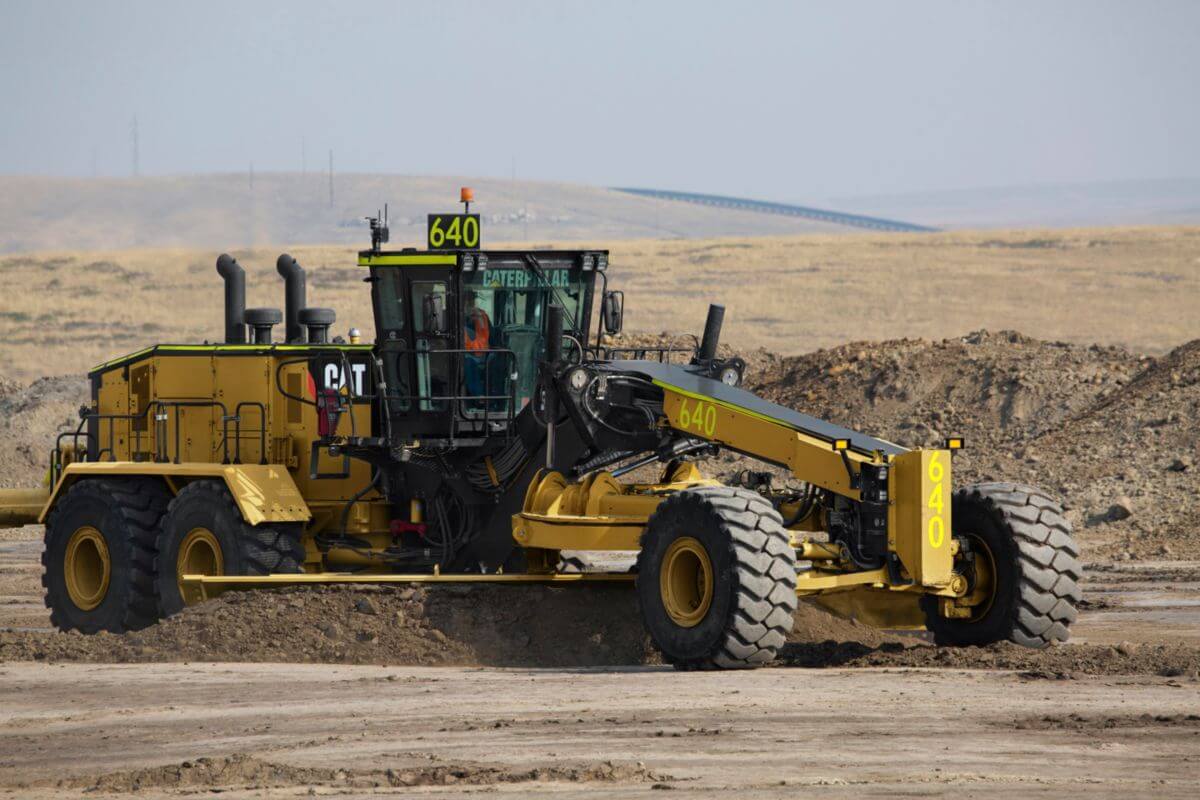

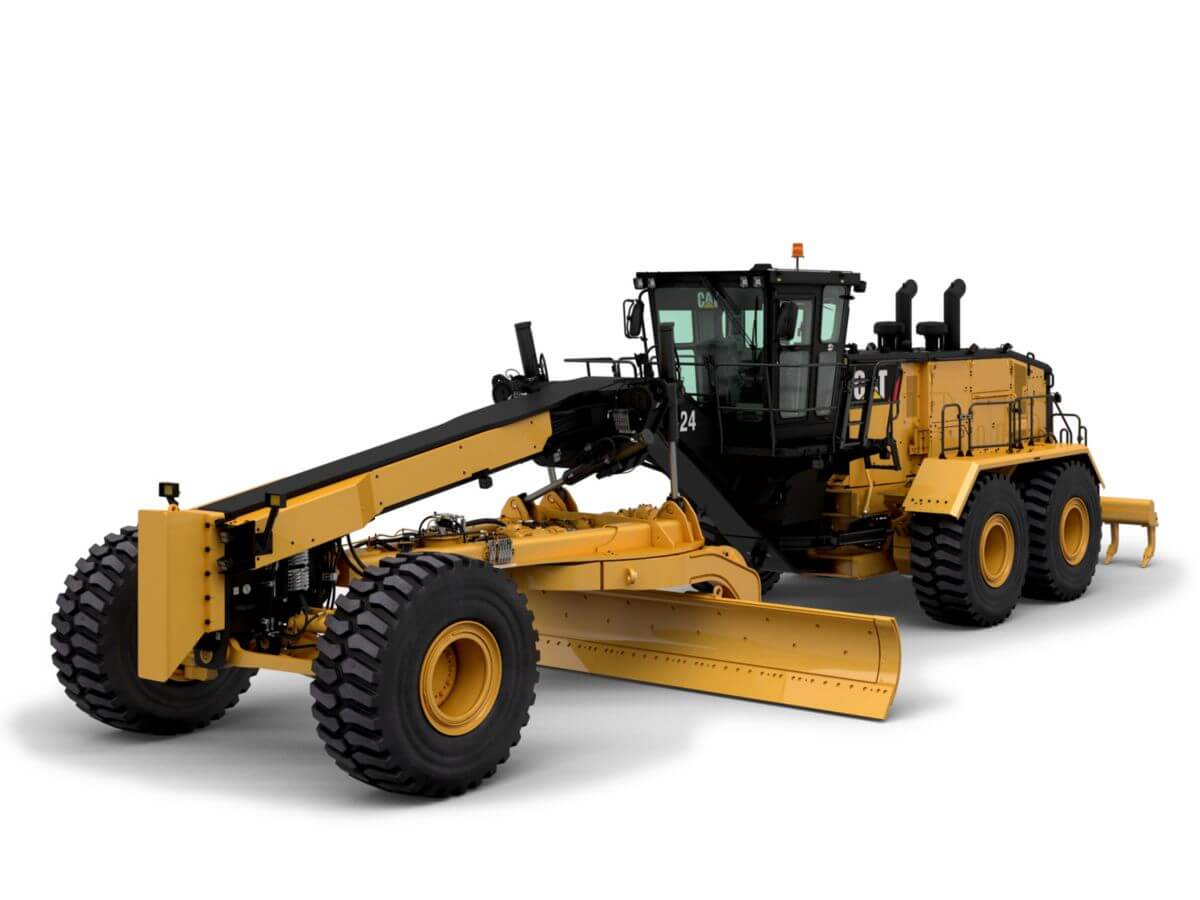

This product has expired. Maximize your minesite's productivity with the Cat® 24 motor grader. By building and maintaining haul roads, the 24 motor grader is designed to help you get more work done with lower owning and operating costs. Stay safe and comfortable with the updated cab.

Specifications

Engine

Base Power (1st Gear) - Net	535 HP
Engine Model	Cat C27 ACERT
Bore	5.4 in
Stroke	6 in
Speed at Rated Power	1,800 rpm
Base Power (1st gear) - Net (Tier 4)	535 HP
Emissions	Tier 4 Final/Stage IV or Equivalent to Tier 2/Stage II
Maximum Altitude - Full Power (Tier 2)	15000 ft
Maximum Altitude - Full Power (Tier 4)	10000 ft
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Note (2)	Optimized VHP Plus is standard for the 24.
Note (3)	Net power advertised is the power available at rated speed of 1,800 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (4)	Power as declared per ISO 14396. Rated rpm 1,800 (561 hp)
Peak Net Torque	2417 ft·lbf
Standard - Fan Speed	1,300 rpm
Standard Capability	122 °F
Torque Rise	19%
Displacement	1648 in³
Number of Cylinders	12

Front Frame Structure

Circle - Outer Diameter	104 in
Front Axle - Total Oscillation per Side	32°
Front Axle - Wheel Lean - Left/Right	18°

Moldboard

Blade Width	24 ft
Blade Height	40 in
Thickness	2 in

Blade Range

Maximum Depth of Cut	21.7 in
Blade Tip Range - Backward	0°
Blade Tip Range - Forward	40°
Circle Centershift - Left	31.7 in
Circle Centershift - Right	17.2 in
Maximum Lift Above Ground	16.1 in
Maximum Shoulder Reach Outside of Rear Tires - Left	125 in
Maximum Shoulder Reach Outside of Rear Tires - Right	125 in
Moldboard Sideshift - Left	38.2 in
Moldboard Sideshift - Right	45.3 in

Weights

Operating Weight - Typically Equipped	161695 lb
Gross Vehicle Weight - Base* - Front Axle	43858 lb
Gross Vehicle Weight - Base* - Rear Axle	113910 lb
Gross Vehicle Weight - Base* - Total	157769 lb
Gross Vehicle Weight - Typically Equipped - Front Axle	44466 lb
Gross Vehicle Weight - Typically Equipped - Rear Axle	117229 lb
Gross Vehicle Weight - Typically Equipped - Total	161695 lb
Note	*Base operating weight calculated on standard machine configuration with 29.5R29 tires, full fuel tank, operator and ROPS cab.

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.0 kg of refrigerant which has a CO2 equivalent of 2.860 metric tonne.

Features

Serviceability

The improved power train rebuild life, new modular design and new machine protection features can save you up to 2,400 servicing hours over the life of the machine.*
Cat C27 ACERT™ engine, 533 mm (21 in) transmission and lower power train provide 33 percent additional machine life before needing to be rebuilt.**
New, innovative main component modular design means they can be removed and installed quicker and easier. Transmission and cooling package can be removed up to 70 percent faster than the 24M.
Fluid Service Center provides single location at ground level for access to engine, transmission, hydraulic oil and coolant. This feature, along with clustered filters and extended service intervals, saves you maintenance time and operating costs.
Hoses and electrical harnesses are split at easily accessible bulkhead locations allowing your service technicians to work with smaller sections easier and faster.
Ok-to-Start and Critically Low Fluid monitoring systems protect your machine by providing electronic verification of fluid levels and alerting you when low fluid levels are detected, protecting your machine.

Performance

Cat C27 ACERT engine provides enhanced altitude capabilities with no derate up to 3048 m (10,000 ft) for U.S. EPA Tier 4/EU Stage IV emission standards and 4572 m (15,000 ft) for equivalent Tier 2/Stage II emissions.
An 11 percent weight increase helps provide more traction and blade down pressure than the 24M.
Consistent Power-to-the-Ground changes real-time engine power levels to offset cooling fan losses resulting in best performance at all times independent of ambient conditions.

Safety

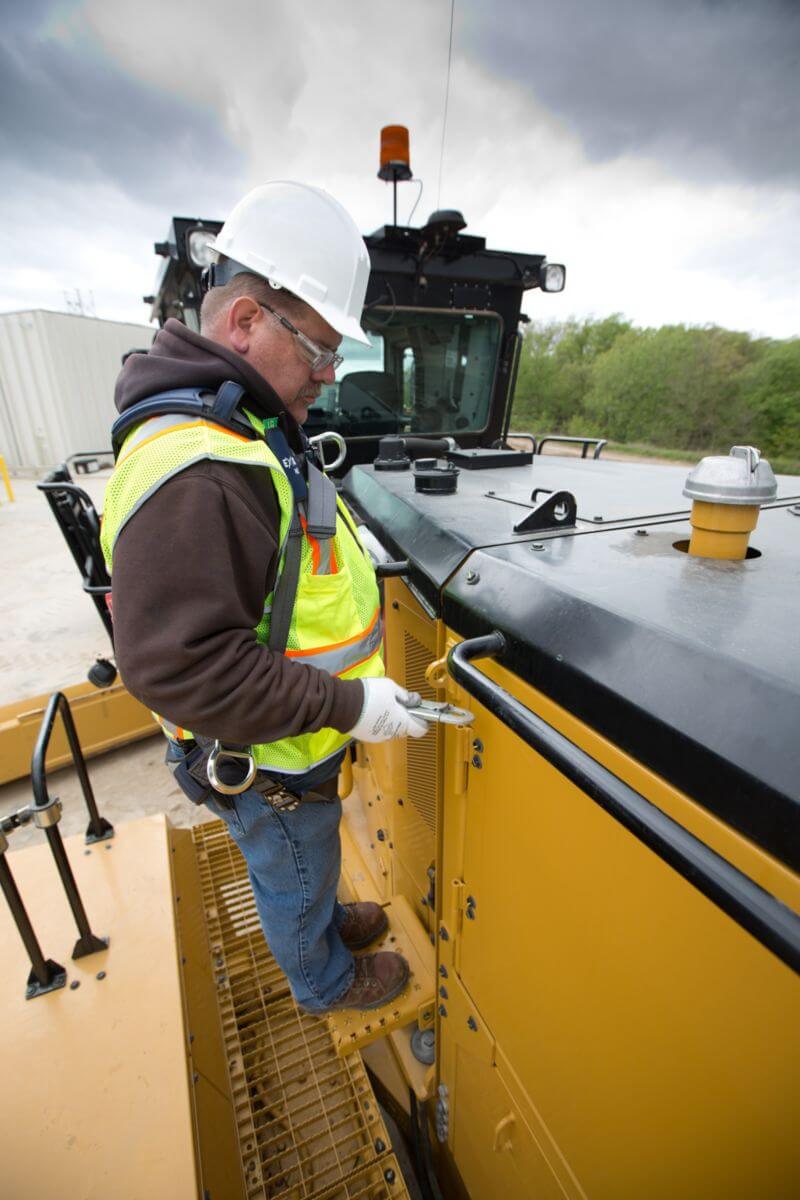

Fifteen tie-off points located around engine enclosure and cab provide secure tie off hooks protecting you and your technicians when performing service operations.
Optional Working at Heights package adds an extra layer of safety by providing handrails and hand holds to improve access and safety.
The 24 is a Fire Suppression-Ready machine which means you can easily install a fire suppression system to further protect your investment.
Standard rearview camera provides better visibility from the cab to behind the machine while optional front-facing cameras provide enhanced forward and side visibility.
Standard seat belt indicator provides visual/audible alerts when the seat belt is not in use. The 24 is pre-wired so you can easily install a beacon on top of the cab to indicate seat belt usage.

Technology

The 24 features asset protection and performance-improving technologies including: engine overspeed/underspeed, second generation steering system, articulation eStop, ripper auto stow, implements lock out and circle angle limits, to name a few.
Standard Cat GRADE with Cross Slope improves operator productivity and haul road quality and durability by helping maintain desired cross slope for appropriate water drainage by automatically controlling one side of the blade.
The Cat 24 is MineStar™ ready and includes Cat Product Link™ Elite and VIMS™ to help optimize equipment management, remote monitoring capabilities, machine availability and component life while reducing both repair cost and the risk of a catastrophic failure.

*Life assumed is 64,000 hours.

**24 power train rebuild life target is 16,000 hours.
