Cat 326F L/326F LN Hydraulic Excavator

326F L/326F LN Medium Hydraulic Excavator

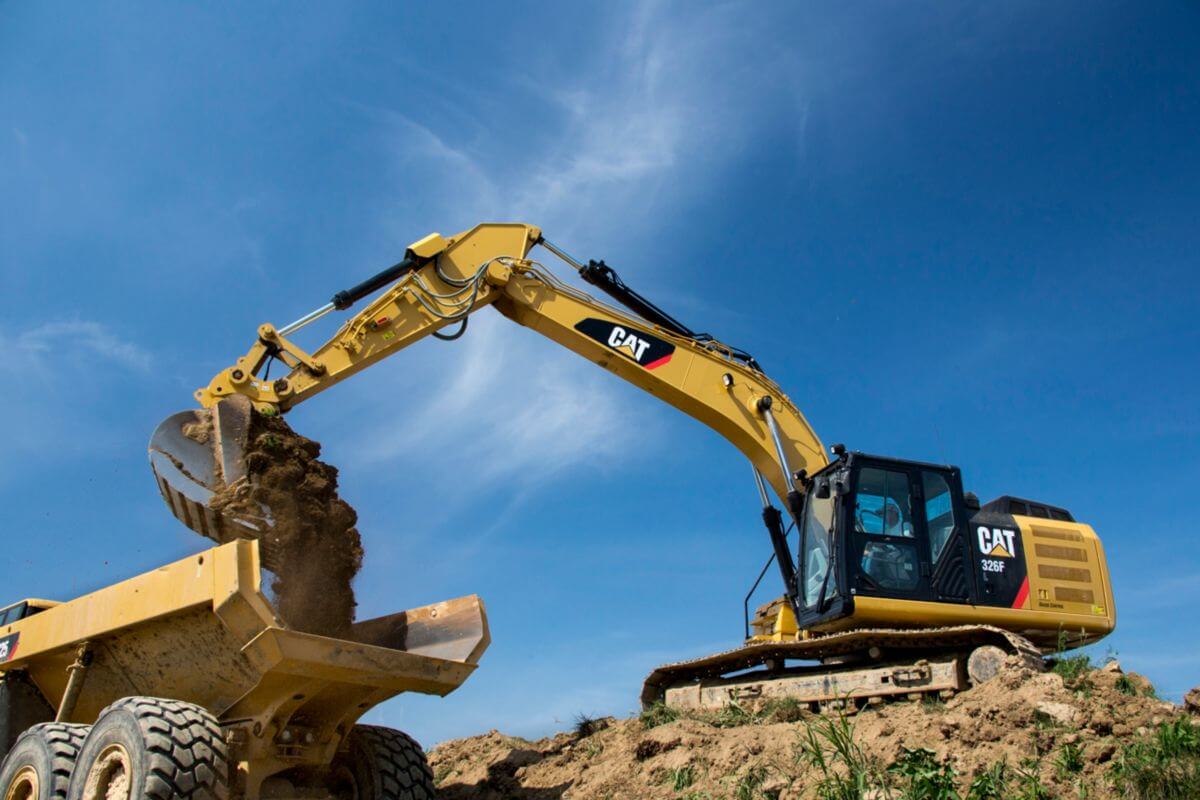

About the Cat 326F L/326F LN Hydraulic Excavator

This product has expired. The 326F L/F LN is built to keep your production numbers high and your owning and operating costs low. The machine's C7.1 ACERTâ„¢ engine and state-of-the-art hydraulic system seamlessly work together so you can move tons of material all day long with tremendous speed, precision, and efficiency.

Specifications

Engine

Net Flywheel Power	200 HP
Bore	4.13 in
Stroke	5.31 in
Displacement	428 in³
Engine RPM - Rating	1800 r/min

Weights

Operating Weight

59325 lb

Dimensions - Reach Boom - 5.9 m (19'4"); R2.95 m (9'8") Stick; 1.33 m3 (1.74 yd3) Bucket Capacity*

Shipping Height	10.58 ft
Shipping Length	33 ft
Tail Swing Radius	9.83 ft
Cab Height	9.83 ft
Counterweight Clearance	3.5 ft
Ground Clearance	1.42 ft
Length - Center of Rollers	12.58 ft
Track Gauge - Long Narrow Undercarriage	7.83 ft
Track Gauge - Long Undercarriage	8.5 ft
Track Length	15.25 ft
Undercarriage Width - Long Narrow Undercarriage - 600 mm (24") Shoes	9.83 ft
Undercarriage Width - Long Undercarriage - 600 mm (24") Shoes	10.5 ft
Undercarriage Width - Long Undercarriage - 900 mm (35") Shoes	11.42 ft

Swing

Swing Speed	9 r/min
Swing Torque	54137 ft·lbf

Drive

Maximum Drawbar Pull	50807 lbf
Maximum Travel Speed	3.3 mile/h

Hydraulic System

Main System - Maximum Pressure - Equipment - Lift Mode	5511 psi
Main System - Maximum Pressure - Equipment - Normal	5076 psi
Main System - Maximum Pressure - Swing	3973 psi
Main System - Maximum Pressure - Travel	5366 psi
Pilot System - Maximum Flow	7.9 gal/min
Pilot System - Maximum Pressure	595 psi

Service Refill Capacities

Fuel Tank Capacity	137.4 gal (US)
Cooling System	7.9 gal (US)
Engine Oil	6.3 gal (US)
Final Drive - Each	1.6 gal (US)
Hydraulic System Oil Capacity - Including Tank	75.3 gal (US)
Hydraulic Tank Oil	46.2 gal (US)
Swing Drive - Each	2.3 gal (US)
DEF Tank	10.8 gal (US)

Sound Performance

ISO 6395 - Exterior*	103 dB(A)
ISO 6396 - Inside Cab	71 dB(A)

Dimensions - VA Boom - 2.8 m (9'2") Stub/3.3 m (10'10") Fore; R2.95 m (9'8") Stick; 1.33 m3 (1.74 yd3) Bucket Capacity*

Cab Height	9.83 ft
Counterweight Clearance	3.5 ft
Ground Clearance	1.42 ft
Length - Center of Rollers	12.58 ft
Shipping Height	10.25 ft
Shipping Length	33.5 ft
Tail Swing Radius	9.83 ft
Track Gauge - Long Narrow Undercarriage	7.83 ft
Track Gauge - Long Undercarriage	8.5 ft
Track Length	15.25 ft
Undercarriage Width - Long Narrow Undercarriage - 600 mm (24") Shoes	9.83 ft
Undercarriage Width - Long Undercarriage - 600 mm (24") Shoes	10.5 ft
Undercarriage Width - Long Undercarriage - 900 mm (35") Shoes	11.42 ft

Working Ranges - Reach Boom - 5.9 m (19'4"); R2.95 m (9'8") Stick; 1.33 m3 (1.74 yd3) Bucket Capacity*

Bucket Digging Force - ISO	27202 lbf
Maximum Depth Cut for 2440 mm (8'0") Level Bottom	21.75 ft
Maximum Digging Depth	22.33 ft
Maximum Loading Height	24.42 ft
Maximum Reach - Ground Line	33.17 ft
Maximum Vertical Wall Digging Depth	17.42 ft
Minimum Loading Height	7.92 ft
Stick Digging Force - ISO	37318 lbf

Working Ranges - VA Boom - 2.8 m (9'2") Stub/3.3 m (10'10") Fore; R2.95 m (9'8") Stick; 1.33 m3 (1.74 yd3) Bucket Capacity*

Maximum Depth Cut for 2440 mm (8'0") Level Bottom	21.58 ft
Maximum Digging Depth	21.92 ft
Maximum Loading Height	27.33 ft
Maximum Reach - Ground Line	33.92 ft
Maximum Vertical Wall Digging Depth	16.75 ft
Minimum Loading Height	10.92 ft

Features

Performance

The C7.1 ACERT engine meets EU Stage IV emission standards.
Integrated electronics, fuel, air, and aftertreatment reduce fuel consumption and emissions and extend service intervals.
The engine can run on up to B20 biodiesel fuel when blended with ultra-low-sulfur diesel for fuel-saving flexibility.
Three power modes – high, standard, and eco – help manage fuel consumption.
Automatic engine speed control lowers rpm based on load for reduced fuel consumption.

Versatility

Multiple configurations are available to meet a variety of work needs: reach boom 5.9 m with R2.95 m or R2.5 m sticks, variable angle boom with R2.95 m or R2.5 m sticks, and super long reach 10.2 m boom and 7.85 m stick.
Utility and finishing work are fast and flawless with a Cat® compactor, finishing bucket or tilt bucket.
Demolition work is easy with a Cat hammer, grapple, shear, or multi-processor.

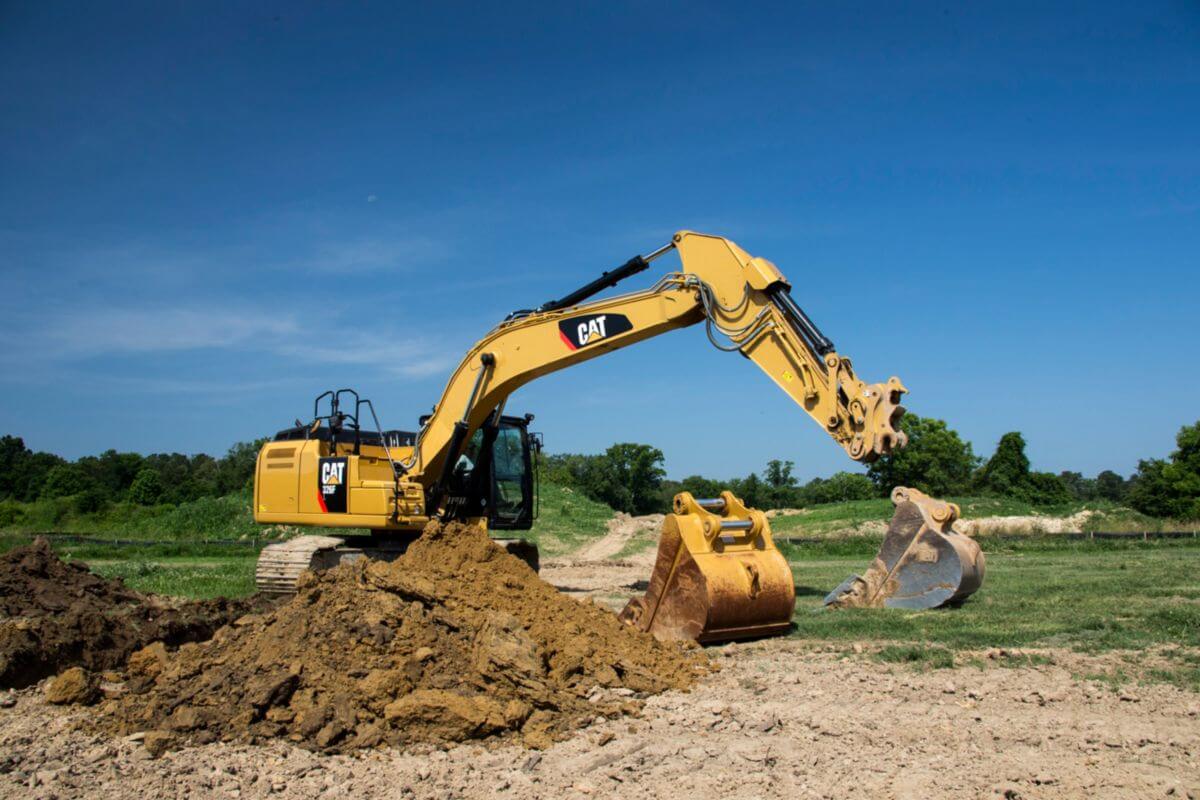

Couplers let you swap between attachments in seconds without leaving the cab.

Comfort

The full-size roll-over protective structure (ROPS) certified cab is quiet and comfortable.
Automatic climate control maintains consistent cab temperature.
Joysticks and armrests are adjustable.
Fully adjustable air suspension seat maximizes comfort levels during long periods of operation.
The LCD monitor is easy to navigate and programmable in 44 languages.

Technology

Cat Grade Control Depth and Slope helps operators work more productively and accurately with less rework.
Product Link™/VisionLink® connects owners to their equipment, providing access to machine location, hours, fuel consumption, idle time, events, and diagnostic codes.

Maintenance

Routine maintenance items like grease points and fluid taps are reachable at ground level.
The service door design helps prevent debris entry and doors latch in place to enhance ease of service.
The cooling system is efficient to make maintenance easy.

Durability

The heavy-duty X-frame structure enhances service life.
Booms and sticks are built for long service.
Greased track link between pins and bushings increases undercarriage life and reduces noise.
The high-pressure fuel system with high-pressure pump and injectors enhance reliability.

Safety

The roll-over protective structure (ROPS) cab contributes to safe working.
Handrails, anti-skid plating, and countersunk bolts to reduce slipping and tripping.
Mirrors, a standard rearview camera, and a sideview camera enhance visibility.
The ground-level fuel cutoff switch shuts down the engine in an emergency.
