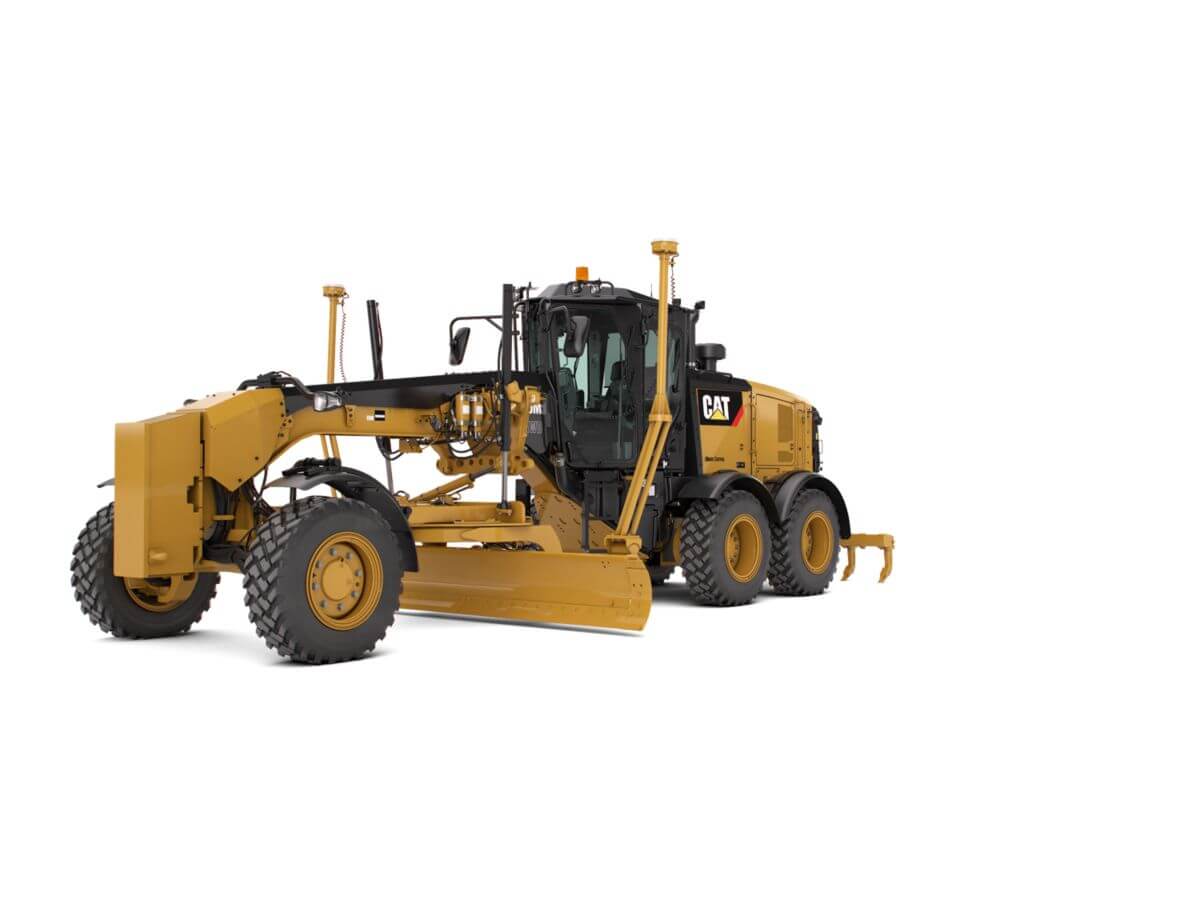

This product has expired. The M Series 3 brings the latest emissions reduction technology to the most durable, productive and comfortable motor graders on the market. From building roads to maintaining them, M Series Motor Graders are designed to help you get more work done in less time. Outstanding durability, unprecedented operator comfort and ease of service help to maximize your return on investment. M Series 3 Motor Graders meet U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Base Power (1st Gear) - Net | 200 HP |
Bore | 4.5 in |
Stroke | 5.9 in |
Base Power (1st Gear) - Net - Metric | 202 HP |
Maximum Torque - VHP Plus | 920 lb/ft |
Standard Capability | 109 °F |
VHP Plus - Gear - Net Power - Forward 1st | 200 HP |
VHP Plus - Gear - Net Power - Forward 2nd | 210 HP |
VHP Plus - Gear - Net Power - Forward 3rd | 220 HP |
VHP Plus - Gear - Net Power - Forward 4th | 231 HP |
VHP Plus - Gear - Net Power - Forward 5th | 236 HP |
VHP Plus - Gear - Net Power - Forward 6th | 241 HP |
VHP Plus - Gear - Net Power - Forward 7th | 247 HP |
VHP Plus - Gear - Net Power - Forward 8th | 252 HP |
VHP Plus - Gear - Net Power - Reverse 1st | 200 HP |
VHP Plus - Gear - Net Power - Reverse 2nd | 210 HP |
VHP Plus - Gear - Net Power - Reverse 3rd-6th | 220 HP |
Displacement | 567.5 in³ |
Derating Altitude | 10000 ft |
High - Ambient Capability | 122 °F |
Brakes - Service - Surface Area | 3565 in² |
Pump Output | 55.7 gal/min |
Maximum System Pressure | 3500 psi |
Reservoir Tank Capacity | 16.9 gal (US) |
Standby Pressure | 885 psi |
Top Speed - Forward | 29 mile/h |
Top Speed - Reverse | 23 mile/h |
Turning Radius - Outside Front Tires | 25.59 ft |
Forward - 1st | 2.5 mile/h |
Forward - 2nd | 3.4 mile/h |
Forward - 3rd | 5 mile/h |
Forward - 4th | 6.9 mile/h |
Forward - 5th | 10.6 mile/h |
Forward - 6th | 14.5 mile/h |
Forward - 7th | 19.9 mile/h |
Forward - 8th | 29 mile/h |
Reverse - 1st | 2 mile/h |
Reverse - 2nd | 3.7 mile/h |
Reverse - 3rd | 5.4 mile/h |
Reverse - 4th | 8.4 mile/h |
Reverse - 5th | 15.7 mile/h |
Reverse - 6th | 23 mile/h |
Fuel Capacity | 104 gal (US) |
Cooling System | 15 gal (US) |
Hydraulic System - Total | 26.4 gal (US) |
Hydraulic System - Tank | 16.9 gal (US) |
Diesel Exhaust Fluid | 5.8 gal (US) |
Transmission - Differential - Final Drives | 18.5 gal (US) |
Engine Oil | 7.9 gal (US) |
Tandem Housing - Each | 20 gal (US) |
Front Wheel Spindle Bearing Housing | 0.13 gal (US) |
Circle Drive Housing | 1.8 gal (US) |
Drawbar - Width | 3 in |
Circle - Diameter | 60.2 in |
Circle - Blade Beam Thickness | 1.6 in |
Drawbar - Height | 6 in |
Circle - Height | 5.4 in |
Front Frame Structure - Height | 12.6 in |
Front Frame Structure - Width | 12 in |
Drawbar - Thickness | 0.5 in |
Front-Top/Bottom Plate - Width | 12 in |
Front-Top/Bottom Plate - Thickness | 0.87 in |
Front Axle - Height to Center | 23.5 in |
Height | 19.9 in |
Width | 7.9 in |
Sidewall Thickness - Inner | 0.63 in |
Sidewall Thickness - Outer | 0.71 in |
Drive Chain Pitch | 2 in |
Wheel Axle Spacing | 60 in |
Blade Width | 12 ft |
Moldboard - Height | 24 in |
Moldboard - Thickness | 0.87 in |
Arc Radius | 16.3 in |
Throat Clearance | 6.5 in |
Cutting Edge Width | 6 in |
Cutting Edge Thickness | 0.6 in |
End Bit - Width | 6 in |
End Bit - Thickness | 0.6 in |
Blade Pull - Base GVW | 25732 lb |
Blade Pull - Maximum GVW | 34262 lb |
Blade Down Pressure - Base GVW | 16480 lb |
Blade Down Pressure - Maximum GVW | 29308 lb |
Moldboard - Blade Width | 12 ft |
Circle Centershift - Right | 28.7 in |
Circle Centershift - Left | 27.4 in |
Moldboard Sideshift - Right | 26 in |
Moldboard Sideshift - Left | 20.1 in |
Maximum Shoulder Reach Outside of Tires - Right | 77.9 in |
Maximum Shoulder Reach Outside of Tires - Left | 70.5 in |
Maximum Lift Above Ground | 18.9 in |
Maximum Depth of Cut | 28.1 in |
Ripper Shank Holder Spacing | 21 in |
Ripping Depth - Maximum | 16.8 in |
Penetration Force | 20812 lb |
Pry-Out Force | 27794 lb |
Machine Length Increase, Beam Raised | 40.6 in |
Front, V-Type - Working Width | 47.4 in |
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing | 4.6 in |
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum | 18.4 in |
Front, V-Type, 5 or 11 Tooth - Working Width | 40.6 in |
Mid, V-Type - Scarifier Shank Holder Spacing | 4.6 in |
Mid, V-Type - Scarifying Depth, Maximum | 11.5 in |
Mid, V-Type - Working Width | 46.6 in |
Rear - Scarifying Depth, Maximum | 16.8 in |
Rear - Working Width | 84 in |
Rear - Scarifier Shank Holder Spacing | 10.5 in |
Operating Weight - Typically Equipped | 43950 lb |
Gross Vehicle Weight - Maximum - Front Axle | 17075 lb |
Gross Vehicle Weight - Maximum - Rear Axle | 38069 lb |
Operating Weight - Typically Equipped - Front Axle | 12549 lb |
Operating Weight - Typically Equipped - Rear Axle | 31401 lb |
Gross Vehicle Weight - Base - Front Axle | 9601 lb |
Gross Vehicle Weight - Base - Rear Axle | 28590 lb |
Gross Vehicle Weight - Maximum - Total | 55144 lb |
Gross Vehicle Weight - Base - Total | 38191 lb |
Operating Weight - Typically Equipped - Total | 43950 lb |
Height - Top of Cab | 130 in |
Length - Counterweight to Ripper | 399 in |
Width - Outside Front Tires | 98.9 in |
Length - Front Axle to Mid Tandem | 241 in |
Length - Front Tire to Rear of Machine | 351 in |
Length - Front Axle to Moldboard | 100 in |
Length - Between Tandem Axles | 60 in |
Width - Outside Rear Tires | 98.9 in |
Width - Tire Center Lines | 84.3 in |
Height - Front Axle Center | 23.5 in |
Height - Exhaust Stack | 128 in |
Height - Top of Cylinders | 120 in |
Ground Clearance - Rear Axle | 13.3 in |
