Cat MH3022

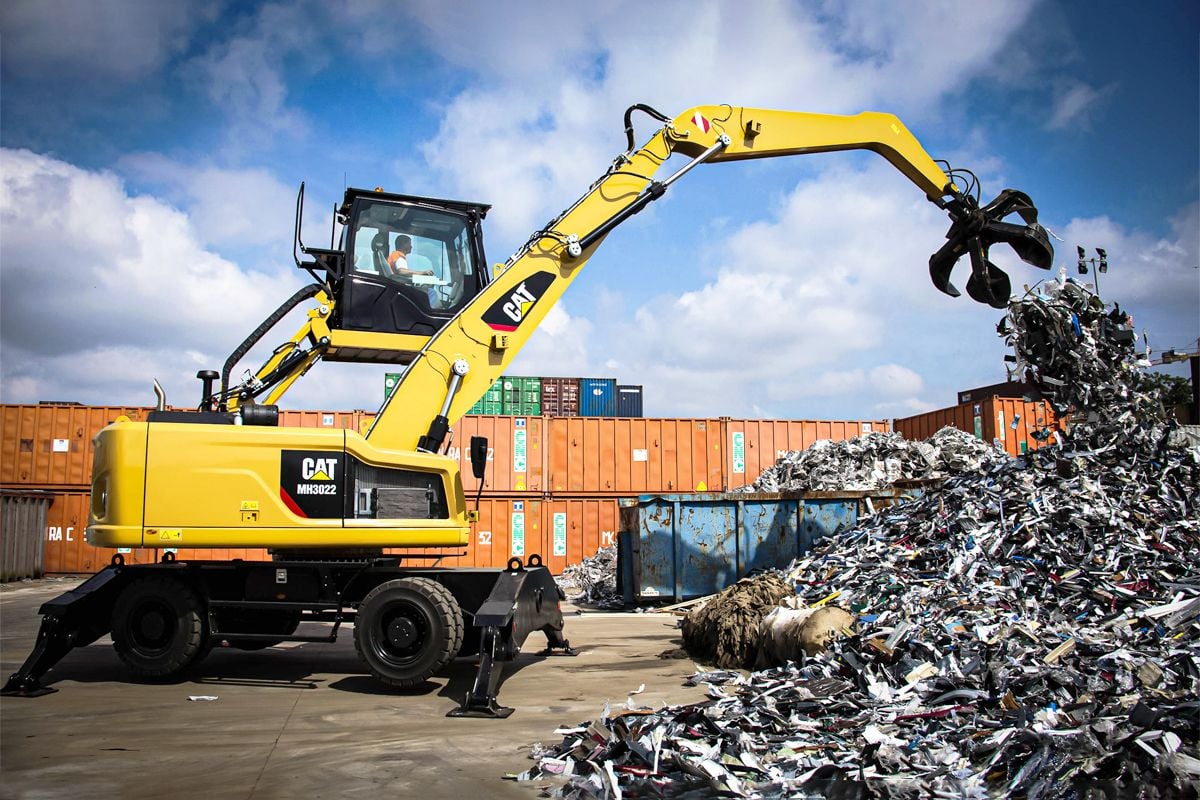

MH3022 Wheel Material Handler Working at a Scrap Metal Recycling Operation

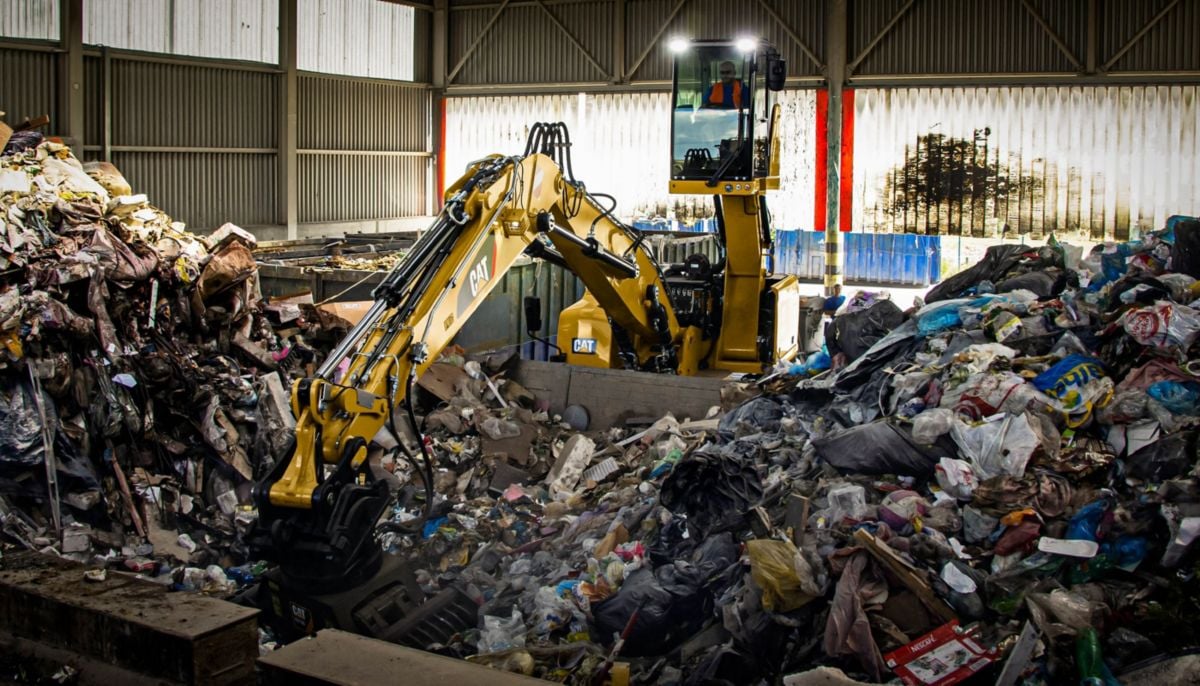

MH3022 Wheel Material Handler Working at a Waste Recycling Operation

About the Cat MH3022

This product has expired. With material handling equipment, success depends on productivity and low operating costs. The MH3022 is a purpose-built material handler, designed for industrial and recycling applications. It's an agile solution for all space-restricted areas and a perfect fit for indoor sorting and waste applications.

Specifications

Engine

Engine Model	Cat C7.1
Emissions	Tier 4 Final/Stage IV
Maximum Gross - ISO 14396	129.4 kW (174 hp [176 hp/PS*])
Displacement	427.8 in³
Bore	4.1 in
Maximum Torque - 1,400 rpm	612 ft·lbf
Stroke	5.3 in
Maximum Net Power - SAE J1349/ISO 9249	126 kW (169 hp [171 hp/PS*])
Cylinders	6 in-line
Note	*Metric values.

Weights

Operating Weight	21 815-22 930 kg (48,094-50,552 lb)
With MH Boom (6400 mm/20'1") - MH Undercarriage and Straight Stick	50552 lb
With MH Boom (6400 mm/20'1") - MH Undercarriage and 4900 mm/16'1" Drop Nose Stick	49714 lb
With Short MH Boom (5350 mm/17'6") - MH Undercarriage and Straight Stick	49979 lb
Counterweights - Standard	8157 lb
With One-Piece Boom - MH Undercarriage and Industrial Stick	48094 lb
With VA Boom - MH Undercarriage and 2800 mm/9'2" Digging Stick	50012 lb
With Short MH Boom (5350 mm/17'6") - MH Undercarriage and 4500 mm/14'9" Drop Nose Stick	49031 lb
Counterweights - Optional	9259 lb
Note	Operating weight is with solid tires, standard counterweight, MH 2.55 m/8'4" undercarriage, full fuel tank, operator and work tool (1400 kg/3,086 lb). Weight varies depending on configuration.

Swing Mechanism

Swing Speed	8.5 r/min
Maximum Swing Torque	39828 ft·lbf

Service Refill Capabilities

Hydraulic System Capacity	66.8 gal (US)
Hydraulic Tank Capacity	40.4 gal (US)
Diesel Exhaust Fluid Tank	9.1 gal (US)
Cooling System	12.3 gal (US)
Fuel Tank	87 gal (US)

Undercarriage

Axle Clearance - MH 2.55 m/8'4" Undercarriage	12.8 in
Oscillation Axle Angle	±5 degrees

Transmission

Maximum Travel Speed	16 mile/h
Creeper Speed - 2nd Gear	6.2 mile/h
Maximum Travel Speed - 2nd Gear	16 mile/h
Maximum Gradeability (23 500 kg/51,810 lb)	65%

Hydraulic System - Maximum Flow

Auxiliary Circuit - High Pressure	66 gal/min
Implement/Travel Circuit	76 gal/min
Swing Mechanism	28.5 gal/min
Auxiliary Circuit - Medium Pressure	13 gal/min

Working Ranges - Without Work Tool: MH Boom (6.40 m/20'1

Maximum Reach	36.08 ft
Note	Working Ranges with VA and One-Piece Booms can be found in the M320F brochure. 4500 mm/14'9" Drop Nose Stick also available with the 6400 mm/20'1" MH Boom.
Maximum Depth	7.17 ft
Maximum Height	39 ft
Maximum Reach	33.92 ft
Maximum Depth	4.83 ft
Maximum Height	37.75 ft
Note	Working Ranges with VA and One-Piece Booms can be found in the M320F brochure. 4500 mm/14'9" Drop Nose Stick also available with the 6400 mm/20'1" MH Boom.

Maximum Dimensions - Approximate

Maximum Shipping Width	8.33 ft
Maximum Shipping Height	11.92 ft

Hydraulic System - Maximum Pressure

Implement Circuit - Normal/Heavy Lift	35 000/37 000 kPa (5,076/5,366 psi)
Swing Mechanism	4496 psi
Auxiliary Circuit - Medium Pressure	3046 psi
Auxiliary Circuit - High Pressure	5076 psi
Travel Circuit	5076 psi

Working Ranges - without Work Tool: Short MH Boom (5.35 m/17'6

Note	Working Ranges with VA and One-Piece Booms can be found in the M320F brochure. 4500 mm/14'9" Drop Nose Stick also available with the 6400 mm/20'1" MH Boom.
Maximum Depth	6.42 ft
Maximum Reach	31.5 ft
Maximum Height	35 ft

Working Ranges - Without Work Tool: Short MH Boom (5.35 m/17'6

Maximum Reach	30.58 ft
Note	Working Ranges with VA and One-Piece Booms can be found in the M320F brochure. 4500 mm/14'9" Drop Nose Stick also available with the 6400 mm/20'1" MH Boom.
Maximum Depth	5.42 ft
Maximum Height	34.25 ft

Features

PERFORMANCE AND PRODUCTIVITY

Powerful and efficient Cat® C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
Dedicated swing pump allows faster and smoother combined movements.
Efficient hydraulic system provides precision and speed, while preserving fuel consumption.

PERFORMANCE WITH LESS FUEL

Fuel consumption reduced up to 10%*, with no impact on your productivity to lower operating costs.
Built-in fuel savers eliminate waste thanks to auto engine speed control, engine idle shutdown and enhanced eco mode.
High cooling efficiency axial fan keeps operating temperatures and costs low.

* Versus previous D MH Series.

BUILT-IN SAFETY FEATURES

Blue Angel certified with low vibrations and sound levels.
Options for specific applications – thicker high impact and impact resistant windshields fulfill respectively the EN356 P8B and P5A standards. The advanced cab filtration system almost completely eliminates dust entry and air contamination.
Great visibility – large glass areas, LED lights for all working lights and cameras, with both displays split on the same screen.
Direct access to the cab is possible when not aligned with the upper frame thanks to new steps on the front and rear of the undercarriage.

DESIGNED FOR OPERATORS

Enjoy integrated technologies – they act transparently. Features like the Auto Brake and Axle Lock or Automatic Travel lock remove some of the tasks you had to do.
Smart technologies – they help boost your productivity while making operation easier; try the optional SmartBoom™ or Joystick steering.
Our cabs are unique – it's a cab just for you where everything can be adjusted, from the seat to the work tools controls assignment on joysticks and pedal.

LOWER MAINTENANCE COSTS

Ground level access for routine maintenance items like fuel and engine oil filters or fluid taps.
Reduced maintenance – automatic features like electric lift pump and lubrication system along with long greasing intervals.

EXPAND YOUR CAPABILITIES

Various configurations – A wide choice of front linkage lengths including digging, straight and drop nose sticks. The new 4.5 m (14'9") drop nose stick is a perfect addition for indoor applications while allowing transportation without stick removal.
Increase your efficiency with the front push blade to clear the ground from materials commonly encountered in industrial applications.
Various Waste Handling (WH) packages options – the “fine mesh” package protects the cooling hood from dust and includes an engine air precleaner. The adjustable reversing fan and vibrating grill of the WH package add more protection.
Various attachments to tackle all kinds of jobs, from various grapple types to the 15 kW Cat generator.

TECHNOLOGY THAT PUSHES PROFITS

Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time and events, and diagnostic codes.
