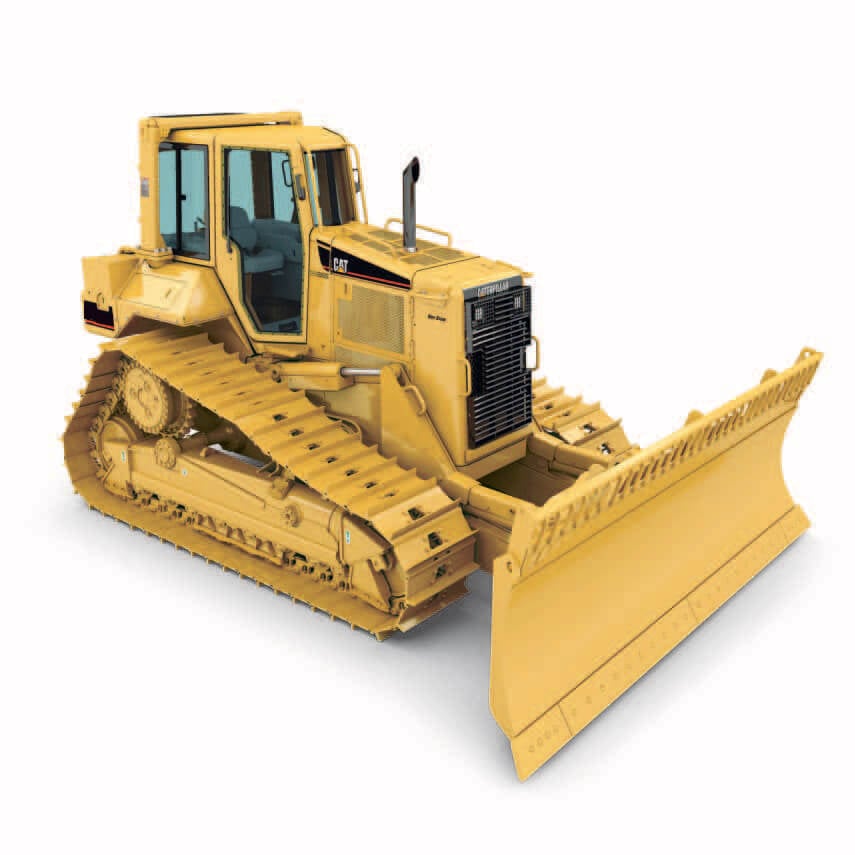

Cat D6N WH Waste Handler

Waste Handling Dozers

About the Cat D6N WH Waste Handler

From pushing trash to spreading cover, and cell construction to closing, Cat® Waste Handlers are designed and manufactured from the frame up to take on the demands of landfill work.

Specifications

Engine

Flywheel Power	182 HP
Bore	4.1 in
Stroke	5.3 in
Displacement	433 in³
Net Power - 1,800 rpm - ISO 9249/SAE J1349	166 HP
Net Power - 1,800 rpm - ISO 9249/SAE J1349 (DIN)	168 HP
Net Power - Maximum - ISO 14396 at 2,200 rpm	178 HP
Net Power - Maximum - SAE J1995 at 2,200 rpm	182 HP
Net Power - Maximum - ISO 14396 (DIN) at 2,200 rpm	180 HP

Weights

Operating Weight	40818 lb
Operating Weight - LGP Waste Handler	44749 lb
Operating Weight - XL Waste Handler	40818 lb
Shipping Weight - LGP Waste Handler	43642 lb
Shipping Weight - XL Waste Handler	40029 lb

Dimensions - LGP

Ground Clearance	18.8 in
Ground Pressure	4.5 psi
Height - Grouser	2.2 in
Length - Basic Tractor - With Drawbar*	166.2 in
Length - Track on Ground	122.7 in
Machine Height - Grouser Tip - Exhaust Stack	126.9 in
Track Gauge	85 in
Width - Tractor - Without Trunnions	118 in

Dimensions - XL

Ground Clearance	14.3 in
Ground Pressure	6.7 psi
Height - Grouser	2.6 in
Length - Basic Tractor - With Drawbar*	157.3 in
Length - Track on Ground	101.6 in
Machine Height - Grouser Tip - Exhaust Stack	122.4 in
Track Gauge	74.4 in
Width - Tractor - Without Trunnions	98.4 in

Blades - Capacity (SAE J1265)

LGP VPAT	5.1 yd³
LGP VPAT - Landfill*	7.39 yd³
XL SU	5.6 yd³
XL VPAT	4.3 yd³
XL VPAT Landfill*	8.29 yd³

Blades - Width - Over End Bits

LGP VPAT	13.38 ft
LGP VPAT - Landfill*	12.89 ft
XL SU	10.33 ft
XL VPAT	10.75 ft
XL VPAT Landfill*	10.23 ft

Transmission

0.5 Forward	1.6 mile/h
0.5 Reverse	1.9 mile/h
0.7 Forward	1.7 mile/h
0.7 Reverse	2.1 mile/h
1.5 Forward	2.7 mile/h
1.5 Reverse	3.4 mile/h
1.7 Forward	3 mile/h
1.7 Reverse	3.7 mile/h
2.5 Forward	4.7 mile/h
2.5 Reverse	5.9 mile/h
2.7 Forward	5.2 mile/h
2.7 Reverse	6.5 mile/h
1.0 Forward	2.1 mile/h
2.0 Forward	3.6 mile/h
3.0 Forward	6.1 mile/h
1.0 Reverse	2.5 mile/h
2.0 Reverse	4.4 mile/h
3.0 Reverse	7.6 mile/h

Features

Durability

Specialized guarding throughout the machine helps protect major components like the chassis, fuel tank and hydraulic tank from impact and airborne debris.
Multi-layer final drive guards help keep dirt and debris away from the Duo-Cone™ seal to protect final drive oil.
Pivot shaft seal guards to help prevent debris from entering and damaging seals.
Striker bars help prevent debris from damaging the machine, and added seals help reduce the amount of material entering engine and transmission compartments.
Tilt cylinder with rotating bushing type design help wrapping materials to roll off hoses.
Heavy duty hinged radiator guard protects radiator and fan from penetration by material coming straight in or from under the blade.
Cooling system designed for high debris environments, with automatic reversing fan and swing-out access for cleanout.
Laminated thermal shields and insulated Clean Emissions Module.
Hinged belly guard for easy cleaning.
Landfill blades and center-hole track shoes help you optimize your waste handler for the job.
Lights mounted up and away from main debris area for protection, while still giving you plenty of light on the work area.

Performance

New transmission with a lock-up clutch torque converter automatically selects the drive mode best suited to your application.
Up to 15% improvement in fuel efficiency and 10% more productivity* in most applications.
Enhanced Auto Shift (Standard) helps save fuel by automatically upshifting/downshifting to maintain the most efficient gear based on load. Three different settings, 3-speed, 6-speed and fine adjustment mode, allow you to optimize tractor performance for waste applications.
Comfortable, quiet operator station with excellent visibility and air handling features to help keep dust out/provide air filtration.
Low effort, responsive controls for precision and ease of operation.
Selectable electro-hydraulic maps let you set implement response to match operator preferences and application.
Rear vision camera available to enhance visibility behind the machine.
Meets U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final emission standards with emissions technology that is transparent – no action required from the operator, no stopping for regeneration.

*Compared to previous D6N model.

Cat Connect Technology

Cat GRADE with Slope Assist (Standard) automatically maintains pre-established blade angles to save time, increase finish quality and reduce operator effort, especially for cover work. Experienced operators can work more productively; less experienced operators can achieve better quality results more quickly.
Cat Slope Indicate (Standard) shows cross slope and mainfall on the primary machine display to help operators work more confidently.
Cat GRADE with 3D (Optional – available late 2016) is an integrated grade control system that helps operators grade with more accuracy and efficiency. Antennas mount on top of the cab – not on the blade – so they are safely out of the way of landfill debris.
Cat AccuGrade™ (Optional) machine control and guidance option helps operators improve productivity and accuracy by as much as 50% over conventional methods.
Cat AccuGrade Ready Option (ARO) (Optional) allows you to easily install or upgrade to Cat AccuGrade 2D and 3D grade-control systems to add versatility and resale value to your machine.
Remote monitoring with Product Link™/VisionLink® helps you manage your fleet more effectively and profitably.
