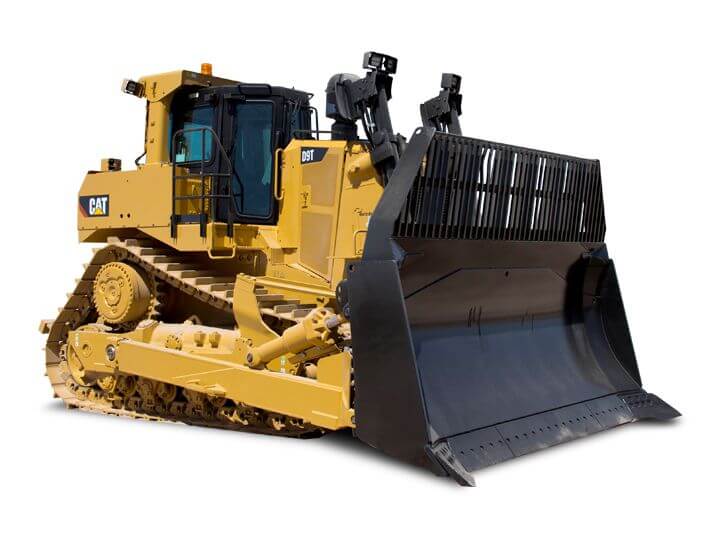

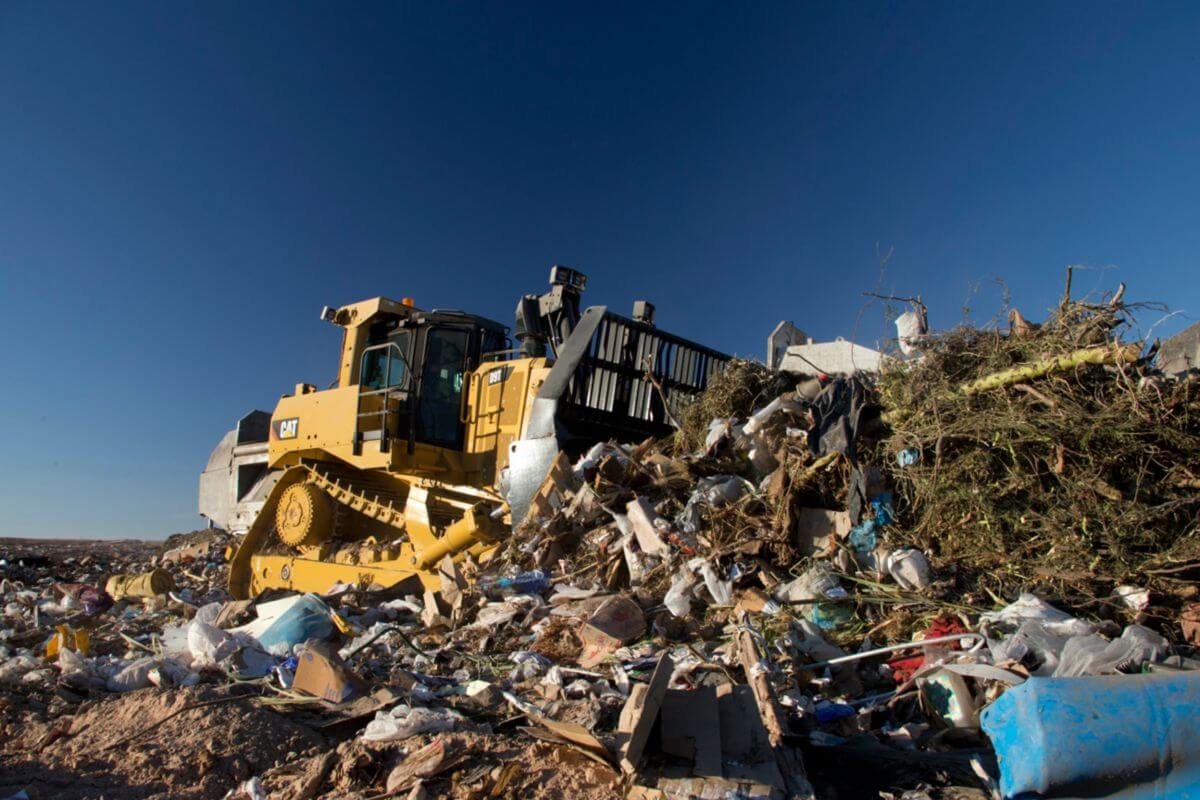

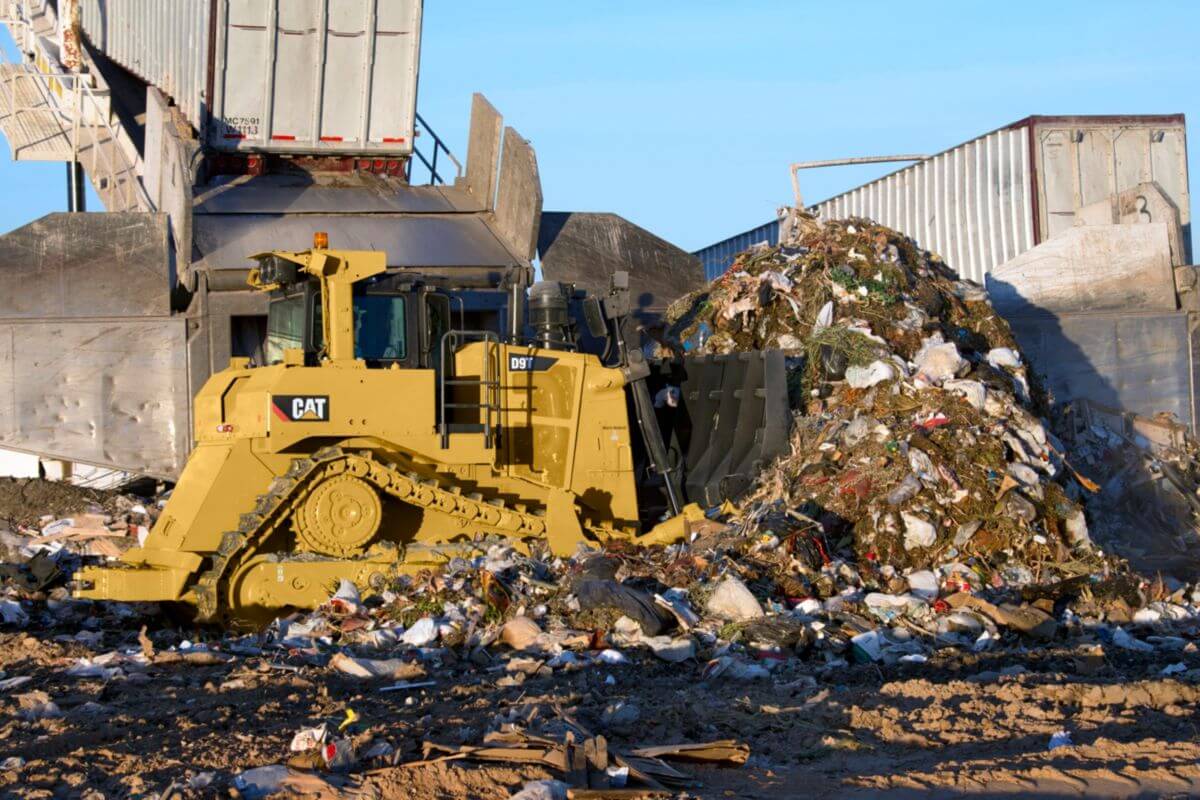

Factory installed guarding and debris-resistant features help protect vital machine components to maximize service life and uptime. Its versatility makes the D9T Waste Handler a powerful and highly maneuverable machine for dozing and compacting waste, as well as an ideal fine grading machine to place just the right depth of cover material.
Engine Model | Cat® C18 ACERT™ |
Flywheel Power | 436 HP |
Global Emissions | U.S. EPA Tier 4 Final/EU Stage IV; Tier 2/Stage II Equivalent; Tier 3/Stage IIIA Equivalent |
Net SAE J1349/ISO 9249 - Tier 2/Stage II Equivalent (Serial Number Prefix: TWG) | 410 HP |
Net SAE J1349/ISO 9249 - Tier 3/Stage IIIA Equivalent (Serial Number Prefix: TWG) | 410 HP |
Net SAE J1349/ISO 9249 - Tier 4 Final/Stage IV (Serial Number Prefix: REX) | 436 HP |
Serial Number Prefix: REX | 110471 lb |
Serial Number Prefix: TWG | 109705 lb |
Operating Weight | 110471 lb |
Capacity | 37.6 yd³ |
Height | 9.3 ft |
Note (1) | **Including standard end bits. |
Note (2) | ***Weight includes: trash rack, edges and end bits. |
Weight*** | 11499 lb |
Width** | 14.3 ft |
Capacity | 43.8 yd³ |
Height | 9.3 ft |
Note (1) | **Including standard end bits. |
Note (2) | ***Weight includes: trash rack, edges and end bits. |
Weight*** | 12974 lb |
Width** | 15.4 ft |
Capacity | 50.8 yd³ |
Height | 9.1 ft |
Note (1) | *Available through Cat Work Tools. |
Note (2) | **Including standard end bits. |
Note (3) | ***Weight includes: trash rack, edges and end bits. |
Weight*** | 10756 lb |
Width** | 18.1 ft |
Bore | 5.7 in |
DEF Tank Capacity | 9.5 gal (US) |
Displacement | 1106 in³ |
Engine Emission Standards | Tier 4 Final/Stage IV |
Engine Model | C18 ACERT |
Fuel Tank Refill Capacity | 217 gal (US) |
General Dimensions - Ground Clearance | 1.9 ft |
General Dimensions - Height - Stripped Top | 12.1 ft |
General Dimensions - Height - To Top of ROPS Cab | 12.5 ft |
General Dimensions - Height - To Top of ROPS Canopy | 13.1 ft |
General Dimensions - Overall Length - SU Landfill Blade | 22.5 ft |
General Dimensions - Overall Length - Without Blade and Without Drawbar | 16.1 ft |
General Dimensions - Width - Over Trunnion | 10.8 ft |
General Dimensions - Width - Without Trunnion - Standard Shoe | 9.4 ft |
Ground Contact Area - With Standard Shoes | 6569 in² |
Length - Track on Ground | 11.4 ft |
Net Power - SAE J1349/ISO 9249 | 436 HP |
Number of Cylinders | 6 |
Operating Weight | 110471 lb |
Rated Engine RPM | 1800 r/min |
Stroke | 7.2 in |
Track Gauge | 7.4 ft |
Track Rollers - Each Side | 8 |
Width - Standard Track - Shoe | 2 ft |
Bore | 5.7 in |
DEF Tank Capacity | N/A |
Displacement | 1106 in³ |
Engine Emission Standards | Tier 2/Stage II Equivalent; Tier 3/Stage IIIA Equivalent |
Engine Model | C18 ACERT |
Fuel Tank Refill Capacity | 235 gal (US) |
General Dimensions - Ground Clearance | 1.9 ft |
General Dimensions - Height - Stripped Top | 12.1 ft |
General Dimensions - Height - To Top of ROPS Cab | 12.5 ft |
General Dimensions - Height - To Top of ROPS Canopy | 13.1 ft |
General Dimensions - Overall Length - SU Landfill Blade | 22.5 ft |
General Dimensions - Overall Length - Without Blade and Without Drawbar | 16.1 ft |
General Dimensions - Width - Over Trunnion | 10.8 ft |
General Dimensions - Width - Without Trunnion - Standard Shoe | 9.4 ft |
Ground Contact Area - With Standard Shoes | 6569 in² |
Length - Track on Ground | 11.4 ft |
Net Power - SAE J1349/ISO 9249 | 410 HP |
Number of Cylinders | 6 |
Operating Weight | 109705 lb |
Rated Engine RPM | 1833 r/min |
Stroke | 7.2 in |
Track Gauge | 7.4 ft |
Track Rollers - Each Side | 8 |
Width - Standard Track - Shoe | 2 ft |
Lift Cylinder Relief Valve Setting | 3800 psi |
Pump Output - Implement | 60 gal/min |
Pump Output - Steering | 102 gal/min |
Pump Type | Piston-type pump geared from flywheel |
Ripper - Lift - Relief Valve Setting | 3800 psi |
Ripper - Pitch - Relief Valve Setting | 3800 psi |
Steering System - Pressure | 5875 psi |
Tank Capacity | 23.5 gal (US) |
Tilt Cylinder Flow - Head End Flow | 50 gal/min |
Tilt Cylinder Flow - Rod End Flow | 37 gal/min |
Tilt Cylinder Relief Valve Setting | 2800 psi |
1 Forward | 2.4 mile/h |
1 Forward - Drawbar Pull (1000) | 161 lbf |
1 Reverse | 2.9 mile/h |
2 Forward | 4.2 mile/h |
2 Forward - Drawbar Pull (1000) | 90 lbf |
2 Reverse | 5.2 mile/h |
3 Forward | 7.3 mile/h |
3 Forward - Drawbar Pull (1000) | 50 lbf |
3 Reverse | 8.9 mile/h |
