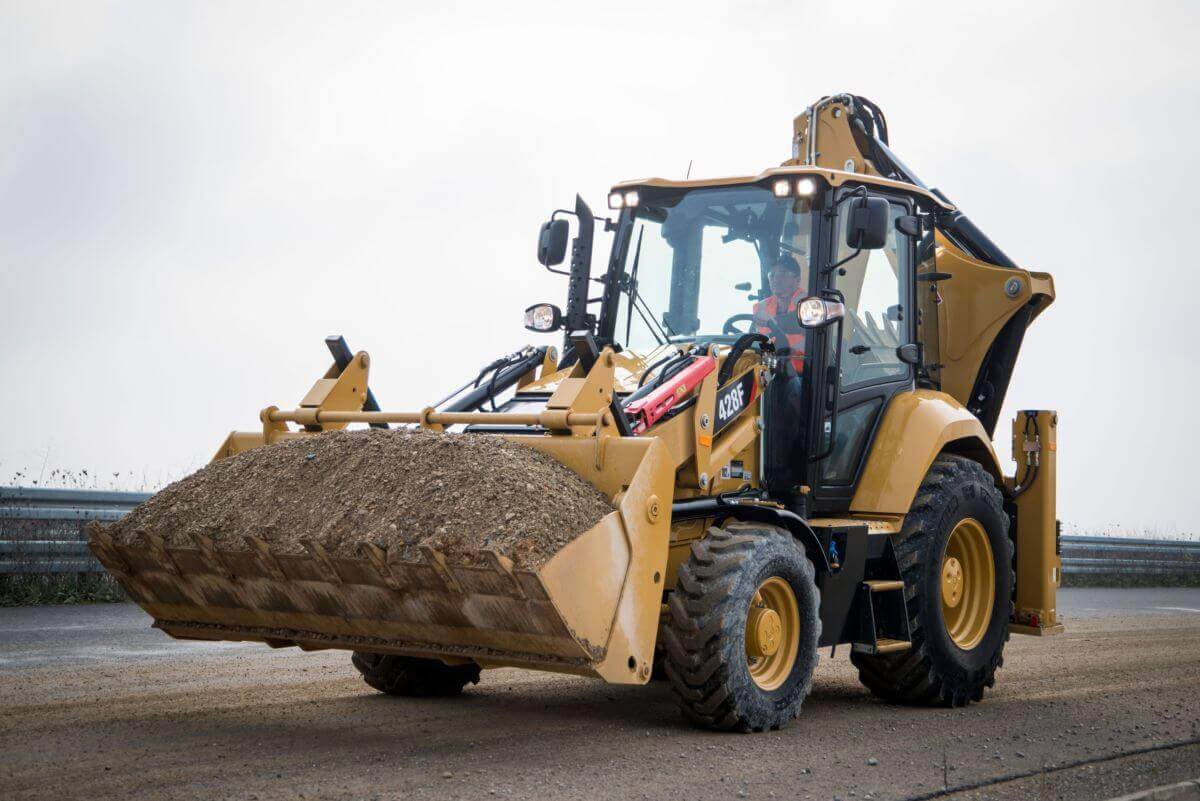

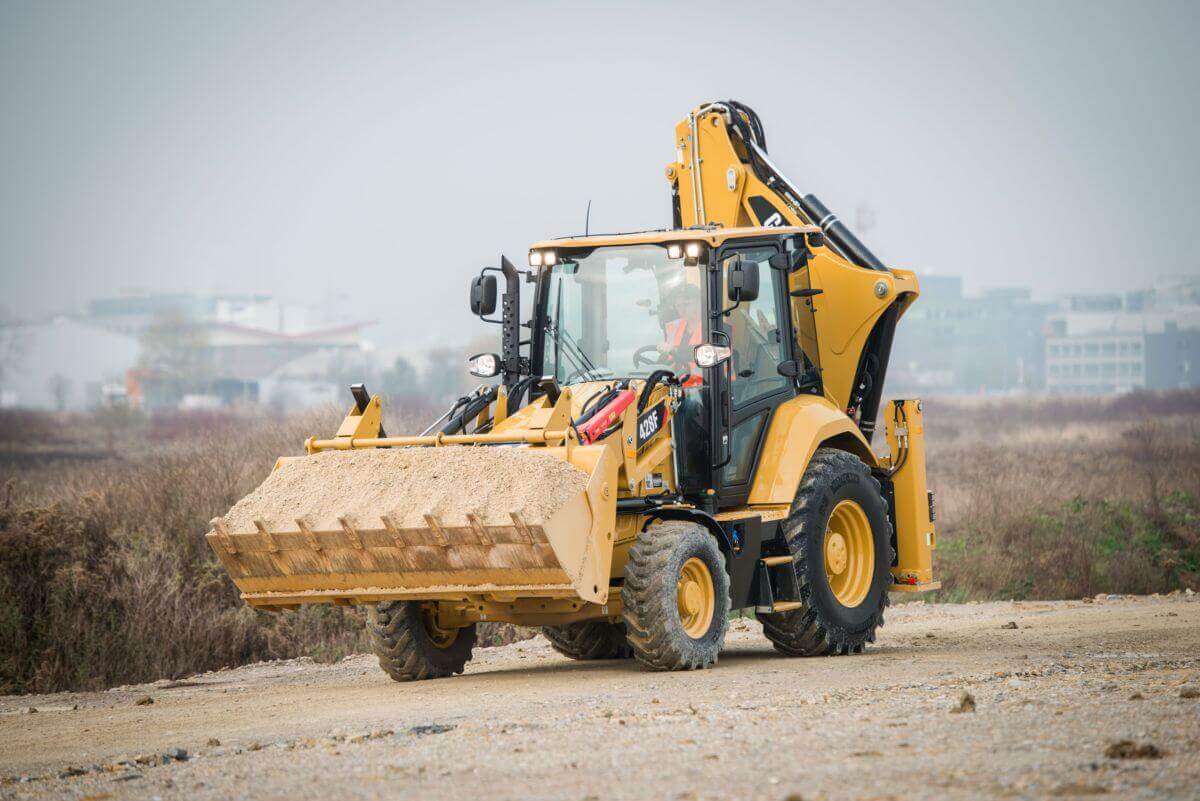

Caterpillar has a well proven history in the construction equipment industry and has been producing the highest quality machines for 90 years, making progress possible and driving positive and sustainable change on every continent. For 30 years Caterpillar has produced the British built backhoe loader. From the A Series to this new F2 Series we have produced machines that are designed with the operator in mind, providing reliability, power and a quality operator environment. We have combined 30 years of passion, expertise and experience to create the latest Backhoe Loader offering from Caterpillar, the F2.
Power - Net | 89.3 HP |
Bore | 4.13 in |
Displacement | 268.5 in³ |
Maximum Torque - 1,400 rpm | 324 ft·lbf |
Net Power - 2,200 rpm - 80/1269/EEC | 89.3 HP |
Net Power - 2,200 rpm - ISO 9249 | 89.3 HP |
Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 | 95.2 HP |
Stroke | 5 in |
Operating Weight - Nominal | 18574 lb |
Operating Weight - Maximum | 24251 lb |
4.3 m Extendible Stick - Excluding Front Counterweight | 447.5 lb |
Air Conditioning | 92.6 lb |
Auto-Shift Transmission | 121.3 lb |
Cab - ROPS/FOPS | 284.4 lb |
Counterweights - Base | 253.5 lb |
MP Bucket (1.00 m3/1.30 yd3) - With Fold-Over Forks | 1920 lb |
MP Bucket (1.00 m3/1.30 yd3) - Without Fold-Over Forks | 1347 lb |
Operating Weight | 18574 lb |
Operating Weight - ROPS Capacity - Maximum | 24251 lb |
Ride Control | 24.3 lb |
Counterweights - Maximum | 1014 lb |
Counterweights - Medium | 529 lb |
Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - GP | 1014 lb |
Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - MP | 0 lb |
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP | 253.5 lb |
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP | 0 lb |
Maximum Pump Capacity | 42.3 gal/min |
System Pressure - Backhoe | 3626 psi |
System Pressure - Loader | 3626 psi |
AWD Cylinder, One (1) Double Acting - Bore | 2.6 in |
AWD Cylinder, One (1) Double Acting - Rod Diameter | 1.4 in |
AWD Cylinder, One (1) Double Acting - Stroke | 4.7 in |
Turning Circle - AWD (inner wheel not braked) - Outside Front Wheels | 26.9 ft |
Turning Circle - AWD (inner wheel not braked) - Outside Widest Loader Bucket | 36.1 ft |
AWD Cylinder, One (1) Double Acting - Axle Oscillation | 0.4 in |
Cooling System - A/C | 5.9 gal (US) |
Engine Oil - With Filter | 2.3 gal (US) |
Front Axle (AWD) | 2.9 gal (US) |
Front Axle (AWD) - Planetaries | 0.2 gal (US) |
Fuel Tank | 42.3 gal (US) |
Hydraulic System | 25.1 gal (US) |
Hydraulic Tank | 10.6 gal (US) |
Rear Axle | 4.4 gal (US) |
Rear Axle - Planetaries | 0.4 gal (US) |
Transmission - Power Shuttle - AWD | 4 gal (US) |
Diesel Exhaust Fluid | 5 gal (US) |
Transmission - Auto-Shift - AWD | 5 gal (US) |
Forward - 1st | 3.5 mile/h |
Forward - 2nd | 5.8 mile/h |
Forward - 3rd | 13 mile/h |
Forward - 4th | 24.9 mile/h |
Reverse - 1st | 3.5 mile/h |
Reverse - 2nd | 5.8 mile/h |
Reverse - 3rd | 13 mile/h |
Reverse - 4th | 24.9 mile/h |
Forward - 1st | 3.7 mile/h |
Forward - 2nd | 6 mile/h |
Forward - 3rd | 7.8 mile/h |
Forward - 4th | 12.2 mile/h |
Forward - 5th | 16.5 mile/h |
Forward - 6th | 24.9 mile/h |
Reverse - 1st | 3.7 mile/h |
Reverse - 2nd | 7.8 mile/h |
Reverse - 3rd | 17 mile/h |
Gross Power - ISO 14396 | 95.2 HP |
Net Power - ISO 9249 | 89.3 HP |
Front Axle (AWD) - Dynamic | 20252 lb |
Front Axle (AWD) - Static | 50627 lb |
Rear Axle - Dynamic | 20252 lb |
Rear Axle - Static | 50627 lb |
Digging Depth - SAE Maximum - E-Stick Extended - 4.26 m | 17.3 ft |
Digging Depth - SAE Maximum - E-Stick Retracted - 4.26 m | 14.05 ft |
Digging Depth - SAE Maximum - Standard Stick | 14.04 ft |
Inside Cab | 74 dB(A) |
Outside Cab | 100 dB(A) |
Forward - 1st | 3.7 mile/h |
Forward - 2nd | 6 mile/h |
Forward - 3rd | 7.8 mile/h |
Forward - 4th | 12.2 mile/h |
Forward - 5th | 15.8 mile/h |
Forward - 6th | 24.9 mile/h |
Reverse - 1st | 3.7 mile/h |
Reverse - 2nd | 7.8 mile/h |
Reverse - 3rd | 17 mile/h |
