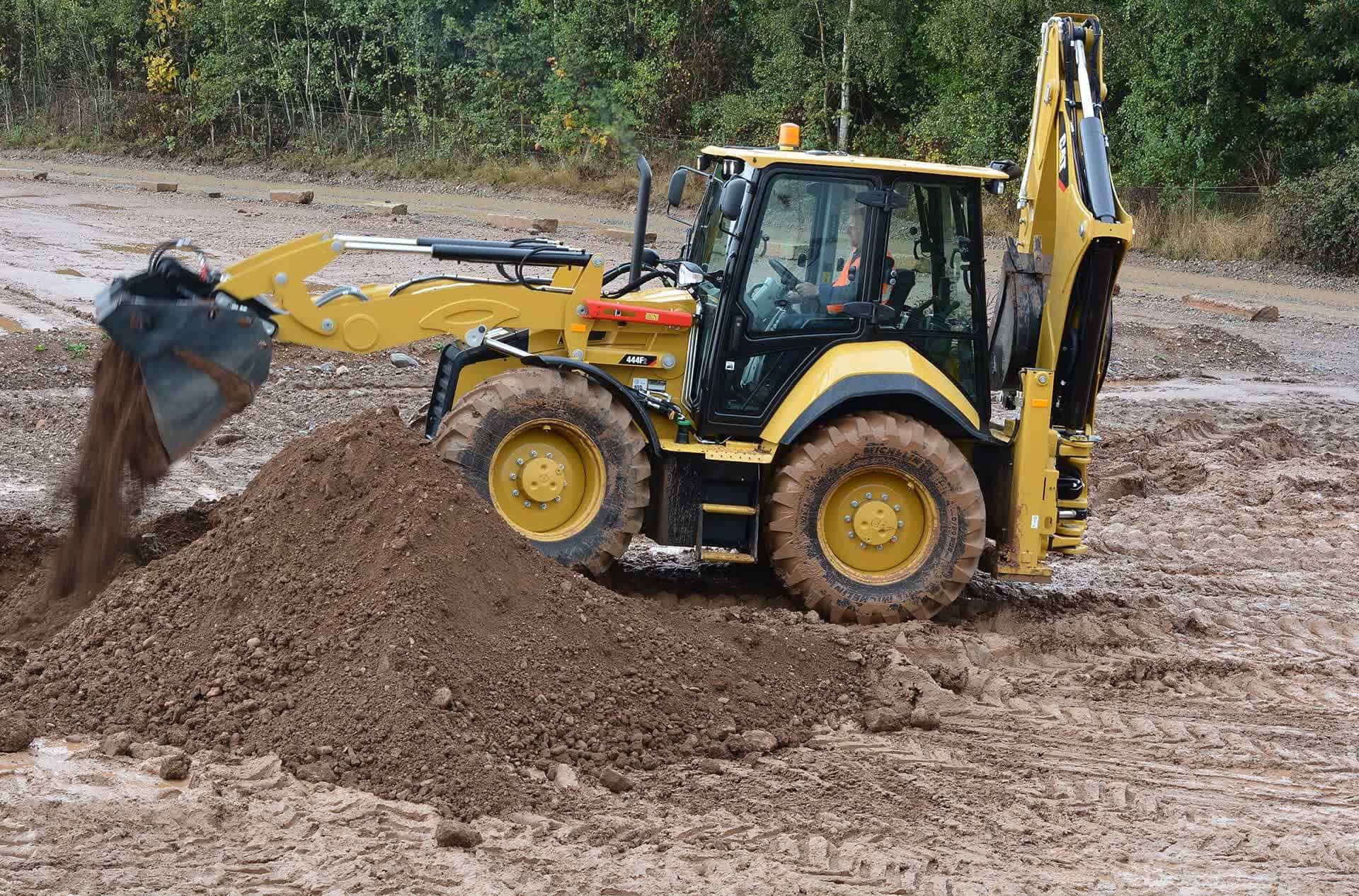

Caterpillar has a well proven history in the construction equipment industry and has been producing the highest quality machines for 90 years, making progress possible and driving positive and sustainable change on every continent. For 30 years Caterpillar has produced the British built backhoe loader. From the A Series to this new F2 Series we have produced machines that are designed with the operator in mind, providing reliability, power and a quality operator environment. We have combined 30 years of passion, expertise and experience to create the latest Backhoe Loader offering from Caterpillar, the F2.
Power - Net | 95.2 HP |
Bore | 4.13 in |
Displacement | 268.5 in³ |
Maximum Torque - 1,400 rpm | 323 ft·lbf |
Net Power - 2,200 rpm - 80/1269/EEC | 95.2 HP |
Net Power - 2,200 rpm - ISO 9249 | 95.2 HP |
Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 | 101.2 HP |
Stroke | 5 in |
Operating Weight - Nominal | 21178 lb |
Operating Weight - Maximum | 25353 lb |
4.3 m Stick - Excluding Front Counterweight | 438.7 lb |
4.9 m Stick - Excluding Front Counterweight | 780.4 lb |
Air Conditioning | 75 lb |
Counterweights - Base | 253.5 lb |
Loader, IT with Quick Coupler | 804.7 lb |
MP Bucket (1.15 m3/1.50 yd3) - With Fold-Over Forks | 2043.7 lb |
MP Bucket (1.15 m3/1.50 yd3) - Without Fold-Over Forks | 1691 lb |
Operating Weight | 21178 lb |
Operating Weight - ROPS Capacity - Maximum | 25353 lb |
Ride Control | 24.3 lb |
Pin On - Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - GP | 0 lb |
Pin On - Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - MP | 0 lb |
Pin On - Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP | 0 lb |
Pin On - Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP | 0 lb |
Quick Coupler - Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - GP | 253.5 lb |
Quick Coupler - Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - MP | 253.5 lb |
Quick Coupler - Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP | 253.5 lb |
Quick Coupler - Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP | 253.5 lb |
Maximum Pump Capacity | 42.3 gal/min |
System Pressure - Backhoe | 3626 psi |
System Pressure - Loader | 3626 psi |
AWD Cylinder, One (1) Double Acting - Bore | 2.6 in |
AWD Cylinder, One (1) Double Acting - Rod Diameter | 2.6 in |
AWD Cylinder, One (1) Double Acting - Stroke | 4.7 in |
Turning Circle - AWD (inner wheel not braked) - Outside Front Wheels | 32 ft |
Turning Circle - AWD (inner wheel not braked) - Outside Widest Loader Bucket | 41.3 ft |
AWD Cylinder, One (1) Double Acting - Axle Oscillation | 0.3 in |
Cooling System | 5.8 gal (US) |
Engine with Oil Filter | 2.3 gal (US) |
Front Axle (AWD) - Center Housing | 3.7 gal (US) |
Front Axle (AWD) - Planetaries | 0.4 gal (US) |
Fuel Tank | 42.3 gal (US) |
Hydraulic System | 25.1 gal (US) |
Hydraulic Tank | 10.6 gal (US) |
Rear Axle - Center Housing | 4.2 gal (US) |
Rear Axle - Planetaries | 0.4 gal (US) |
Transmission - Auto-Shift - AWD | 5 gal (US) |
Diesel Exhaust Fluid | 5 gal (US) |
Forward - 1st | 3.7 mT/hr |
Forward - 2nd | 6 mT/hr |
Forward - 3rd | 7.8 mT/hr |
Forward - 4th | 12.2 mT/hr |
Forward - 5th | 16.7 mT/hr |
Forward - 6th | 24.9 mT/hr |
Reverse - 1st | 3.7 mT/hr |
Reverse - 2nd | 7.8 mT/hr |
Reverse - 3rd | 16.9 mT/hr |
Forward - 1st | 3.7 mile/h |
Forward - 2nd | 6 mile/h |
Forward - 3rd | 7.8 mile/h |
Forward - 4th | 12.2 mile/h |
Forward - 5th | 15.8 mile/h |
Forward - 6th | 24.9 mile/h |
Reverse - 1st | 3.7 mile/h |
Reverse - 2nd | 7.8 mile/h |
Reverse - 3rd | 16.9 mile/h |
Gross Power - ISO 14396 | 111.5 HP |
Net Power - ISO 9249 | 104 HP |
Gross Power - ISO 14396 | 101.2 HP |
Net Power - ISO 9249 | 95.2 HP |
Front Axle (AWD) - Dynamic | 20252 lb |
Front Axle (AWD) - Static | 50627 lb |
Rear Axle - Dynamic | 20252 lb |
Rear Axle - Static | 50627 lb |
Digging Depth - SAE Maximum - E-Stick Extended - 4.26 m | 17.43 ft |
Digging Depth - SAE Maximum - E-Stick Extended - 4.87 m | 18.72 ft |
Digging Depth - SAE Maximum - E-Stick Retracted - 4.26 m | 14.22 ft |
Digging Depth - SAE Maximum - E-Stick Retracted - 4.87 m | 15.37 ft |
Digging Depth - SAE Maximum - Standard Stick | 14.21 ft |
Bore | 4.13 in |
Displacement | 268.5 in³ |
Maximum Torque - 1,400 rpm | 324 ft·lbf |
Net Power - 2,200 rpm - 80/1269/EEC | 105.6 HP |
Net Power - 2,200 rpm - ISO 9249 | 105.6 HP |
Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 | 111.5 HP |
Stroke | 5 in |
Inside Cab | 74 dB(A) |
Outside Cab | 100 dB(A) |
