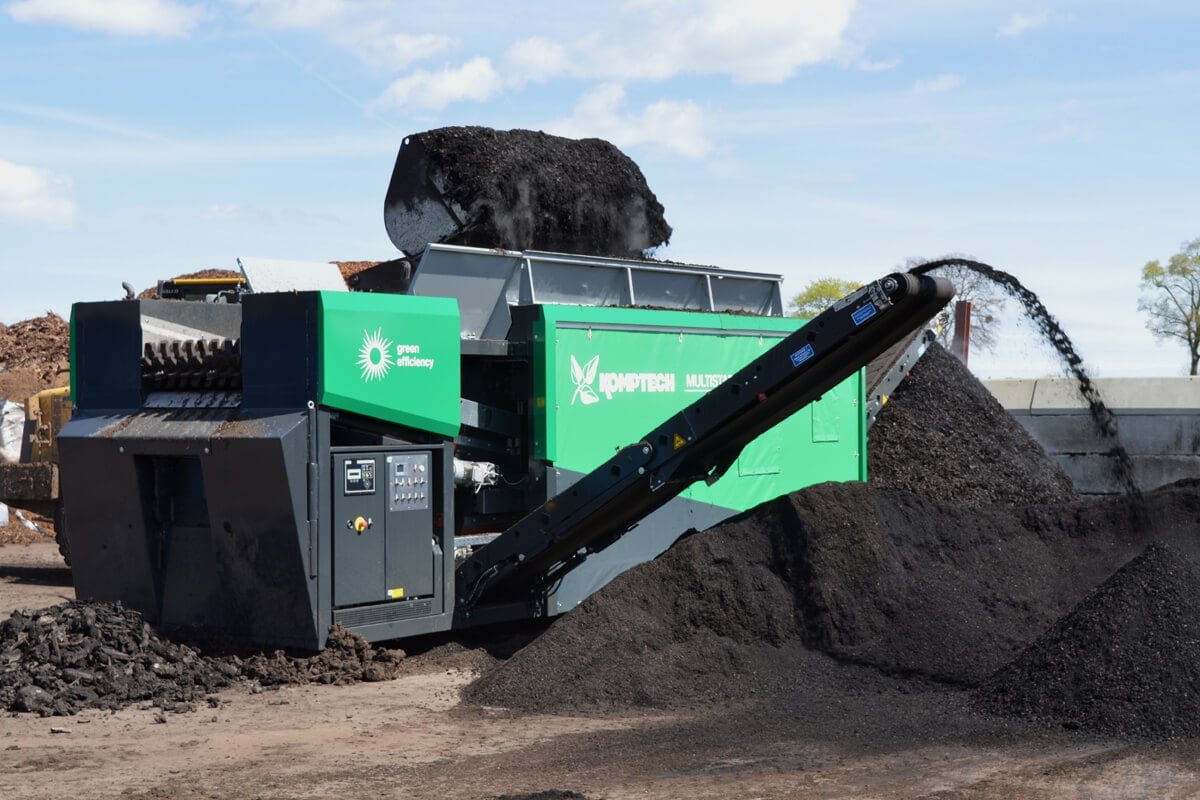

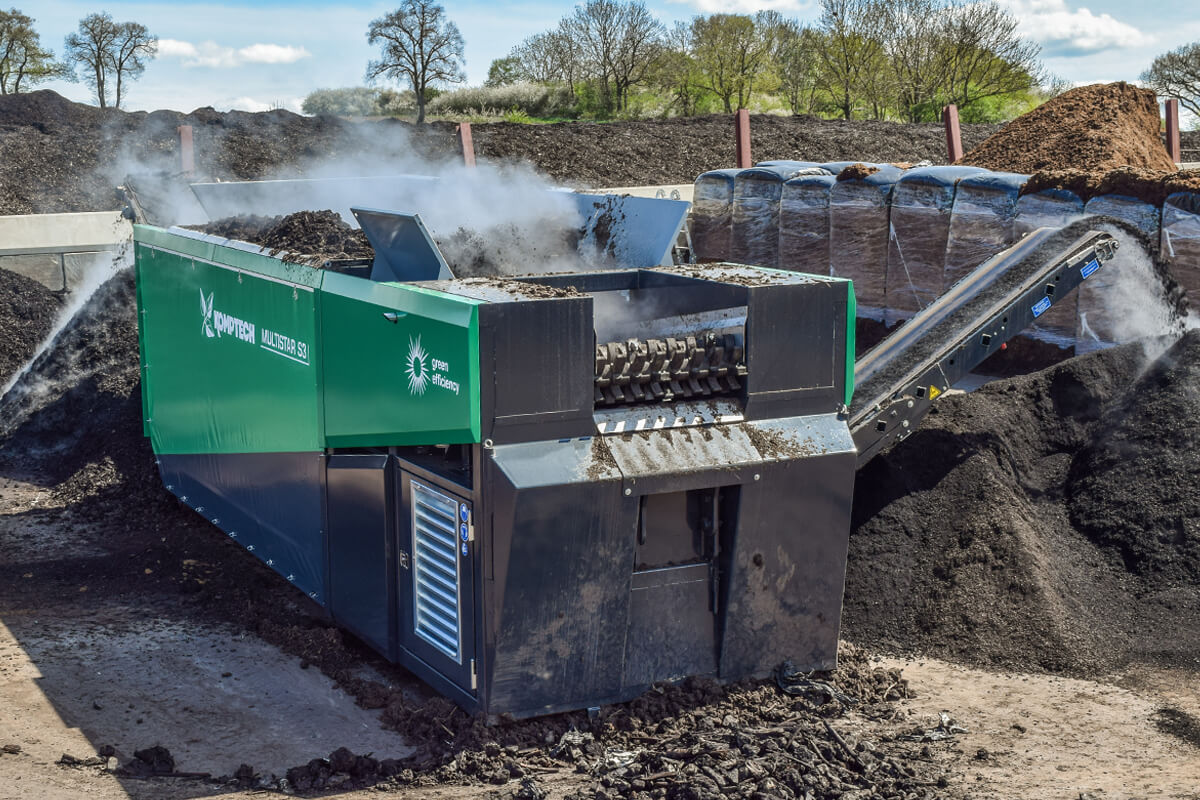

Komptech Multistar S3


  • Gewicht: 10 ton
  • Vermogen: 45 kV/A

Over de Komptech Multistar S3


De nieuwe Multistar S3 is de jongste telg uit het uitgebreide en professionele gamma van Komptech sterrenzeef machines. Speciaal ontwikkeld voor lage en gemiddelde volumes. De nieuwe S3 combineert lage kosten met een hoge productiviteit zoals bij de L en de XL machines.









Diesel generator 45 (option) kVA
Power consumption
Material feeding - feed hopper
Hopper volume 2.5 / 3.5 (option) m3
Filling lenght 3100 mm
Filling height 2500 / 3000 mm
Screen segments
Coarse screen L x W (mm) / area 2400 x 900 / 2.1 m2
Fine screen L x W (mm) / area 4250 x 900 / 3.9 m2
Screen section (standard)
Coarse particle > 60.....90 mm
Medium particle 10.....25 / 60.....90 mm
Fein particle 0 / 10.....25 mm
Material discharge
Max. discharge height coarse fraction 2300 mm
Max. discharge height medium fraction 2900 mm
Max. discharge height fine fraction (mm): 2300 mm
Transport dimensions L x W x H 11066 x 5542 x 3000 mm
Working dimensions L x W x H 11066 x 5542 x 3000 mm
Weight ~ 10.0 t
Throughput (dependent on material)
Throughput performance up to 100 m3/h
Different screen options for coarse and fine screen, magnetic drum, discharge belt for rolling pieces, windsifter, diesel generator towing and chassis options, radio remote control, central lubrication and more


The perfect start

Low upfront costs don’t mean you have to forego performance, screening quality or convenience. A large hopper with up to 3.5 m³ volume permits continuous loading. The 2.1 m2 coarse and 3.9 m2 fine screen decks are matched to it. The discharge conveyor height provides enough buffer capacity for smooth front loader use.

A different kind of cladding

Sheet metal panels with large access doors protect the drive components. Elsewhere, tough truck-grade tarp material protects components from dirt while saving weight and giving the machine a distinctive appearance. Rolling up the tarp sidewalls affords free access to all other components.

Always unclogged thanks to CLEANSTAR

The screen units are continually cleaned by the simple and efficient patented CLEANSTAR® cleaning system. Each star has a wear-resistant cleaning finger that clears the screen gap to the surrounding stars on each rotation, so screening is always in season with Multistar star screens.
