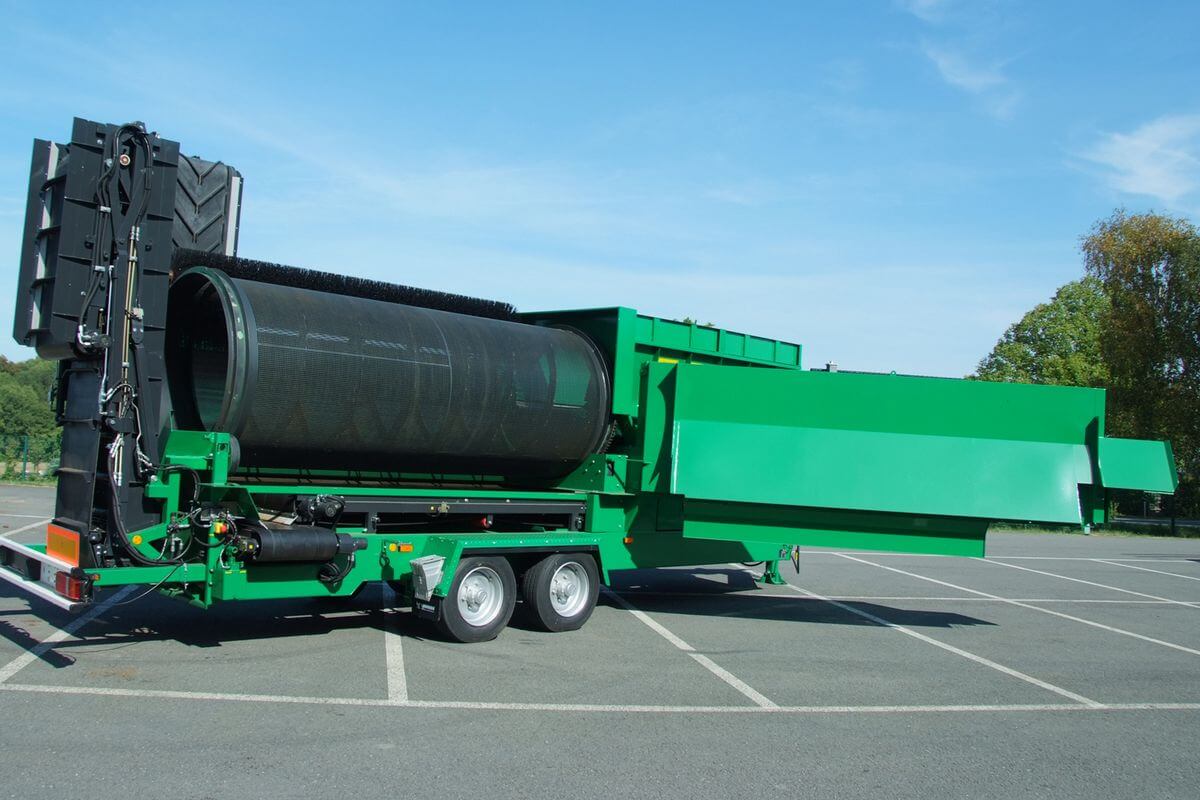

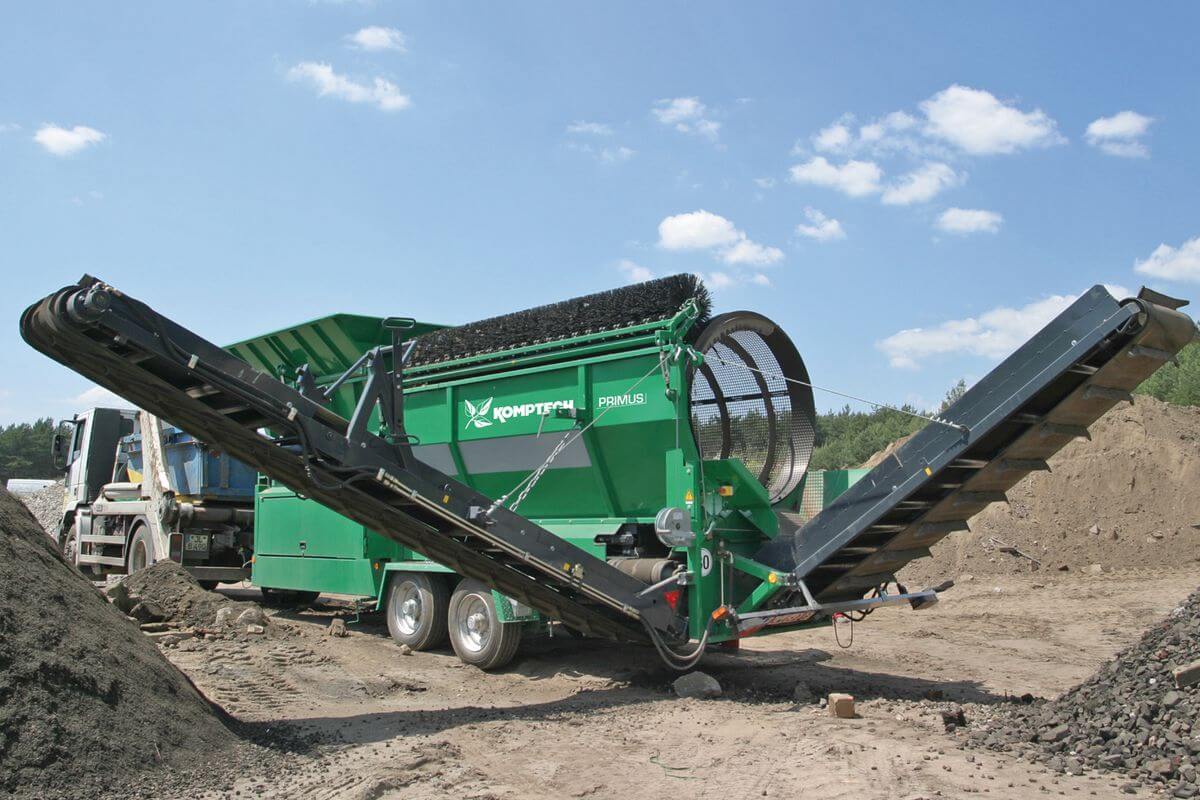

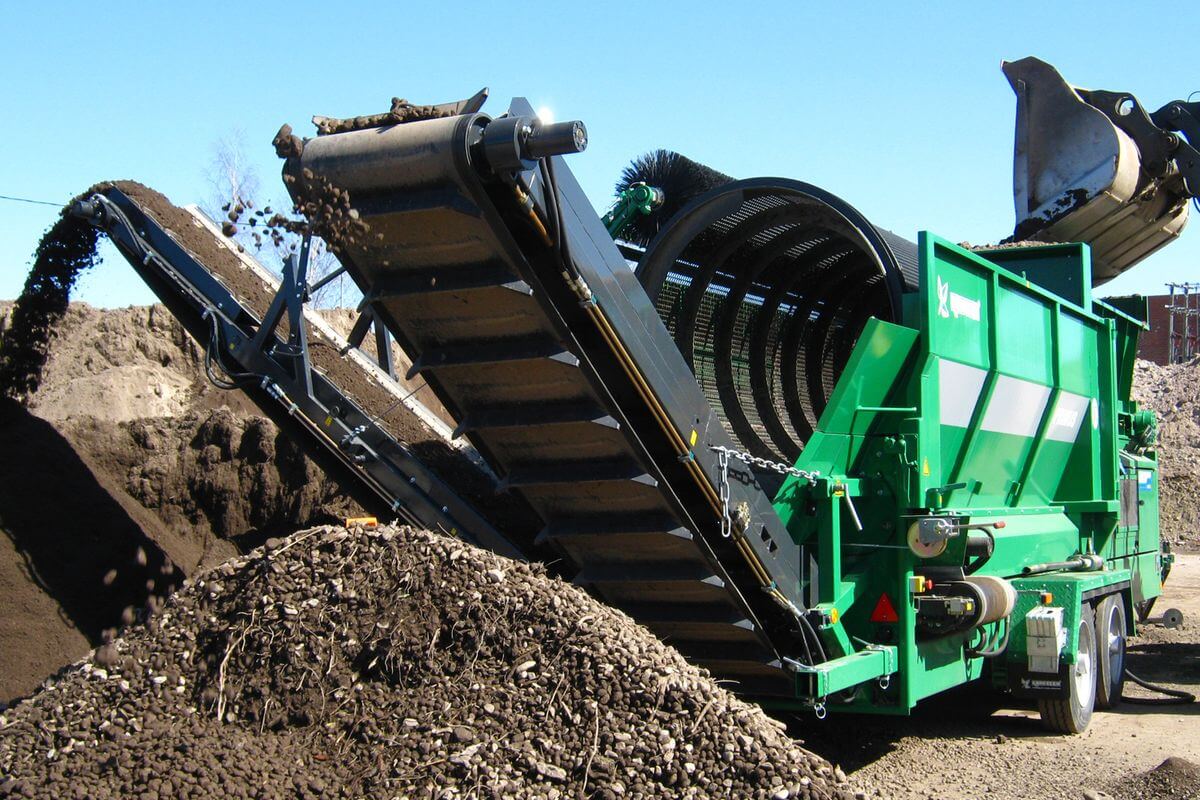

Komptech Primus


  • Gewicht: 9 ton
  • Vermogen: 70 kW



Diesel engine 70 kW
Material feeding - feed hopper
Hopper volume > 3.0 m3
Feeding length > 2900 mm
Feeding width 1340 mm
Feeding height 2640 mm
Screening drum
Diameter 1450 mm
Length 4000 mm
Effective screening area 16 m2
Drum rpm (min-1) max. 12
Material discharge
Max. discharge height coarse 2300 mm
Max. discharge height fine fraction (mm) 2080 mm
Transport dimensions L x W x H 9750 x 2550 x 4000 mm
Working dimensions L x W x H 11660 x 4810 x 3080 mm
Weight 9.0 t
Throughput (dependent on material)
Throughput performance up to 70 m3/h
Conveyor extensions, magnet drum, scraper for round brush, central lubrication, hopper pre-screening, hopper sensor controller, remote control, hydraulic extendable engine, attachment shoe, adjustable beld speed and more


Flexible drum choices

Now it is easy for existing drum screen users to switch – the Nemus 2700 takes Mustang drums, as well as drums from the Doppstadt SM 620 screener. Within the drum itself, the improved material flow gives up to 10% more throughput. The greater clearance between drum and sidewall allows a wide range of materials with hole sizes up to 100 mm.

Clean discharge

The fine particles are discharged by a one-piece corrugated edge belt. The one-piece design prevents material trickle at transfer points, while also giving high capacity and low wear. Both discharge belts are longer than on the Mustang, offering a discharge height of 3.2 m in standard configuration.

Maintenance made easy

Numerous details reduce maintenance effort, time and expense, like the simplified diesel engine radiator cleaning, easier hopper belt replacement, the fines collection belt that comes out as a one-piece cartridge, and the elimination of rubber wear elements on the discharge belts.
