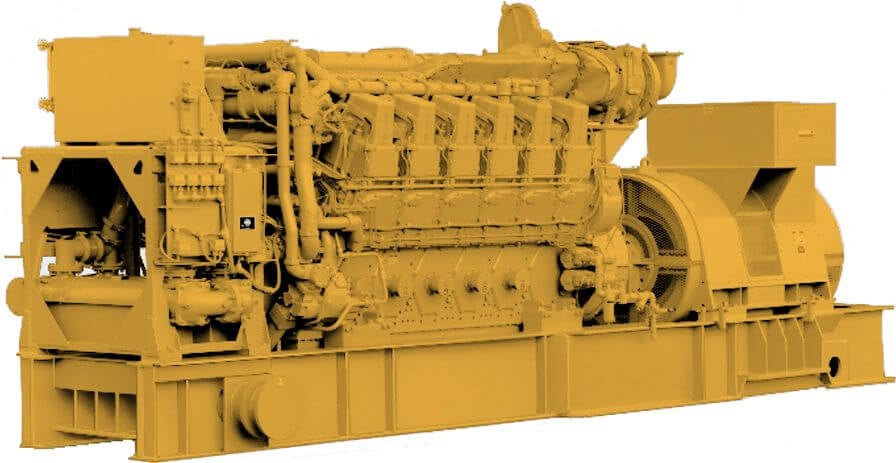

Cat C280-12

Marine Generatorsett

Spesifikasjoner

Generator Set Specifications
Minimum Rating 3520 ekW (4400 kVA)
Maximum Rating 3640 ekW (4550 kVA)
Frequency 50 Hz or 60 Hz
Speed 1000 rpm (50 hz) or 900 rpm (60 hz)
Engine Specifications
Aspiration Turbocharged-Aftercooled
Bore 11 in
Stroke 11.8 in
Displacement 13546 in³
Governor Type Electronic
Fuel System EUI
Compression Ratio 50 Hz 13.1
Compression Ratio 60 Hz 13:1
Motormodel Vee 12, 4-Stroke-Cycle Diesel
Generator Set Configurations
Emissions/Fuel Strategy EPA Tier 2, IMO II
Generator Set Dimensions
Length 316.5 in
Width 77.2 in
Height 155 in
Weight - Estimated 25000 lb

Egenskaper

Features

A3 ECU - Advantages

A3 ECU - Advantages
CAN J1939 data link Waterproof connectors, Maintenance-free, Backup ECU for redundant governing

A3 ECU - Electronic Advantages

A3 ECU - Electronic Advantages
Load feedback, Programmable droop, Adjustable gain, Adjustable fuel/air ratio control, Histograms of engine operation, Cat Messenger display presents diagnostics and other engine parameters

A3 ECU - Data Advantages through J1939 Link

A3 ECU - Data Advantages through J1939 Link
Engine speed, Boost pressure, Throttle position, Fuel consumption rate, Inlet manifold temperature, Diagnostic codes and events, Configuration, Desired engine speed, Battery voltage, Engine load, Lifetime totals — engine hours, fuel burned, idle fuel, idle hours, Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset

Customer Interface Panel

Customer Interface Panel
Interfaces with standard Cat® Marine Monitoring System (PLC in Price List), Provides visual indication of ECU functionality, Accepts 4 — 20 mA or PWM remote throttle speed input, Marine alarm and protection

Electronic Unit Injectors

Electronic Unit Injectors
“Drop-in” installation, No threaded fuel connections, High pressure inside injector only, Does not require double wall fuel lines or leak collection device, Injector synchronization not required
