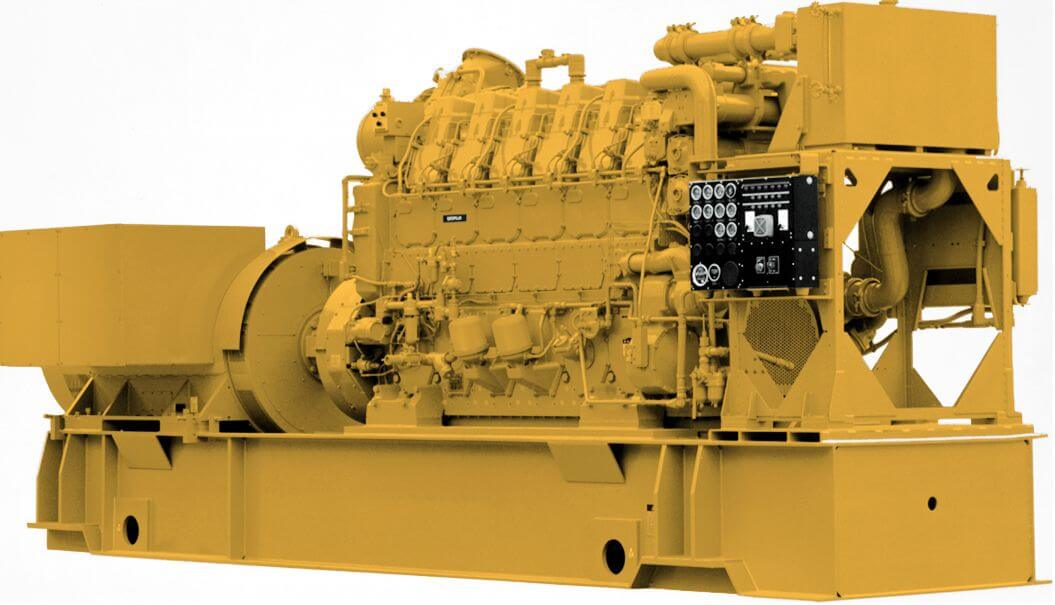

Cat C280-6

Marine Generatorsett

Last ned spesifikasjoner Send Forespørsel

Spesifikasjoner

Generator Set Specifications

Minimum Rating	1760 ekW (2200 kVA)
Maximum Rating	1820 ekW (2275 kVA)
Frequency	50 Hz or 60 Hz
Speed	1000 rpm (50 hz) or 900 rpm (60 hz)

Engine Specifications

Aspiration	Turbocharged-Aftercooled
Bore	11 in
Stroke	11.8 in
Displacement	6773 in³
Governor Type	Electronic
Fuel System	EUI
Compression Ratio 50 Hz	13.1
Compression Ratio 60 Hz	13:1
Motormodel	In-line 6, 4-Stroke-Cycle Diesel

Generator Set Configurations

Emissions/Fuel Strategy

EPA Tier 2, IMO II

Generator Set Dimensions

Length	280.3 in
Width	77.2 in
Height	154.9 in
Weight - Estimated	18000 lb

Egenskaper

Features

A3 ECU

Advantages

CAN J1939 data link Waterproof connectors, Maintenance-free, Backup ECU for redundant governing

Electronic Advantages

Load feedback, Programmable droop, Adjustable gain, Adjustable fuel/air ratio control, Histograms of engine operation, Cat Messenger display presents diagnostics and other engine parameters

Data Advantages through J1939 Link

Engine speed, Boost pressure, Throttle position, Fuel consumption rate, Inlet manifold temperature, Diagnostic codes and events, Configuration, Desired engine speed, Battery voltage, Engine load, Lifetime totals — engine hours, fuel burned, idle fuel, idle hours, Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset

Customer Interface Panel

Advantages

Interfaces with standard Cat® Marine Monitoring System (PLC in Price List), Provides visual indication of ECU functionality, Accepts 4 — 20 mA or PWM remote throttle speed input, Marine alarm and protection

Electronic Unit Injectors

Advantages

“Drop-in” installation, No threaded fuel connections, High pressure inside injector only, Does not require double wall fuel lines or leak collection device, Injector synchronization not required
