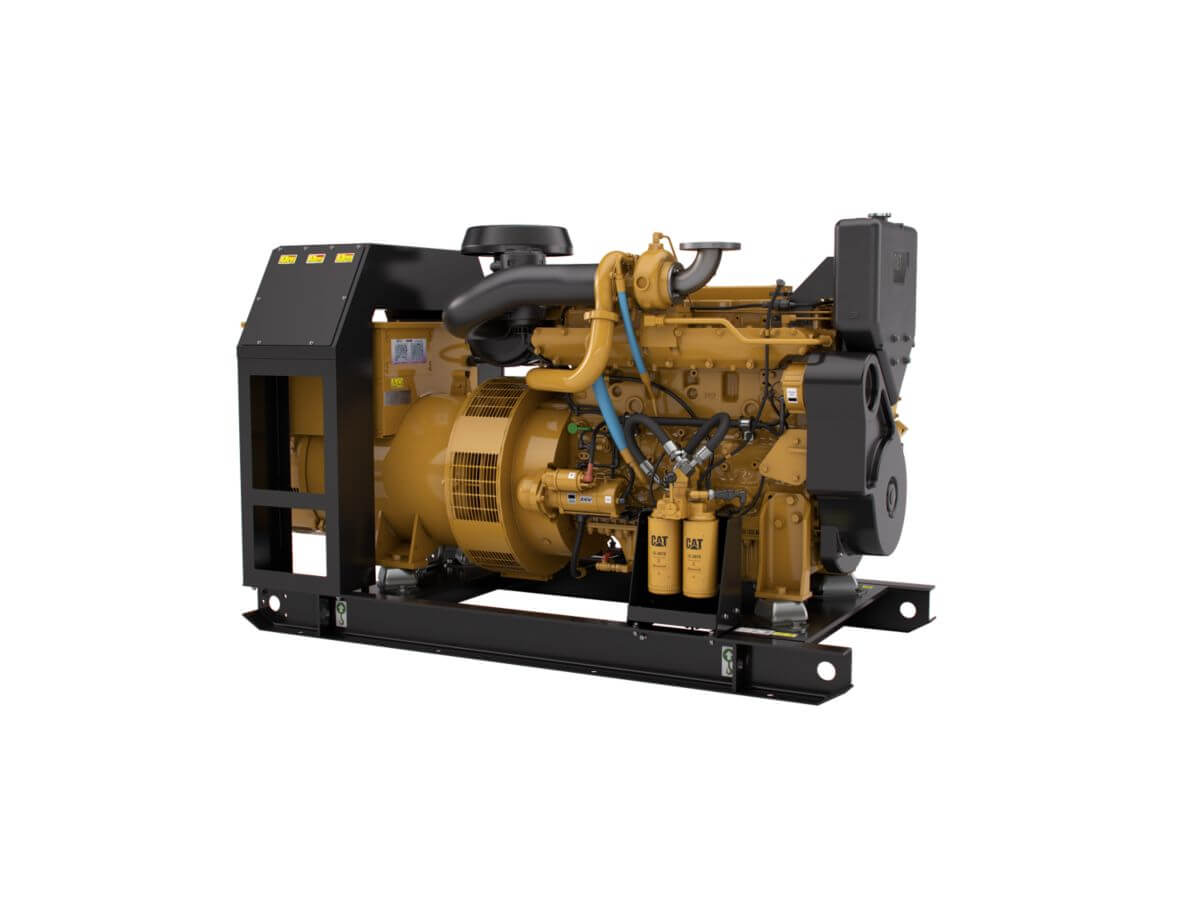

Cat C7.1

Marine Generatorsett

Om Cat C7.1


Cat® C7.1 Diesel Marine Generator Set has three phase ratings of 50 Hertz at 100, 118, and 150 ekW with heat exchanger cooling that meet U.S. EPA Tier 3 commercial, IMO II, and EU CC2 emissions standards. The C7.1 also has three phase ratings of 60 Hertz at 118, 150, 175, and 175 ekW with heat exchanger cooling that meet U.S. EPA Tier 3 commercial, IMO II, and EU CC2 emissions standards.


Generator Set Specifications
Minimum Rating 100 ekW (125 kVA)
Maximum Rating 200 ekW (250 kVA)
Frequency 50 Hz or 60 Hz
Speed 1500 rpm (50 hz) or 1800 rpm (60 hz)
Engine Specifications
Motormodel In-line 6, 4-Stroke-Cycle Diesel
Aspiration TA
Bore 4.13 in
Stroke 5.3 in
Displacement 433.3 in³
Governor Type Electronic
Fuel System Common Rail Fuel System
Generator Set Configurations
Emissions/Fuel Strategy EPA Tier 3, IMO II, EU CC2
Generator Set Dimensions
Width 37.6 in
Height 49.7 in
Weight 1652 -1840 kg, 3634-4026 lb
Length 76.2 in/1935 mm (minimum), 83.3 in/2116 mm (maximum)
Generator Specifications
Pitch 2/3
Number of Leads 12
Insulation Class H
IP Rating IP23 Water protection
Voltage Regulator Solid state



Common Rail Fuel System

Variable multi-shot injection combines with a high compression ratio for optimized fuel efficiency and very low smoke operation
Excellent fuel economy, optimal combustion, low emissions
Injection pressure is independent from load and speed
Injection characteristics optimized for every engine operating point
NOx and soot emissions reduced with amount of reduction dependent on actual engine operating conditions

Control Panel

Location interchangeable between 3 positions

Se produktet i 360°

Drag your mouse to rotate the product
