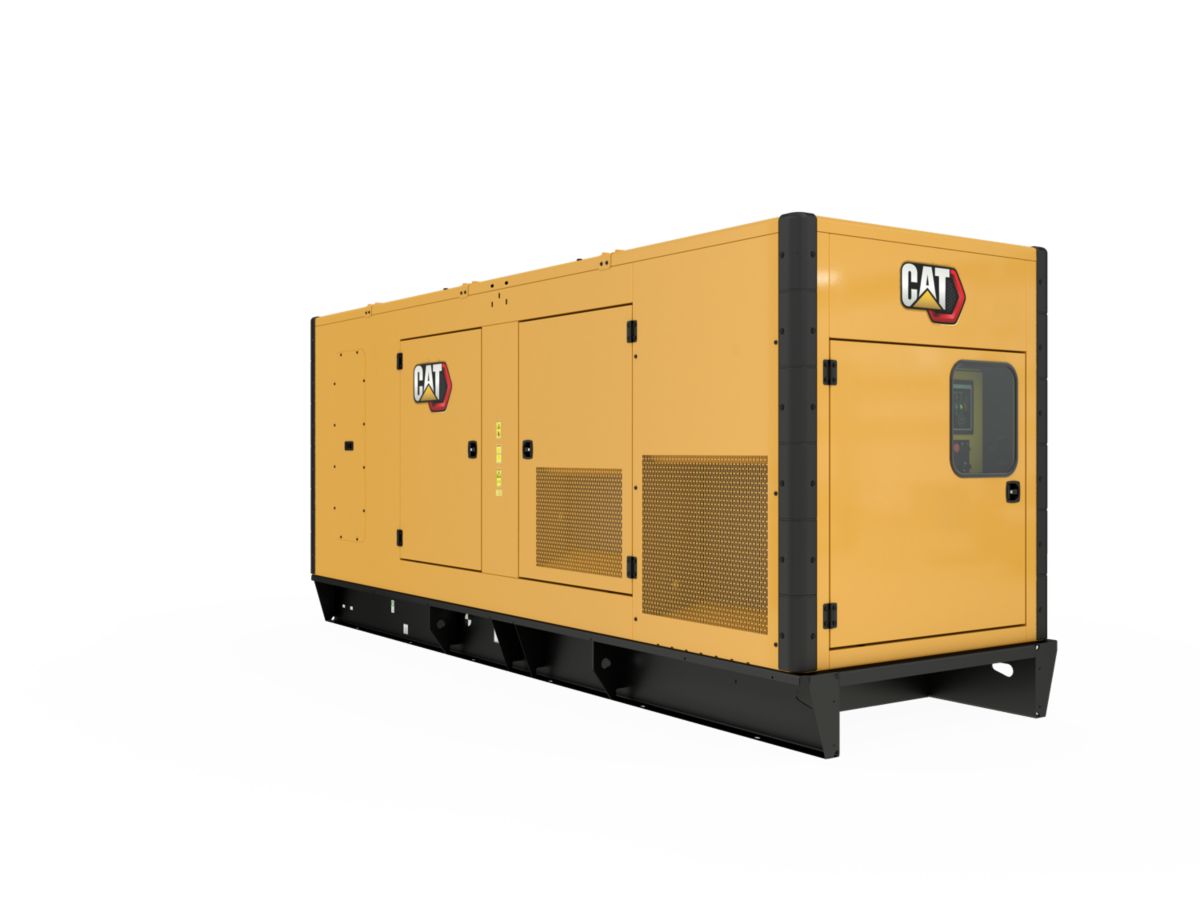

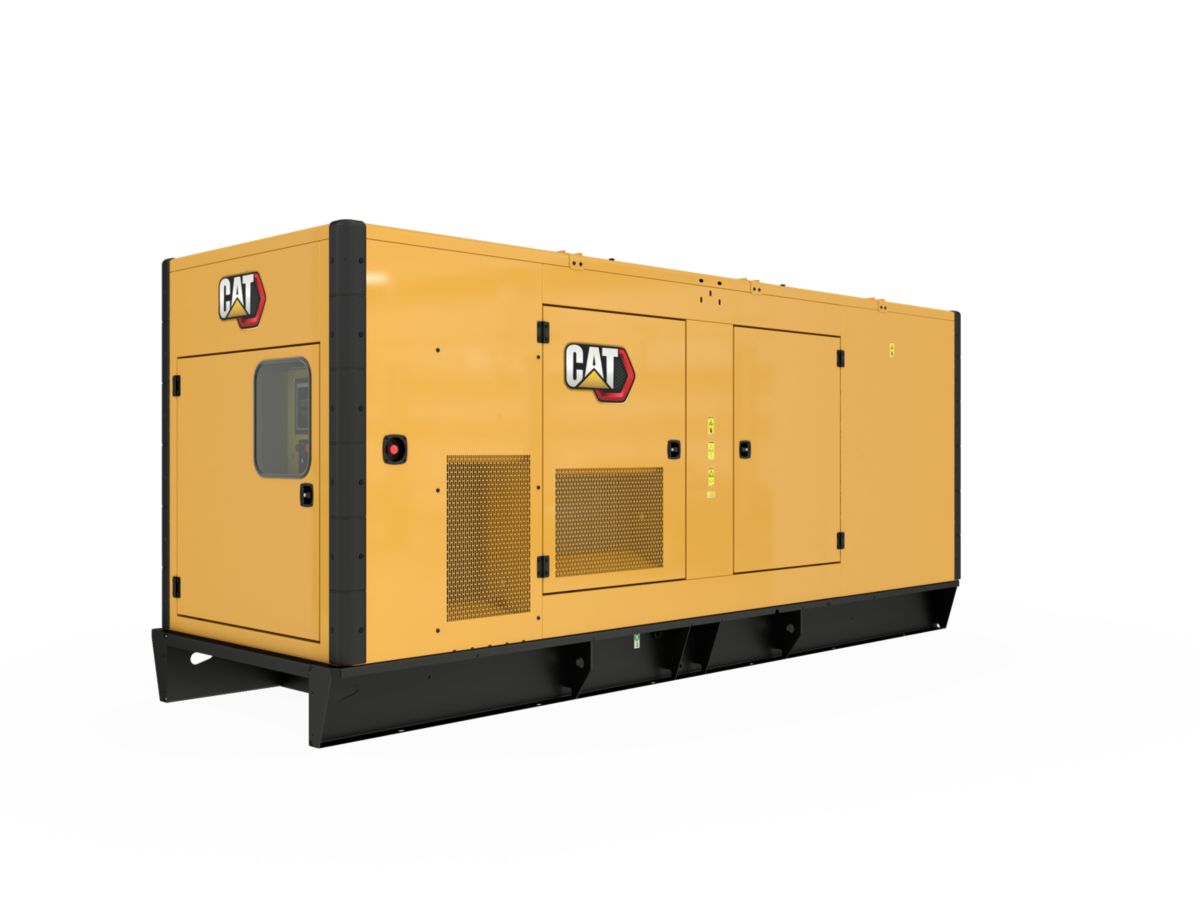

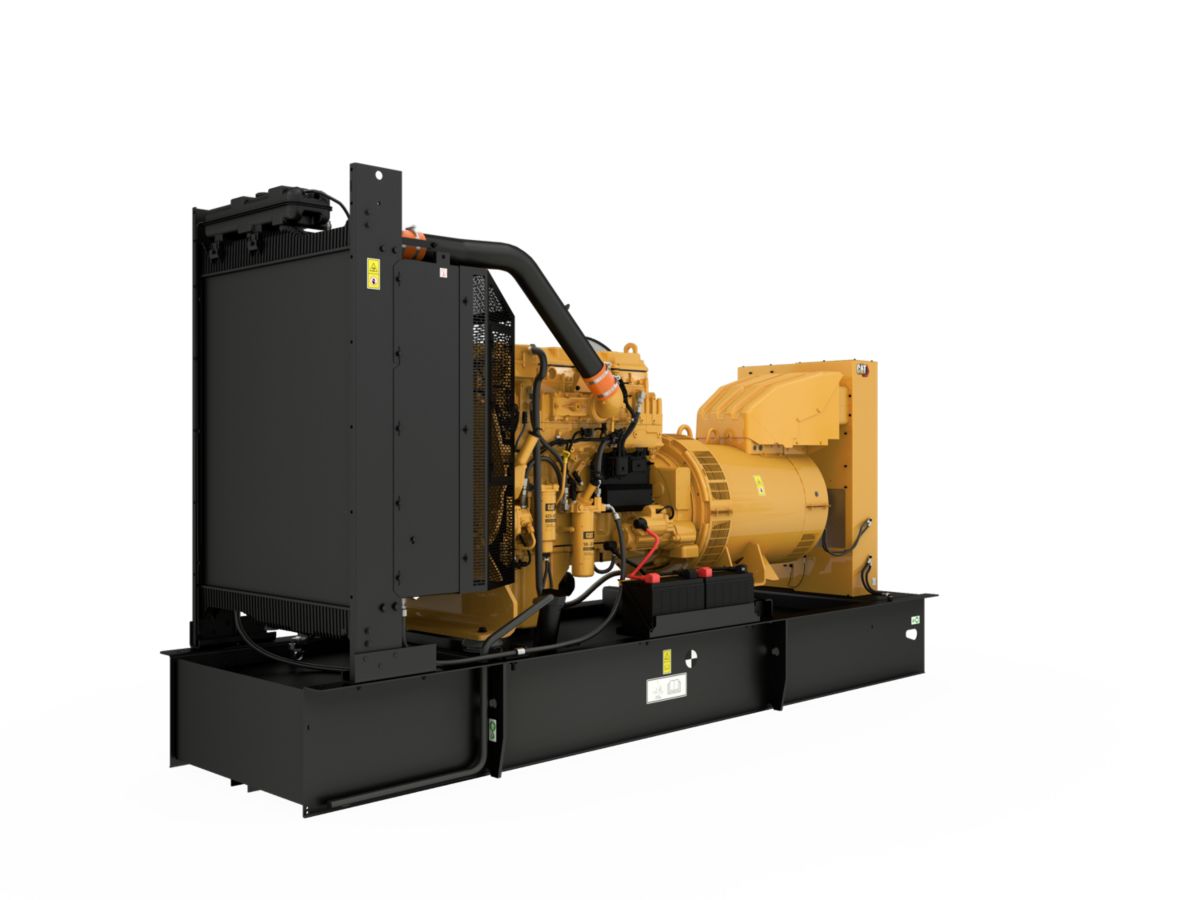

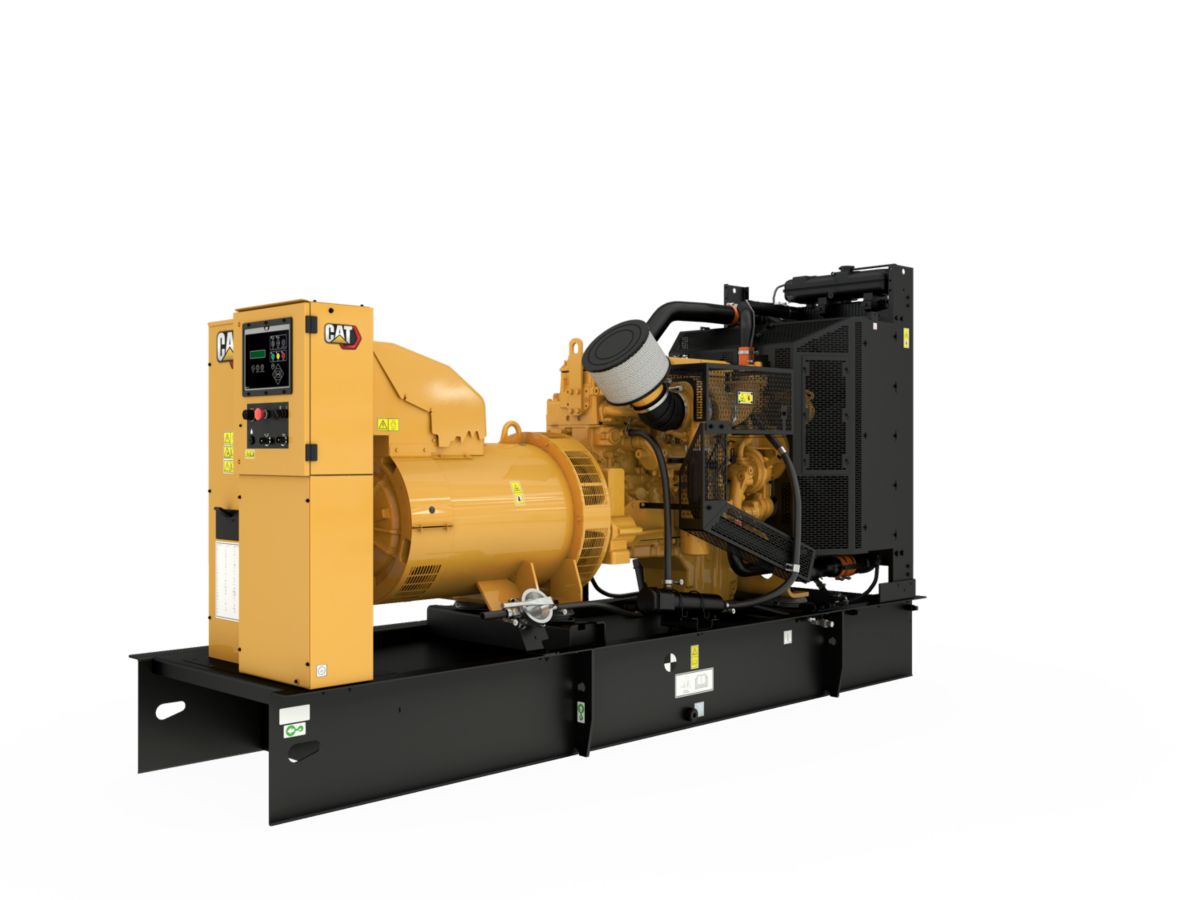

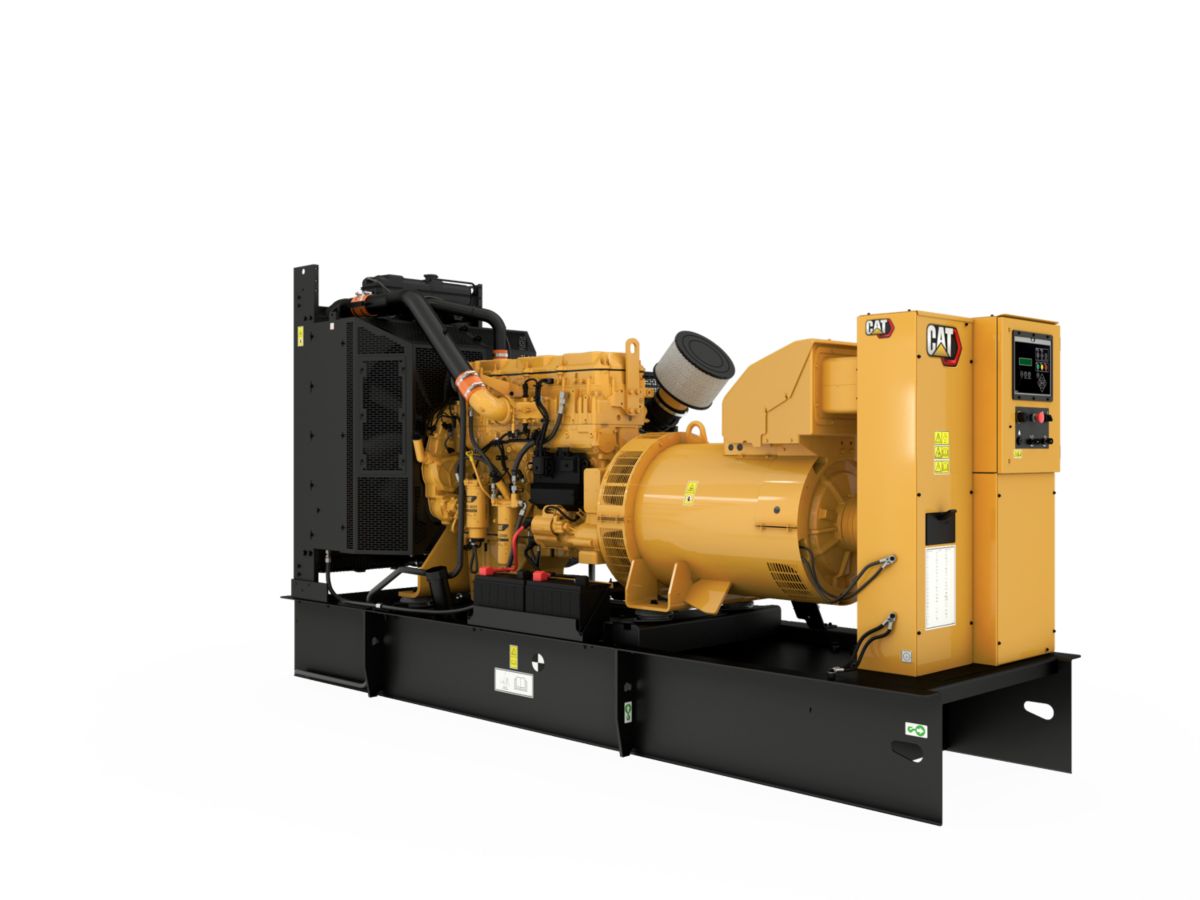

Cat C13 (50 Hz)

Dieselgeneratorer

Om Cat C13 (50 Hz)



The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 350 to 450 kVA at 50 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 percent rated load in one step. Our C13 generator sets range from low fuel consumption systems EU Stage IIIA Non-road Emission Standards. We offer a wide range of EMCP 4 control panel options, with a simple screen display, consolidating all your management and diagnostics tools. The optional EMCP 4.4 provides multi generator set paralleling capability, allowing you to use multiple generator sets for increased power output and improved reliability. It's not just quality that matters but customization, choose from a broad range of accessories and bolt-on system expansion attachments. Discover our flexible upgradeable packaging options to work with your spatial restrictions and environmental conditions. Our C13 generator sets are developed for such prerequisites, so that you can meet your specific power needs.

Spesifikasjoner

Generator Set Specifications
Height - Maximum 2133 mm
Length - Maximum 4743 mm
Width - Maximum 2014 mm
Minimum Rating 350 kVA
Maximum Rating 450 kVA
Voltage 380 to 415 Volts
Frequency 50 Hz
Speed 1500 RPM
Generator Set Configurations
Emissions/Fuel Strategy Low Fuel Consumption, EU Stage IIIA Nonroad Emission Standards
Engine Specifications
Motormodel C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
Compression Ratio 16.3:1
Aspiration Air to Air Aftercooled
Governor Type Adem™A4
Fuel System MEUI
Bore 130 mm
Displacement 12.5 l
Stroke 157 mm

Egenskaper

Features

Design Criteria

Design Criteria
The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response.

Cat Diesel Engine

Cat Diesel Engine
  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
  • Generator

    Generator
  • Matched to the performance and output characteristics of Cat engines
  • Industry leading mechanical and electrical design
  • Industry leading motor starting capabilities
  • High Efficiency
  • Cat EMCP Control Panel

    Cat EMCP Control Panel
    The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP 4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP 4 systems can be further customized to meet your needs through programming and expansion modules.

    World Wide Product Support

    World Wide Product Support
    Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
