Cat C18 (50 Hz)

Om Cat C18 (50 Hz)

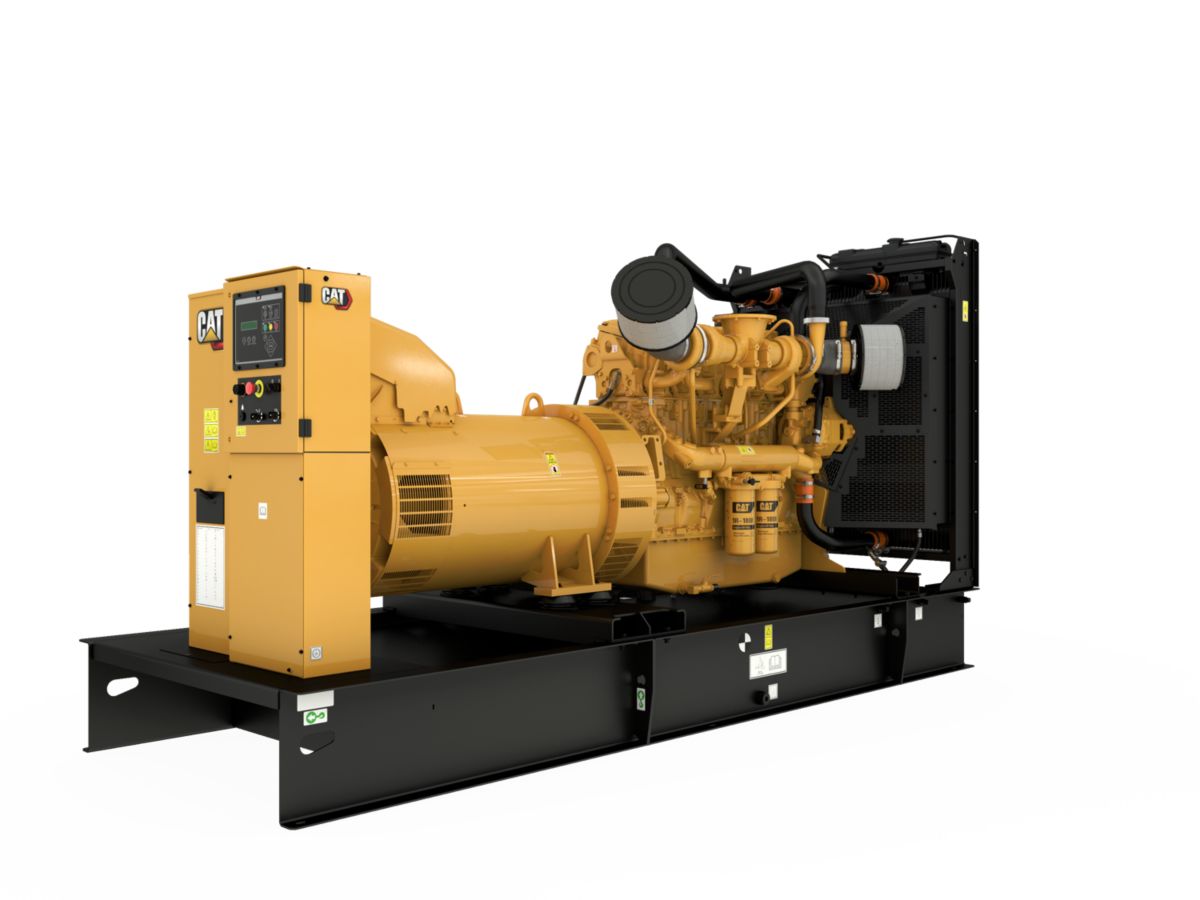

The C18 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 550 to 715 kVA at 50 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 percent rated load in one step. Our C18 generator sets range from low fuel consumption systems to EPA Stationary Emergency (Tier 2) certified. Seismic certification is also available for select models, so you can deliver power despite disturbances. Our integrated control system, including ATS and switchgear ensure a consistent power supply and connection to your fleet through on-site and remote monitoring options. We offer a wide range of EMCP 4 control panel options, with a simple screen display, consolidating all your management and diagnostics tools. The optional EMCP 4.4 provides multi generator set paralleling capability, allowing you to use multiple generator sets for increased power output and improved reliability. It's not just quality that matters but customization, choose from a broad range of accessories and bolt-on system expansion attachments. Discover our upgradeable packaging options to work with your spatial restrictions and environmental conditions. Our C18 generator sets are developed for such prerequisites, so that you can meet your specific power needs.

Spesifikasjoner

Egenskaper

Cat Generator Set Package

• Cat generator set packages have been fully prototype tested
• Accepts 100% block load in one step and meets NFPA 110 loading requirements
• Conform to ISO 8528-5 steady state and transient response requirements

Cat Diesel Engine

• Reliable, rugged, durable design
• Field-proven in thousands of applications worldwide
• Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

A-Frame Alternator

• Superior motor starting capability minimizes need for oversizing alternator
• Designed to match performance and output characteristics of Cat diesel engines
• Robust Class H insulation

GCCP1.3 Control Panel

• User-friendly interface and navigation
• Scalable system to meet a wide range of installation requirement
• Expansion modules and site-specific programming for specific customer requirements

Cooling System

• Designed to operate in standard ambient temperatures up to 55°C (131°F)
• Contact your Cat Dealer for specific ambient and altitude capabilities

Certifications

One Safe Source

• Components used in the generator set are selected based on seamless design integration to provide the optimum performance
• The generator set is fully assembled at a Caterpillar facility following our quality guidelines
• Each generator set package is tested before leaving the Caterpillar facility
• Cat product support, including dealer service, parts and warranty covers the entire Cat power system

Worldwide Product Support

• Cat dealers have over 1,800 dealer branch stores operating in 200 countries
• Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Design Criteria

The generator set meets NFPA 110 loading requirement and meets ISO 8528-5 transient response.

Cat Diesel Engine

• Reliable, rugged, durable design
• Field-proven in thousands of applications worldwide
• Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

A-Frame Alternator

• Matched to the performance and output characteristics of Cat engines
• Industry leading mechanical and electrical design
• Industry leading motor starting capabilities
• High Efficiency

GCCP 1.3 Control Panel

The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP4 systems can be further customized to meet your needs through programming and expansion modules.

Single-Source Supplier

Fully prototype tested with certified torsional vibration analysis available

Worldwide Product Support

Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S�ۢO�ۢS��� program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products

Seismic Certification

• Seismic Certification available.
• Anchoring details are site specific, and are dependent on many factors such as generator set size, weight, and concrete strength.
• IBC Certification requires that the anchoring system used is reviewed and approved by a Professional Engineer
• Seismic Certification per Applicable Building Codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007, CBC 2010
• Pre-approved by OSHPD and carries an OSP-0321-10 for use in healthcare projects in California

UL2200 Listed; CSA 22.2; Certification of Compliance – IBC Seismic; Dual IBC & HCAI

Certfications
