Cat C3.3 (50 Hz)

Dieselgeneratorer

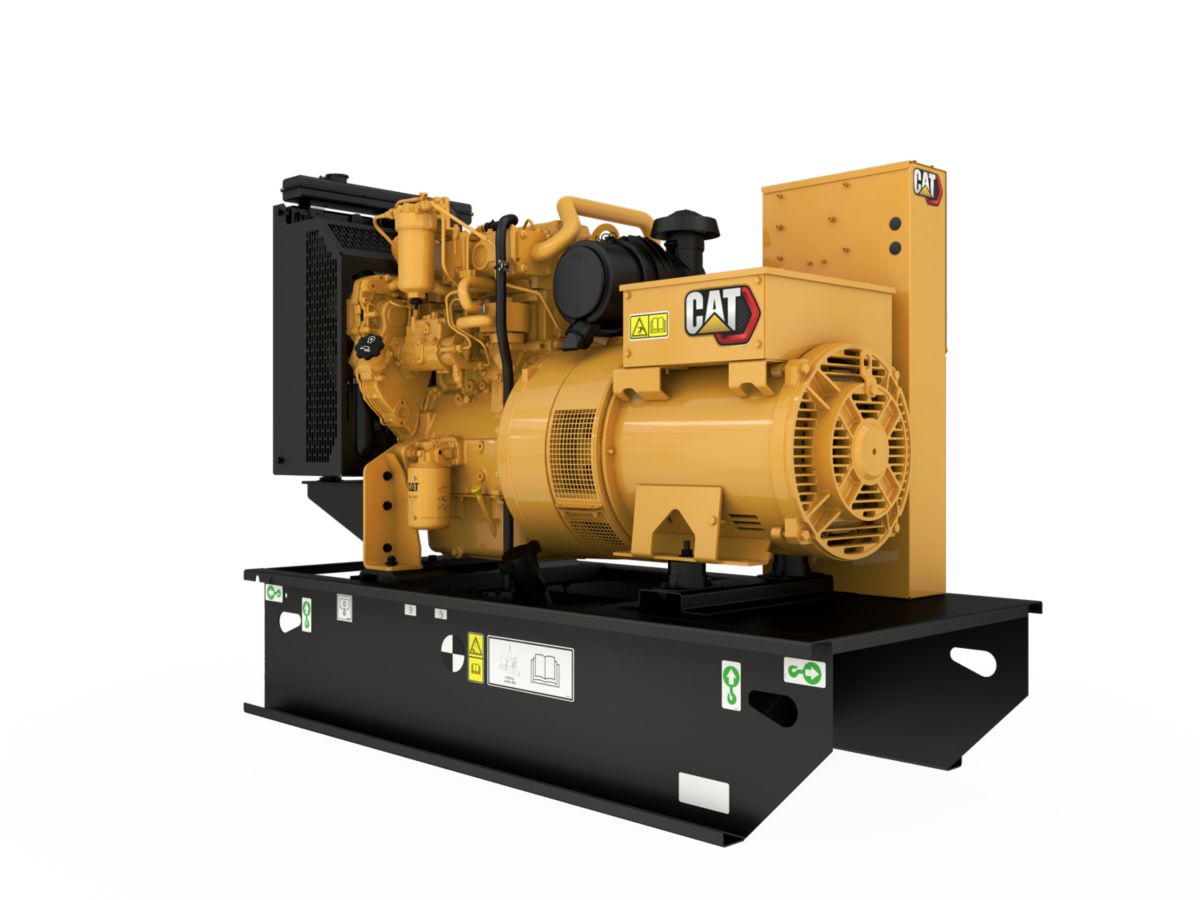

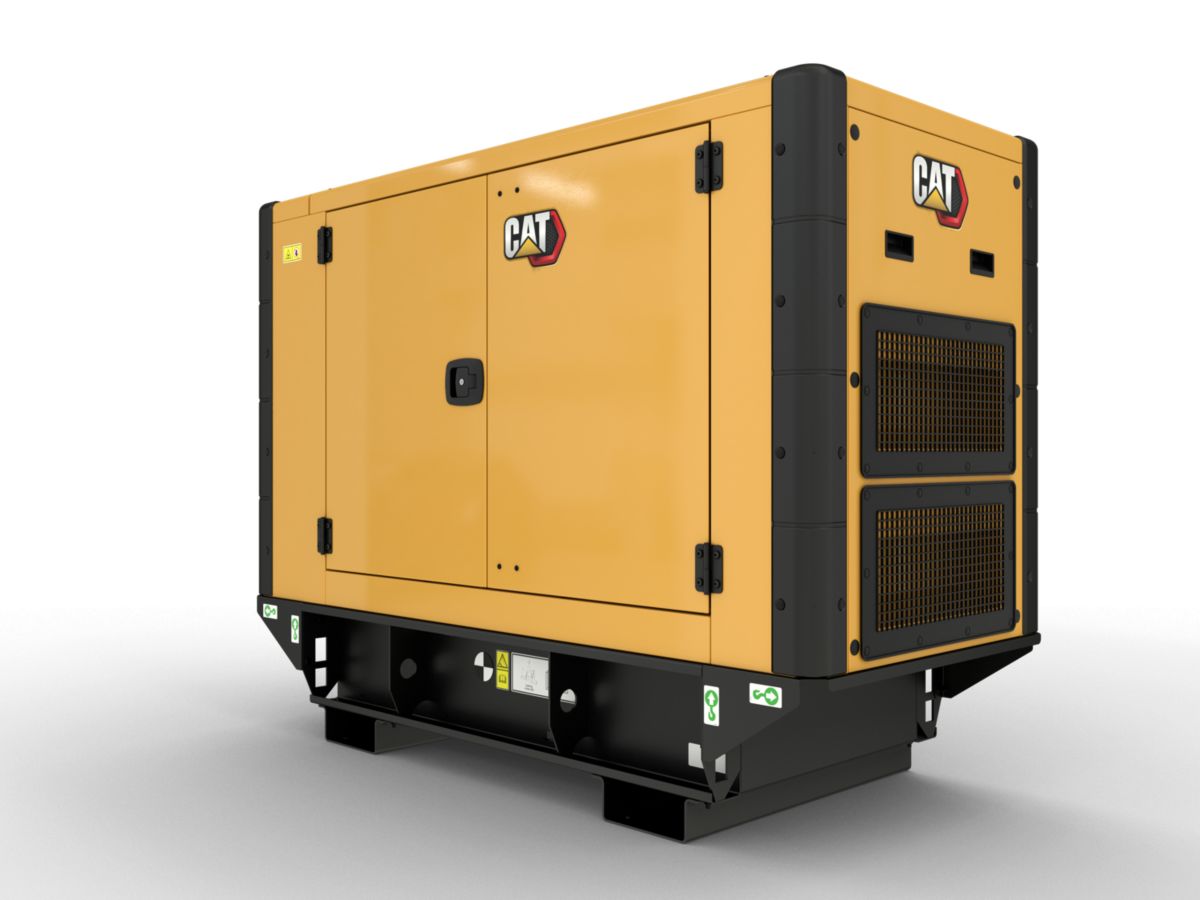

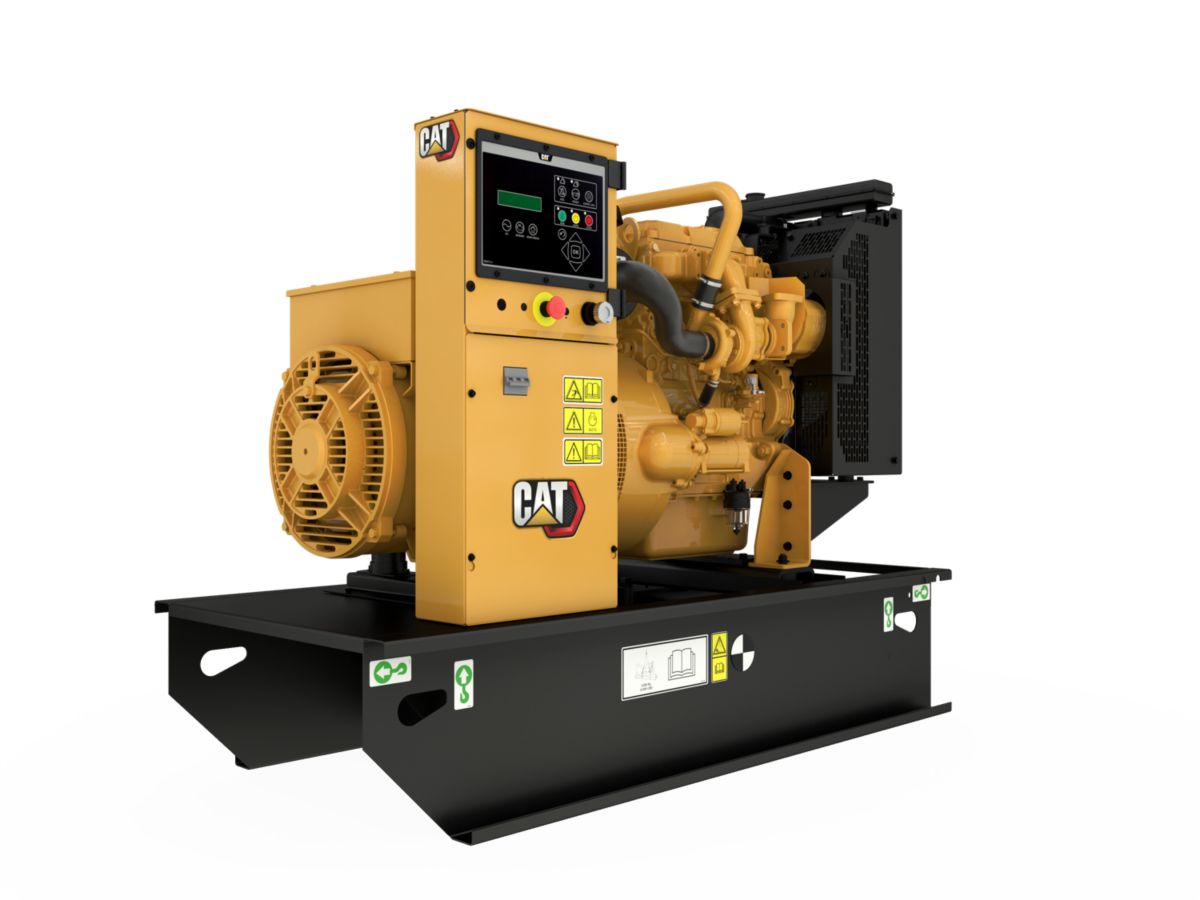

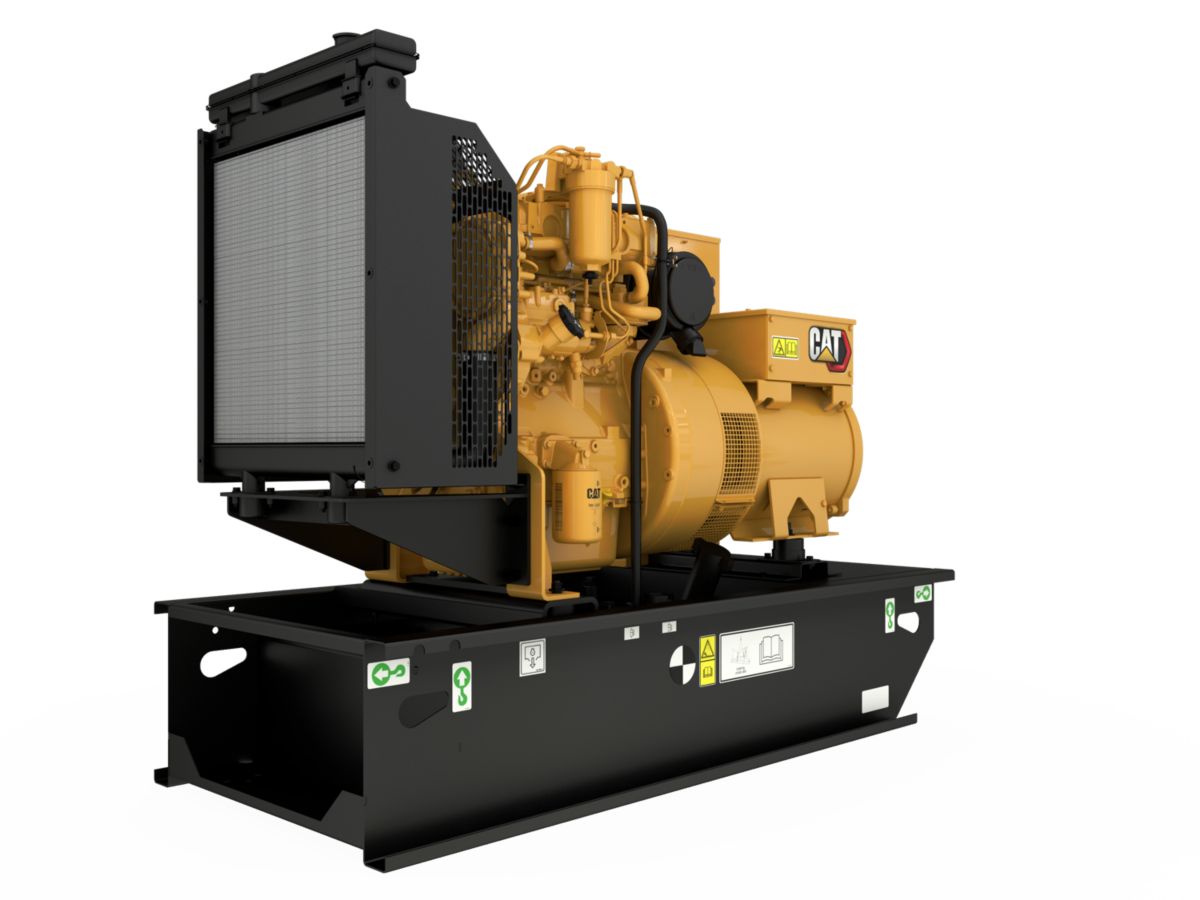

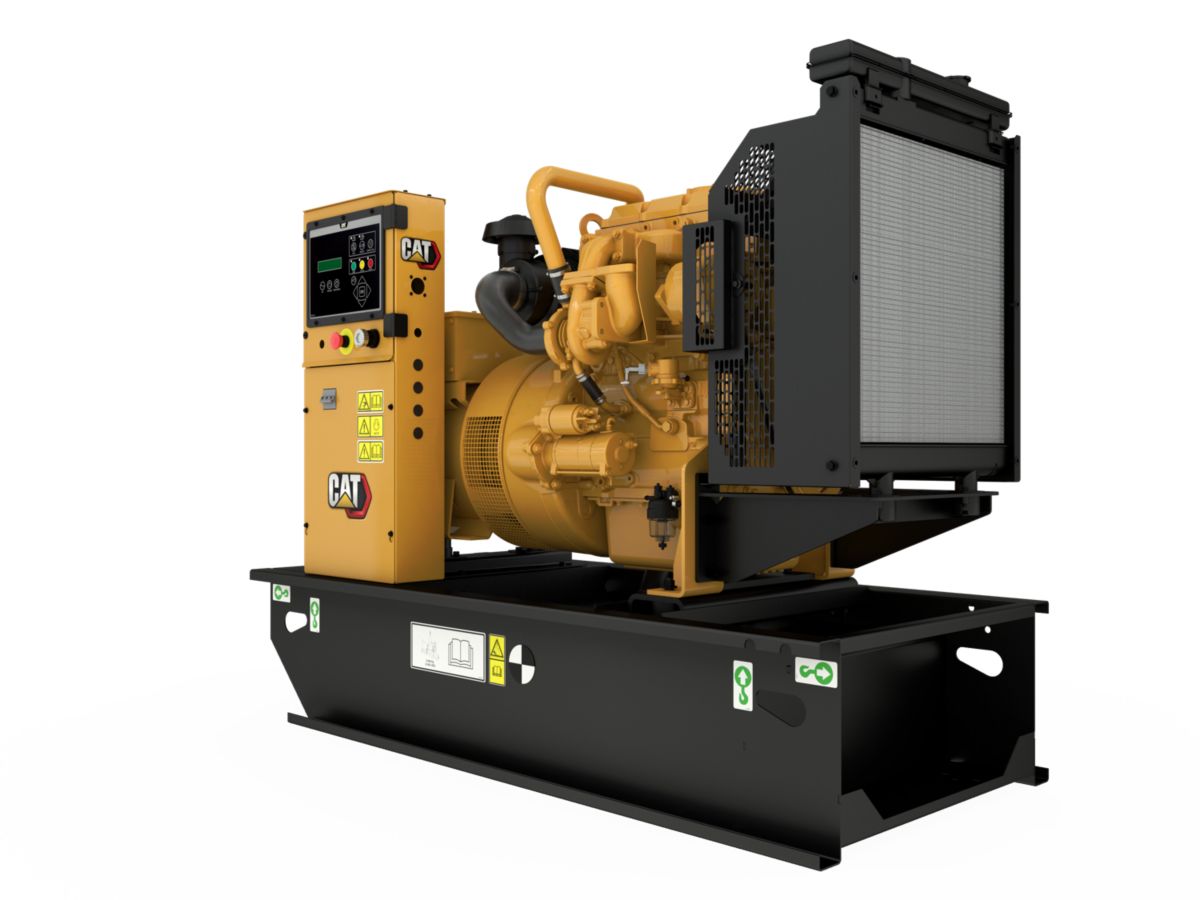

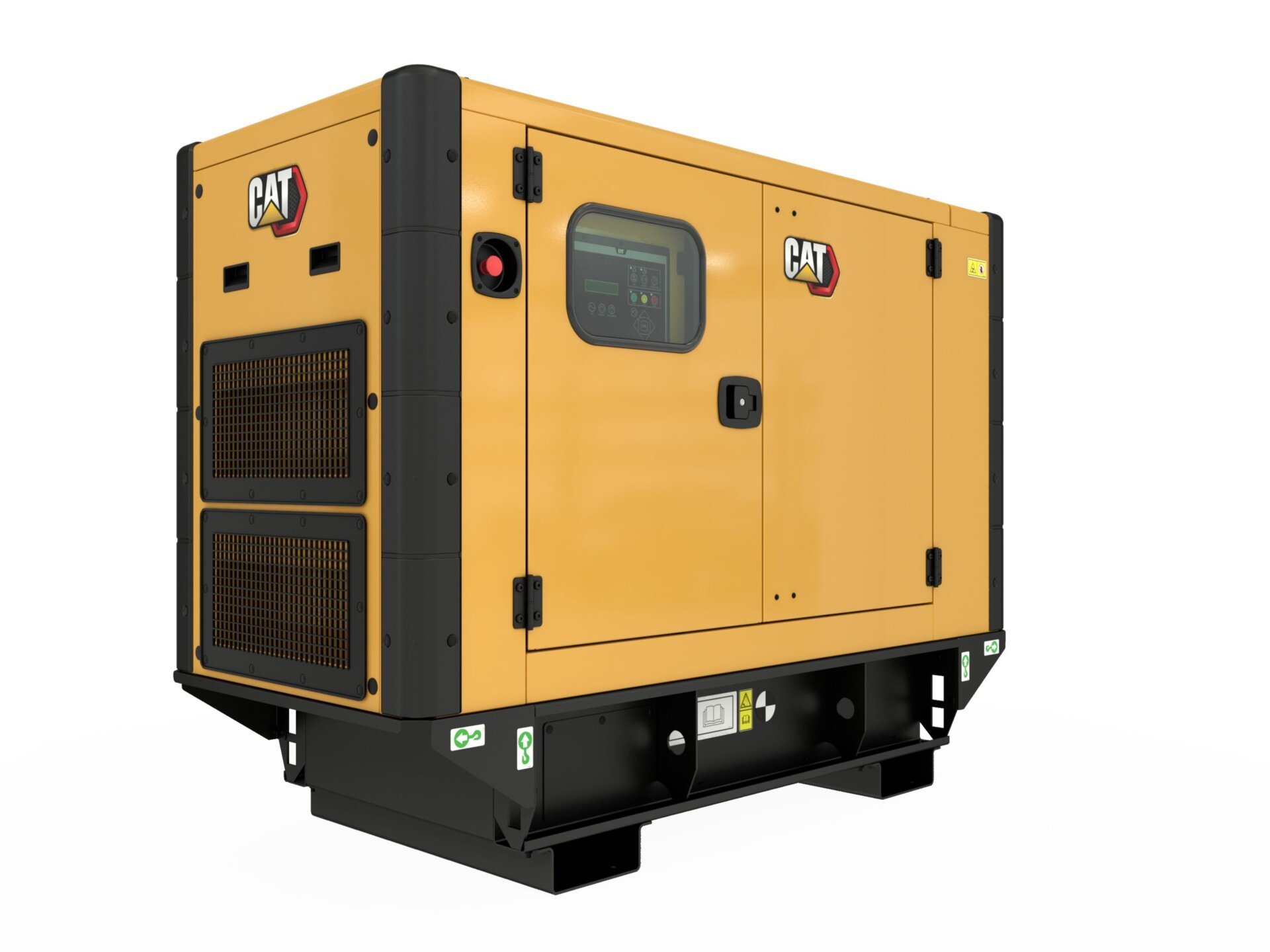

Om Cat C3.3 (50 Hz)



Providing reliable energy solutions, our C3.3 diesel generator sets are made to meet your standby and prime applications. Dedicated single phase and three phase models are available. All standby C3.3 generator sets are supplied with 4 years extended service coverage as standard. We've designed each to ISO 8528-5 transient response requirements. C3.3 generator sets are available with a choice of emissions levels from non regulated up to EU Stage IIIA emissions compliant. We offer easy-to-use Cat control panels, EMCP 4.1 or EMCP 4.2 options. Browse a broad range of accessories including galvanised sound attenuated enclosures and integral fuel tanks. Our C3.3 generator sets are made for demands, so you can make yours.

Spesifikasjoner

Generator Set Specifications
Maximum Rating 65.0 kVA
Minimum Rating 24.0 kVA
Emissions/Fuel Strategy EU Stage II R96/EUIIIa
Voltage 110 to 480 Volts
Frequency 50 Hz
Speed 1500 rpm
Duty Cycle Standby, Prime
Engine Specifications
Motormodel Cat® C3.3
Bore 105 mm
Stroke 127 mm
Displacement 3.3 l
Compression Ratio 17.25:1, 19.25:1
Aspiration Turbocharged
Fuel System Direct Injection
Governor Type Mechanical
Generator Set Dimensions
Length - Maximum 1115 mm
Width - Maximum 970 mm
Height - Maximum 1361 mm

Egenskaper

Cat Generator Set Package

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements
Retail Optimised

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine

M-Frame Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation
Cat Generator

GCCP 1.3 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements
  • Image may not be a representative of actual product
Cat EMCP Control Panel

Cooling System

  • Designed to operate in standard ambient temperatures up to 55°C (131°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System

Certifications

Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
Certifications

One Safe Source

  • Components used in the generator set are selected based on seamless design integration to provide the optimum performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source

World Wide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
