Cat C13 ACERT™

Industrial Diesel Power Units - Lesser Regulated & Non-Regulated

Om Cat C13 ACERT™

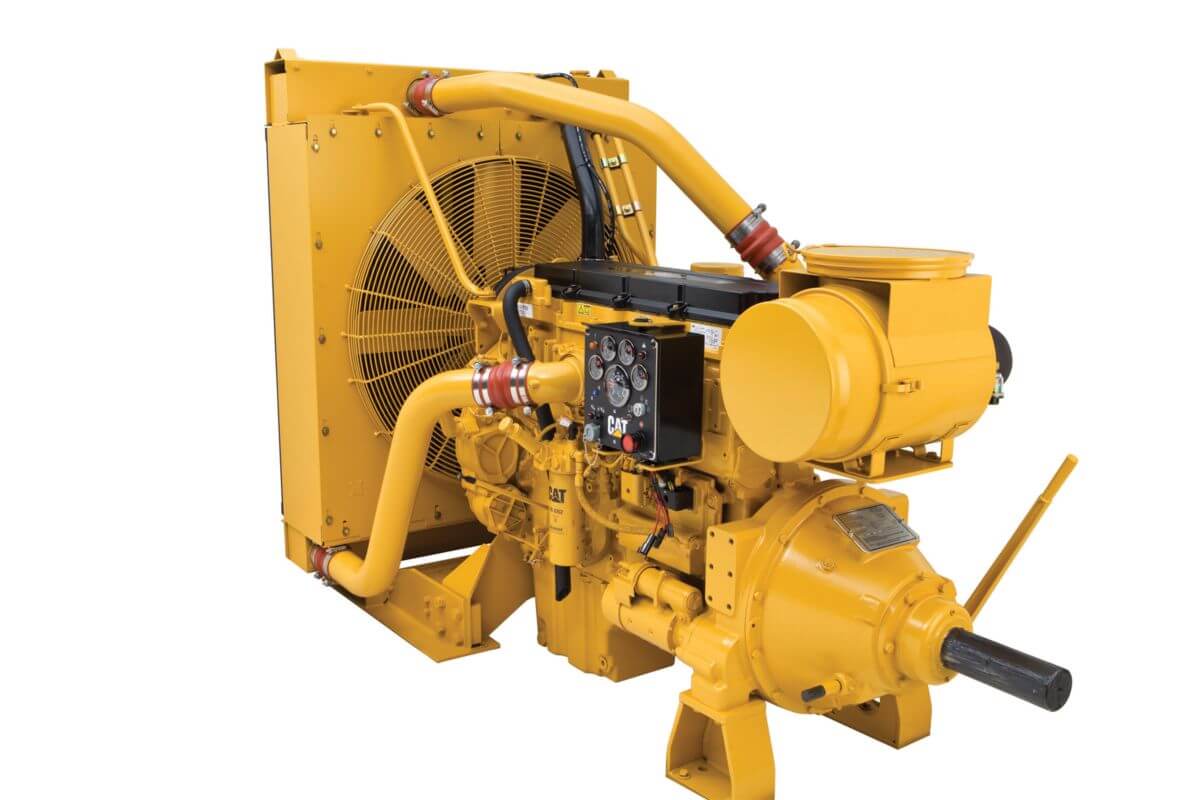

The Cat^® C13 ACERT™ Industrial Power Unit is offered in ratings ranging from 287-328 bkW (385-440 bhp) @ 1800-2100 rpm. These ratings meet China Stage II, U.S. EPA Tier 3 equivalent and EU Stage IIIA equivalent emission standards. Ratings: 310-328 bkW (415-440 bhp) @ 1800-2100 rpm meet China Stage II, U.S. EPA Tier 2 equivalent andEU Stage II equivalent emission standards. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Spesifikasjoner

Power Rating

Minimum Rating	385 BHP
Maximum Rating	440 BHP
Rated Speed	1800-2100

Emission Standards

Emissions

China Stage II, U.S. EPA Tier 2 Equivalent or U.S. EPA Tier 3 Equivalent, EU Stage II Equivalent or EU Stage IIIA Equivalent

Generell

Engine Configuration	Inline 6, 4-Stroke-Cycle Diesel
Bore	130 mm (5.1 in)
Stroke	157 mm (6.2 in)
Displacement	12.5 L (763 in³)
Aspiration	Turbocharged Aftercooled (TA)
Compression Ratio	17:1
Combustion System	Direct Injection
Rotation from Flywheel End	Counterclockwise
Cooling System - Capacity	14.2 L (15 qt)

Power Unit Dimensions - Approximate

Height	1054 mm (41.5 in)
Length	1295 mm (50.9 in)
Weight - Net Dry - Standard Configuration Without Oil, Cooling, Clutch, Compressor, A/C	1692 kg (3730 lb)
Width	1186 mm (46.7 in)

Egenskaper

Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.

World-class Product Support Offered Through Global Cat Dealer Network

Scheduled maintenance, including SOS^SM sample
Customer Support Agreements (CSA)
Caterpillar Extended Service Coverage (ESC)
Superior dealer service network
Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
