Cat CG137-12

Land Production Generator Sets

Om Cat CG137-12

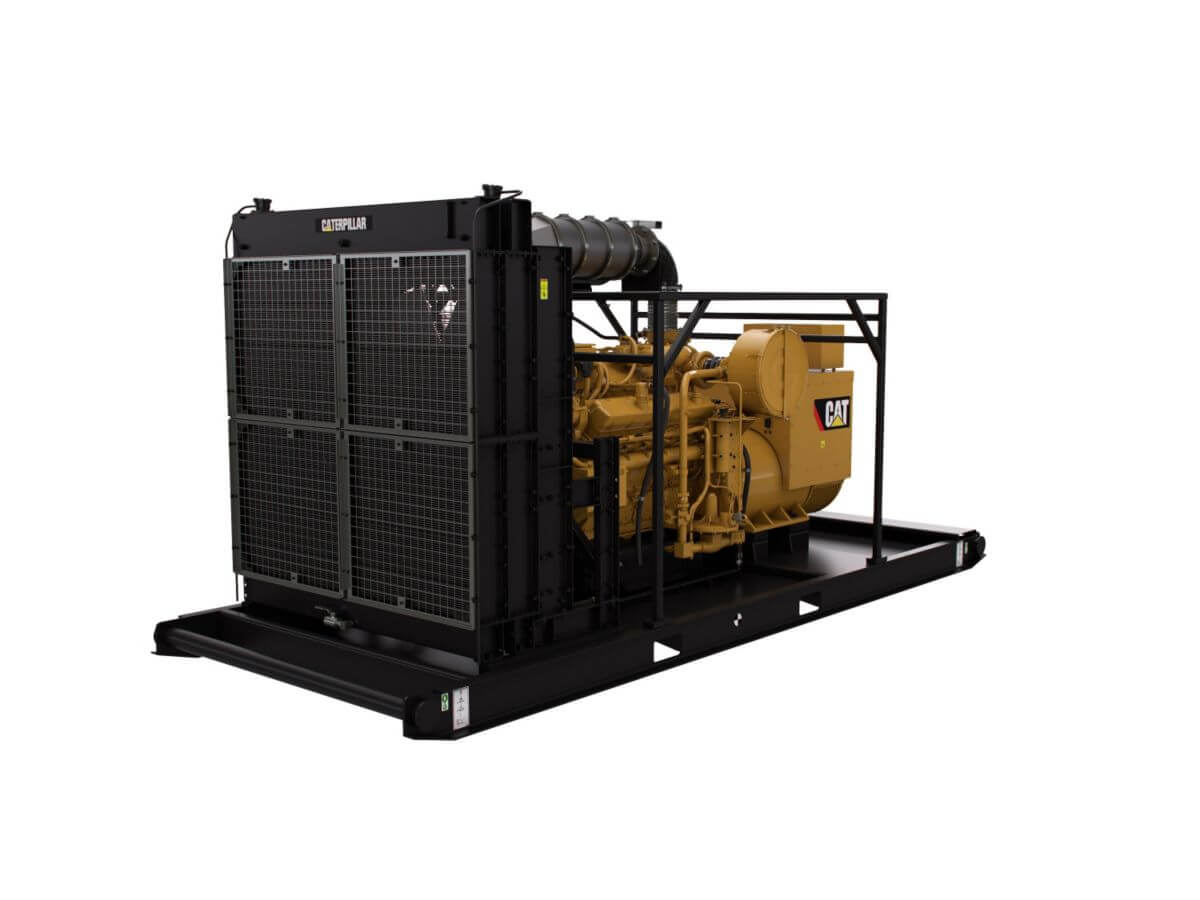

Production of oil and gas in the oilfield can be a challenge when utility power is not available. The Caterpillar product line of oilfield gas generator sets provides the ideal solutions for this challenge. Engines are designed to run on low to no-cost well site gas without sacrifice on performance. These generator sets allow customers to significantly reduce fuel cost and avoid the expense and logistics of diesel fuel deliveries. Plus, they are designed to withstand the harsh conditions in the oilfield and feature a heavy-duty construction ideal for loading and unloading operations. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. CG137-12 oilfield gas generator set. Rating: 400 ekW (500 kVA) @ 60 Hz (1800 rpm). Standard Configuration meets U.S. EPA Tier II Nonroad Mobile Emissions standards and Available for NSPS emission standards in non-attainment areas via design to order process.

Spesifikasjoner

Engine Specifications
Maximum Rating 400 ekW (500 kVA)
Minimum Rating 400 ekW (500 kVA)
Emissions/Fuel Strategy U.S. EPA Tier II Nonroad Mobile Emissions Certified. Available for NSPS compliance via Design to Order process
Aspiration Turbocharged-Aftercooled
Manifold Type Watercooled
Bore 5.39 in
Stroke 6.46 in
Displacement 1770 in³
Engine Control and Protection ADEM A4
Generator Set Control EMCP 4.4 Control Panel
Generator SR4B
Frequency - Speed 60 Hz (1800 rpm)
Capacity for Liquids
Fuel CNG, LNG, field gas, natural gas
Lube Oil System - Refill 45 gal (US)
Cooling System - Engine 15 gal (US)
Dimensjoner
Length 230 in
Width 89 in
Height 102.3 in
Weight 19731 lb

Egenskaper

Latest Electronics

Latest Electronics
- ADEM A4 control system provides integrated ignition, speed control, and protection
- Latest EMCP 4.3 controls for integrated engine-generator control, enhanced functionality, and simplified operator interface
- Optional EMCP 4.4 controls enable paralleling of up to eight units

Warranty

Warranty
− Entire package covered under a one-year Caterpillar warranty
− Warranty includes all components and content

Custom Packaging

Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.

Custom Packaging

Custom Packaging
For any petroleum application, trust Caterpillar to meet your project needs with custom factory generator sets and mechanical packages. Cat engines, generators, controls, radiators, and transmissions can be custom designed and matched in collaboration with our local dealers to create unique solutions. Custom packages are globally supported and are covered by a one year warranty after startup.

Product Support Offered Through the Global Cat Dealer Network

Product Support Offered Through the Global Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure opti

Product Support Offered Through the Global Cat Dealer Network

Product Support Offered Through the Global Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure options - SOSSM program matches your oil and coolant samples against Caterpillar set standards to determine: Internal engine component condition Presence of unwanted fluids Presence of combustion by-products Site-specific oil change interval

Over 80 Years of Engine Manufacturing Experience

Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.

Over 80 Years of Engine Manufacturing Experience

Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.

Web Site

Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.

Web Site

Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
