Cat C15 ACERT™ HazPak

Well Service HazPak

Send Forespørsel

Om Cat C15 ACERT™ HazPak

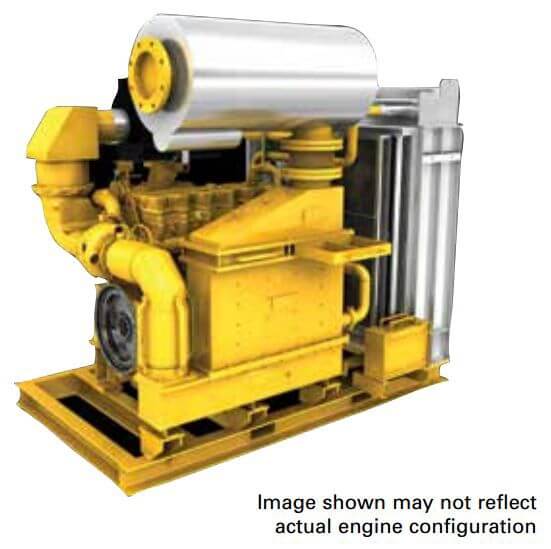

When the job takes you into a hazardous location, Cat® HazPak engines are ready. Our complete range of services and engine packages cover both industry standards and your operation with maximum safety.Cat C15 ACERT HazPaks are hazardous location power units that are the ideal solution for specialized and demanding operations in the oilfield. Units are hazardous-location certified from the factory to minimize installation design, time, and cost. HazPaks are certified to operate in potentially explosive environments.Cat hazpaks are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat C15 ACERT HazPak. Rating: 400 bkW (536 bhp) @ 1800-2000 rpm.

Spesifikasjoner

Package Specifications

Minimum Rating	536 BHP
Maximum Rating	536 BHP
Peak Torque - Speed	2428 N•m (1791 lb-ft) @ 1350 rpm
Displacement	928 in³
Aspiration	Turbocharged-Aftercooled
Governor and Protection	Electronic ADEM™ A4
Weight - Net Dry - Approximate	6735 lb
Oil Change Interval	500 hours
Rotation from Flywheel End	Counterclockwise
Flywheel and Flywheel Housing	SAE No. 1
Stroke	6.7 in
Bore	5.4 in
Flywheel Teeth	113 (SAE 1)
Emissions	IMO Tier II Certified, EPA Marine Tier 2 Certified, EPA Marine Tier 3 (2013)

Capacity for Liquids

Lube Oil System - Refill	79.25 qt (US)
Cooling System	36 qt (US)

Egenskaper

Improving Workforce Efficiency

• Standard factory certifications improve worksite safety- Class I Division 2 (NEC 500), Class I Zone 2 (NEC 505)- ATEX Directive (94/9/EC) Group II- Category 3G (Zone 2) with Mechanical Gas Group IIA, Electrical IIC and Temperature Class T3.• Electrical harness and connectors are certified as intrinsically safe for Zone 2 and for protection against flame propagation• Certified flameproof intake system to prevent any internal explosions from propagating to external atmosphere• Industry-standard ADEM A4 control system improves operator interface

Making Your Investment Work Harder

• Factory-certified engines for hazardous location applications allow simplified rig certification for OEM• Optimized for demanding well service applications- Workover, pumping, cementing, blending, and acidizing• Maintains high power over broad range of operating speeds, improving performance• Steady torque rise provides superior load acceptance• Optimized ambient and altitude capabilities for operating flexibility

Committed to Sustainable Development

• Meets today's emission standards for well service applications- IMO Tier II, EPA Marine Tier 2- Marine Tier 3 (2013)

Driving Down Total Cost of Ownership

• Improved serviceability versus the competition• Industry-leading component overhaul life

Product Support Offered Through Global Cat Dealer

• More than 2,200 dealer outlets• Caterpillar factory-trained dealer technicians service every aspect of your petroleum engine• Caterpillar parts and labor warranty
