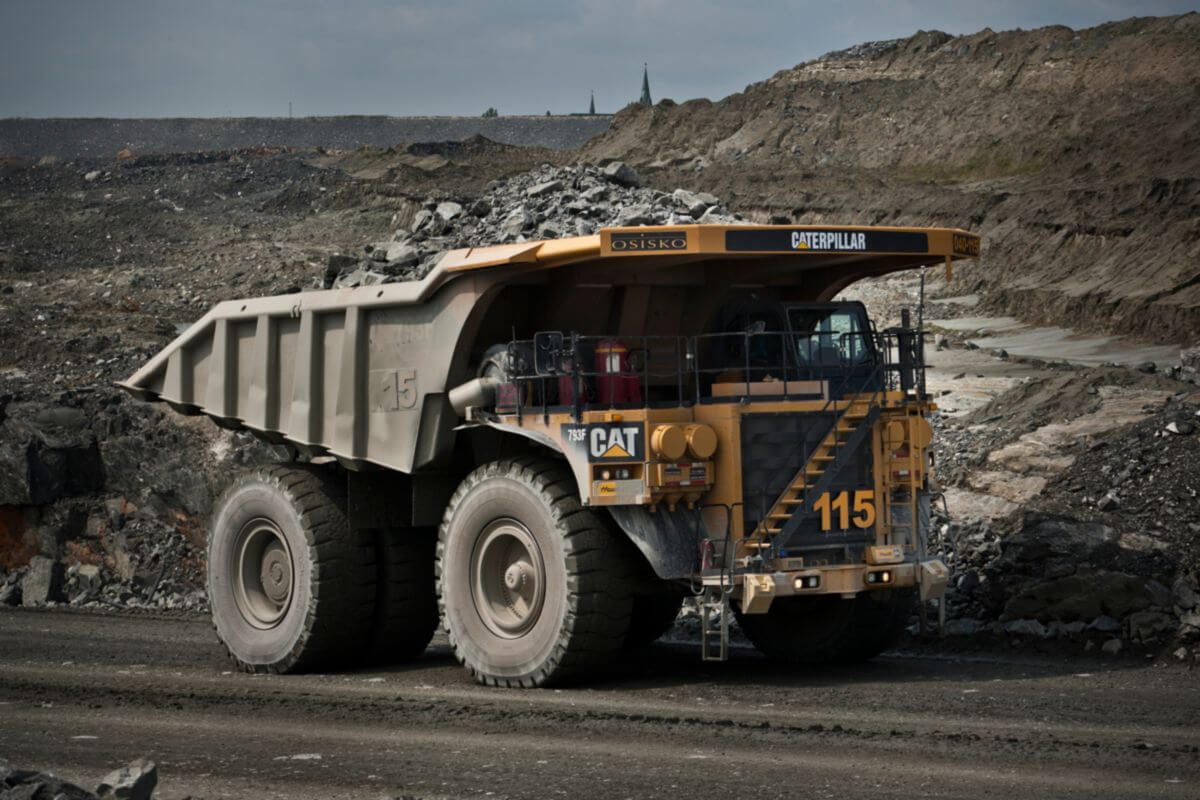

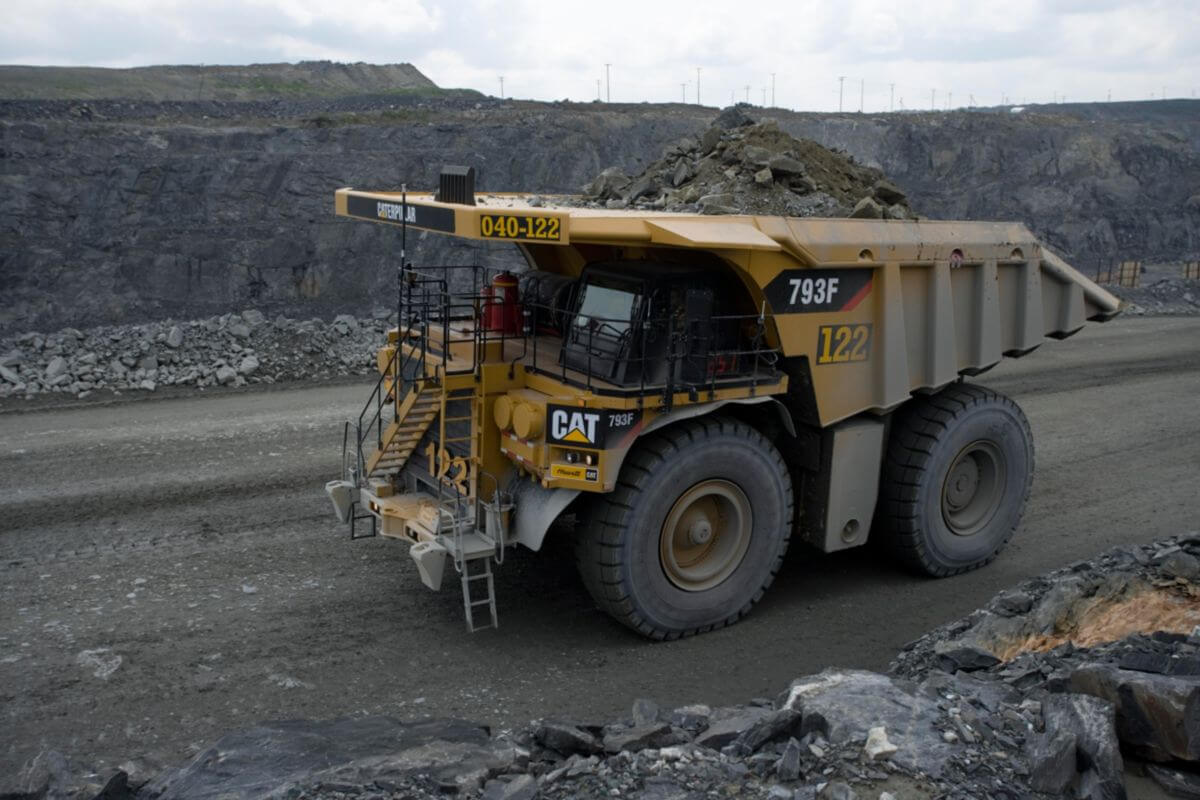

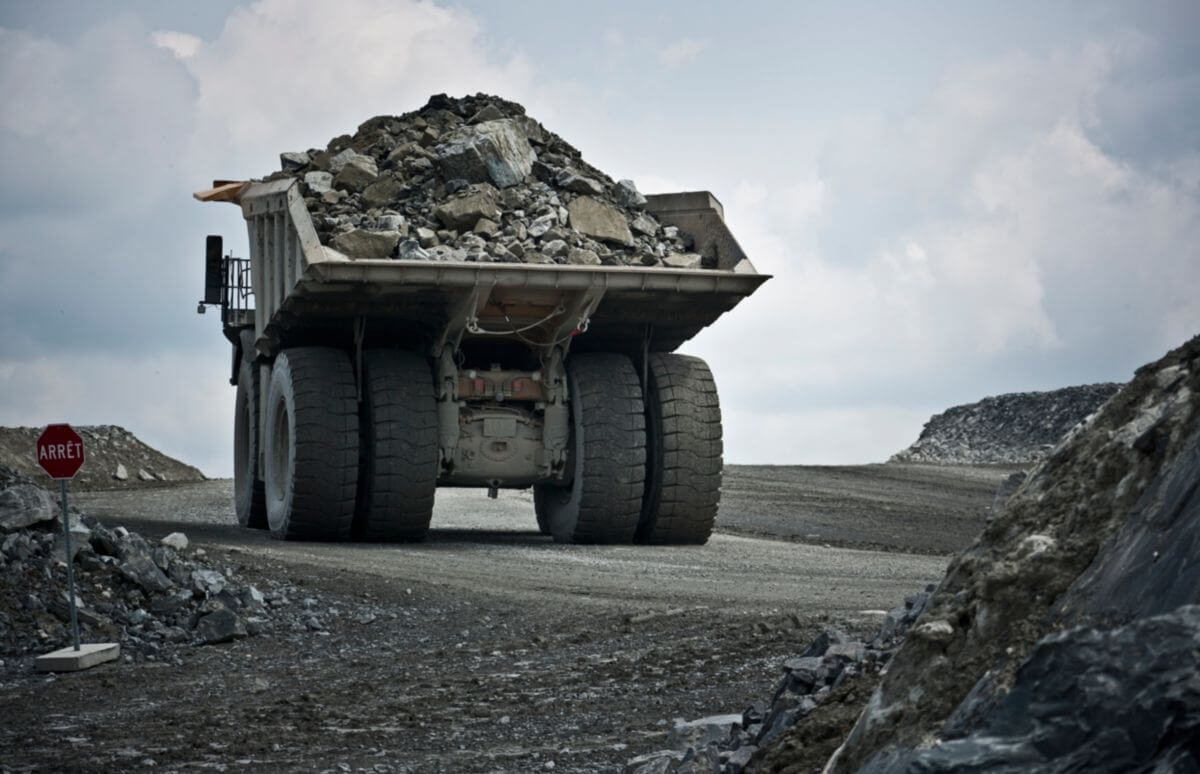

Cat 793F

Mining Trucks

About the Cat 793F



What will it take to boost your bottom line? An engine that delivers more power and performance for an increase in productivity? A class-leading empty weight that leads to optimized payload? A longer life for high operating hours, reduced costs and the opportunity to rebuild for a second life? With the Cat® 793F, you get all of this — and more. This popular industry workhorse is the ideal choice for a wide variety of applications. It hauls more every load, every cycle and every shift. And it delivers a better bottom line to the most important mine in the world: yours.

Specifications

Engine
Gross Power - SAE J1995 1976 kW
Net Power - SAE J1349 1848 kW
Engine Model Cat® C175-16
Rated Speed 1750 r/min
Emissions Fuel Optimized
Bore 175 mm
Stroke 220 mm
Displacement 85 l
Note (1) Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Note (2) EPA Tier 4 Final / EU Stage V available for applicable markets.
Weights - Approximate
Rated Gross Machine Weight 386007 kg
Chassis Weight 123575 kg
Body Weight 30700 kg
Note (1) Consult your tire manufacturer for maximum tire load
Note (2) Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
Note (3) Refer to the Cat Mining Truck 10/10/20 Overload Policy for maximum gross machine weight limitations.
Nominal Rated Payload 231 t
Final Drives
Differential Ratio 1.8:1
Planetary Ratio 16:1
Total Reduction Ratio 26.8:1
Transmission
Forward - 1 12.9 km/h
Forward - 2 17.4 km/h
Forward - 3 23.8 km/h
Forward - 4 32.1 km/h
Forward - 5 43.6 km/h
Forward - 6 60 km/h
Reverse 11.8 km/h
Top Speed - Loaded 60 km/h
Tires
Standard Tires 40.00 R57
Rims 29" or 32"
Note Quick Change Rims optional.
Note (1) Extended life wheel stations optional.
Note (2) Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Suspension
Type Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments
Effective Cylinder Stroke - Front 130.5 mm
Effective Cylinder Stroke - Rear 105.5 mm
Rear axle - Oscillation ±4.9 degrees
Braking System
Service Brakes Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Front Wet Disc Brake Surface Area 89817 cm³
Rear - Wet Disc Brake Surface Area 34500 cm³
Standards (Service and Secondary): ISO 3450:1996
Parking Brakes Four-corner, Multi-disc, Spring Applied, Hydraulically Released
Load Brake Rear service brakes
Note Anti-Lock Brake System (ABS) optional with CMD package
Body Hoists
Type Twin, two-stage hydraulic cylinders with snubbing valve
Pump Flow - High Idle 846 l/min
Relief Valve Setting - Raise 20370 kPa
Body Raise Time - High Idle 19 s
Body Lower Time - Float 20 s
Body Power Down - High Idle 17.5 s
Brakes
Brake Surface - Front 89817 cm²
Brake Surface - Rear 34500 cm²
Standards J-ISO 3450 JAN88, ISO 3450:1996
Cab
Air Conditioning Air Conditioning (HFC - 134A refrigerant): 24,300 Btu/hr
Heater / Defroster 38900 Btu/h
Note Ambient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning.
ROPS Standards (1) The operator sound pressure level, 76 dB(A), complies with ISO 6394 and ISO 6396.
ROPS Standards (2) ROPS (Rollover Protective Structure) meets ISO 3471:1994 criteria.
FOPS Standards FOPS (Falling Objects Protective Structure) meets ISO 3449:1992 Level II criteria.
Weight Distributions - Approximate
Front Axle - Empty 48 %
Rear Axle - Empty 52 %
Front Axle - Loaded 33 %
Rear Axle - Loaded 67 %
Capacity - MSD II - 100% Fill Factor
Struck 112-142 m³ (146-186 yd³)
Heaped (SAE 2:1) 159-190 m3 (209-250 yd3)
Note Contact your local Cat dealer for body recommendation.
Service Refill Capacities
Fuel Tank 2839 l
Fuel Tank - Optional 4922 l
Diesel Exhaust Fluid Tank 234.7 l
Cooling System 1074 l
Crankcase 312 l
Rear Axle - Housing 984 l
Steering System - Including Tank 290 l
Brake Hoist System - Includes Tank 1315 l
Torque Converter - Transmission Sump 102 l
Torque Converter/Transmission System - Including Sump 209 l
Note (1) DEF Tank only available for EPA Tier 4 engine option.
Capacity - HP Body - 100% Fill Factor
Struck 112.6-151 m³ (147-197.5 yd³)
Heaped (SAE 2:1)* 162-191 m³ (212-250 yd³)
Note (1) Contact your local Cat dealer for body recommendation.
Note (2) *ISO 6483:1980
Steering
Steer Angle 36 °
Turning Diameter - Front 28.42 m
Steering Standards SAE J15111 OCT90, ISO 5010:1992
ROPS
ROPS Standards ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:1994 ROPS criteria.
FOPS Standards FOPS (Falling Objects Protective Structure) meets ISO 3449:1992 Level II FOPS criteria.
Sound
Sound Standards The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 76 dB(A) for cab offered by Caterpillar, when properly installed and maintained and tested with doors and windows closed.
Sound Standards (1) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.

Features

Safety

SAFETY-INFUSED
From slip-resistant surfaces and guard rails to state-of-the-art collision avoidance technologies, the Cat 793F is infused with features to help operators feel safe and confident on the job.

Access/Egress
Improvements for machine level access and egress include a standard 600 mm (24 in) diagonal stairway across the front of the machine. Improvements for ground level access include an optional powered access stairway.

Integral ROPS Cab
Resiliently mounted to the main frame to reduce vibration and sound, the integral ROPS structure is an extension of the truck frame and exceeds SAE requirements.

Isolation Box
Lockout tagout box mounted on front bumper includes engine shutdown switch, battery lockout, starter lockout and transmission lockout.

Cat Detect System
Knowing what's around your 793F at all times is important. The Cat Detect system is factory installed as standard equipment on 793F Mining Trucks. The full Cat Detect system, RADAR AND CAMERA, provides both audible and visual indications of detected objects. This system uses a combination of short and medium range radars which surround the machine, along with cameras on each side to allow the operator to confirm the detected object. The cameras supplement the radar alerts and are selectable by touch screen menus through an intuitive interface.

Other Safety Features
— Slip resistant surfaces
— 76 mm (3 in) wide orange three-point operator restraint
— Wide angle mirrors
— Body raised indicator
— Double body retaining cables
— Guard rails
— Reverse neutralizer when dumping
— Low interior sound level

Performance

OPTIMUM POWER
The Cat 6-speed transmission, with the latest APECS controls, is paired with the C175-16 engine to deliver optimum power over a wide range of operating speeds.
— The lock-up torque converter engages at approximately 8 km/h (5 mph), delivering unsurpassed stall torque for its size class.
— Cat final drives work as a system with the upper powertrain to deliver maximum power to the ground.

OVER 6% FASTER THAN COMPETITIVE TRUCKS
The 793F is 6% faster than competitive trucks and delivers optimal speed on steep grades, poor underfoot conditions and haul roads with high rolling resistance. Its C175-16 diesel engine's 16-cylinder, four-stroke design uses long, effective power strokes for optimum efficiency.
—The 20% net torque rise provides unequaled lugging force during acceleration.

Torque rise effectively matches transmission shift points for maximum efficiency and fast cycle times.
— Travels at a class-leading speed of 12.9 kph / 8 mph on 10% grade
— Achieves top speed of 60 kph / 37 mph
— Capable of traveling at a maximum 28% grade loaded

SUPERIOR CONTROLLABILITY
Like all Cat mechanical-drive trucks, the 793F features four-corner oil-cooled brakes and Automatic Retarding Control to improve handling and machine control so operators can work quickly and confidently.

OVER 20% PRODUCTIVITY BOOST WITH ADDITION OF AUTONOMY
Fully integrated AHS factory offering:
— 240+ autonomous trucks in service
— Over 1.6 billion tonnes hauled
— Near continuous utilization

Integration

BUMPER-TO-BUMPER CATERPILLAR
The individual components, software, systems and engine that go inside a Cat truck have different purposes, but they have one very important thing in common: They are all manufactured by Caterpillar and supported by the Cat dealer network.

This integration ensures that the entire truck — from body to bumper, engine to electronics — can be fully optimized to deliver the lowest cost per ton.

YOUR PARTNER FOR THE COMPLETE EQUIPMENT LIFECYCLE
No one knows more about how to get the most from a piece of Cat equipment than your local Cat dealer. This one-of-a-kind, on-the-ground support network delivers expert service, integrated solutions, after-sales support, fast and efficient parts fulfilment, world-class rebuild and remanufacturing capabilities, and more.

Cat dealers operate as nearly 200 local businesses — each one fully embedded in and committed to the geographic area it serves. That means you work with people you know, who know your business, and who respond on your timeframe.

Sustainability

MINING — FOR A — BETTER WORLD
Governments and regulatory agencies mandate that you establish and follow environmentally sound policies and practices as you meet the demand for mined materials. We're focused on doing our part to make sure our trucks help you meet those regulations.

REDUCING EMISSIONS
We've designed the 793F to use less fuel, which reduces engine emissions and carbon footprint, and there is zero fuel burn during retarding.
— The optional Tier 4 Final engine reduces NOx and particulate matter. Rear axle filtration, extended life filters and extended maintenance intervals decrease the amount of waste contributed to the environment.

We also continue to research alternative energy sources such as biofuels (B20) and a liquefied natural gas-supplied Dynamic Gas Blending solutions to find new ways to reduce emissions. In addition, we preserve raw materials, conserve energy and reduce emissions through the Cat Reman program, which returns end-of-life components to like-new condition.

THE INDUSTRY'S BEST EMISSIONS SYSTEM
The Cat 793F is available in a fuel-efficient configuration that meets U.S. EPA Tier 4 final emissions standards.
— Through over 150,000 hours of successful operation on Cat large mining trucks, the system has proven its ability to deliver with no impact on machine performance.
— Designed for easy serviceability with readily accessible components, the modular aftertreatment system reduces overall fluid and fuel consumption and is aligned with truck preventive maintenance intervals to maintain high availability.
— Lower fuel burn results in longer engine life and lower repair costs.

BUILT TO BE REBUILT
Cat trucks are designed to last over 100,000 hours, and many are going well beyond that. The frame, powertrain, engine and components are built to be rebuilt — using new, remanufactured or rebuilt parts and components — so you can take advantage of multiple lives of like-new performance at a fraction-of-new price.

Operating Cost

OPTIMIZED PAYLOAD
An empty weight advantage of at least 9 tonnes (10 tons) over competitive electric-drive trucks in its size class ensures you're getting the full payload you expect.
— And when you choose the HP Body option, you'll reduce weight an additional 2.0-5.0 tonnes (2.2-5.5 tons).

OVER 5% WEIGHT ADVANTAGE
Highest payload for rated gross machine weight (240-250 tons / 218-227 tonnes)
— HP Body option reduces weight more than 3 tonnes (3.3 tons)

Technology Solutions

Cat® MineStar™ Solutions
Whether you want to address a single challenge or make step changes in the overall safety, efficiency and productivity of your surface operation, Cat® MineStar™ has a solution for you. MineStar is the mining industry's most comprehensive and thoroughly integrated suite of technology offerings.

FLEET
Cat Fleet helps you identify opportunities to improve truck efficiency in ways that reduce costs, boost productivity and add real value to your bottom line.
— Eliminate Queuing
— Optimize Shift Changes
— Reduce Fuel Stops

COMMAND FOR HAULING
This autonomous hauling solution helps improve productivity, efficiency and profitability while reducing overall costs.

What if your trucks could respond to calls to the shovel, move into position, haul to dump points and even report for maintenance — all without an operator on board? That's what Cat Command for hauling enables.

But this autonomous Cat MineStar solution is more than just an operator-free system. It takes advantage of the most sophisticated technologies available to deliver a next-generation haulage solution — one that boosts safety, productivity and availability on busy mine sites, especially those in difficult or remote locations. With autonomous hauling, the future is here — and we're there to help you bring it to your operation.

DETECT
With the MineStar Detect proximity detection system, you can equip your 793F with cameras to give your operators a better view of what's happening around their equipment — or combine cameras and radar into a true object detection system that automatically alerts operators to hazards.

You can even add satellite capabilities to provide proximity warnings and avoidance zones, seat-belt monitoring that encourages operators to buckle up, and in-cab systems that intervene when they detect fatigue or distraction.

Road Analysis Control (RAC)
Optional system monitors haul road conditions by measuring frame rack and pitch to improve haul road maintenance, cycle times, tire life and fuel efficiency.

Truck Body Systems

GET THE RIGHT BODY FOR THE JOB
When it comes to truck bodies, one size does not fit all. And when it comes to your Cat truck, Cat bodies are the best choice. We follow a dynamic approach to engineering — treating the body as part of a system rather than a static structure. Cat bodies are designed to be an integral part of the entire vehicle system, ensuring you achieve maximum chassis life.
— They're sized to meet payload requirements without compromise to vehicle balance, braking or control.
— From the design to the materials, manufacturing to shipping, the entire process meets Cat standards of quality and control.
— The Caterpillar exclusive 10/10/20 payload guidelines help achieve a balance of excellent payload with safe operation.

1 - X Body
If you have a new mine or are a contract miner the X Body is designed for you. It uses the Cat Mine Specific Design process to create a body that is properly sized and configured to meet the specific requirements of heavy-duty applications.
— The X Body design offers a larger volume with no weight penalty.

2 - MSD II
The MSD II bodies are intended for established mines and are customized to suit your specific mining applications based on a mine site evaluation.
— The MSD II is the best lightweight body ever built for mining applications and achieves excellent payload performance.

3 - Gateless Coal Body
The Gateless Coal Body is intended for dedicated coal haulage applications. It can be loaded to achieve target payload across the full range of coal densities.
— The body is designed and built using the MSD II Body concept, ensuring superior durability and reliability.

4 - High Performance Body
When you equip your truck with a Cat High Performance (HP) body, you’ll experience the benefits of a higher payload thanks to a weight reduction of 2.0-5.0 tonnes (2.2-5.5 tons) or more.
— The HP body features a lightweight, simplified and durable design that provides complete front machine coverage and extended overhead protection.

Serviceability

SERVICING EASE
— Improved service center
— Grouped ground level maintenance and checkpoints
— 1,000-hour hydraulic filters
— Oil level sight gauges and front wheel sight glass
— Service platforms on the engine and transmission
— Easy access to major components for easy servicing and removal
— Optional electric start removes air system
— Optional fast fill service center with Live S•O•S℠ Service Center and brake wear indicators
— AutoLube system that automatically lubricates necessary components on a regular basis
— Sealed electrical connectors
