Cat AP355

Track Asphalt Pavers

Request quotation

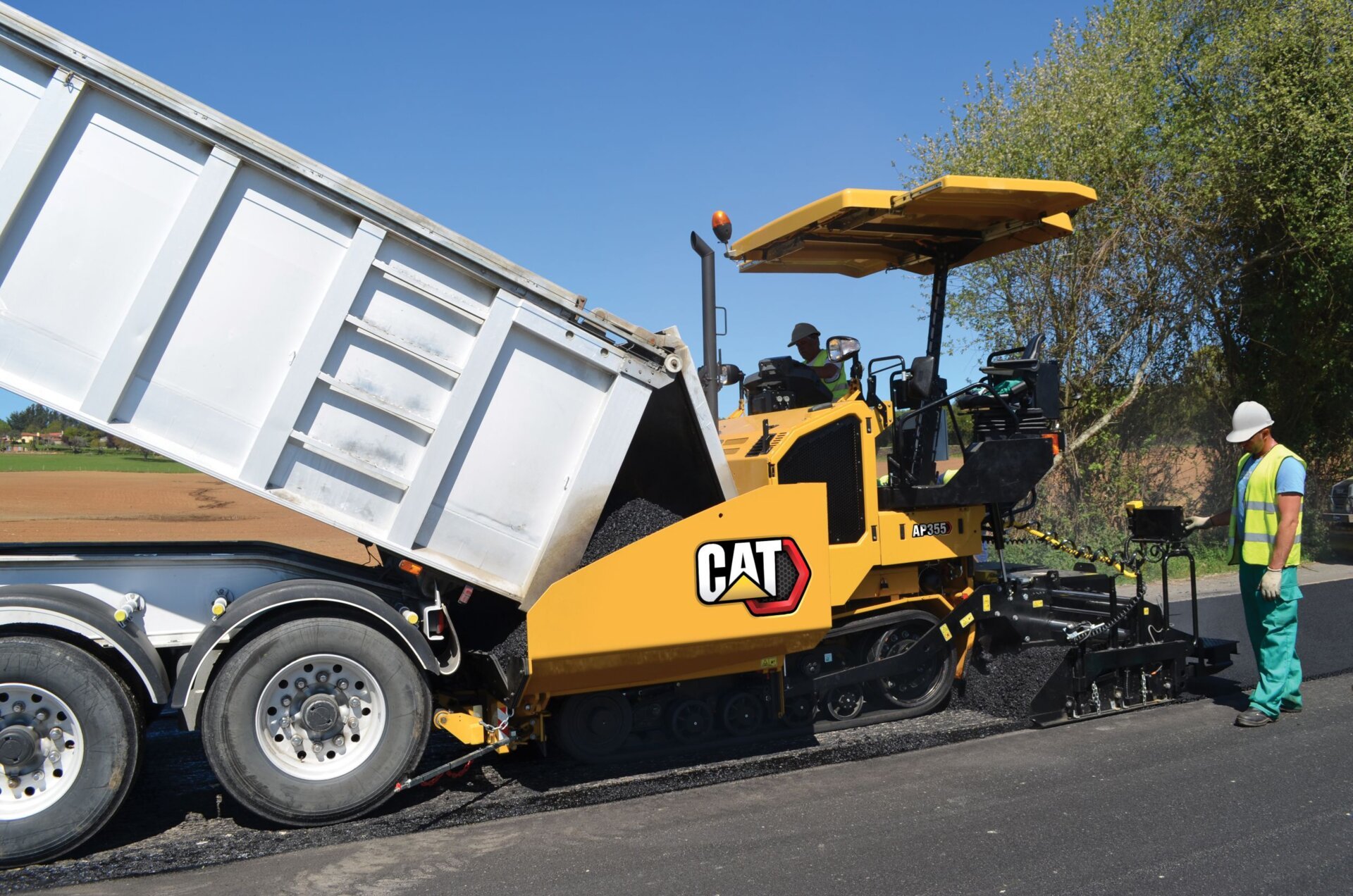

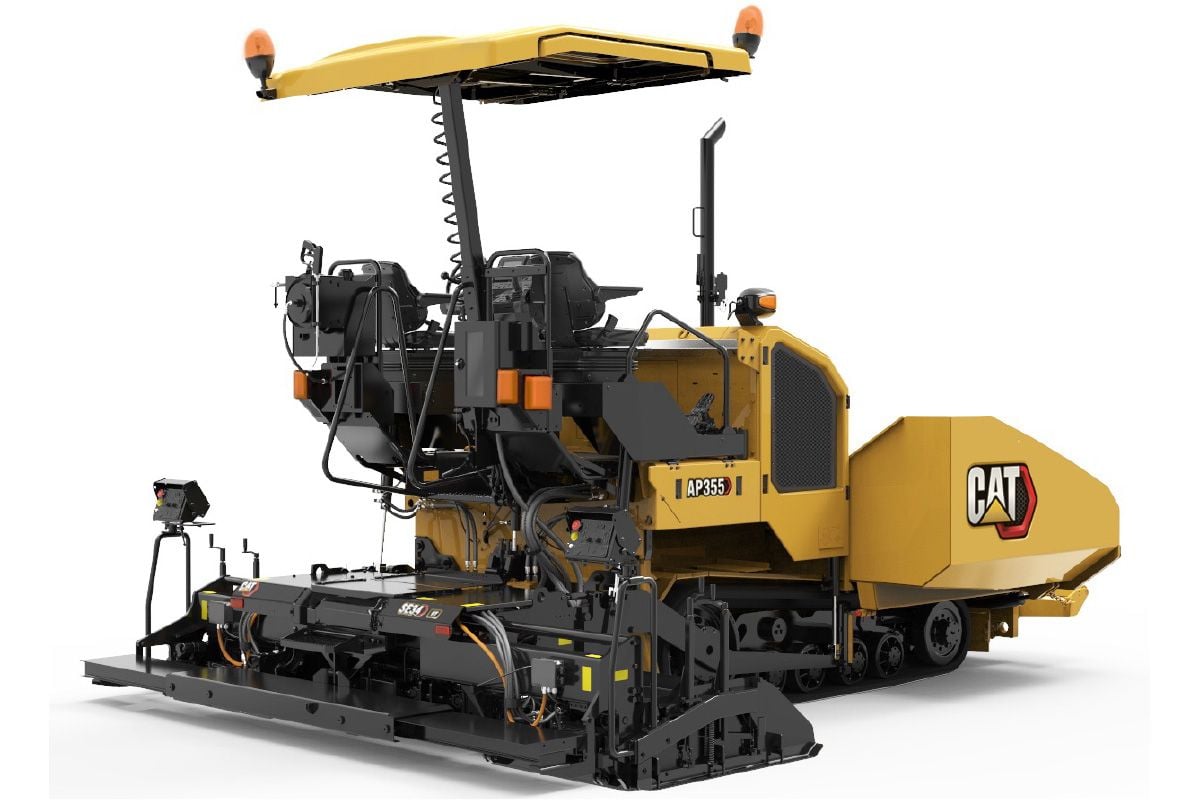

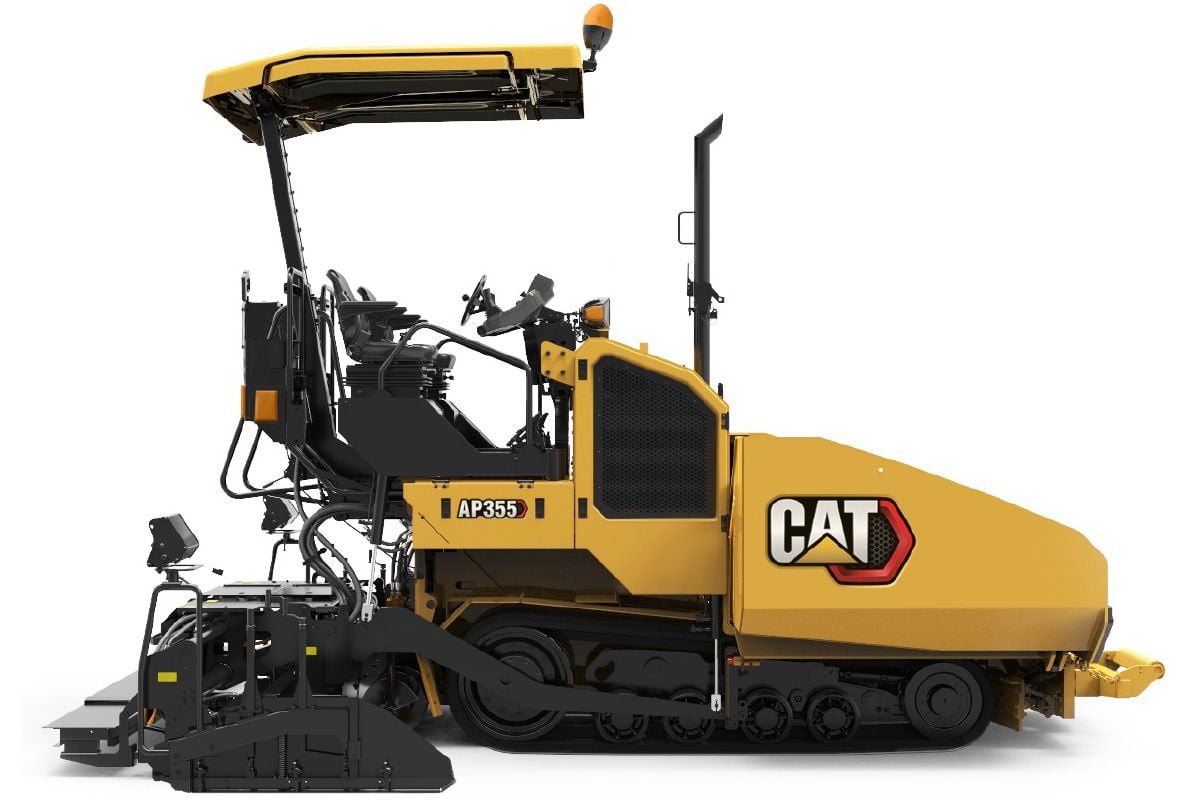

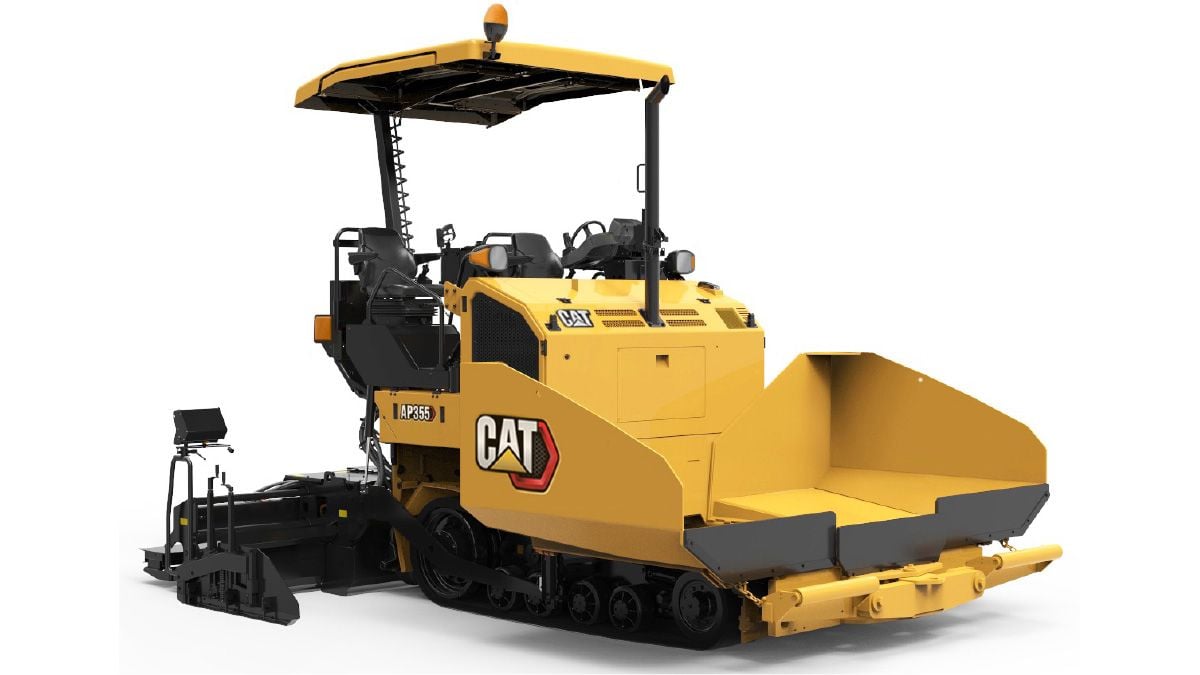

About the Cat AP355

The AP355 Asphalt Paver combines excellent styling with technology that exemplifies comfort and productivity. Numerous technological enhancements help contractors navigate around the twists and turns of urban environments and mountain roads.

Specifications

Operating Specifications

Standard Paving Range	1.75-3.42 m (5' 9" - 11' 2")
Maximum Throughput Capacity	406 tonnes/hr
Maximum Paving Width	4.6 m
Maximum Paving Speed	64 m/min
Maximum Travel Speed	11 km/h

Engine

Engine Model (1)	Cat C3.3B
Engine Power (1)	55 kW

Weights

Operating Weight - With SE34 VT	8700 kg
Operating Weight - With SE34 V	8500 kg
Shipping Weight - Paver Only	7100 kg

Dimensions

Operating Length	5047 mm
Operating Width	3180 mm
Operating Height - With Canopy	3415 mm
Transport Length	4904 mm
Transport Width	1886 mm
Transport Height - Canopy Retracted	2645 mm
Truck Entry Height	547 mm
Truck Entry Width	3150 mm

Service Refill Capacities

Fuel Tank Capacity	110 l
Cooling System	9 l
Engine Oil	13.2 l
Hydraulic Oil Tank	80 l
Washdown Spray Tank	28 l

Features

Technology That Works for You

Exclusive Eco-mode and automatic engine speed control, reduce fuel consumption and lower sound levels for better comfort and communication
Auto-fill feeder system simplifies setup by filling the auger chamber to the set point determined by the feed sensors
Single touch feeder system activation optimizes efficiency by activating each auger and each conveyor
Automated travel feature; augers raise with the screed, preventing damage during transport
Single-touch hopper control enables operators to concentrate on other duties

High Quality Results, Higher Earnings

Standard paving range of 1.75 m - 3.2 m (5' 9" - 11' 2") with a maximum width of 4 m (13' 1") deliver excellent performance for parking lots, urban streets, pathways, trenches, narrow shoulders, and other mid-sized applications
An optional paving reduction attachment narrows the paving width to 700 mm (27.5")
Heated end gates, variable frequency vibration, and tamper bar settings help provide smooth material flow

Exclusive Mobil-trac Undercarriage

Mobil-trac™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
Counter-rotating tracks provide excellent maneuverability in tight quarters
Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
Rubber-coated components help shed asphalt and prevent accumulation
Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression

Low Owning and Operating Costs

Engine options available to meet U.S. EPA Tier 4 Final, EU Stage V emissions and other regional standards
Million cycle key-pad switches provide reliability
Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
Heating elements slide-out for easy replacement
Machined screed frames simplify screed plate leveling

More Comfort

Ventilation system option draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
Single sliding console enables operation from either side of the machine
Dual independent seats swing out beyond the platform for good visibility to curbs and obstacles
Heated seat option delivers comfort in cool weather conditions
High visibility 76 mm (3") seat belt helps with crew safety compliance

Easy Viewing Displays, Simple Operation

Operating displays can be tailored to specific language requirements with multiple options available
Easy access to generator activation, screed temperature control, screed heating zones, tamper and vibratory speeds, and service code information
Intuitive symbols and large graphics simplify operation
Adjustable brightness control for easy viewing day or night
Raised switch design enables easy recognition for better efficiency and performance

Screeds That Deliver Quality

SE34 V and SE34 VT screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
Basic Grade Control option available

Service and Repair Kits

Paver and screed service and repair kits include all the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
