Cat D4K2 Tier 4 Final/Stage IV

Small Dozers

About the Cat D4K2 Tier 4 Final/Stage IV

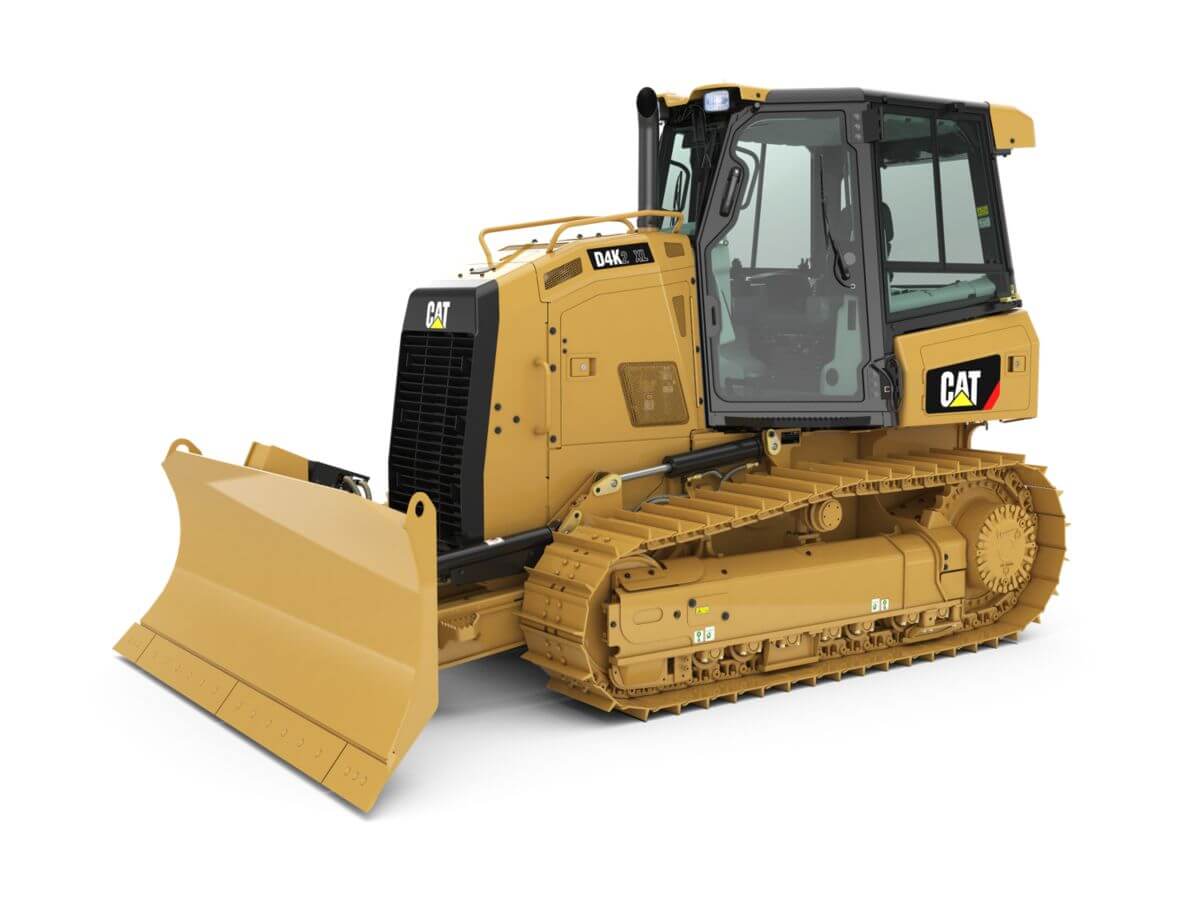

D4K2 Track-Type Tractor

Specifications

Engine

Engine Model	Cat C4.4 ACERT
Power - Net	92 HP
Displacement	269 in³
Bore	4.13 in
Stroke	5 in
Note	Engine meets Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) emission standards.
Rated Net Power - 2,200 rpm - ISO 9249/EEC 80/1269	92 HP
Rated Net Power - 2,200 rpm - SAE J1349	92 HP

Transmission

Drive Pumps	1
Maximum Travel Speed - Forward	5.6 mile/h
Maximum Travel Speed - Reverse	6.2 mile/h
Relief Valve Settings	7033 psi
Track Motors	2

Weights

Operating Weight - XL	18007 lb
Operating Weight - LGP	18686 lb
Note	Specs are for machine equipped with dozer blade, canopy ROPS, back-up alarm, operator, coolant, lubricants and full fuel tank.

Service Refill Capacities

Cooling System	5.92 gal (US)
Crankcase - With Filter	2.91 gal (US)
Final Drive - Each - LGP	2.6 gal (US)
Final Drive - Each - XL	2.6 gal (US)
Fuel Tank	51.5 gal (US)
Transmission - Hydraulic Tank	15.7 gal (US)
Diesel Exhaust Fluid (DEF) Tank	4.9 gal (US)

Hydraulic Controls

Pump Output	17.7 gal/min
Relief Valve Settings	2988 psi

Undercarriage

Ground Contact Area - LGP	4425 in²
Ground Contact Area - XL	3206 in²
Ground Pressure - LGP	4.2 psi
Ground Pressure - XL	5.6 psi
Length - Track on Ground - LGP	89 in
Length - Track on Ground - XL	89 in
Shoe Width - LGP	25 in
Shoe Width - XL	18 in
Track Gauge - LGP	68 in
Track Gauge - XL	61 in
Number of Rollers - Each Side	7
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage	43
Number of Shoes - Each Side - SystemOne Undercarriage	38

Ripper

Type	Parallelogram
Number of Shanks	3
Height	6.5 in
Weight	1222 lb
Maximum Digging Depth	13.3 in
Maximum Ground Clearance Under Tip	17.6 in
Maximum Reach - Ground Line	23.5 in
Overall Width	67.3 in

Winch

Weight	1345 lb
Winch Drive	Hydrostatic
Control	Hydraulic
Speed	Variable
Drum Capacity - Optional Cable	256 ft
Drum Capacity - Recommended Cable	371 ft
Drum Diameter	10 in
Drum Width	10.8 in
Maximum Line Pull - Bare Drum	40000 lb
Maximum Line Pull - Full Drum	25000 lb
Maximum Line Speed - Bare Drum	131 ft/min
Maximum Line Speed - Full Drum	207 ft/min
Overall Width	29.2 in
Rope Diameter - Optional	0.75 in
Rope Diameter - Recommended	0.63 in
Throat Clearance	6.75 in
Winch Length	27.76 in

Cab

FOPS	ISO 3449:2005 Level II
ROPS	ISO 6396:2008
Sound Levels - ISO 6396:2008	79 dB(A)
Sound Levels - SAE J1166 FEB2008	79 dB(A)

Dimensions

BLADE: Blade Capacity (SAE) - Intermediate	1.96 yd³
BLADE: Blade Capacity (SAE) - LGP	2.42 yd³
BLADE: Blade Capacity (SAE) - XL	2.59 yd³
BLADE: Blade Cutting Edge Angle, Adjustable - Intermediate	52° to 58°
BLADE: Blade Cutting Edge Angle, Adjustable - LGP	52° to 58°
BLADE: Blade Cutting Edge Angle, Adjustable - XL	52° to 58°
BLADE: Blade Height - Intermediate	33.9 in
BLADE: Blade Height - LGP	35.8 in
BLADE: Blade Height - XL	39.8 in
BLADE: Blade Lift Height - Intermediate	29.3 in
BLADE: Blade Lift Height - LGP	27.9 in
BLADE: Blade Lift Height - XL	29.3 in
BLADE: Blade Width - Intermediate	115 in
BLADE: Blade Width - LGP	124 in
BLADE: Blade Width - XL	109.5 in
BLADE: Blade Width at Maximum Angle - Intermediate	105.1 in
BLADE: Blade Width at Maximum Angle - LGP	113.1 in
BLADE: Blade Width at Maximum Angle - XL	100.1 in
BLADE: Digging Depth - Intermediate	23.2 in
BLADE: Digging Depth - LGP	23.2 in
BLADE: Digging Depth - XL	22.5 in
BLADE: Maximum Angle (either side) - Intermediate	25°
BLADE: Maximum Angle (either side) - LGP	25°
BLADE: Maximum Angle (either side) - XL	25°
BLADE: Maximum Tilt - Intermediate	17.6 in
BLADE: Maximum Tilt - LGP	17.2 in
BLADE: Maximum Tilt - XL	15.2 in
Ground Clearance - LGP	13 in
Ground Clearance - XL	13 in
Length - Basic Tractor - Without Blade - LGP	128.9 in
Length - Basic Tractor - Without Blade - XL	128.9 in
Overall Length - With Blade - LGP	168.3 in
Overall Length - With Blade - XL	168.3 in
Track Gauge - LGP	67.9 in
Track Gauge - XL	61 in
Tractor Height - LGP	108.8 in
Tractor Height - XL	108.8 in
Width - Tractor - Standard Shoes - No Blade - LGP	92.9 in
Width - Tractor - Standard Shoes - No Blade - XL	79.1 in

Features

Slope Indicate

New grade control feature provides you slope of blade in cross slope direction and mainfall (fore/aft) direction without having to estimate.

Slope Assist

New optional grade control feature which helps you more easily achieve the desired blade mainfall and cross slope automatically.

Stable Blade

New blade control feature helps you obtain a finish grade with less operator effort.

Traction Control

New traction control feature reduces track slip and undercarriage wear for lower operating costs.

Eco Mode

New engine throttle settings reduce fuel consumption up to 25% to save you more money.

Heated and Ventilated Seat

Experience a new level of comfort in all climates with the new optional heated and ventilated air suspension seat.

Power Pitch Blade

This option lets the operator easily adjust the blade pitch to optimize productivity.

Engine

Cat® C4.4 ACERT™ diesel engine meets U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final) emission standards.

Heated, Seat-Mounted Controls

Heated joysticks (optional) offer even greater comfort in cold climates.

AccuGrade™

Optional grade control system enables operators to cut and fill to grade with increased accuracy, minimizing the need for traditional stakes and grade checkers. Large AccuGrade monitor is built into the machine's dash for easy viewing during operation.

Undercarriage

Choice of undercarriage to give you the lowest costs per hour. Select either the standard sealed and lubricated track (SALT) undercarriage or the innovative SystemOne™ undercarriage.
