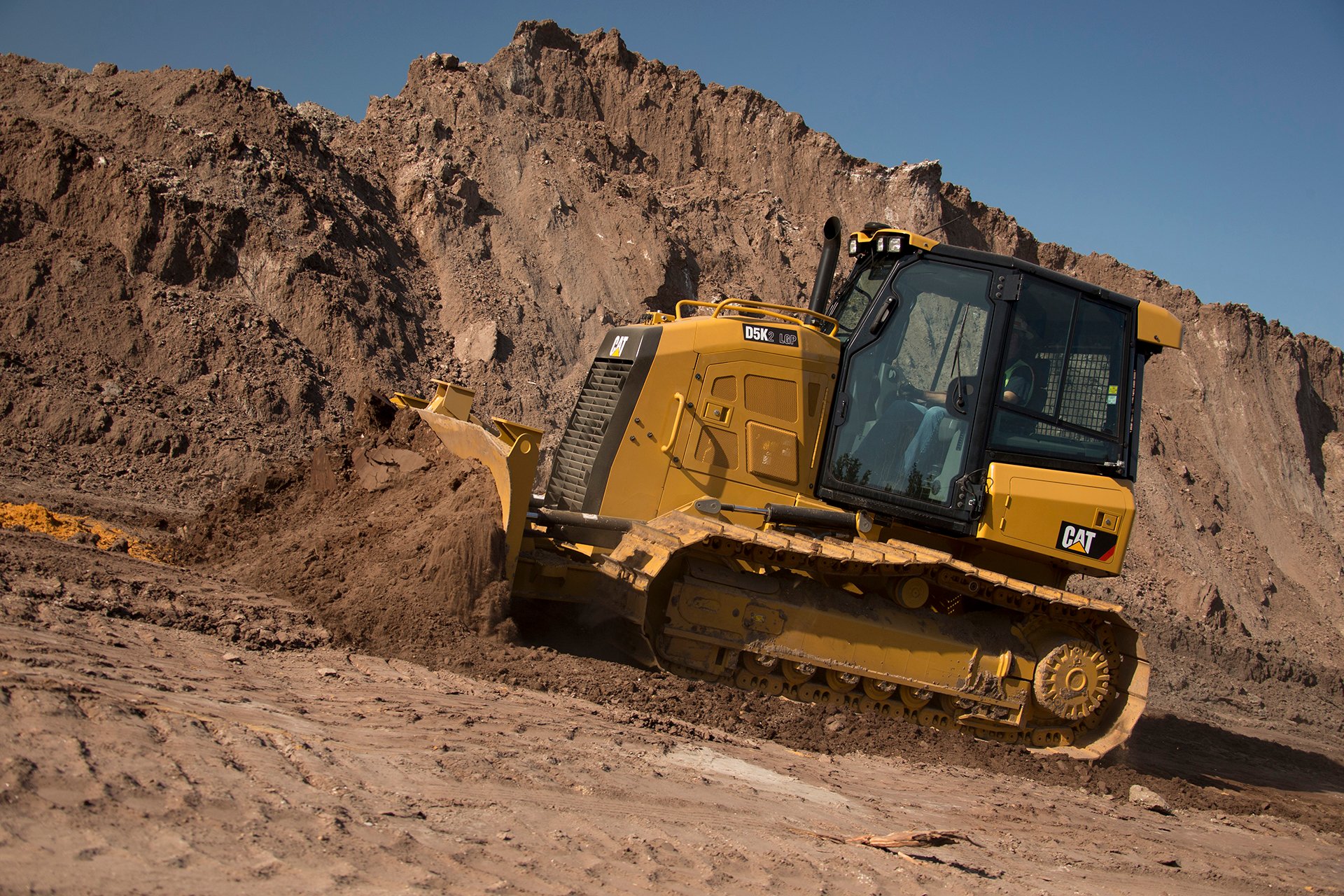

Cat D5K2 Track-Type Tractor

Small Dozers

Specifications

Engine
Power - Net 104 HP
Displacement 269 in³
Bore 4.13 in
Stroke 5 in
Rated Net Power - 2,200 rpm - ISO 9249/EEC 80/1269 104 HP
Rated Net Power - 2,200 rpm - SAE J1349 104 HP
Transmission
Maximum Travel Speed - Forward 5.6 mile/h
Maximum Travel Speed - Reverse 6.2 mile/h
Relief Valve Settings 7033 psi
Weights
Operating Weight - XL 20313 lb
Operating Weight - LGP 20992 lb
Operating Weight - LGP, 762 mm/30 in 21442 lb
Service Refill Capacities
Cooling System 5.92 gal (US)
Crankcase - With Filter 2.91 gal (US)
Final Drive - Each - LGP 2.6 gal (US)
Final Drive - Each - XL 2.6 gal (US)
Fuel Tank 51.5 gal (US)
Transmission - Hydraulic Tank 15.7 gal (US)
Diesel Exhaust Fluid (DEF) Tank 4.9 gal (US)
Hydraulic Controls
Pump Output 17.7 gal/min
Relief Valve Settings 2988 psi
Undercarriage
Ground Contact Area - LGP 4726 in²
Ground Contact Area - LGP, 762 mm (30 in) 5514 in²
Ground Contact Area - XL 3652 in²
Ground Pressure - LGP 4.5 psi
Ground Pressure - LGP, 762 mm (30 in) 3.93 psi
Ground Pressure - XL 5.6 psi
Length - Track on Ground - LGP 91 in
Length - Track on Ground - XL 91 in
Shoe Width - LGP 26 in
Shoe Width - LGP, 762 mm (30 in) 30 in
Shoe Width - XL 20 in
Track Gauge - LGP 69 in
Track Gauge - LGP, 762 mm (30 in) 73.2 in
Track Gauge - XL 63 in
Length - Track on Ground - LGP, 762 mm (30 in) 91 in
Ripper
Height 6.5 in
Weight 1222 lb
Maximum Digging Depth 13.3 in
Maximum Ground Clearance Under Tip 17.6 in
Maximum Reach - Ground Line 21.9 in
Overall Width 67.3 in
Winch
Weight 1345 lb
Drum Capacity - Optional Cable 256 ft
Drum Capacity - Recommended Cable 371 ft
Drum Diameter 10 in
Drum Width 10.8 in
Maximum Line Pull - Bare Drum 40000 lb
Maximum Line Pull - Full Drum 25000 lb
Maximum Line Speed - Bare Drum 131 ft/min
Maximum Line Speed - Full Drum 207 ft/min
Overall Width 29.2 in
Rope Diameter - Optional 0.75 in
Rope Diameter - Recommended 0.63 in
Throat Clearance 6.75 in
Winch Length 27.76 in
Cab
Sound Levels - ISO 6396:2008 79 dB(A)
Sound Levels - SAE J1166 FEB2008 79 dB(A)
Dimensions
BLADE: Blade Capacity (SAE) - Intermediate 2.73 yd³
BLADE: Blade Capacity (SAE) - LGP 3.06 yd³
BLADE: Blade Capacity (SAE) - XL 2.86 yd³
BLADE: Blade Height - Intermediate 39.8 in
BLADE: Blade Height - LGP 39.8 in
BLADE: Blade Height - XL 42.2 in
BLADE: Blade Lift Height - Intermediate 30.2 in
BLADE: Blade Lift Height - LGP 30.2 in
BLADE: Blade Lift Height - XL 30.2 in
BLADE: Blade Width - Intermediate 115 in
BLADE: Blade Width - LGP 126.7 in
BLADE: Blade Width - XL 109.5 in
BLADE: Blade Width at Maximum Angle - Intermediate 105.1 in
BLADE: Blade Width at Maximum Angle - LGP 115.8 in
BLADE: Blade Width at Maximum Angle - XL 103.8 in
BLADE: Digging Depth - Intermediate 22.5 in
BLADE: Digging Depth - LGP 22.5 in
BLADE: Digging Depth - XL 23.1 in
BLADE: Maximum Tilt - Intermediate 17.6 in
BLADE: Maximum Tilt - LGP 17.6 in
BLADE: Maximum Tilt - XL 15.8 in
Ground Clearance - LGP 13 in
Ground Clearance - LGP, 770 mm (30 in) Shoes 13 in
Ground Clearance - XL 13 in
Length - Basic Tractor - Without Blade - LGP 128.5 in
Length - Basic Tractor - Without Blade - LGP, 770 mm (30 in) Shoes 128.5 in
Length - Basic Tractor - Without Blade - XL 128.5 in
Overall Length - With Blade - LGP 169.1 in
Overall Length - With Blade - LGP, 770 mm (30 in) Shoes 169.1 in
Overall Length - With Blade - XL 170.1 in
Track Gauge - LGP 68.9 in
Track Gauge - LGP, 770 mm (30 in) 73.2 in
Track Gauge - XL 63 in
Tractor Height - LGP 109 in
Tractor Height - LGP, 770 mm (30 in) 109 in
Tractor Height - XL 109 in
Width - Tractor - Standard Shoes - No Blade - LGP 94.9 in
Width - Tractor - Standard Shoes - No Blade - LGP (770 mm/30 in) 103.5 in
Width - Tractor - Standard Shoes - No Blade - XL 83.1 in

Features

Slope Indicate

Slope Indicate
New grade control feature provides you slope of blade in cross slope direction and mainfall (fore/aft) direction without having to estimate.

Slope Assist

Slope Assist
New optional grade control feature which helps you more easily achieve the desired blade mainfall and cross slope automatically.

Stable Blade

Stable Blade
New blade control feature helps you obtain a finish grade with less operator effort.

Automatic Traction Control

Automatic Traction Control
New traction control feature automatically reduces track slip without having to lift blade providing improved productivity and reduced undercarriage wear for lower operating costs.

Eco Mode

Eco Mode
New engine throttle settings reduce fuel consumption up to 20% to save you more money.

Heated and Ventilated Seat

Heated and Ventilated Seat
Experience a new level of comfort in all climates with the new optional heated and ventilated air suspension seat.

Power Pitch Blade

Power Pitch Blade
This option lets the operator easily adjust the blade pitch to optimize productivity.

Engine

Engine
Cat® C4.4 ACERT™ diesel engine meets U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final) emission standards.

Heated, Seat-Mounted Controls

Heated, Seat-Mounted Controls
Heated joysticks (optional) offer even greater comfort in cold climates.

AccuGrade™

AccuGrade™
Optional grade control system enables operators to cut and fill to grade with increased accuracy, minimizing the need for traditional stakes and grade checkers. Large, 177 mm (7"), AccuGrade monitor is built into the machine's dash for easy viewing during operation.

Undercarriage

Undercarriage
Choice of undercarriage to give you the lowest costs per hour. Select either the standard sealed and lubricated track (SALT) undercarriage or the innovative SystemOne™ undercarriage.
