Cat 160 / 160 AWD

Motor Graders

View brochure Request quotation

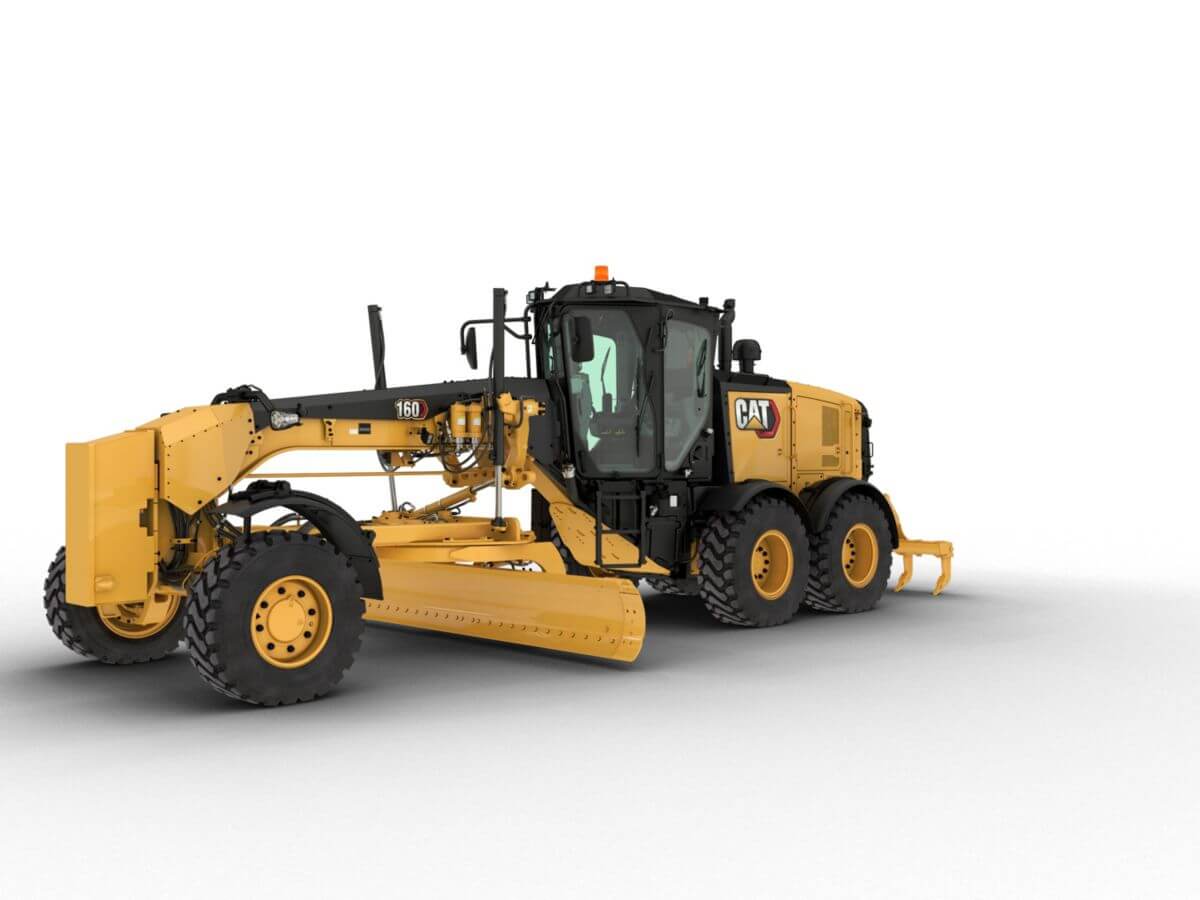

160 Motor Grader equipped with push block and ripper

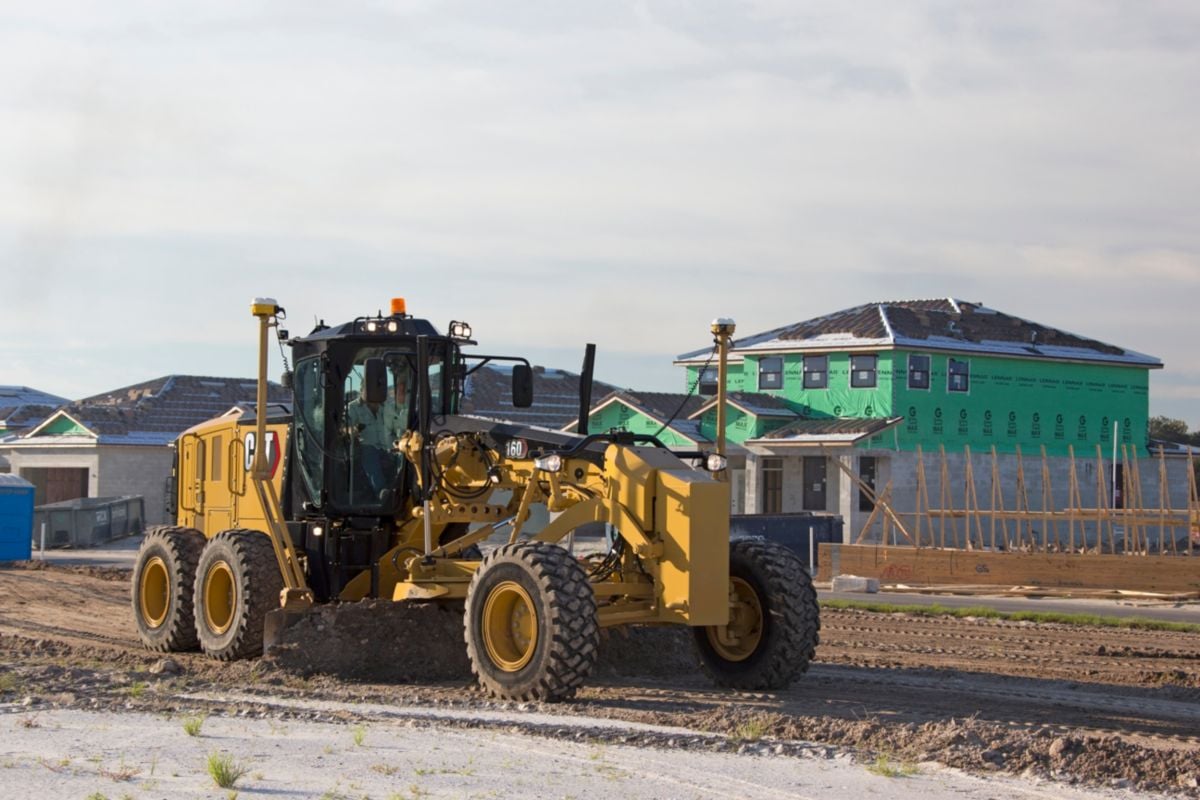

160 Motor Grader creating neighborhood roads

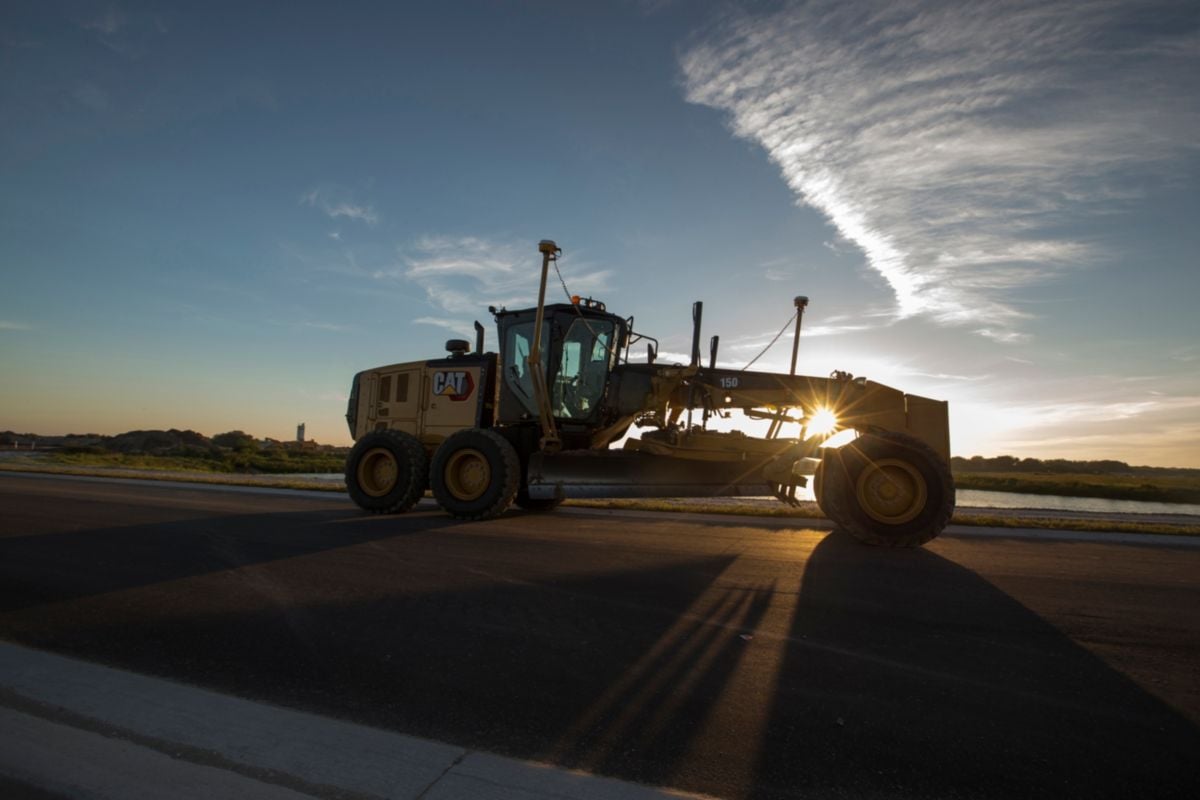

160 Motor Grader building road with curb

About the Cat 160 / 160 AWD

The Cat® 160/160 AWD (160M3) motor graders deliver power, efficiency, operating finesse and operator comfort to the job. This high-performance machine minimizes emissions with the latest control technologies, without loss of productivity.

Specifications

Engine

Engine Model	Cat® C9.3
Speed at Rated Power	2,000 rpm
Torque Rise	39%
VHP Plus Range - Net	165-203 kW (221-272 hp)
High Ambient - Fan Speed - Standard	1,400 rpm
VHP Plus Range - Net - Metric	165-203 kW (224-276 hp)
Emissions	U.S. EPA Tier 4 Final/EU Stage V
Number of Cylinders	6
High Ambient - Fan Speed - Maximum	1,550 rpm
High Ambient - Fan Speed - Minimum	500 rpm

Power Train

Forward/Reverse Gears	8 Forward/6 Reverse
Transmission	APECS, Direct Drive, Powershift
Brakes - Service	Multiple Oil Disc
Brakes - Parking	Multiple Oil Disc
Brakes - Secondary	Dual Circuit Control

Hydraulic System

Circuit Type	Parallel
Pump Type	Variable Piston

Operating Specifications

Steering Range - Left/Right	50°
Articulation Angle - Left/Right	20°

Frame

Front Axle - Wheel Lean - Left/Right	18°
Front Axle - Total Oscillation per Side	32°

Tandems

Tandem Oscillation - Front Up	15°
Tandem Oscillation - Front Down	25°

Blade Range

Maximum Blade Position Angle	90°
Blade Tip Range - Forward	40°
Blade Tip Range - Backward	5°

Ripper

Ripper Shank Holders

Scarifier

Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders	5/11
Mid, V-Type - Scarifier Shank Holders	11
Rear - Scarifier Shank Holders	9

Standards

Brakes	ISO 3450
ROPS/FOPS	ISO 3471; ISO 3449
Steering	ISO 5010
Sound	ISO 6394; ISO 6395

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
