Cat 926M Ag Handler

Small Wheel Loaders

View brochure Request quotation

About the Cat 926M Ag Handler

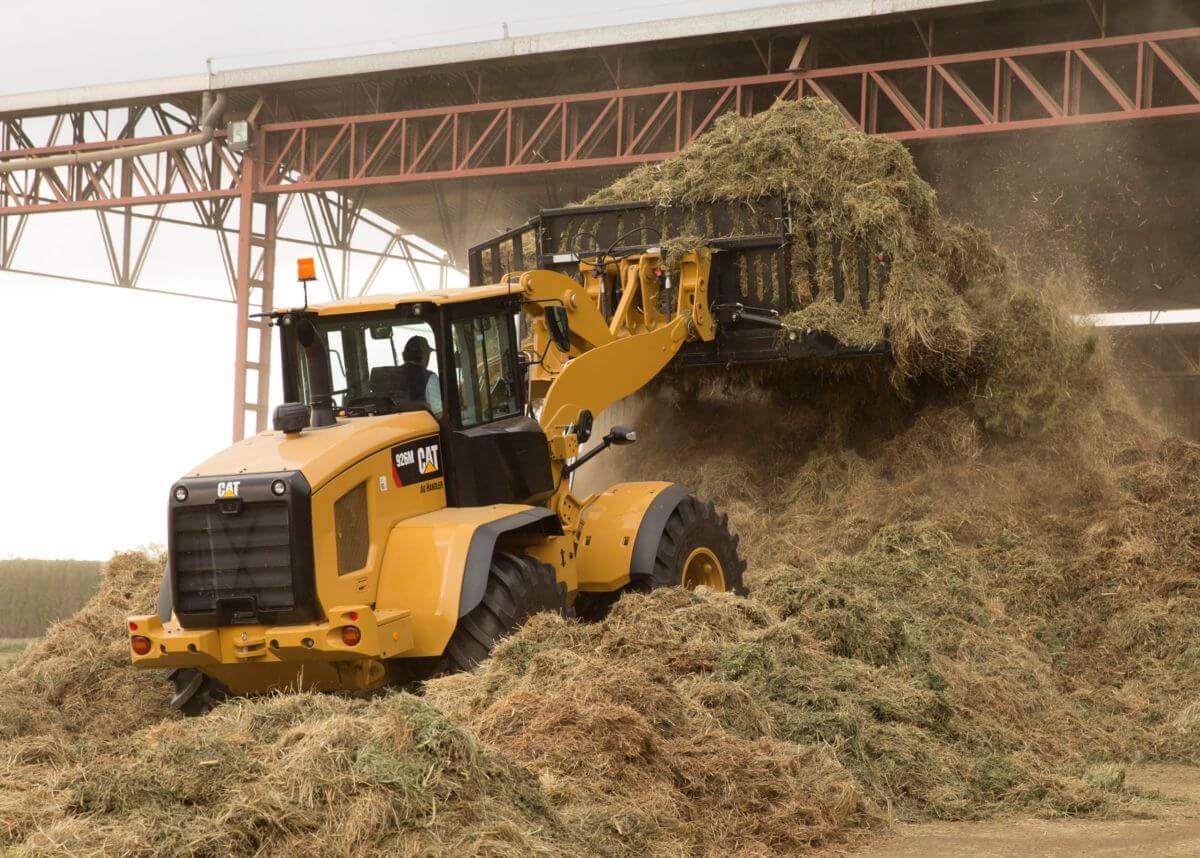

The Cat 926M Ag Handler sets a new standard for productivity, fuel efficiency and comfort. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. A unique Power Balance in Range 1 for silage work maximizes productivity. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day and even all night! Experience the new industry benchmark.

Specifications

Engine

Maximum Gross Power	168 HP
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)	601 ft·lbf
Note (3)	No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Bore (Performance Power Mode: Range 1-4)	4.1 in
Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4)	588 ft·lbf
Displacement (Performance Power Mode: Range 1-4)	428 in³
Emissions	*The Cat C7.1 engine meets Tier 4 Final/EU Stage V emission standards.
Note (1)	**Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)	1800 r/min
Note (2)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)	168 HP
Stroke - Performance Power Mode: Range 1-4	5.3 in
Engine Model	Cat® C7.1*
Stroke (Standard Power Mode: Range 1-3**)	5.3 in
Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)	156 HP
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)	166 HP
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3**)	1600 r/min
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3**)	586 ft·lbf
Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4)	587 ft·lbf
Displacement (Standard Power Mode: Range 1-3**)	428 in³
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3**)	160 HP
Bore (Standard Power Mode: Range 1-3**)	4.1 in
Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)	156 HP
Maximum Gross Power - ISO 14396 (metric) (Performance Power Mode: Range 1-4)	170 HP
Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	163 HP
Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	164 HP
Engine Power - ISO 14396	168 HP
Engine Power - ISO 14396 - Metric	170 HP
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3**)	573 ft·lbf
Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3**)	162 HP
Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3**)	572 ft·lbf
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3**)	158 HP

Buckets

Bucket Capacities

1.9-5.0 m³ (2.5-6.5 yd³)

Weights

Operating Weight	28069 lb
Operating Weight - High Lift	29041 lb

Cab

ROPS	SAE J1040 MAY94, ISO 3471-1994
FOPS	SAE J/ISO 3449 APR98, Level II, ISO 3449 1992 Level II
Declared Sound Levels - Exterior Sound Power Level (ISO 6395:2008)*	101 dB(A)
Declared Sound Levels - Operator Sound Pressure Level (ISO 6396:2008)*	68 dB(A)
Note (2)	The Blue Angel environmental label is an optional attachment.
Note (1)	*The measurements were conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab

Loader Hydraulic System

Cycle Times - 1,600 rpm - Standard: Float Down (Maximum Lift to Ground Level)	2.6 s
Cycle Times - 1,600 rpm - Standard: Dump (at Maximum Lift Height)	1.7 s
Cycle Times - 1,600 rpm - Standard: Raise (Ground Level to Maximum Lift)	6.2 s
Maximum Flow - Implement Pump - 3rd and 4th Function Maximum Flow*	40 gal/min
Relief Pressure - Tilt Cylinder	4061 psi
Cycle Times - 1,800 rpm - Performance (HP+): Raise (Ground Level to Maximum Lift)	5.5 s
Cycle Times - 1,800 rpm - Performance (HP+): Float Down (Maximum Lift to Ground Level)	2.6 s
Cycle Times - 1,800 rpm - Performance (HP+): Total Cycle Time	9.6 s
Note	* 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display.
Note (2)	Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Maximum Flow - Implement Pump	40 gal/min
Cycle Times - 1,600 rpm - Standard: Total Cycle Time	10.5 s
Cycle Times - 1,800 rpm - Performance (HP+): Dump (at Maximum Lift Height)	1.5 s
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure	3771 psi
Note (1)	Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Maximum Working Pressure - Implement Pump	3771 psi
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure	4061 psi
Lift Cylinder: Standard Lift Linkage - Stroke	28.7 in
Lift Cylinder: Standard Lift Linkage - Rod Diameter	2.4 in
Tilt Cylinder: Standard Lift Linkage - Bore Diameter	5.5 in
Tilt Cylinder: Standard Lift Linkage - Rod Diameter	3 in
Lift Cylinder: Standard Lift Linkage - Bore Diameter	4.3 in
Tilt Cylinder: Standard Lift Linkage - Stroke	20.3 in

Operating Specifications

Full Turn Tip Load	16431 lb
Full Turn Tip Load - High Lift	11916 lb

Transmission

Forward - Range 3	16.8 mile/h
Reverse - Range 3	16.8 mile/h
Note	* Creeper control allows maximum speed range adjustability in the forward direction from 1 km/h to 13 km/h in Range 1 through the secondary display when equipped. Factory default is 7 km/h. Maximum reverse speed will be maintained at 13 km/h in Range 1 fo
Reverse - Range 4	24.9 mile/h
Forward - Range 4	24.9 mile/h
Reverse - Range 1*	8 mile/h
Forward - Range 2	8 mile/h
Forward - Range 1*	1-13 km/h (0.6-8 mph)
Reverse - Range 2	8 mile/h

Steering

Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed	2.4 s
Steering Cylinder, Double Acting - Bore Diameter	2.8 in
Steering Articulation Angle - Each Direction	40°
Maximum Working Pressure - Steering Pump	3500 psi
Steering Cylinder, Double Acting - Stroke	17.2 in
Steering Cylinder, Double Acting - Rod Diameter	1.6 in
Maximum Flow - Steering Pump	34 gal/min
Note (1)	Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.5
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited	2.8 s
Note (2)	Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Service Refill Capacities

Fuel Tank	51.5 gal (US)
Axles - Front	5.5 gal (US)
Hydraulic Tank	23.8 gal (US)
Hydraulic System - Including Tank	42.3 gal (US)
Axles - Rear	5.5 gal (US)
Cooling System	7.9 gal (US)
Engine Crankcase	5.3 gal (US)
Transmission - Gear Box	2.2 gal (US)
Diesel Exhaust Fluid (DEF) Tank	5 gal (US)

Tires

Option (2)	20.5 R25, Radial (L-5)
Option (1)	20.5 R25, Radial (L-3)
Option (3)	620/65 R25 Ag Tire
Option (4)	750/65 R25 Ag Tire*
Note	* Base specification tire. Other tire choices available, contact your Cat dealer for details.

Power Train

Note	* Differential front locking axle can be engaged on the go at full torque to 10 km/h.
Front Axle	Fixed
Brakes - Parking	Spring applied hydraulically released
Brakes - Service	Inboard wet disc
Rear Axle - Traction Aid	Limited slip differential optional
Front Axle - Traction Aid*	Locking differential standard
Rear Axle - Oscillation Angle by Tire Size - 20.5 R25	± 10.5 degrees
Note (1)	Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Rear Axle	Oscillating
Rear Axle - Oscillation Angle by Tire Size - 750/65, 620/65	± 7 degrees

Features

Efficiently Powerful

Experience hybrid-like fuel efficiency with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed of just 1,600 rpm in Standard Mode. Power when you need it with Caterpillar's exclusive Power‑by-Range technology that increases power in Range 4 for improved speed on grade. For your toughest and most demanding farm applications a new Performance Mode will allow you to boost the power and hydraulic speed in all Ranges to get the job done even quicker. Meets EU Stage V emission standards with a Cat® C7.1 engine that is designed to manage itself so you can concentrate on your work.

Work Made Easy

Move more with Caterpillar's patented quick loading Performance Series buckets and optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift throughout the working range allow you to safely and confidently handle loads from bales to silage with precise control. Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer and drive without compromise.

Enjoy All Day Comfort

Have a seat in the 926M Ag Handler and enjoy automatic temperature control, class leading sound levels, excellent all around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar's exclusive hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on the farm.

Customize Your Experience

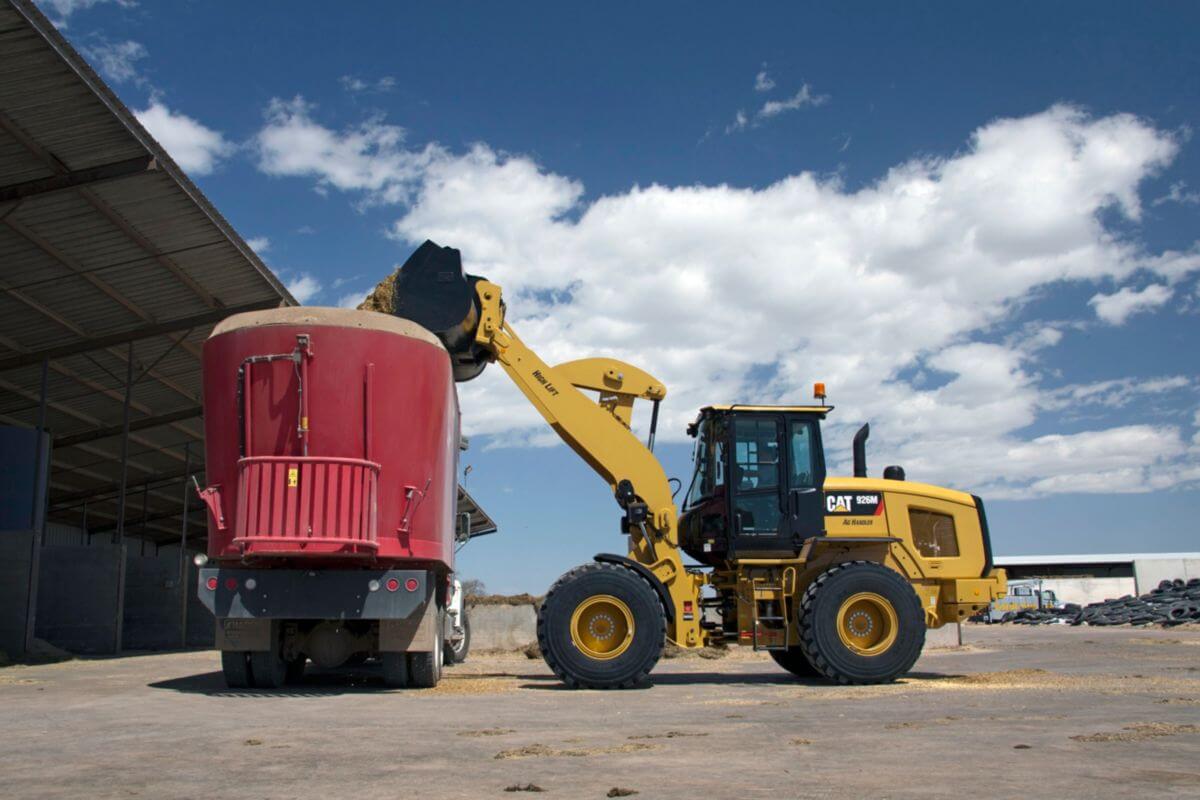

Fine tune machine performance with adjustments at your fingertips through the soft touch buttons and optional secondary touch screen display. Quickly set auxiliary flow to optimize grapple or silage defacer speed, enable auto reversing fan to breathe clean in dusty environments, toggle over to fine mode for improved control when bale stacking, program linkage kick-out positions for easy feed wagon loading, adjust wheel torque to match underfoot conditions when cleaning corrals and customize ride control activation speed for a smooth loaded carry run. The 926M Ag Handler is ready for the challenge on your farm!
