Mobiele scheidingsmachines

  • Gewicht: 10 ton
  • Vermogen: 26 kW



Connection power 26 kW
Diesel generator 30 kVA
Material feed - feed conveyor
Loading area width 1200 mm
Loading height 3150 mm
Stone fraction discharge
Design Corrugated edge belt
Loading height 2500 (option 3700) mm
Clean fraction discharge
Design Corrugated edge belt
Loading height 2500 (3700 optional) mm
Dimensions L x W x H (mm)
Transport dimensions central-axle-trailer 8300 x 2550 x 4000
Transport dimensions semitrailer 8300 x 2550 x 4000
Working dimensions central-axle-trailer 8300 x 7500 x 3700
Working dimensions semitrailer 8300 x 7500 x 3700
Total permissible weight 10.0 t
Throughput (depending on material)
Throughput up to 100 m3 /h
Stonefex options
Diesel generator, conveyor extensions, adjustable conveyor speed, electro-hydraulically folding discharge conveyors, central lubrication, frequency converter for suction blower, remote control and much more


Efficient separating system

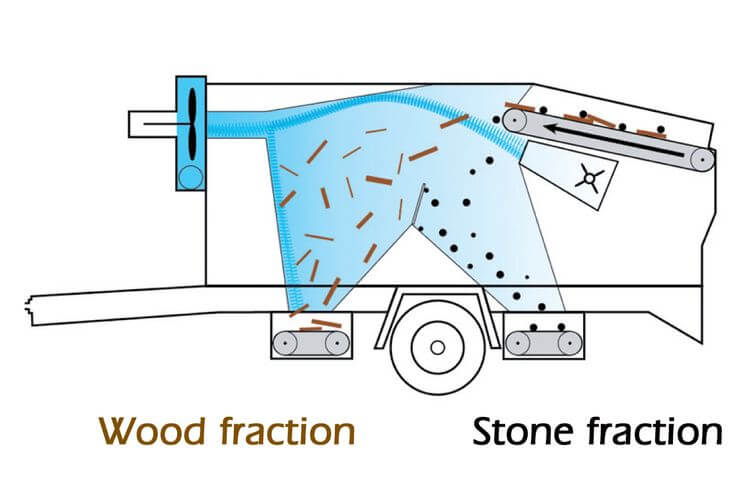

In the expansion chamber, the airflow separates the material into a stone fraction and cleaned usable fraction, which conveyors remove to opposite sides. Fibrous materials are collected in the container downstream of the suction blower. Using the same principle, stones can be cleaned of undesired biomass.

Dependable function with simple maintenance

Separation remains dependable even with varying material properties, by adjusting the feed conveyor speed, blower speed and the separating vertex. Large access doors to the separation chamber and engine compartment plus a swivel-mounted suction blower make maintenance simple and convenient.

Mobile and economical

The single-axle trailer configuration makes the machine easy to manoeuvre, and it is approved for 80 kph (50 mph) road speeds, so transportation is no problem. The standard version of the machine uses grid power. As an option it can be fitted with a turbo diesel generator The hybrid drive design ensures low energy and maintenance costs.
