AXTOR 4510

Mobiele sneldraaiers

  • Gewicht: 21 ton
  • Vermogen: 340 kW

Over de AXTOR 4510



De Axtor is een flexibele machine die uitermate geschikt is voor de verwerking van groenafval, naverkleinen van sloophout en overige biomassa stromen. De sneldraaiende rotor kan worden uitgevoerd met vaste hamers, klepels of messen.


Specificaties

Drive
Engine CAT® C9.3B Tier 4 Final / Stage V
Power 340 / 462 kW/HP
Material Feed
Feed table 4155 (3600 active) x 1430 mm
Feed table height 2250 mm
Number of feed drums 1 horizontal
Feeder opening H x W 850 x 1430 mm
Shredding Unit
Drum diameter x drum width 1100 x 1510 mm
Tools 32 free-swinging tools or 32 fixed tools
Drum rpm 460
Material discharge
Conveyor belt L x W 1200 mm
Max. discharge height 35° 4500 mm
Dimensions
Transport dimensions L x W x H Trailer 9980 x 2497 x 3700 mm
Transport dimensions L x W x H Track 8390 x 2497 x 3580 mm
Throughput (dependent on material)
Throughput performance up to 240 m3 /h

Kenmerken

The feed hopper is a perfect match with
the machine‘s performance and permits
stress-free operation.
No length limit and a loading height of
just 2.7 m on the Axtor 6010/5010 make
loading easy. For long trunks the movable
hopper opens in the front, while it
can be closed for better feeding of other
materials.

Active feed

High-end solution for the Axtor 8012: The horizontal and vertical feed drums and a wide sectional steel belt ensure active transport into the machine. On the smaller types a tough chain belt moves the material towards the intake. Since the feed opening, conveyor and hopper are exactly the same width, there are no corners where things can get hung up.

Shredding or chipping

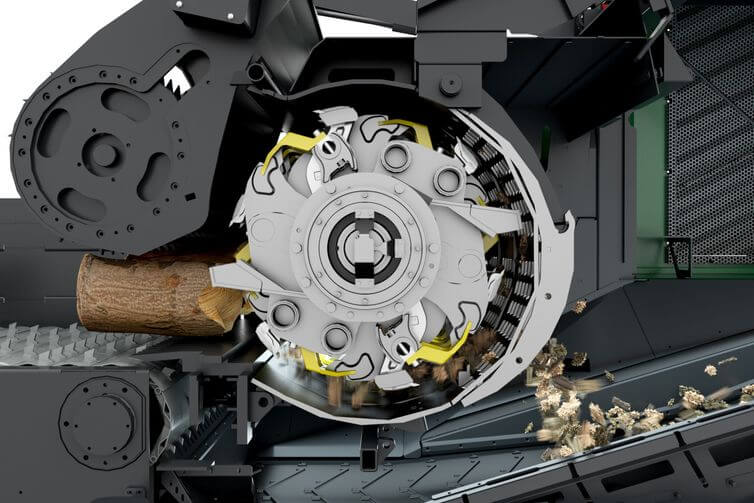

In shredder mode, there is a free-swinging tool in each tool mount. In chipper mode, there is a fixed tool holder in each position that can take chipper or shredder blades. Conversion takes about an hour. The Axtor shreds at higher rpm and chips at lower rpm. Speed change is done by a gearbox.

Contrary-safe in chipper mode

The fixed holder can turn on its shaft, but is held in position on the drum by a shear bolt. In the event of a large contrary, the shear bolt breaks and the holder swings into the drum body, preventing additional damage in the shredding area.

Man and machine

The operating panel on the machine has a colour display that clearly shows all functions and the operating status. Colour-coded graphics help the user quickly locate the right controls for each function. The optional remote control has all the functions needed to control the machine.

Easy maintenance

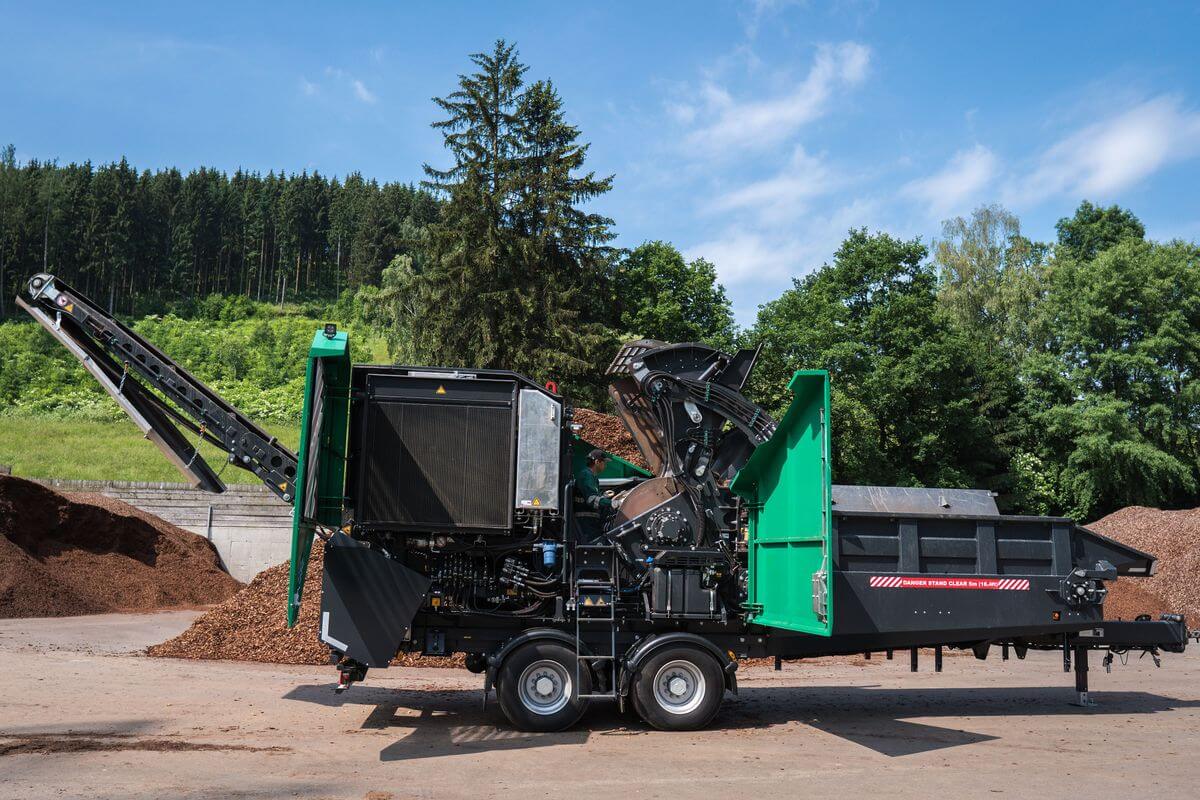

Designers and service technicians worked together on the Axtor right from the start, to give it easy maintenance access few other machines can match. The Axtor is the only machine anywhere to combine an underfloor engine, swingout screen basket, easily accessible shredding chamber and individual mounting of tools on the drum.
