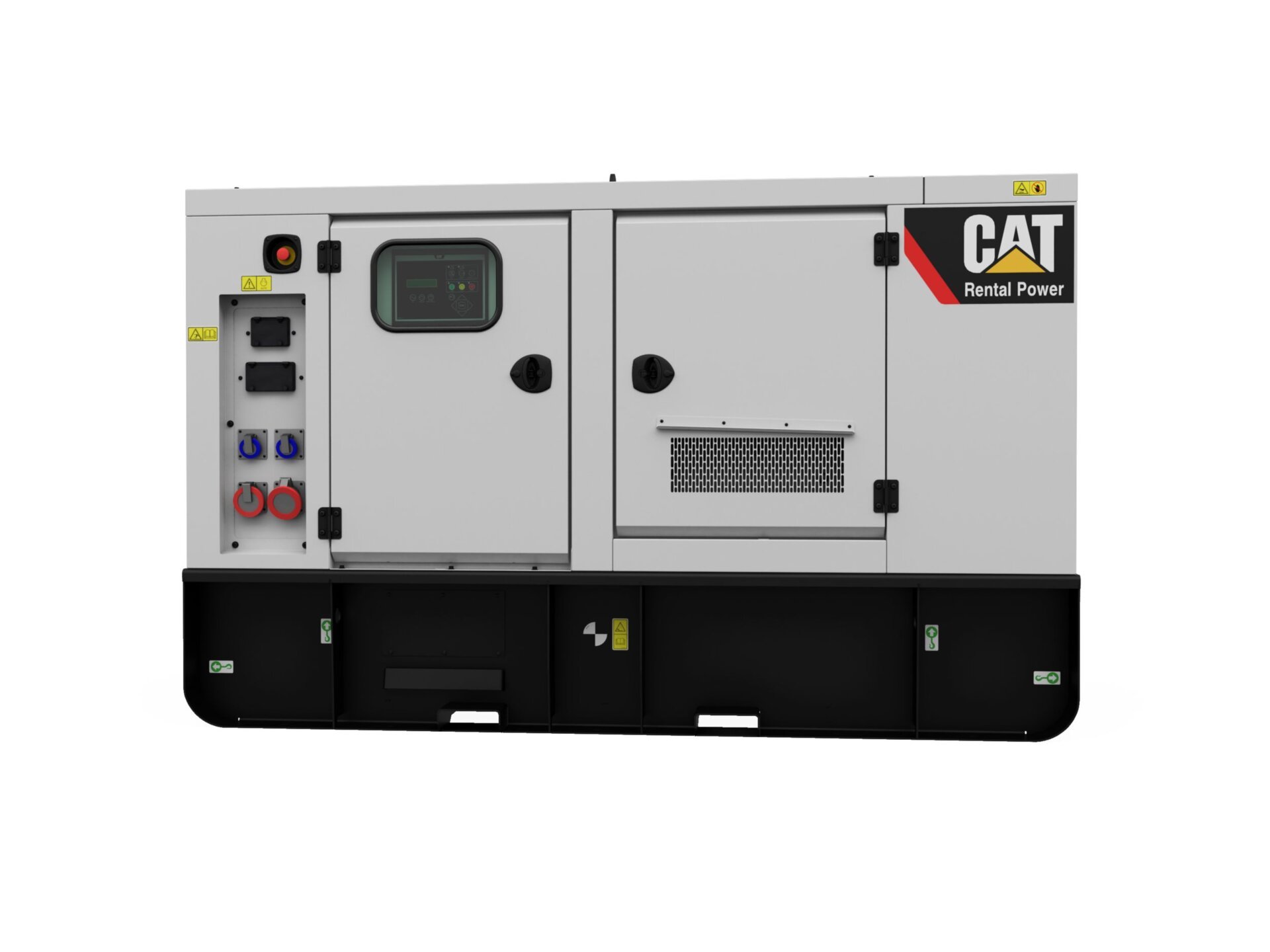

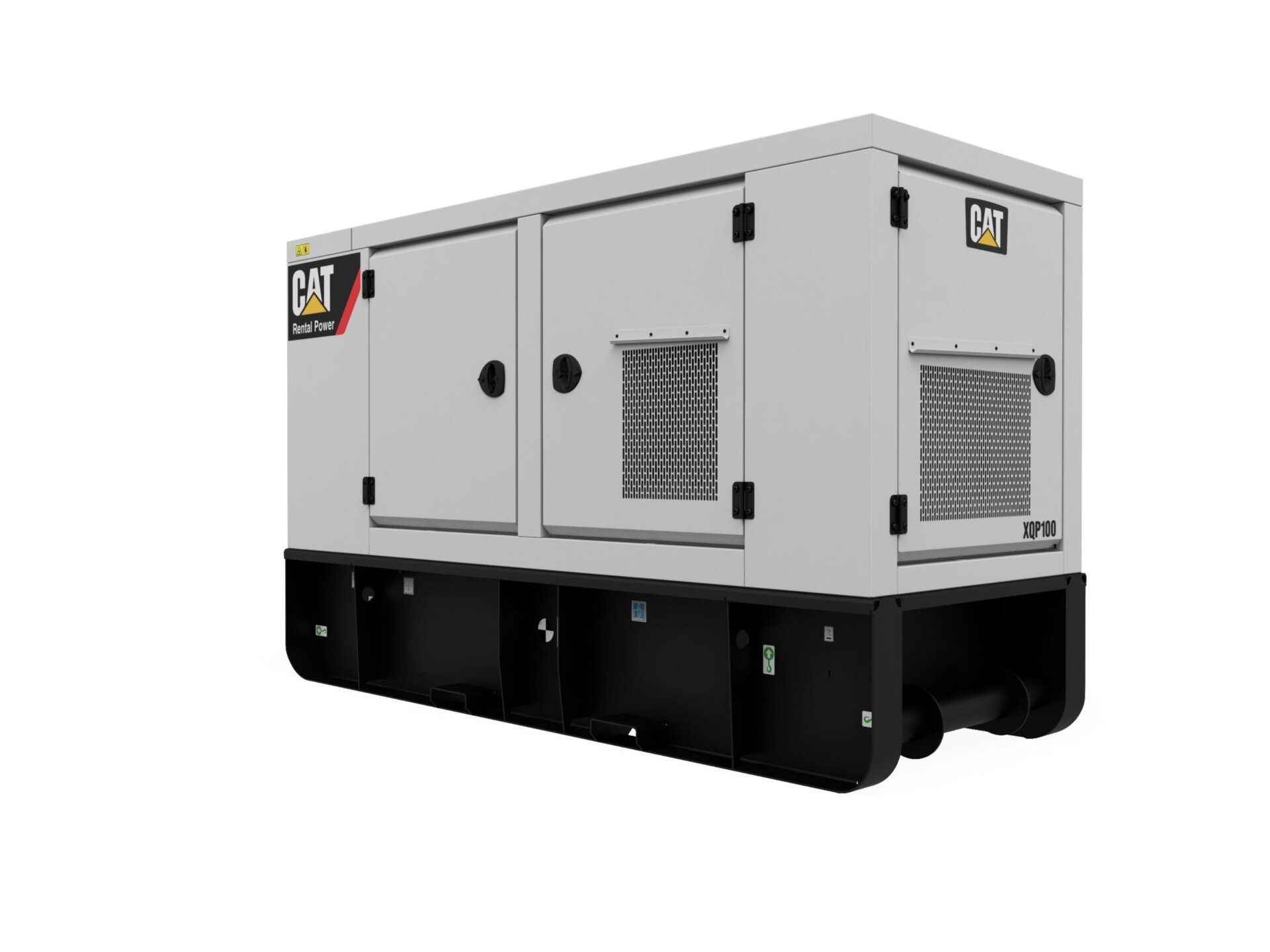

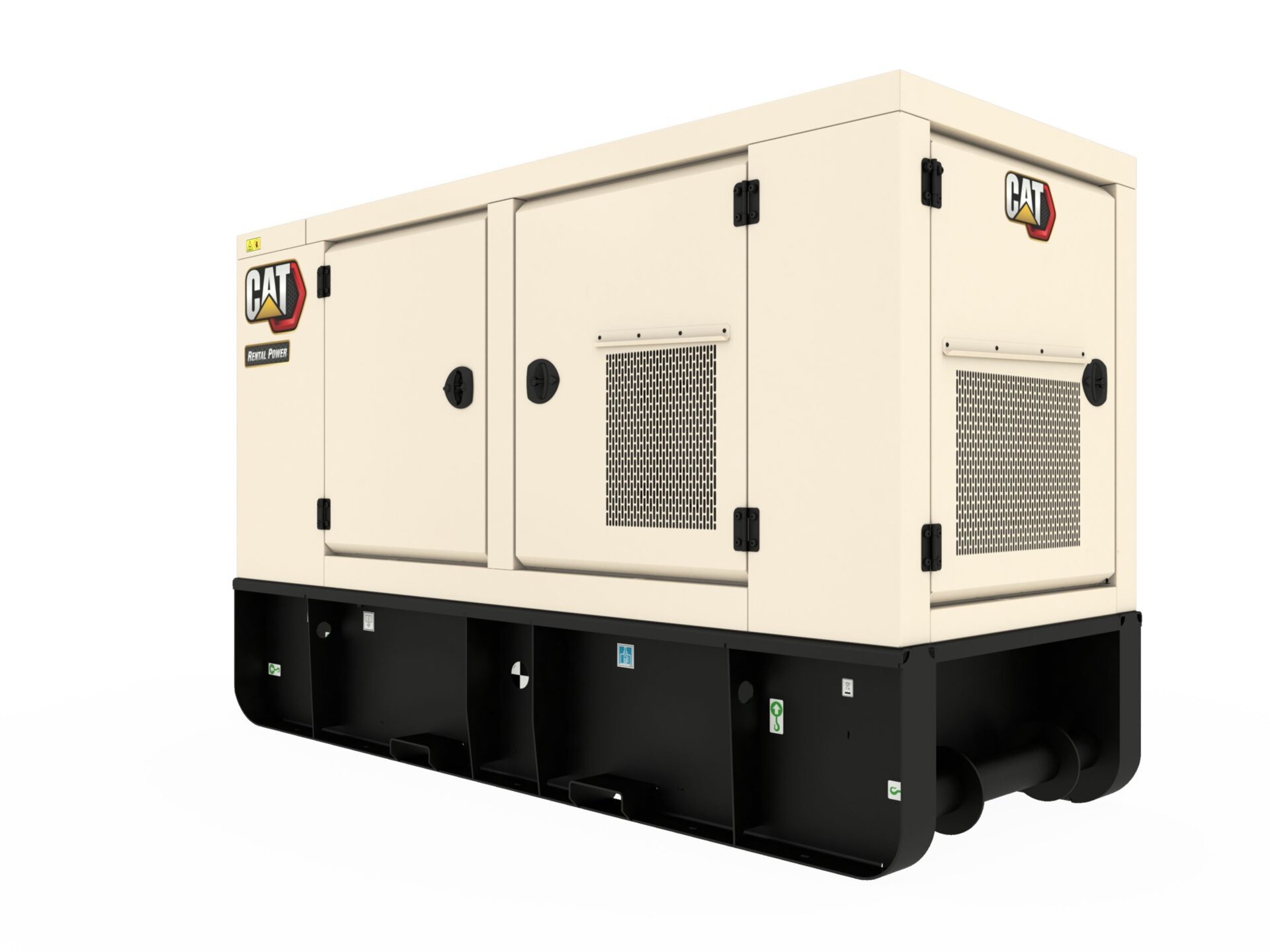

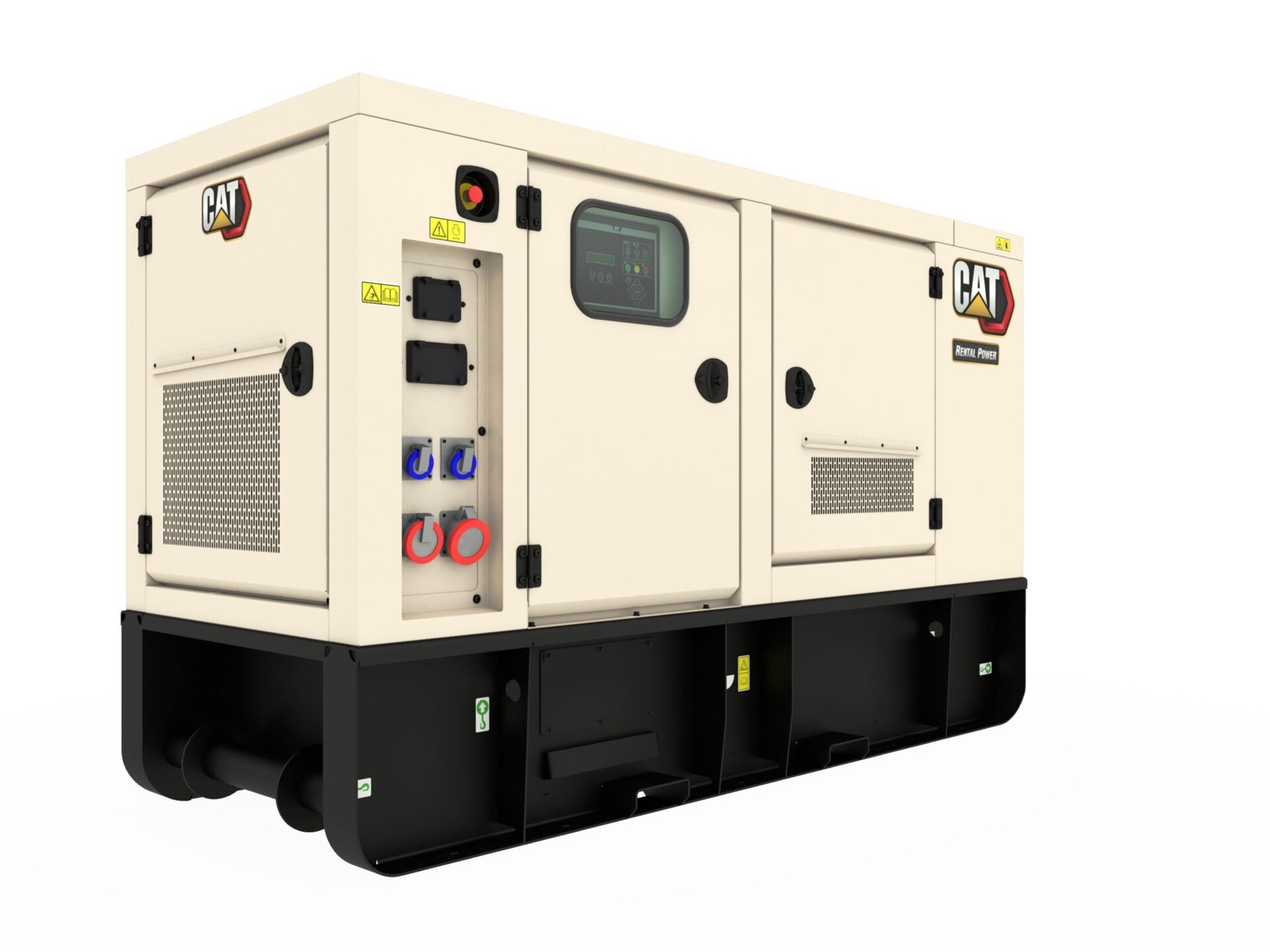

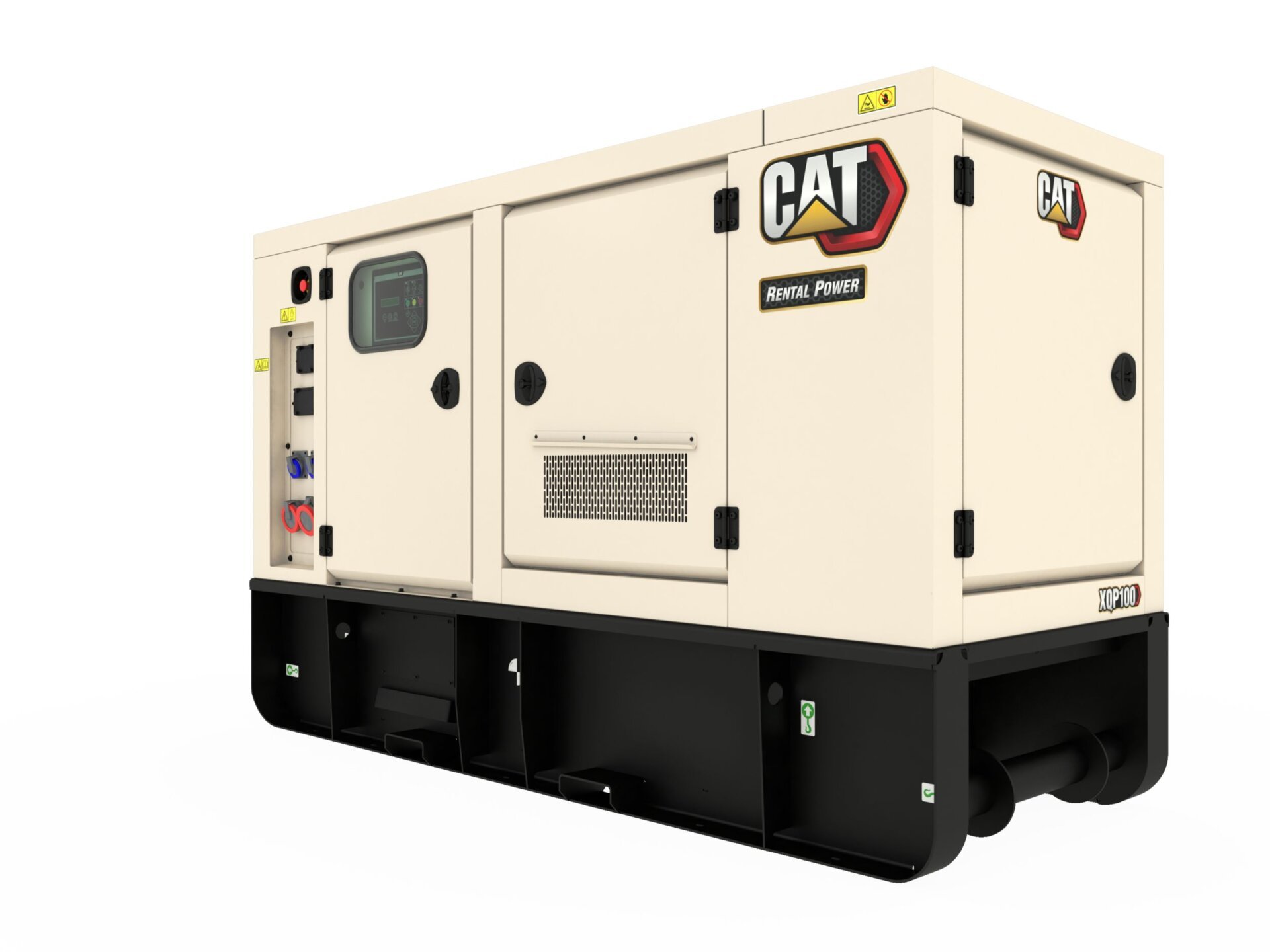

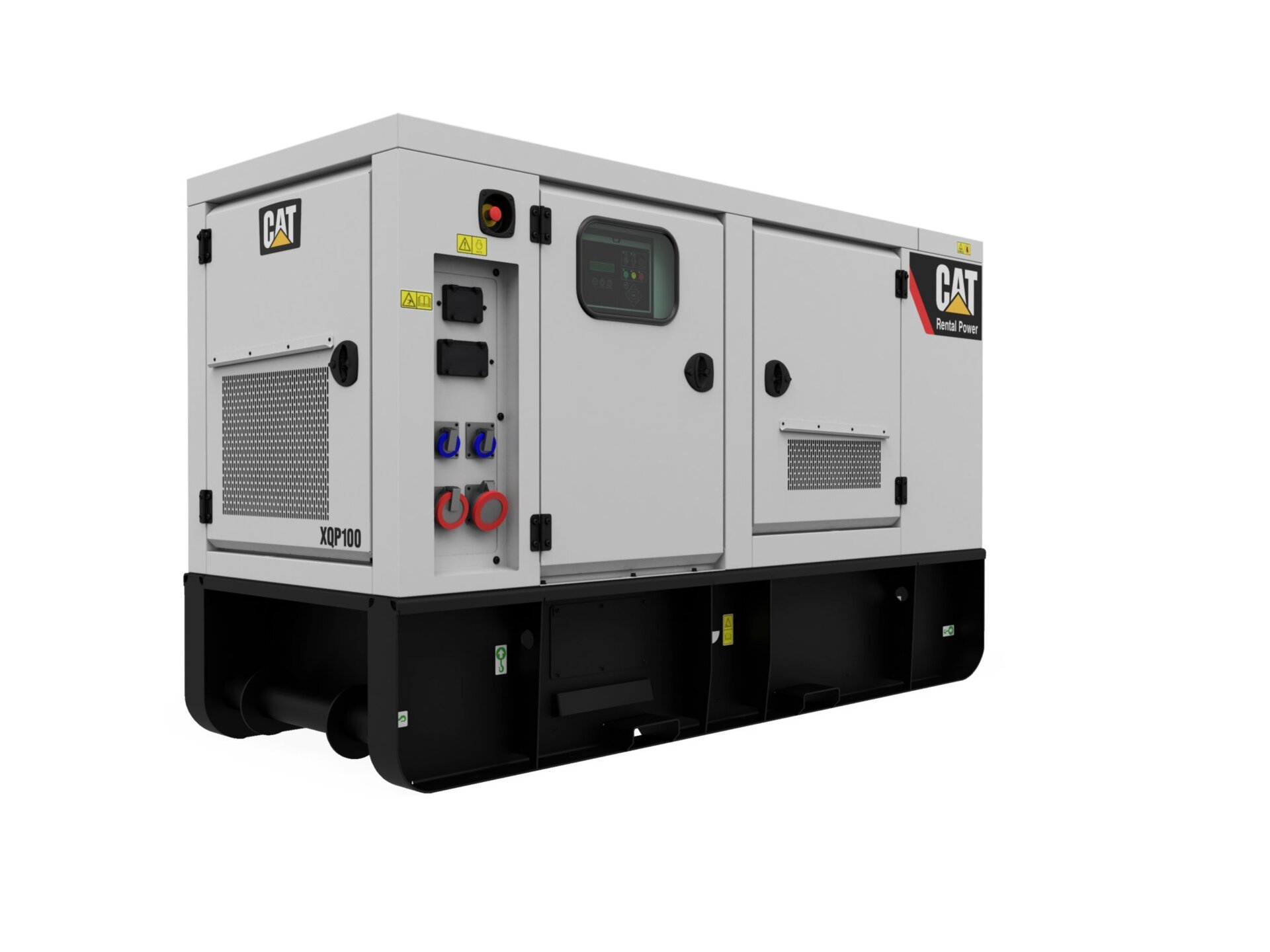

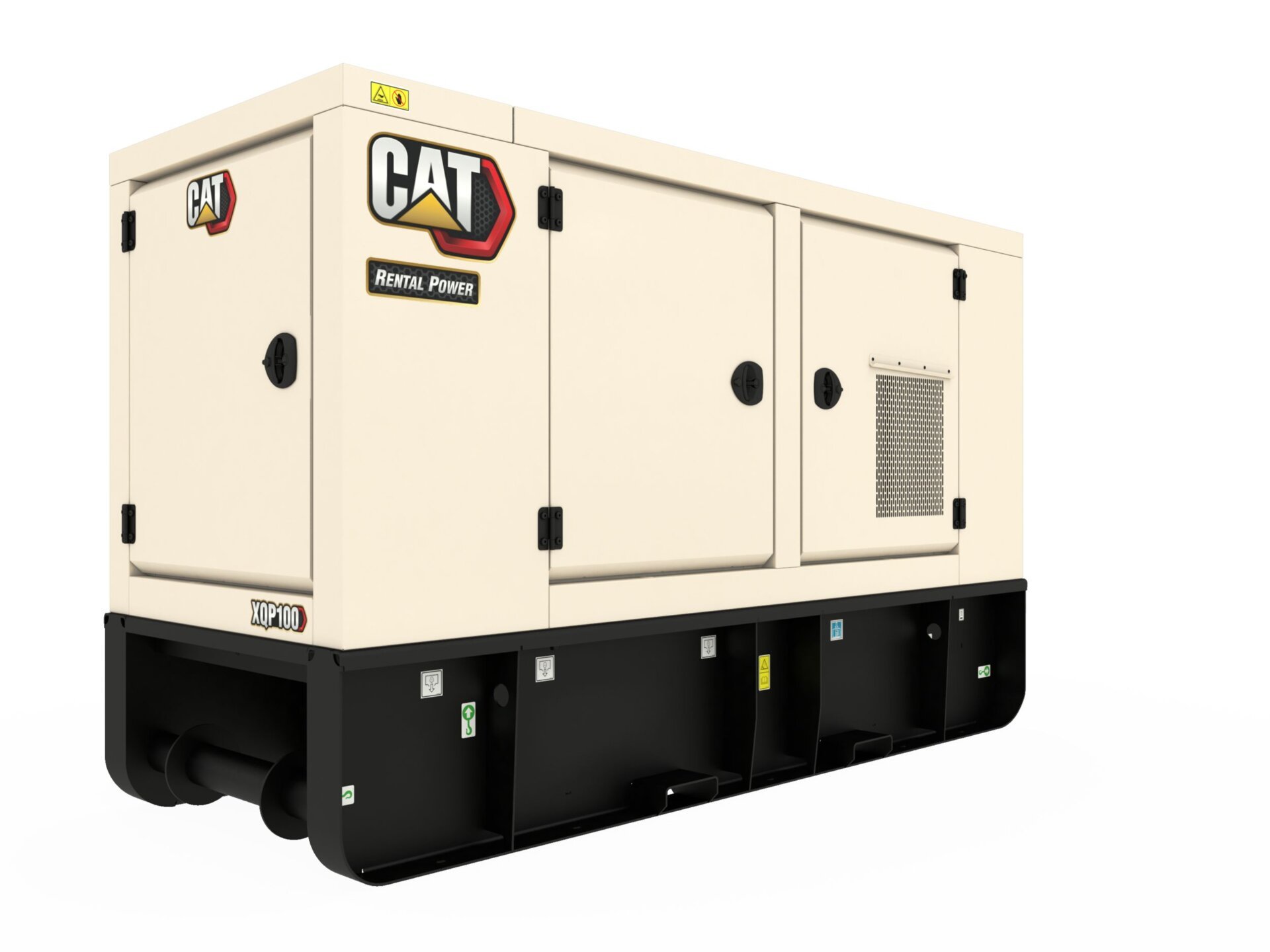

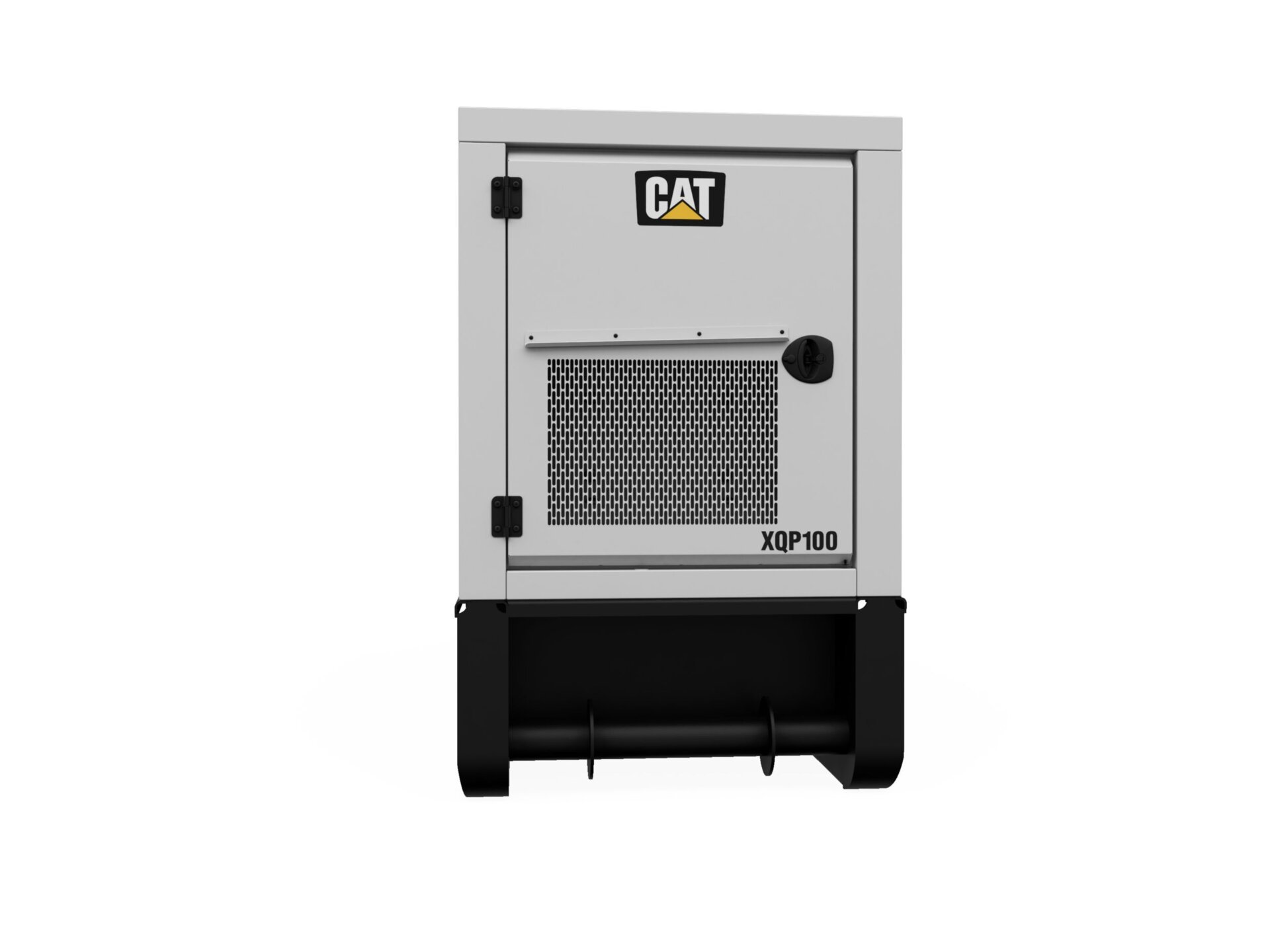

Cat XQP100

Mobile Generator Sets

Last ned spesifikasjoner Send Forespørsel

Om Cat XQP100

This XQP100 generator set will either meet EU Stage IIIA emission standards or provide low fuel consumption performance for customers in non-regulated territories. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.

Spesifikasjoner

Generator Set

Rating Prime	100 kVA
Frequency	50/60 Hz
Voltage	127 - 480 V

Motor

Engine	Cat C4.4
Fuel	Diesel

Dimensjoner

Width	1120 mm
Height	1846.5 mm
Length	2770 mm
Weight - With Lube Oil and Coolant	2027 kg

Fuel Consumption EU Stage IIIA

100% Load 50Hz	23.5 l/hr
100% Load 60Hz	27.7 l/hr
75% Load 50Hz	20.3 l/hr
75% Load 60Hz	22.2 l/hr
50% Load 50Hz	14.6 l/hr
50% Load 60Hz	15.9 l/hr

Fuel consumption Best Fuel Efficiency

100% Load 50Hz	22.6 l/hr
100% Load 60Hz	26.9 l/hr
75% Load 50Hz	17.1 l/hr
75% Load 60Hz	20.2 l/hr
50% Load 50Hz	11.8 l/hr
50% Load 60Hz	14.1 l/hr

Noise rating (with enclosure) EU Stage IIIA

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)	77.5 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)	79.5 dB(A)

Noise rating (with enclosure) Best Fuel Efficiency

Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)	80.3 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)	81.6 dB(A)

Egenskaper

Rental ready

Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Emissions Equivalent to EU Stage IIIA or Best Fuel Efficiency.

Cat C4.4 Diesel Engine

Industry proven reliability.

XQCP Control Panel

Easy to use digital controls.

Cat LC3100 Generator

Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Improved operator comfort.

Cat Connect

Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Single-source Supplier

Worldwide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countries
Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
