Cat AP500

Om Cat AP500

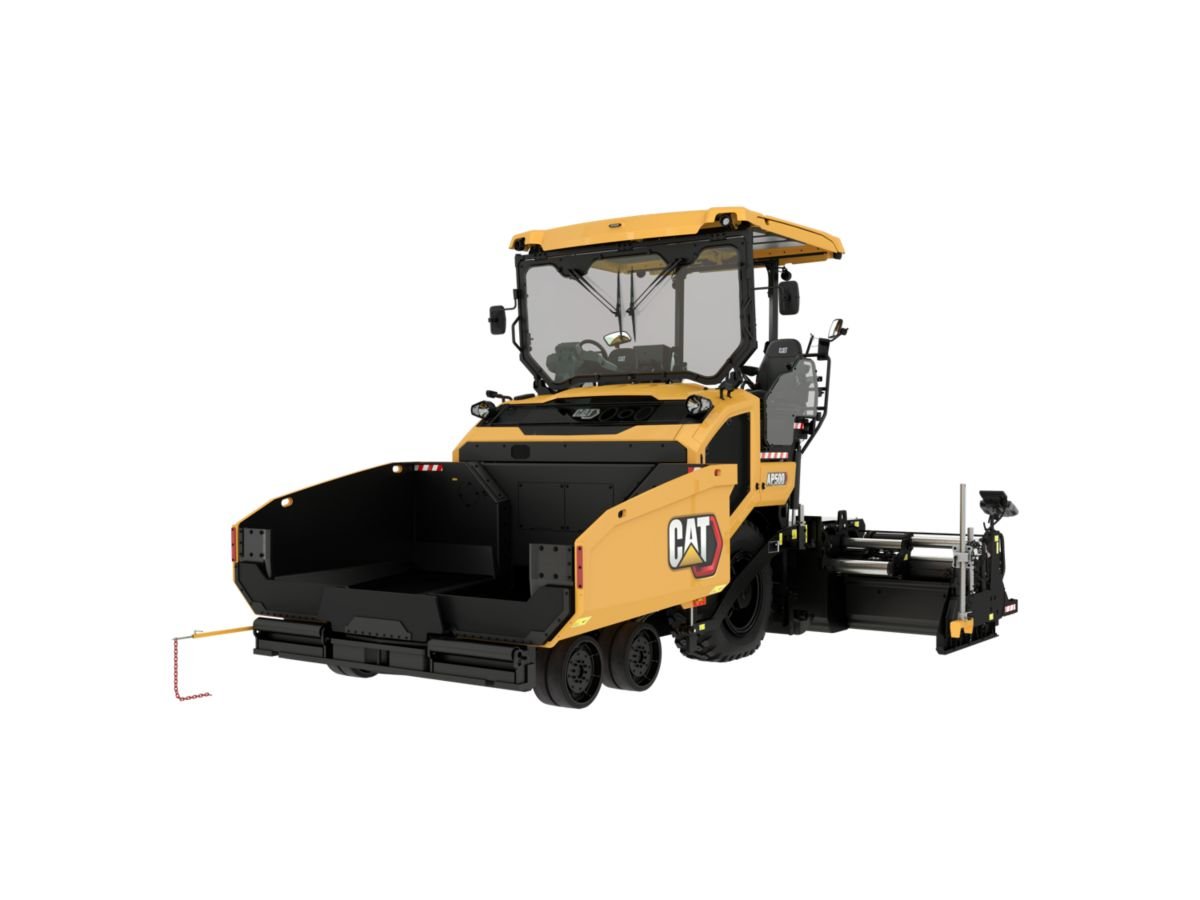

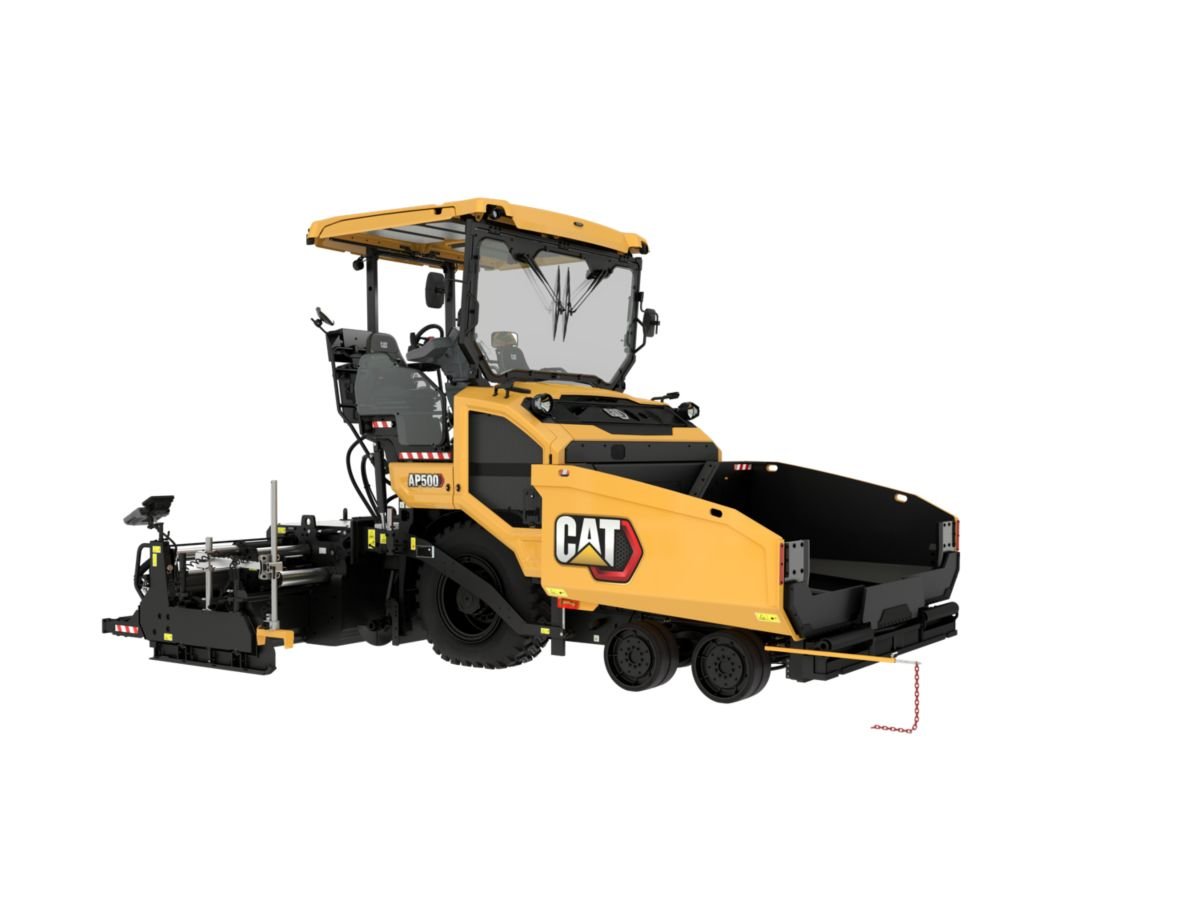

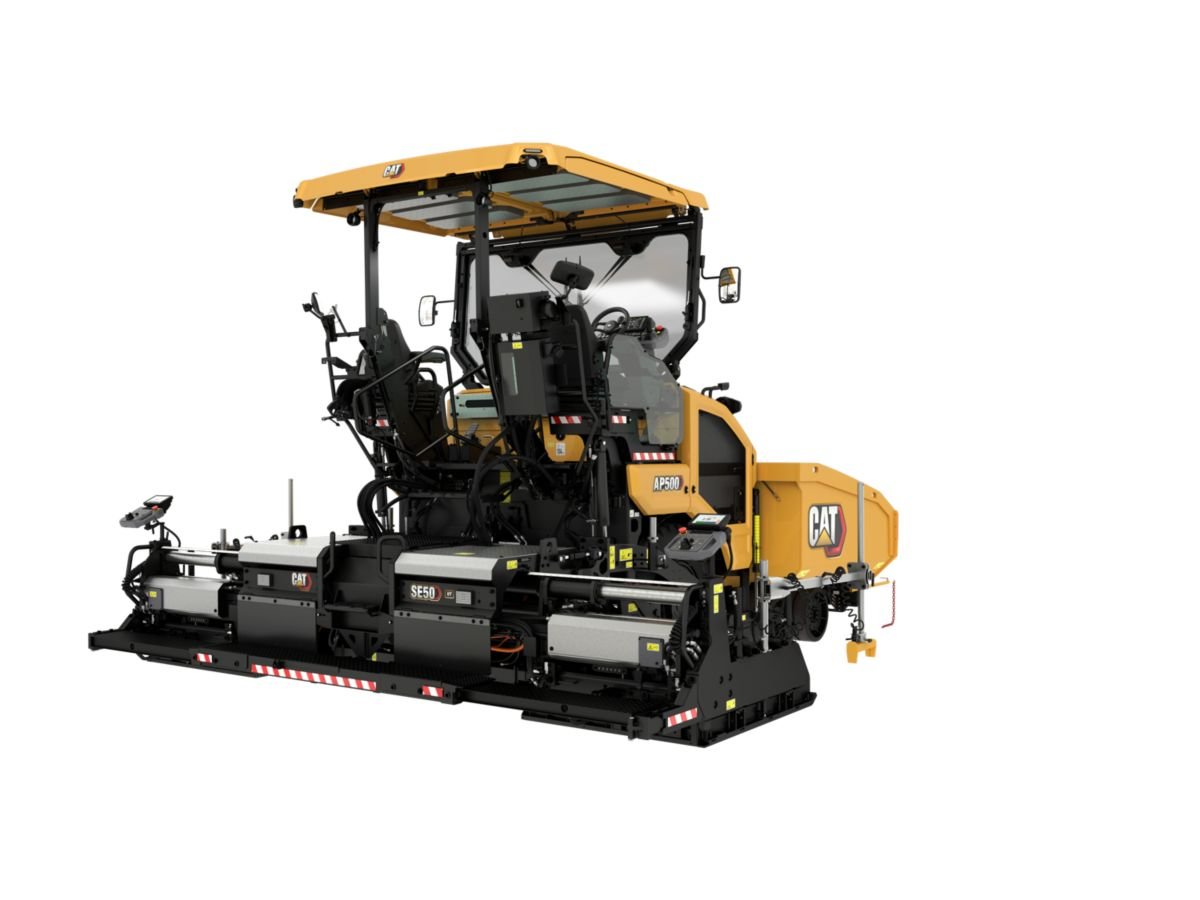

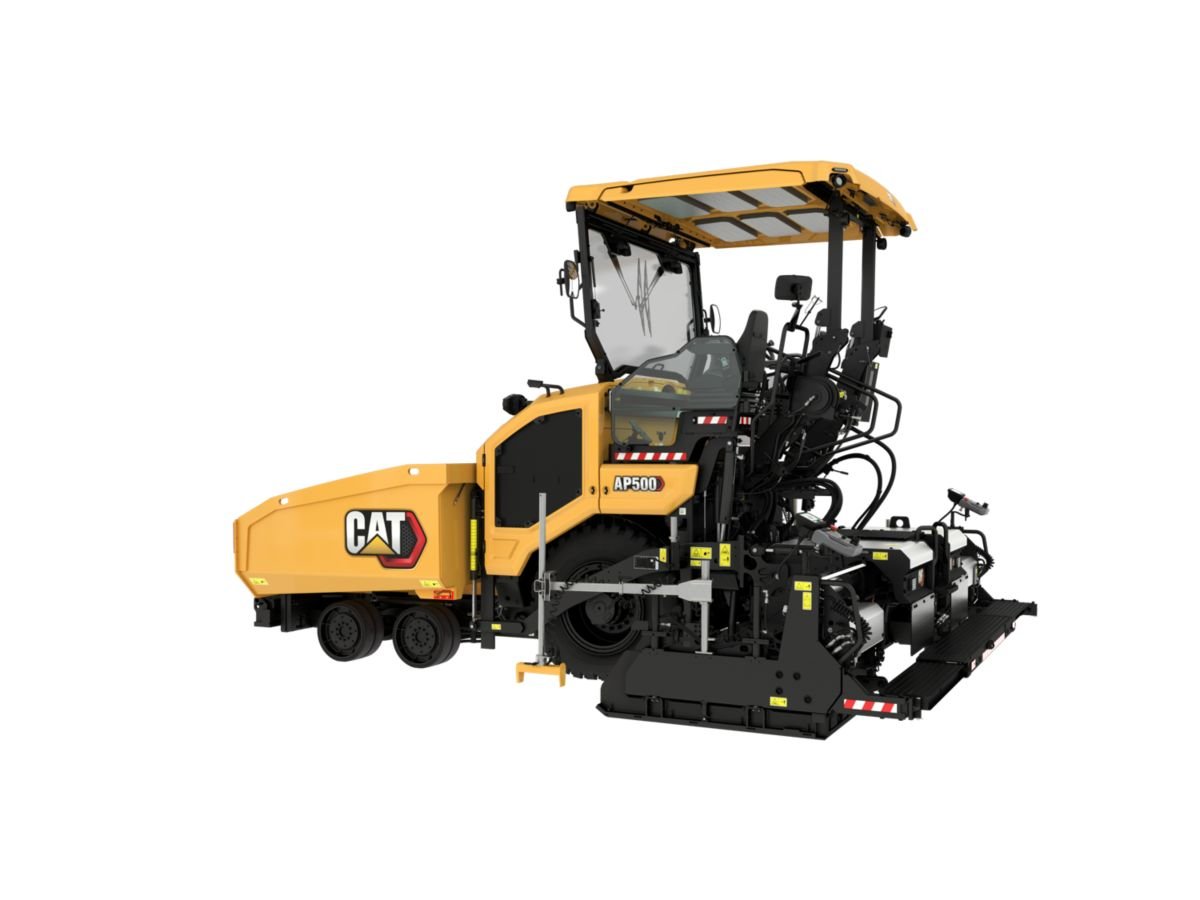

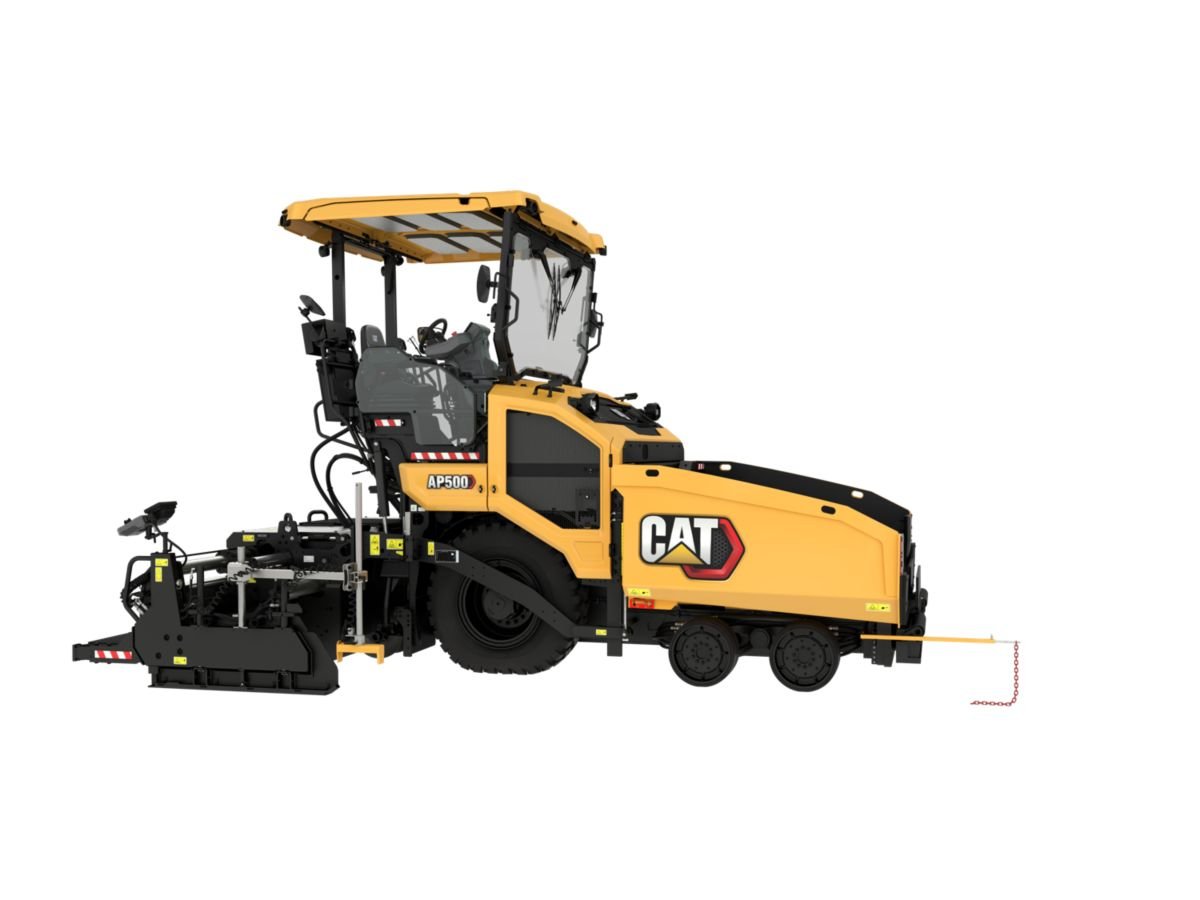

The Cat® AP500 Asphalt Paver is designed for urban streets, car parks, rural roads and many other small to intermediate-type applications. This paver provides high throughput capability as-well as application versatility, easy set-up, and a wide paving range.

Spesifikasjoner

Egenskaper

More Performance and Flexibility

• Powerful C4.4 engine supports increased feeder system capacity as well as hopper inserts for continuous paving
• Tight 90º turning capability enables the paver to rotate and cover its tracks on a return paving pass
• Standard paving range utilizing the SE47 VT screed is 2.4 m - 4.7 m (7' 10" - 15' 4") with a maximum width of 6 m (19' 8")
• Standard paving range utilizing the the SE50 VT is 2.55 m - 5.0 m (8' - 15' 6") with a maximum width of 6.77 m (22' 3")
• Paving depths up to 300 mm (12") supports aggregate paving applications

Transport Made Easy

• Machine weight of less than 14.5 mt (32,000 lb) paver and screed combination enables easy transport on a variety of trailer types
• Length of less than 5.7 m (18' 9") and width of 2.55 m (8' 4") when equipped with the SE47 VT accommodates machine transport without special permits
• Length of less than 6.0 m (19' 6") and width of 2.55 m (8' 4") when equipped with the SE50 VT and folding end gates accommodates machine transport without special permits
• The front-loading angle of 17º and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
• Front, middle, and rear tie-down locations make securing the paver highly efficient for quick travel to the next job site

Exceptional Mobility

• Wheel undercarriage provides exceptional mobility and fast travel speeds for unmatched maneuverability around the job site
• Excellent traction is delivered through the 17.5 R25 radial drive tires
• Front-wheel assist option provides power to the rear set of bogie wheels for excellent performance in tough conditions
• All-wheel drive option utilizes a flow divider to deliver power to both sets of front bogie wheels for additional pulling power
• High ground clearance of 197 mm (7.8") helps avoid storm drains, curbs, and other obstacles

Smooth Material Flow

• Optimized hopper design with low truck entry height and short front apron enhances material flow while simplifying clean-out
• Enhanced feeder system with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
• Confined auger chamber keeps material moving and helps eliminate stagnate patches
• Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for manual proportional feed control

More Comfort

• Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
• The single sliding console provides operation from either side of the machine for optimal visibility to curbs, edges, and transverse joints
• Dual independent seats swing out 40º beyond the platform for good visibility to curbs and obstacles
• Optimized height and integrated exhaust provide unobstructed visibility around the machine
• Optional screed and paver mounted umbrellas offer protection from direct sunlight
• Heated seat option delivers comfort in cool weather
• High visibility 76 mm (3") seat belt assists with crew safety compliance

Easy Viewing Displays

• High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
• High-visibility touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
• Single-touch functions from main screen include screed heat, washdown system, vibratory activation, ventilation system, accessory panel
• Cat® Grade Control or Basic Grade Control options available
• Operating displays can be tailored to specific language requirements with multiple options available
• Wash-down system includes level indication

Low Owning and Operating Costs

• Durable Cat C4.4 engine provides 110 kW (148 hp) of power with variations that meet U.S. EPA Tier 4 Final and EU Stage V emission standards. The Cat C4.4 engine also meets Brazil MAR-1 and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA and provides 106 kW (142 hp) of power.
• Single source supplier of Cat engines and machine parts helps maximize uptime
• Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
• Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
• Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems

Product Link™ Elite

• Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
• Easily track location, machine hours, fuel usage, and idle time in real time
• Diagnostic codes are made available through online web applications
• Remote flash for easy software updates
• Scheduled maintenance and Scheduled Oil Sampling notifications
• Remote disable deactivates the engine for enhanced security

Service and Repair Kits

• Paver and screed service and repair kits include all the parts necessary to complete specific repairs
• Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
• Repair kits are identified by a single part number to make ordering easy
• Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
