Cat 6030

Hydrauliske frontgravere

Se brosjyre Send Forespørsel

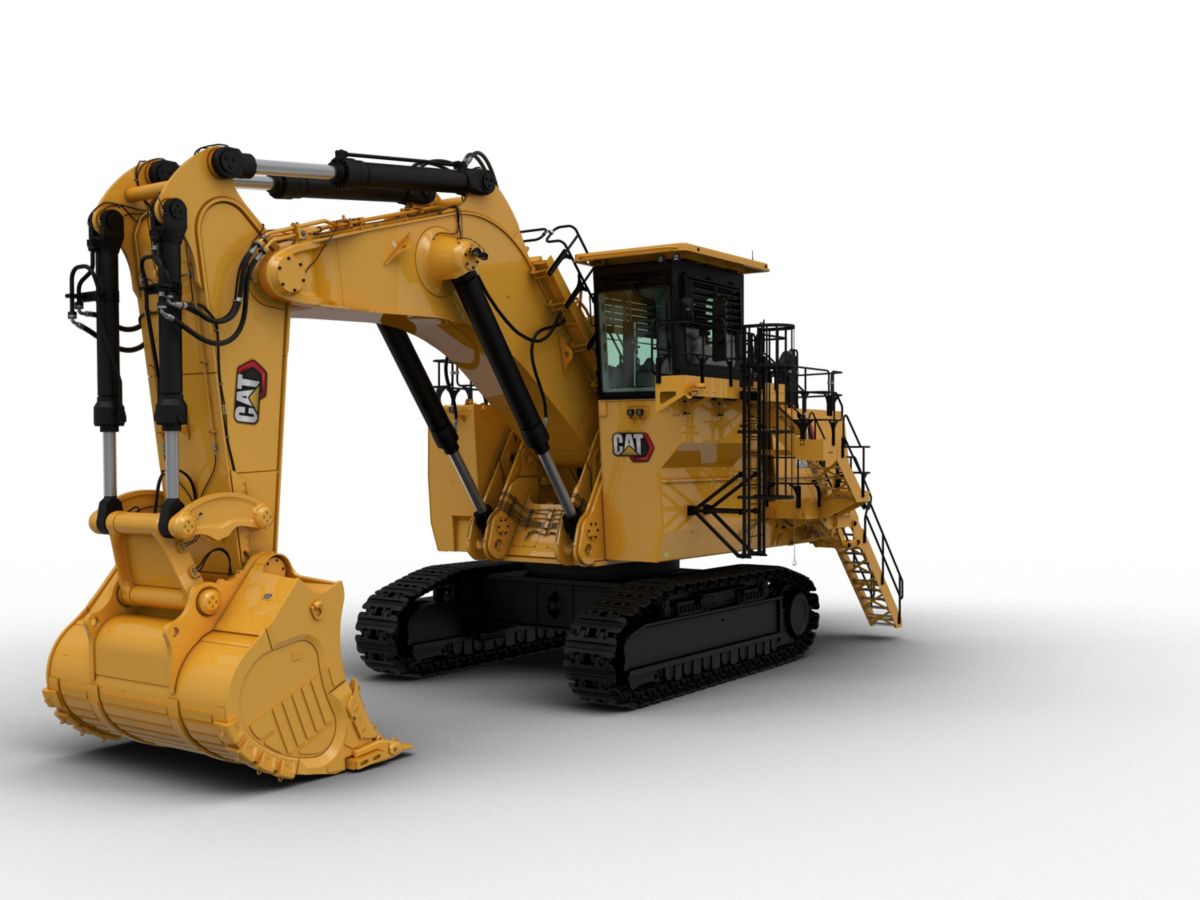

6030 Face Shovel
6030 Face Shovel Side View
6030 Backhoe
6030 Backhoe Side View
6030 Hero Image
6030 Face Shovel Attachment

Om Cat 6030



When you need a durable digger to power through the toughest materials, our broad lineup of hydraulic mining shovels delivers. They've built a name for withstanding the harshest digging conditions on sites around the world, and we're working hard to make sure they keep meeting your expectations for reliable, predictable, efficient and productive performance. Each comes with the total package you expect from Caterpillar: deep product expertise, unmatched after-sale support and a commitment to help you squeeze more value and profit out of your entire load/haul system.

Equipped with proven and reliable C27 engines, the Cat 6030 Hydraulic Mining Shovel provides the most powerful engine output in its class - delivering the productivity you expect, with the reliability you demand.

Spesifikasjoner

Generell
Note Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.
Motor
Motormodel 2 x Cat C27
Note Electric drive option available (1000 kW) on 6030 AC
Diesel Engines
Number of Cylinders - Each Engine 12
Aspiration Turbocharged and air-to-air aftercooled
Components (1) Hydraulically driven radiator fan with electronically controlled fan speed
Components (2) Micro processed engine management
Components (3) Heavy-duty air filters
Components (4) Two-stage fuel filter, including water separator
Components (5) Additional high-capacity water separator
Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards
Total Rated Gross Power - SAE J1995 1209 kW 1,800 min-1 (1,620 hp 1,800 min-1)
Make/Model 2 x Cat C27
Total Rated Net Power - SAE J1349 1192 kW 1,800 min-1 (1,597 hp 1,800 min-1)
Alternators 2 x 150A
Total Rated Net Power - ISO 3046/1 1194 kW 1,800 min-1 (1,600 hp 1,800 min-1)
Electrical System - Diesel Drive
System Voltage 24V
Batteries in Series/Parallel Installation 4 x 210 Ah at 12V each; 420 Ah with 24V in total
Components (1) Battery isolation relays
Components (2) Emergency stop switches accessible from ground level and in engine module
Components (3) 14 LED high-brightness working flood lights
Components (4) 11 LED service lights
Electrical System
Batteries 4 maintenance free batteries
Operating Weights
Note Other track pads available on request. Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, and 100 fuel and lubricants.
Hydraulic System with Pump Managing System
Main Pumps 4 x variable swash plate pumps
Main Pumps - Maximum Oil Flow - Diesel Version 4 x 552 L/min (4 x 146 gal/min)
Swing Pumps 2 x reversible swash plate double pumps
Swing Pumps - Maximum Oil Flow - Diesel Version 4 x 197 L/min (4 x 52 gal/min)
Main Pumps - Maximum Oil Flow - AC Version 4 x 543 L/min (4 x 143 gal/min)
Hydraulic Oil Cooling
Oil Flow of Cooling Pumps - Diesel Version 2 x 467 L/min (2 x 123 gal/min)
Diameter - Fan 2 x 1220 mm (2 x 48 in)
Swing System
Swing Drive 2 compact planetary transmissions with axial piston motors
Parking Brakes Wet multiple-disc brake, spring-loaded/hydraulically released
Swing Ring Triple-race roller bearing with sealed internal gearing
Undercarriage
Track Pads - Each Side 44
Bottom Rollers - Each Side 7
Support Rollers - Each Side 2 plus a skid plate in between
Travel Drives - Each Side 1 planetary transmission with 2 two-stage axial piston motors
Parking Brakes Wet multiple disc brake, spring loaded/hydraulically released
Components (1) All running surfaces of sprockets, idlers, rollers and pad links, as well as teeth contact areas of sprocket and pad links, are hardened
Components (2) Cast double-grouser combined pad-links with bushings connected by hardened full floating pins
Components (3) Fully hydraulic self-adjusting track tensioning system with membrane accumulator
Components (4) Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Components (5) Acoustic travel alarm
Operator's Cab
Components (1) Under roof mounted heating ventilating and air conditioning system
Components (2) External sun shields at side and rear windows
Components (3) Robust instrument panel including large colored BCS screen with transflective technology
Components (4) Board Control System (BCS) electronic monitoring and data logging system for vital signs and service data of engines, hydraulic system and lubrication system
Components (5) Hydraulically operated 45° access stairway
Components (6) Emergency egress ladder with ladder cage
Components (7) Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
Components (8) Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests
Components (9) Roller blinds at all windows
Components (10) Windshield with parallel intermittent wiper/washer
Components (11) All-round safety glass, armored windshield and sliding side window
Components (12) Operator Protective Guards (ISO 10262:1998 Level II
Components (13) Joystick controls integrated in independently adjustable seat consoles
Components (14) Fold-away auxiliary seat with safety belt
Automatic Lubrication System
Type (1) Dual-circuit system with hydraulically driven heavy-duty pump and electronic time relay control to adjust the pause/lube times
Type (2) Connected to the lubrication system are the swing roller bearing with internal gearing and all pivot points of attachment, bucket and cylinders
Type (3) Lubricated pinion for greasing of internal gearing of swing ring
Type (4) System failures displayed by Board Control System
Type (5) Grease filters (200 µm) between service station and container as well as directly behind grease pump
Attachments
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1) Automatic roll-back limiter to prevent material spillage and kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2) Horizontal automatic constant-angle bucket guidance and vertical automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3) Constant boom momentum throughout the whole lift arc and crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of: (1) Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2) Wing shrouds on side walls and heel shrouds at bottom edges
Type (1) Catwalks with rails at booms
Type (2) Special wear packages for highly abrasive materials on request
Type (3) Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (4) Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (5) Booms and sticks are stress-relieved after welding
Type (6) Booms and sticks are torsion-resistant, welded box design of high-tensile steel with solid steel castings at pivot areas
Electric Motor - 6030 AC/6030 AC FS
Output 1000 kW
Starting current 450% of IN (253% of IN optional)
Voltage 6.3 kV ± 10% (other on request)

Egenskaper

Drive Systems

Drive Systems

Twin-engine Concept

Twin-engine Concept

TriPower System (Face Shovel Machines)

TriPower System (Face Shovel Machines)

Hydraulic System

Hydraulic System

Independent Oil Cooling System

Independent Oil Cooling System

Pump Managing System

Pump Managing System

Closed-loop Swing Circuit

Closed-loop Swing Circuit

Operator's Cab

Operator's Cab

Electronic Control System

Electronic Control System

Cat MineStar System and Technology Solutions

Cat MineStar System and Technology Solutions

Loading/Hauling Efficiency

Loading/Hauling Efficiency

Front Attachment Options and Structures

Front Attachment Options and Structures

Swing System

Swing System

Undercarriage

Undercarriage

Safety

Safety

Customer Support

Customer Support

Serviceability

Serviceability

Sustainability

Sustainability
