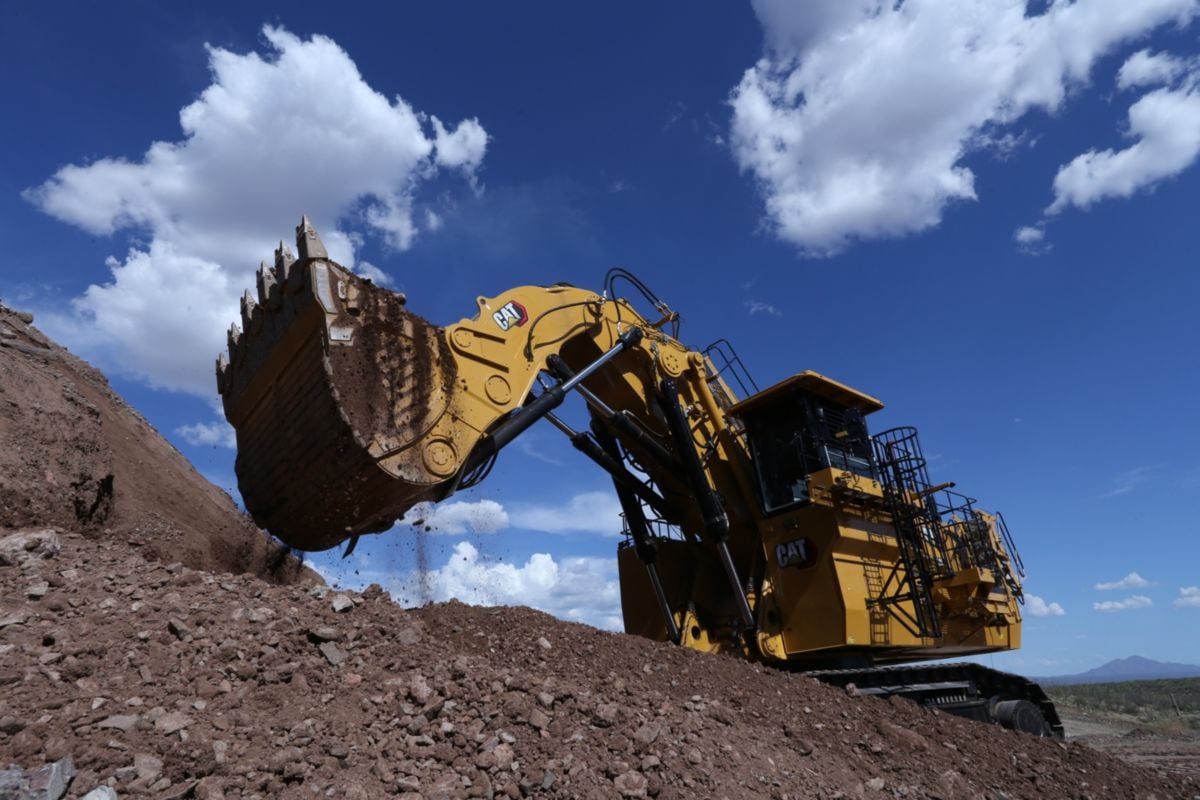

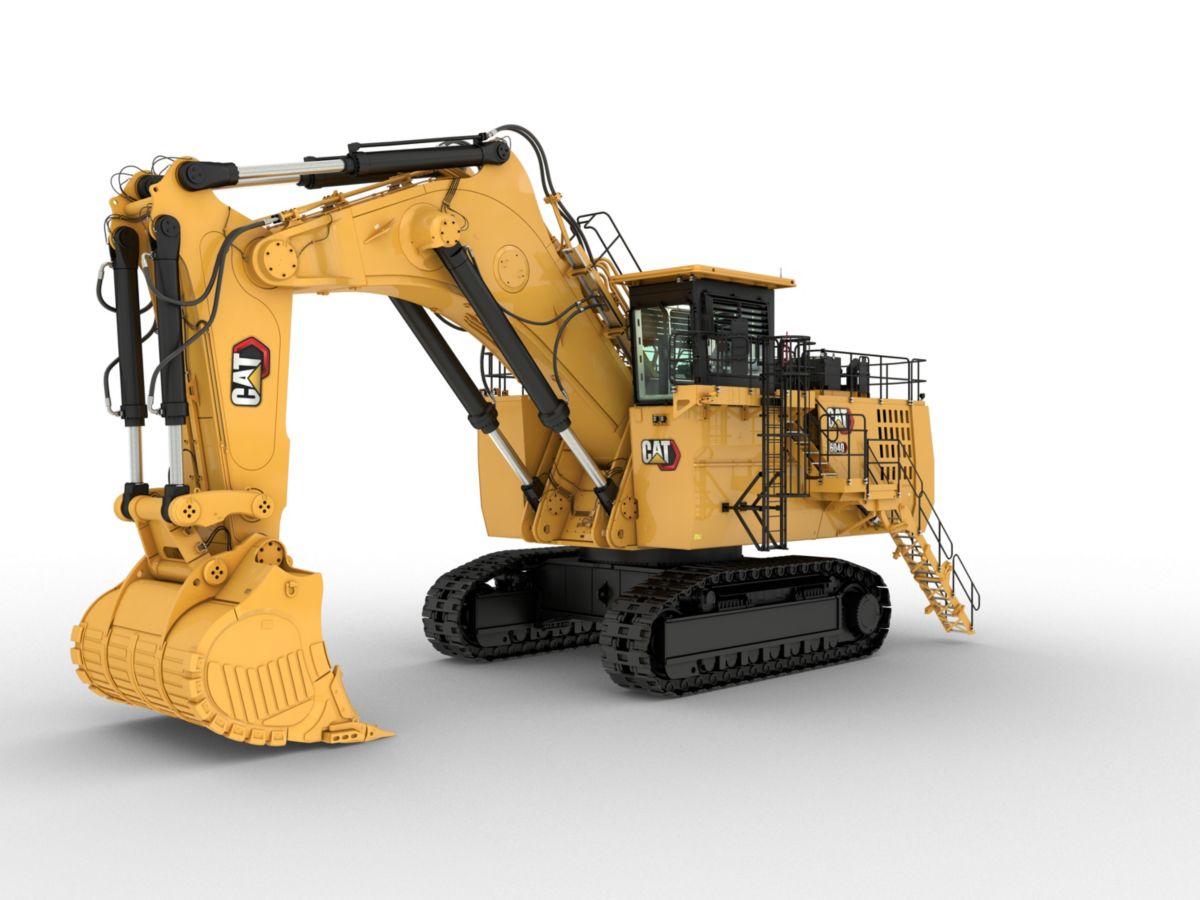

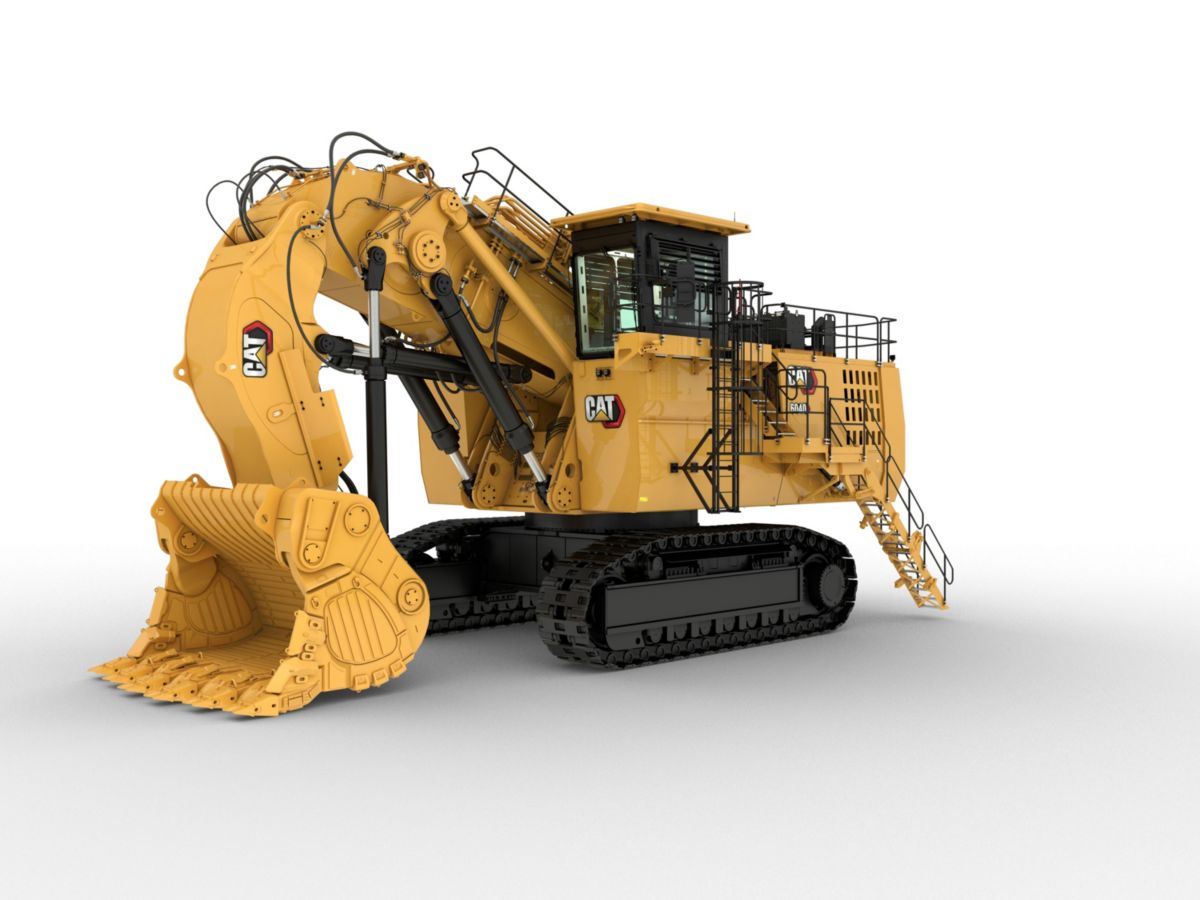

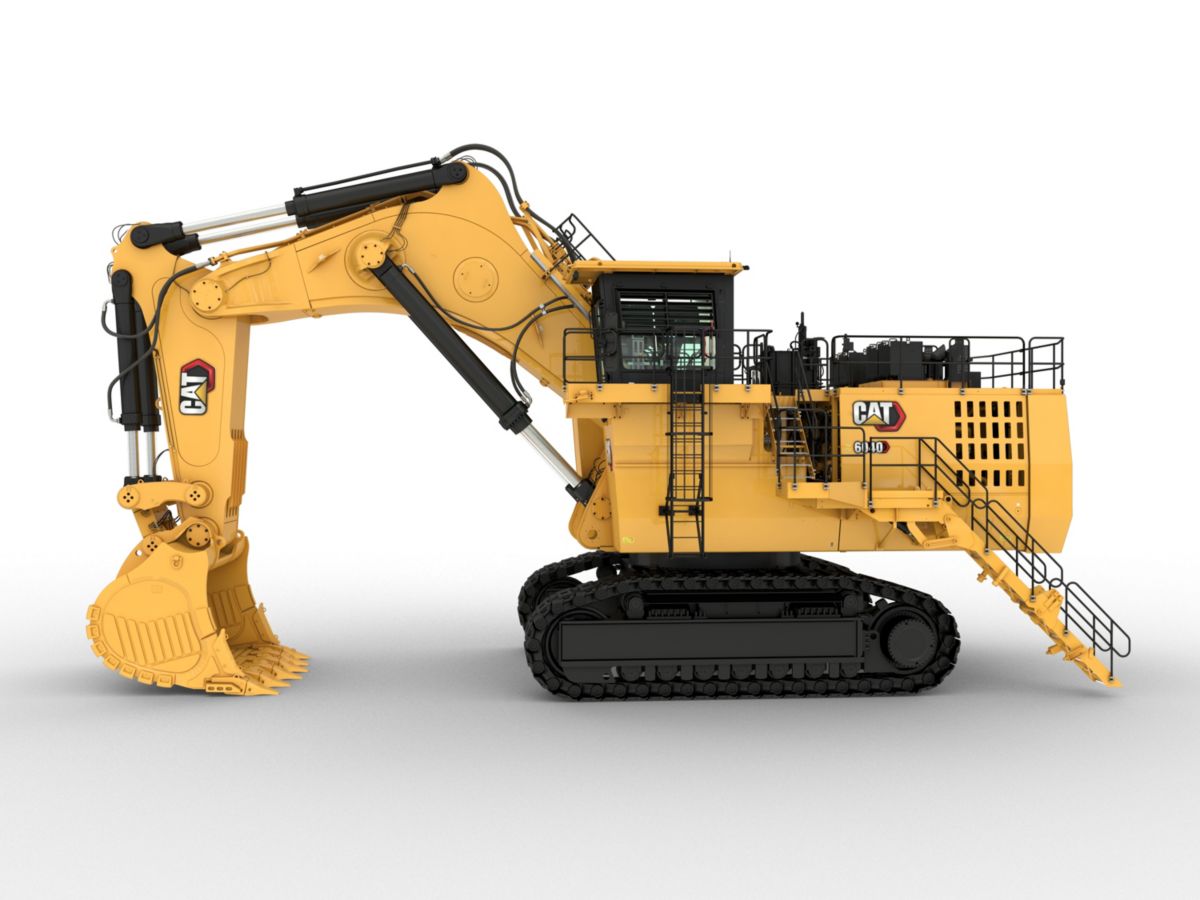

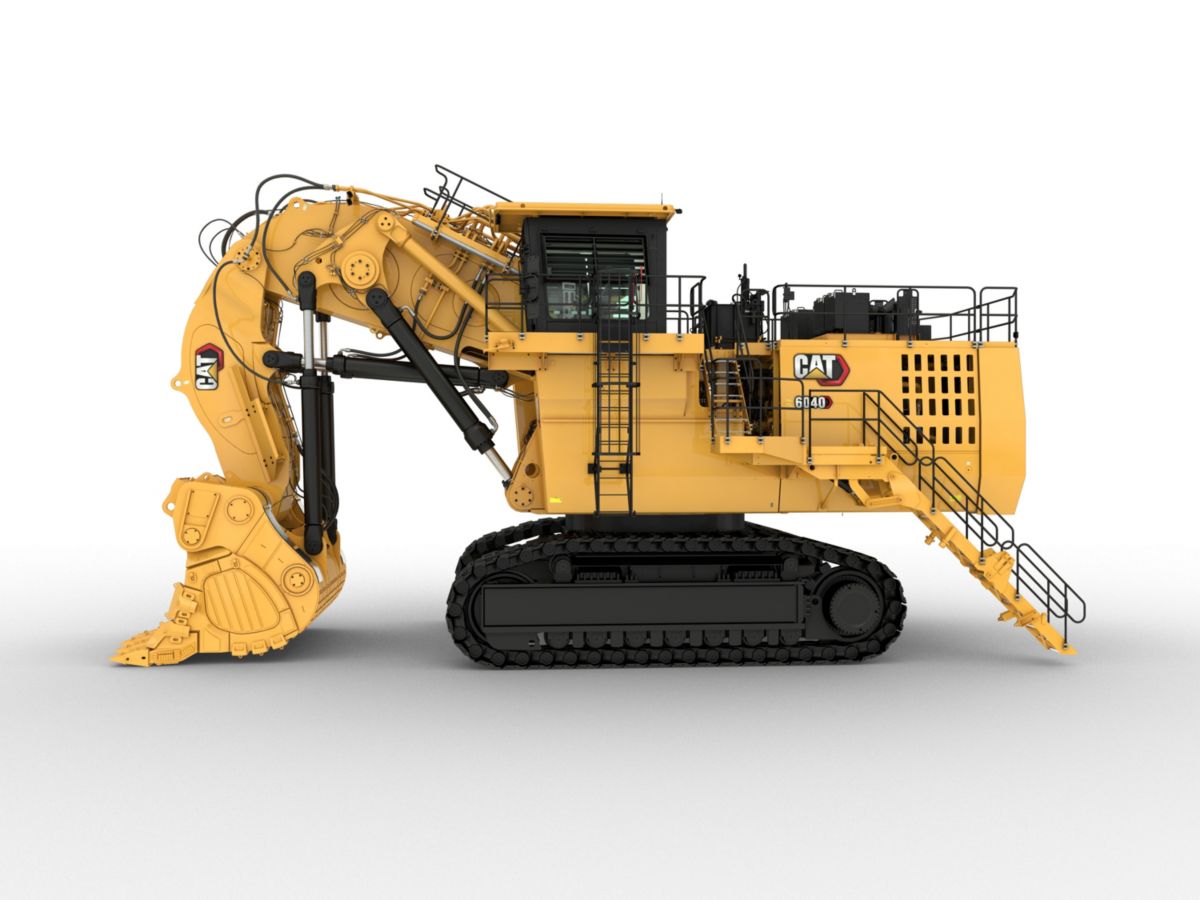

Cat 6040/6040 FS

Hydrauliske frontgravere

Maskinvekt: 404 tonn
Nettoeffekt: 1516 kW/ 2032 hk

Om Cat 6040/6040 FS



We understand the challenges you face, the importance of reliability, and the relationship between uptime and productivity. That's why we continually strive to produce the safest, most reliable and productive hydraulic mining shovels possible. Offering the widest payload range of any manufacturer in the industry, the ability to optimally pair with our popular line of mining trucks, and the support of our world-class Cat dealer network, we are uniquely positioned to partner with you to help achieve your productivity targets. We understand what matters to you. Our hydraulic mining shovels are built with you in mind. Because in mining, every day matters and every load counts.

Spesifikasjoner

Generell
Note Specifications above apply to the HRC Face Shovel configuration. Backhoe and Frontless configurations are also available for both HRC and LRC.
Motor
Motormodel 2 x Cat C32
Note Power output relates to highly regulated engines. Lesser regulated engines are also available.
Diesel Engines
Number of Cylinders - Each Engine 12
Aspiration Turbocharged and air-to-air aftercooled
Components (1) Additional high-capacity water separator
Components (2) Two-stage fuel filter including water separator
Components (3) Heavy-duty air filters
Components (4) Microprocessed engine management
Components (5) Hydraulically driven radiator fan with electronically controlled fan speed
Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards
Electrical System - Diesel Drive
System Voltage 24V
Batteries in Series/Parallel Installation 6 x 210 Ah - 12 V each; 630 Ah - 24 V in total
Components (1) 6 maintenance-free batteries
Components (2) Battery isolation relays and switches
Components (3) Emergency stop switches accessible from ground level, in engine module and in operator's cab
Components (4) 14 LED high-brightness working flood lights
Components (5) 11 LED high-brightness service lights
Operating Weights
6040 FS - Ground Pressure 24.1 N/cm2 (35.0 psi)
6040 - Ground Pressure 24.3 N/cm2 (35.3 psi)
Note 1600 mm track pads available as option
6040 FS - Note Other track pads available on request
Hydraulic System with Pump Managing System
Main Pumps - Diesel Version 4 x variable swash plate pumps
Main Pumps - Maximum Oil Flow - Diesel Version 4 x 724 L/min (4 x 191 gal/min)
Swing Pumps - Diesel Version 4 x reversible swash plate pump
Swing Pumps - Maximum Oil Flow - Diesel Version 4 x 321 L/min (4 x 85 gal/min)
Hydraulic Oil Cooling
Oil Flow of Cooling Pumps - Diesel Version 2 x 799 L/min (2 x 211 gal/min)
Features (1) Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Features (2) Fan speed is thermostatically controlled
Features (3) Extremely high cooling efficiency to ensure optimum oil temperature
Components (1) Gear type cooling pumps supplying high-volume, low-pressure oil to aluminum coolers
Components (2) Variable axial piston pumps supplying low-volume, high-pressure oil to fans
Diameter - Fan 2 × 1524 mm (2 × 60 in)
Swing System
Swing Drive 3 compact planetary transmissions with axial piston motors
Parking Brake Wet multiple disc brake, spring-loaded/hydraulically released
Swing Ring Triple-race roller bearing with sealed internal gearing
Features (1) Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
Features (2) Closed-loop swing circuit with torque control
Features (3) Hydraulic braking of the swing motion by counteracting control
Features (4) All raceways and the internal gearing of swing ring supplied by automatic central lubrication system
Undercarriage
Track Pads - Each Side 42
Bottom Rollers - Each Side 7
Support Rollers - Each Side 2 plus a skid plate in between
Travel Drives - Each Side 1 planetary transmission with 2 two-stage axial piston motors
Parking Brake Wet multiple disc brake, spring applied/hydraulically released
Components (1) All running surfaces of sprockets, idlers, rollers and track links are hardened
Components (2) Acoustic travel alarm
Components (3) Cast double-grouser combined pad-links with bushings connected by hardened full floating pins
Components (4) All teeth contact areas of sprocket and pad links are hardened
Components (5) Fully hydraulic self-adjusting track tensioning system with membrane accumulator
Components (6) Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Operator's Cab
Components (1) Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
Components (2) Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests
Components (3) Roller blinds at all windows
Components (4) Windshield with parallel intermittent wiper/washer
Components (5) All-round safety glass, armored windshield and sliding side window
Components (6) Operator Protective Guard (Top Guard)
Components (7) Single HVAC with option for Dual HVAC
Components (8) Joystick controls integrated in independently adjustable seat consoles
Components (9) Fold-away auxiliary seat with safety belt
Components (10) External sun shields at side and rear windows
Components (11) Sliding emergency ladder (kick-down type) with ladder cage
Components (12) Machine access via retractable access stairway, stairway angle approximately 45 degrees, hydraulically operated
Components (13) Robust instrument panel including large colored BCS screen with transflective technology
Board Control System (BCS III) Features (1) USB, Lan (TCP/IP) and CAN BUS interfaces for data export
Board Control System (BCS III) Features (2) On-screen PDF documentation (e.g. operating instructions, technical handbook, spare parts catalog, electric circuit diagram)
Board Control System (BCS III) Features (3) Robust instrument panel including large (12 in) colored touch screen for intuitive handling
Board Control System (BCS III) Features (4) Electronic monitoring, data logging & diagnostic system for vital signs & service data of engines, hydraulic & lube systems
Board Control System (BCS III) Features (5) On-screen troubleshooting assistance
Board Control System (BCS III) Features (6) Graphic charts of logged data
Board Control System (BCS III) Features (7) Fault memory with storage of related conditions
Automatic Lubrication System
Type (1) Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control adjust the pause/lube times
Type (2) System failures displayed by Board Control System
Type (3) Grease filters (200 µm) between service station and container, as well as directly behind grease pump
Type (4) Connected to the lubrication system are: - pivot points of attachment, bucket and cylinders
Type (5) Connected to the lubrication system are: - raceways of the swing roller bearing - two greasing pinions for the internal gearing of the swing ring
Attachments
All buckets (FS and BH) are equipped with a wear package consisting of: (1) - Special liner material covering main wear areas inside and outside of bucket - Lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2) - Wing shrouds on side walls - Heel shrouds at bottom edges
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1) - Automatic roll-back limiter to prevent material spillage - Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2) - Horizontal automatic constant-angle bucket guidance - Vertical automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3) - Constant boom momentum throughout the whole lift arc - Crowd force assistance
Type (1) Inspection hole in monoboom BH
Type (2) Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (3) Special wear packages for highly abrasive materials on request
Type (4) Catwalks with rails at boom (FS and BH)
Type (5) Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (6) Boom and sticks are stress-relieved after welding
Type (7) Boom and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel casting at pivot areas
Type (8) Guards for shovel cylinders (FS)
Retractable Service Station
Installation Retractable service station installed underneath the engine module and easily accessible from ground
