Cat 6060/6060 FS

Hydrauliske frontgravere

Maskinvekt: 589 tonn
Nettoeffekt: 2236 kW/ 2998 hk

Se brosjyre Send Forespørsel
6060 hero

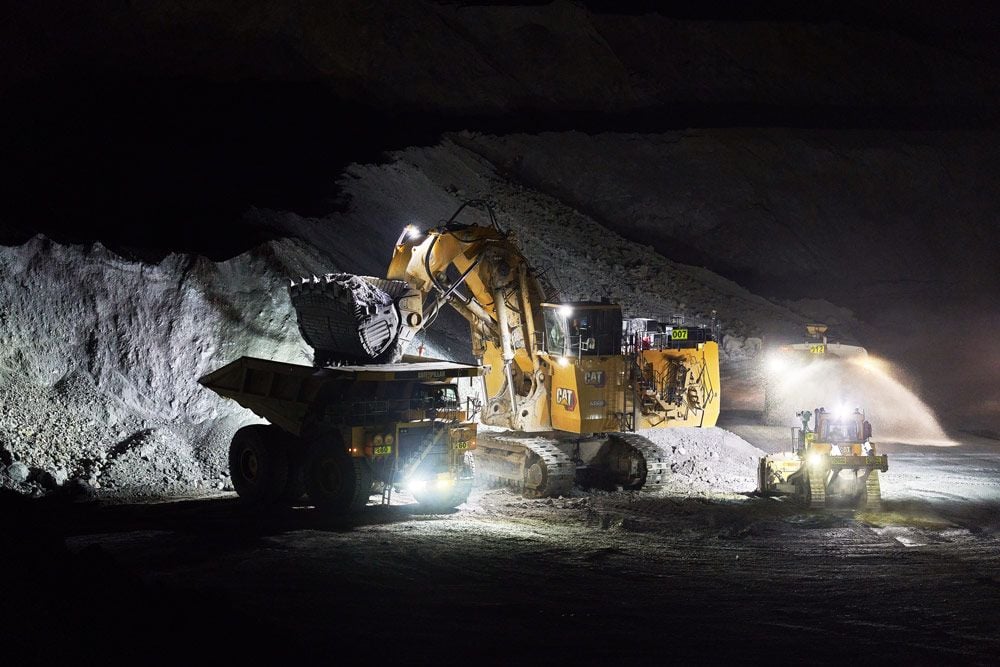

6060 and company working at night

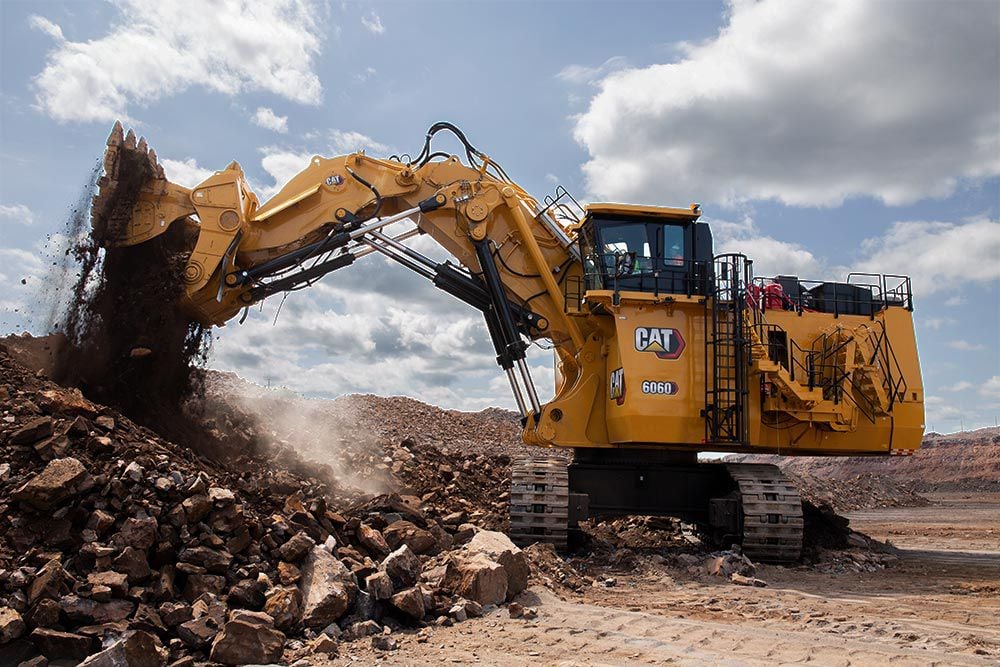

6060 in Face Shovel configuration

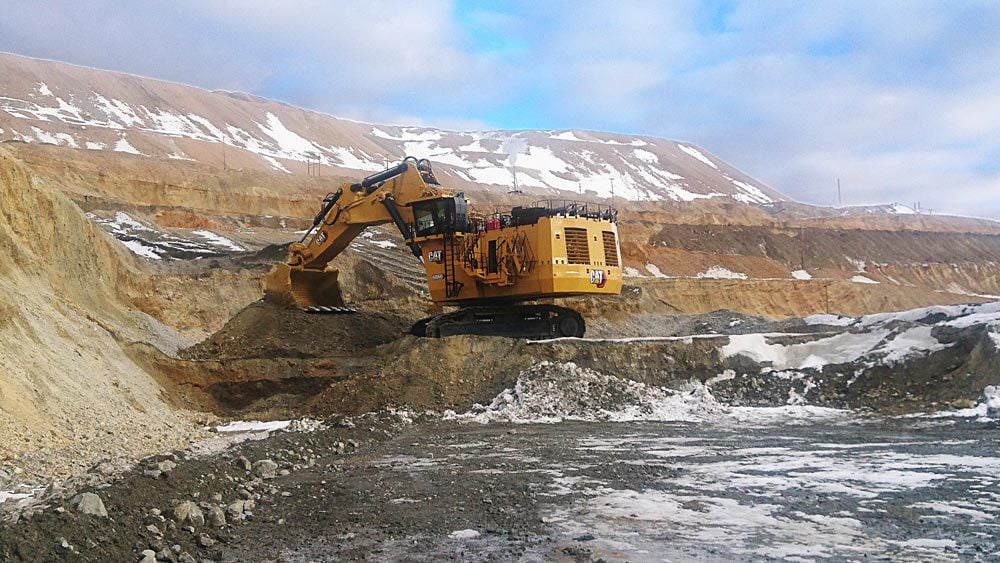

6060 in Backhoe configuration

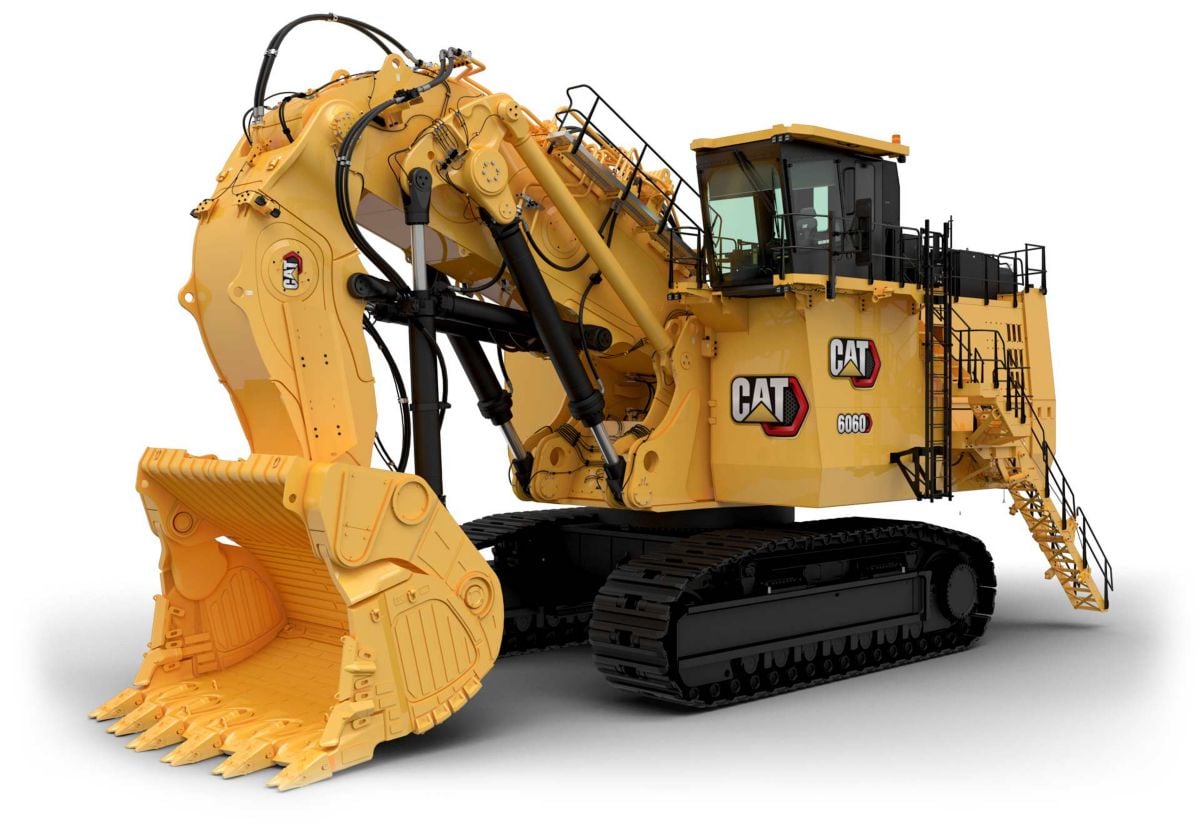

6060 Face Shovel
Safe. Comfortable. In Control.

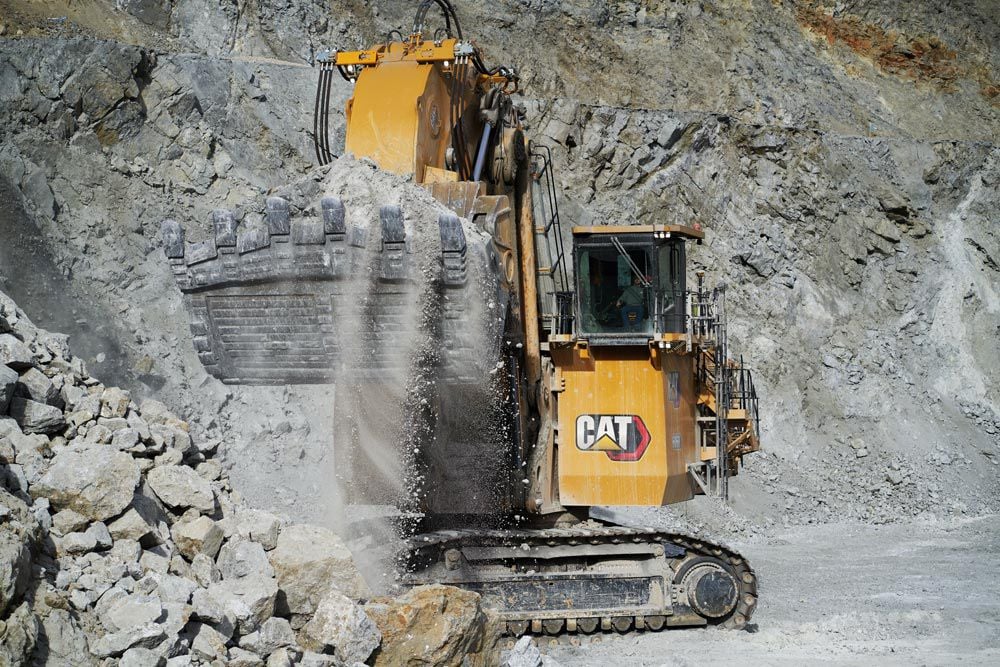

6060 working the face

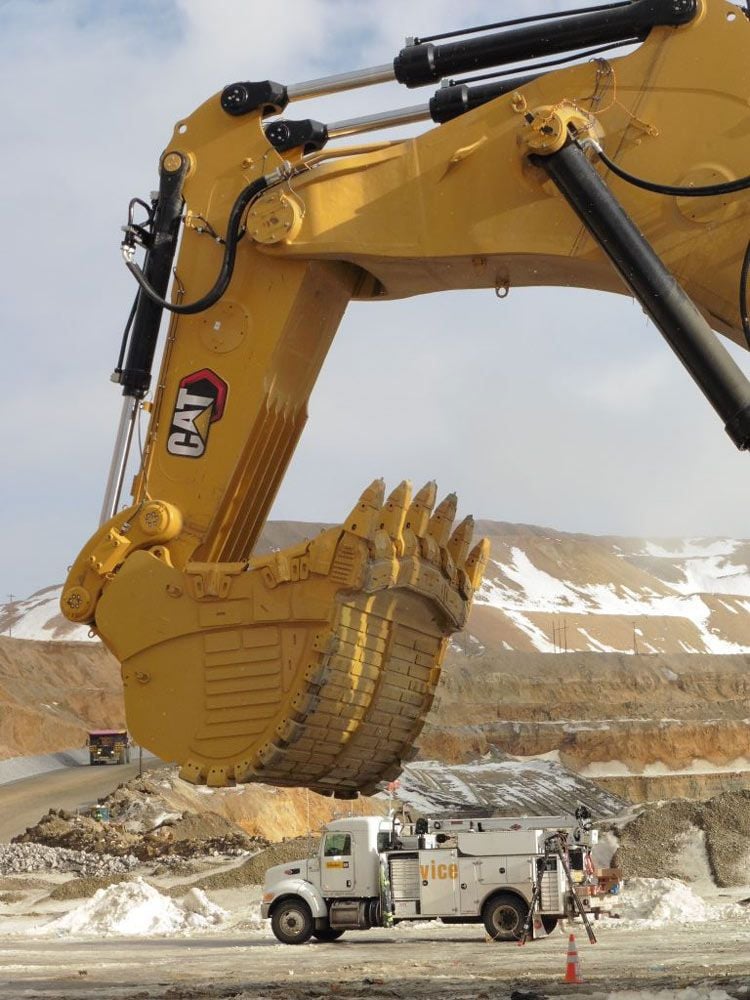

6060 Backhoe
6060 with Modern Hex decals

Om Cat 6060/6060 FS



We understand the challenges you face, the importance of reliability, and the relationship between uptime and productivity. That's why we continually strive to produce the safest, most reliable and productive hydraulic mining shovels possible. Offering the widest payload range of any manufacturer in the industry, the ability to optimally pair with our popular line of mining trucks, and the support of our world-class Cat dealer network, we are uniquely positioned to partner with you to help achieve your productivity targets. We understand what matters to you. Our hydraulic mining shovels are built with you in mind. Because in mining, every day matters and every load counts.

Spesifikasjoner

Generell
Note Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.
Motor
Motormodel 2 x Cat 3512E
Diesel Engines
Rated Speed 1,800 min-1 (1,800 rpm)
Number of Cylinders - Each Engine 12
Aspiration Turbocharged and charge air-cooled
Components (1) Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs)
Components (2) High-capacity water separator
Components (3) Two-stage fuel filter with series filtration
Components (4) Heavy-duty air filters
Components (5) Microprocessed engine management
Components (6) Hydraulically driven radiator fan with electronically controlled fan speed
Components (7) Exhaust manifold and turbo heat shields
Diesel Engine - Lesser Regulated
Emissions Optimized for fuel consumption.
Diesel Engine - Highly Regulated
Emissions Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions.
Electrical System
System Voltage 24 V
Batteries in Series/Parallel Installation 6 x 210 Ah; 12 V each; 630 Ah 24 V in total
Components (1) 6 maintenance-free batteries
Components (2) Lockable battery isolator switch
Components (3) Lockable starter isolator switch
Components (4) 13 LED high-brightness working flood lights
Components (5) 16 LED service lights
Components (6) 2 electric horns (1 cab module; 1 oil cooler module)
Operating Weights
6060 FS - Ground Pressure 26.6 N/cm2 (38.5 psi)
Backhoe - Ground Pressure 26.7 N/cm2 (38.7 psi)
Note Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.
Hydraulic System with Pump Managing System
Main Pumps - Diesel Version 8 variable swash plate pumps
Main Pumps - Maximum Oil Flow - Diesel Version 8 x 650 L/min (8 x 172 gal/min)
Swing Pumps - Diesel Version 4 reversible swash plate pumps
Swing Pumps - Maximum Oil Flow - Diesel Version 4 x 352 L/min (4 x 93 gal/min)
Hydraulic Oil Cooling
Oil Flow of Cooling Pumps 4 x 488 L/min (4 x 129 gal/min)
Components 4 cooling fans
Features (1) Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Features (2) Fan speed and flow of oil to the coolers are thermostatically controlled
Features (3) Extremely high cooling efficiency to ensure optimum oil temperature
Features (4) Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers
Swing System
Swing Drive 4 compact planetary transmissions with axial piston motors
Parking Brakes Wet multiple disc brake, spring loaded/hydraulically released
Swing Ring Triple-race roller bearing with sealed internal gearing
Features (1) Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody
Features (2) Closed-loop swing circuit with torque control
Features (3) Hydraulic braking of the swing motion by counteracting control
Features (4) All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system
Undercarriage
Track Pads - Each Side 42
Bottom Rollers - Each Side 7
Support Rollers - Each Side 2 plus a skid plate in between
Travel Drives - Each Side 1 planetary transmission with 2 two-stage axial piston motors
Components (1) HD tracks with cast double-grouser track pad
Components (2) HD fixed axle rollers and idlers
Components (3) Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas
Components (4) Acoustic travel alarm (forward and reverse)
Components (5) Fully hydraulic, self-adjusting track tensioning system with piston accumulator
Components (6) Automatic hydraulic retarder valve to prevent over-speed on downhill travel
Operator's Cab
Components (1) Single hydraulically driven HVAC System, with dual system option
Components (2) In-floor window with removable grate
Components (3) Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support
Components (4) Independently adjustable seat consoles with integrated joysticks
Components (5) Operator Protective Guard (Top Guard) (ISO 10262:1998)
Components (6) Elevated full-size trainer seat with safety belt and laptop desk
Components (7) Additional fold-away auxiliary seat with safety belt
Components (8) Operator Presence switch
Components (9) Monitoring system with 254 mm (10 in) touch screen
Components (10) Powered 45 degree access stairway
Components (11) Emergency egress ladder
Components (12) FM/AM radio with USB and AUX input
Components (13) Roller blinds on 3 front windows
Components (14) 3 cup holders
Components (15) Cat Electronic Technician service port
Automatic Lubrication System
Type (1) Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times
Type (2) System failures displayed by monitoring system
Type (3) Grease filters (200 µm) between service station and container as well as directly behind grease pump
Type (4) Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring
Attachments
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1) Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2) Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3) Constant boom momentum throughout the entire lift arc; Crowd force assistance
All buckets (FS and BH) are equipped with a wear package consisting of: (1) Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
All buckets (FS and BH) are equipped with a wear package consisting of: (2) Wing shrouds on side walls and heel shrouds at bottom edges
Type (1) Catwalks with rails at booms (FS and BH)
Type (2) Guards for shovel cylinders (FS)
Type (3) Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (4) Service access holes from both sides of boom (FS and BH) and stick (FS)
Type (5) Welding procedures allow for internal counter-welding (double prep weld) wherever possible
Type (6) Booms and sticks are stress-relieved after welding
Type (7) Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas
Type (8) Special wear packages for highly abrasive materials available upon request
Retractable Service Station
Installation Retractable service station installed underneath the engine module and easily accessible from ground.
Equipped With (1) Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container
Equipped With (2) Cat jump-start socket
Equipped With (3) Indicator lights

Egenskaper

Drive System – Balanced Combination of Power and Efficiency

Drive System – Balanced Combination of Power and Efficiency

Twin-engine Concept – Stay Up and Running More Consistently

Twin-engine Concept – Stay Up and Running More Consistently

Structures – Designed for the Toughest Conditions

Structures – Designed for the Toughest Conditions

Operator Assist – Attachment Control – Protect Your Largest Asset

Operator Assist – Attachment Control – Protect Your Largest Asset

TriPower System – Superior Digging Capability and Bucket Fill Factors

TriPower System – Superior Digging Capability and Bucket Fill Factors

Hydraulic System – Easy Serviceability and Greater Productivity

Hydraulic System – Easy Serviceability and Greater Productivity

Independent Oil Cooling System – More Effective Oil Cooling for Extended Component Life

Independent Oil Cooling System – More Effective Oil Cooling for Extended Component Life

Pump Managing System – Enhanced Efficiency, Component Life, and Control Response

Pump Managing System – Enhanced Efficiency, Component Life, and Control Response

Closed-loop Swing Circuit – More Efficient Energy Use and Faster Boom Lift Motion During Swing

Closed-loop Swing Circuit – More Efficient Energy Use and Faster Boom Lift Motion During Swing

Operator’s Cab – Ensuring the Safety and Comfort of Your Operators

Operator’s Cab – Ensuring the Safety and Comfort of Your Operators

Electronic Control System – Operate with Confidence

Electronic Control System – Operate with Confidence

Cat® MineStar™ System and Technology Solutions – Evolving Your Mine for Greater Safety and Productivity

Cat® MineStar™ System and Technology Solutions – Evolving Your Mine for Greater Safety and Productivity

Loading/Hauling Efficiency – Move More Material with Optimal Pass Match Pairings

Loading/Hauling Efficiency – Move More Material with Optimal Pass Match Pairings

Front Attachment – Bolstering Your Investment with Robust and Durable Structures

Front Attachment – Bolstering Your Investment with Robust and Durable Structures

Swing System – Longer Component Life for Better Swing System Reliability

Swing System – Longer Component Life for Better Swing System Reliability

Undercarriage – Tough and Long-lasting

Undercarriage – Tough and Long-lasting

Safety – Designed with Your Safety as Our Top Priority

Safety – Designed with Your Safety as Our Top Priority

Serviceability – Designed to Get You Back to Work Fast

Serviceability – Designed to Get You Back to Work Fast

Customer Support – Stay Up and Running with Service and Support from Our Unmatched Global Network

Customer Support – Stay Up and Running with Service and Support from Our Unmatched Global Network
