Cat 308 CR

Minigravere 0.9-10 tonn

Maskinvekt: (fra) 8700 kg
Skuffestørrelse: 400 L
Bruttoeffekt: 55,4 kW/ 74,3 hk
Korthekk

Se brosjyre Send Forespørsel

Vises på Vei&Anlegg

Om Cat 308 CR

The Cat® 308 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Spesifikasjoner

Motor

Net Power	51.8 kW
Motormodel	Cat C3.3B
Stroke	120 mm
Bore	94 mm
Gross Power - SAE J1995	55.4 kW
Displacement	3.33 l
Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269	51.8 kW

Weights

Operating Weight	9105 kg
Note (1)	*Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Note (2)	**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
Maximum Operating Weight with Cab**	9105 kg
Minimum Operating Weight with Cab*	8440 kg

Weight Increase from Minimum Configuration

Steel Tracks with Pads	341 kg
Counterweight	250 kg
Long Stick	66 kg

Travel System

Maximum Traction Force - High Speed	27.8 kN
Ground Pressure - Maximum Weight	39.8 kPa
Ground Pressure - Minimum Weight	36.9 kPa
Travel Speed - High	5.1 km/h
Travel Speed - Low	3.1 km/h
Maximum Traction Force - Low Speed	67.5 kN
Gradeability - Maximum	30 degrees

Påfyllingskapasitet

Drivstofftank	147 l
Hydraulic System	110 l
Hydraulic Tank	53 l
Cooling System	10 l
Engine Oil	11.2 l

Hydraulic System

Digging Force - Bucket	62 kN
Operating Pressure - Travel	285 bar
Operating Pressure - Swing	250 bar
Operating Pressure - Equipment	285 bar
Digging Force - Stick - Long	35.7 kN
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Pump Flow at 2,400 rpm	167 l/min
Digging Force - Stick - Standard	42.3 kN
Maximum Auxiliary Circuit - Primary - Pressure at Pump	285 bar
Maximum Auxiliary Circuit - Secondary - Pressure at Pump	285 bar
Maximum Auxiliary Circuit - Primary - Flow at Pump	131 l/min
Maximum Auxiliary Circuit - Secondary - Flow at Pump	33 l/min

Swing System

Machine Swing Speed	10.6 r/min
Boom Swing - Right	50 degrees
Boom Swing - Left	60 degrees

Blade

Height	431 mm
Width - Standard	2300 mm
Width - Wide	2450 mm

Certification - Cab

Top Guard	ISO 10262:1998 (Level I)
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997

Sound

Operator Sound Pressure (ISO 6396:2008)	72 dB(A)
Note	European Union Directive "2000/14/EC"
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A)

Dimensions - Standard Stick

Cab Height	2541 mm
Vertical Wall	2991 mm
Boom In Reach	3059 mm
Tail Swing with Counterweight	1585 mm
Boom Swing - Right	935 mm
Track Belt/Shoe Width	450 mm
Maximum Reach	7141 mm
Stick Length	1820 mm
Maximum Blade Height	370 mm
Boom Swing - Left	604 mm
Maximum Blade Depth	407 mm
O/A Track Width	2300 mm
Maximum Dig Height	6736 mm
Maximum Dump Clearance	4760 mm
Maximum Reach - Ground Level	6949 mm
Tail Swing without Counterweight	1450 mm
O/A Undercarriage Length	2880 mm
Swing Bearing - Height	756 mm
Ground Clearance	350 mm
Dig Depth	4108 mm
Note	*Boom Height when stick is pinned in transport position with no attachments.
Overall Shipping Length - with Counterweight	6706 mm
Note (1)	**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Overall Shipping Length - without Counterweight	6574 mm
Note (2)	***With blade positioned at the rear of the machine.
Height - Boom Working - With Tools**	2660 mm
Height - Boom Transport - No Tools*	2430 mm

Dimensions - Long Stick

Dig Depth	4643 mm
Boom Swing - Left	604 mm
Maximum Dig Height	7039 mm
Maximum Blade Height	370 mm
Track Belt/Shoe Width	450 mm
Cab Height	2541 mm
Tail Swing with Counterweight	1585 mm
O/A Undercarriage Length	2880 mm
Maximum Dump Clearance	5072 mm
Boom Swing - Right	935 mm
Maximum Blade Depth	407 mm
Ground Clearance	350 mm
Stick Length	2358 mm
Maximum Reach	7637 mm
Maximum Reach - Ground Level	7460 mm
Boom In Reach	3215 mm
Swing Bearing - Height	756 mm
O/A Track Width	2300 mm
Tail Swing without Counterweight	1450 mm
Vertical Wall	3404 mm
Note	*Boom Height when stick is pinned in transport position with no attachments.
Note (2)	***With blade positioned at the rear of the machine.
Note (1)	**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Height - Boom Transport - No Tools*	2260 mm
Height - Boom Working - With Tools**	3050 mm
Overall Shipping Length - without Counterweight	6872 mm (270.6 in)***
Overall Shipping Length - with Counterweight	6872 mm (270.6 in)***

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Sustainability

Recyclability

96%

Egenskaper

ALL DAY COMFORT

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

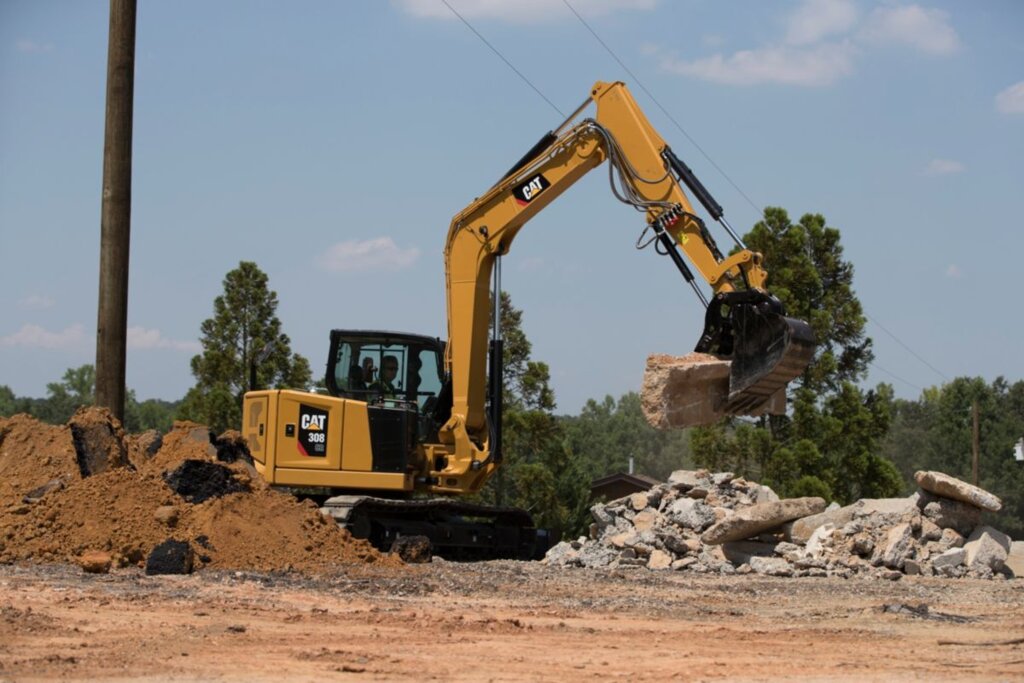

BIG PERFORMANCE IN A MINI DESIGN

Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and blade float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we‚Äôve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

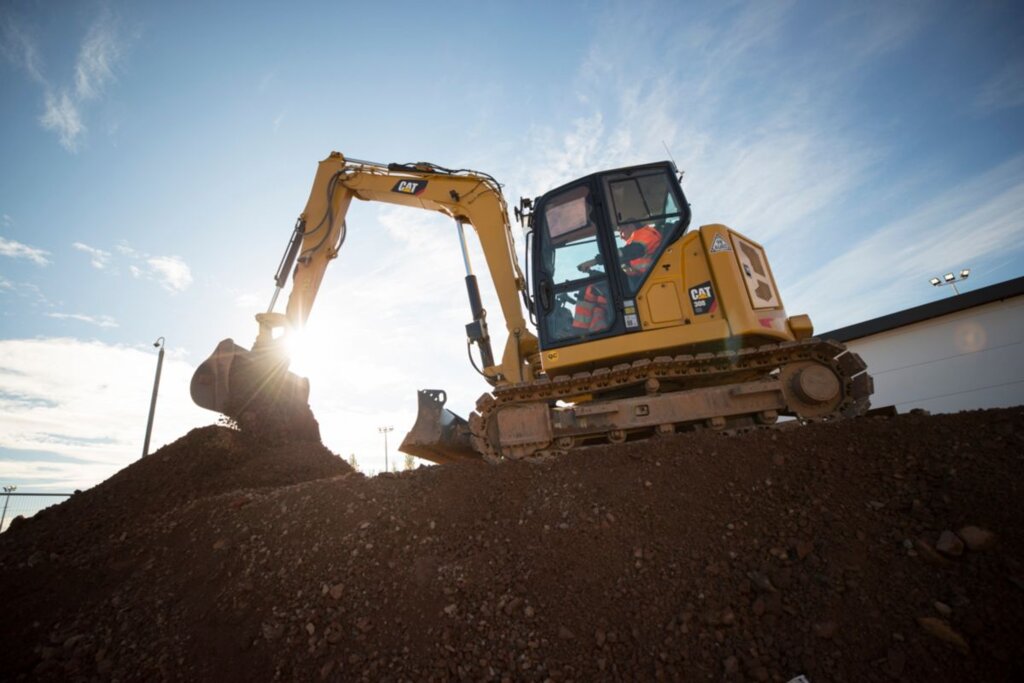

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

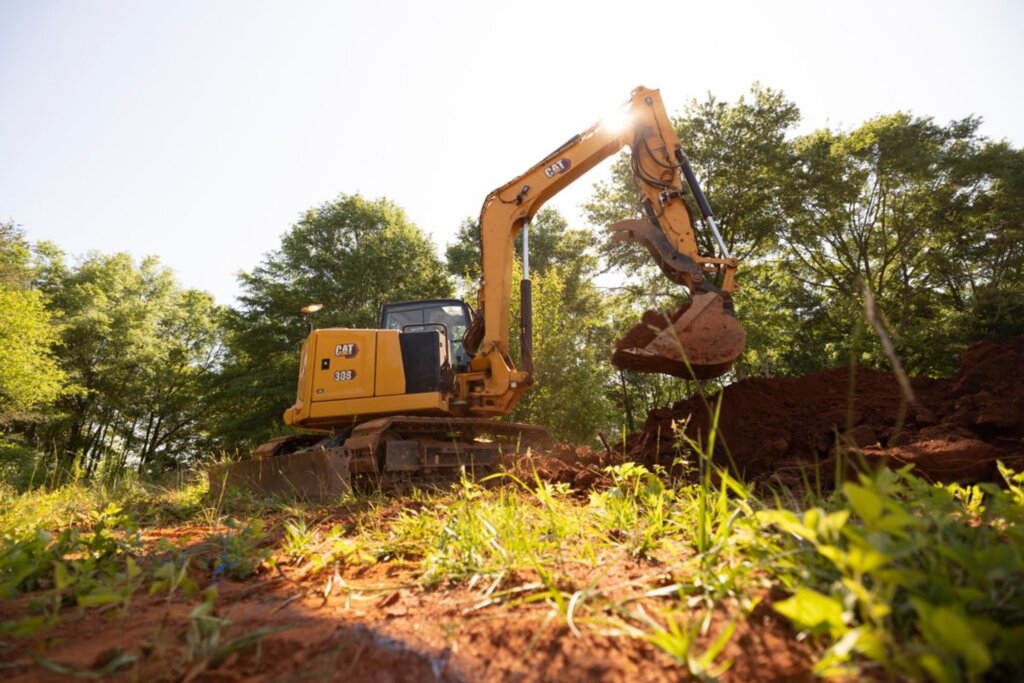

SUSTAINABILITY

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)
