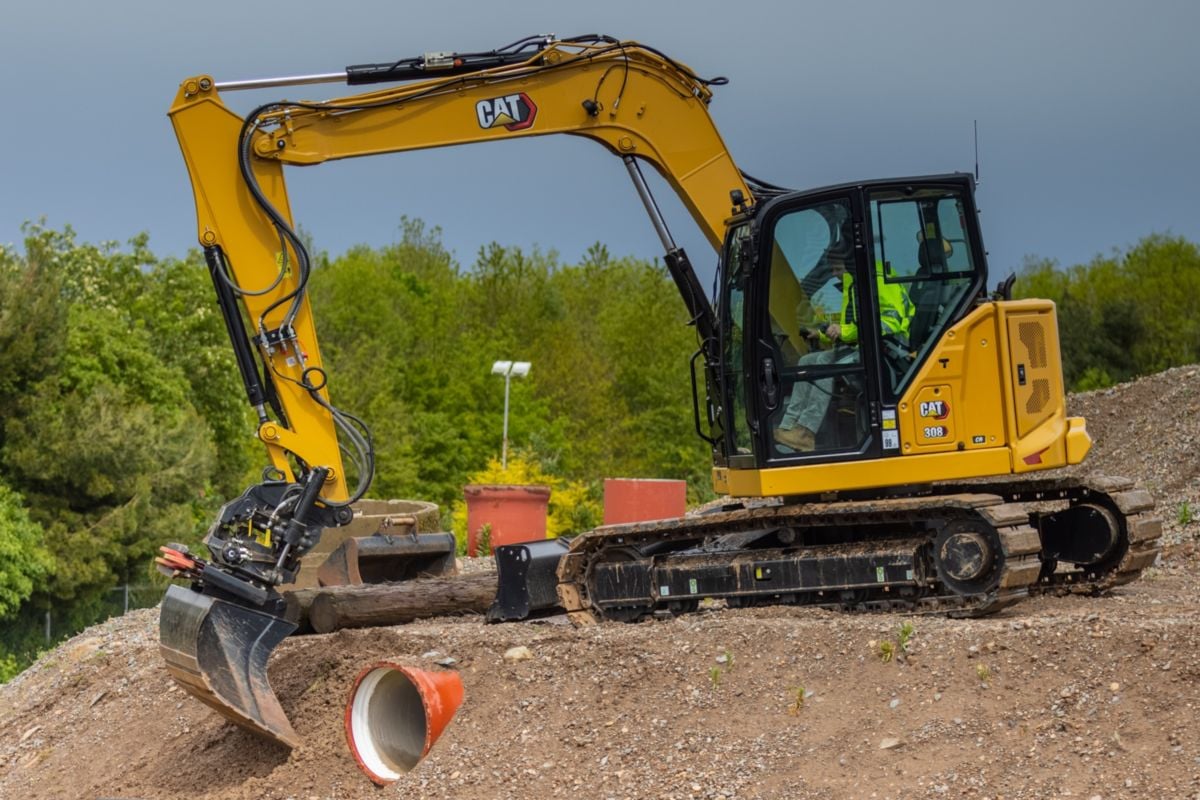

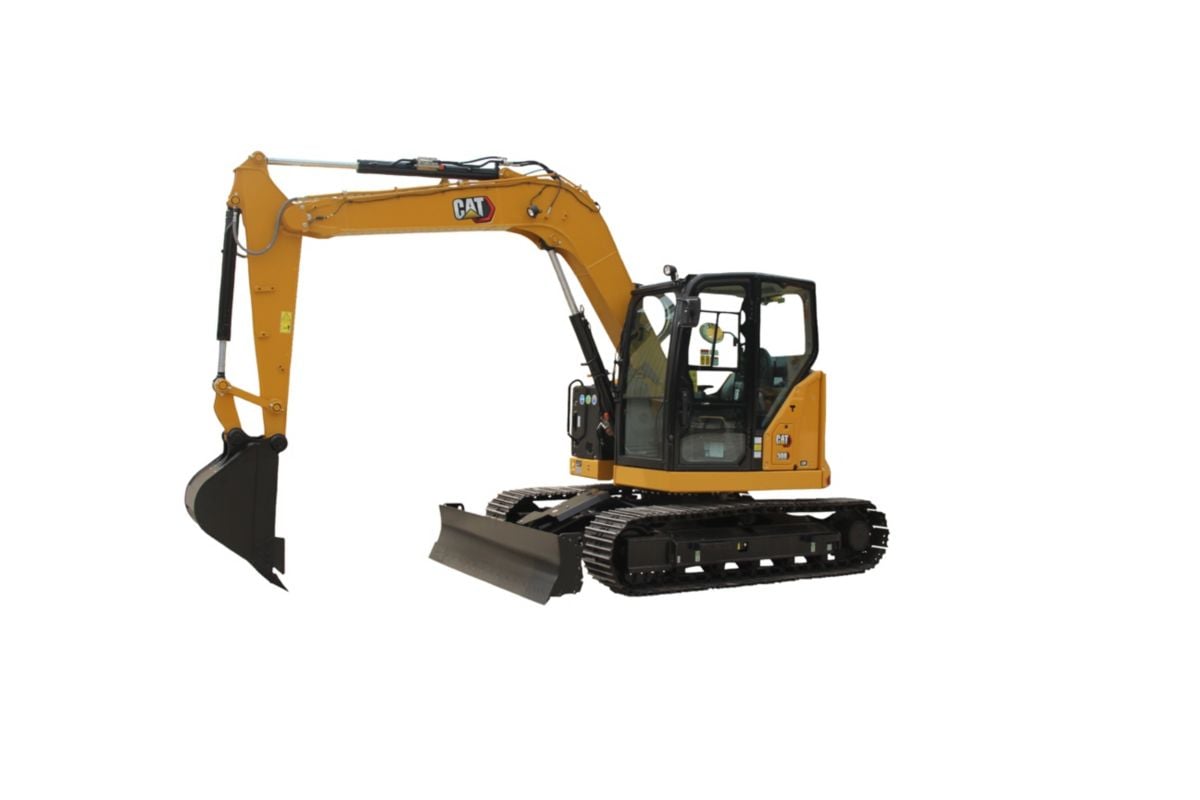

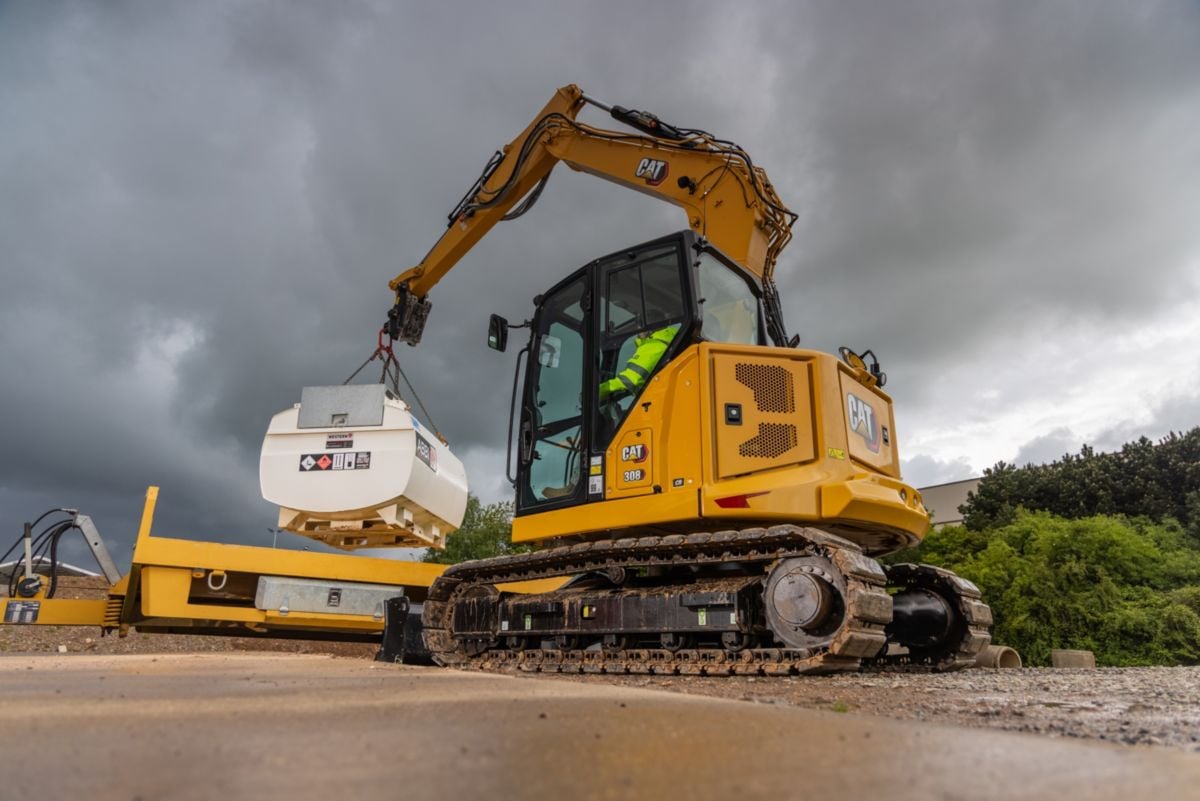

Cat 308 CR (Fastbom)

Minigravere 0.9-10 tonn

Maskinvekt: 9500 kg
Skuffestørrelse: 400 L
Bruttoeffekt: 55,4 kW/ 74,3 hk
Korthekk

Nyhet

Om Cat 308 CR (Fastbom)



The Cat® 308 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Gravemaskinen er utstyrt med den nyeste teknologien fra Caterpillar og har til forskjell fra vår andre 8 tonner, fastbom.



Maskinen er utstyrt med store serviceluker, som alle er lett tilgjengelig fra bakkenivå. Smøreintervallene og filterlevetiden er også forlenget, som sparer deg for tid og kostnader.





  • Driftsvekt standard maskin med rototilt, pusseskuffe og hurtigkobling fra ca: 9.500 kg
  • Cat C3.3 Turbo. 4-sylindret turbodiesel, EU Stage V.
  • Motoreffekt: 71,5 hk (53,3 kW).

Spesifikasjoner

Motor
Engine Model - U.S. EPA Tier 4 Final/EU Stage V Cat® C3.3B
Weights
Note (1) *Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Note (2) **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
Travel System
Gradeability - Maximum 30 degrees
Hydraulic System
Type Load Sensing Hydraulics with Variable Displacement Piston Pump
Note Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Certification - Cab
Top Guard ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS) ISO 12117:1997
Roll Over Protective Structure (ROPS) ISO 12117-2:2008
Sound
Note European Union Directive "2000/14/EC"
Dimensions - Standard Stick
Note (2) **Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Note (1) *Boom Height when stick is pinned in transport position with no attachments.
Dimensions - Long Stick
Overall Shipping Length - without Counterweight 5665 mm (223 in)***
Overall Shipping Length - with Counterweight 5800 mm (228 in)***
Note *Boom Height when stick is pinned in transport position with no attachments.
Note (2) ***With blade positioned at the rear of the machine.
Note (1) **Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Egenskaper

ALL DAY COMFORT

ALL DAY COMFORT
  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
Hydraulische minigraafmachine 309 CR VAB

EASY TO OPERATE

EASY TO OPERATE
  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.
308 CR (Fixed Boom) Mini Hydraulic Excavator

STICK STEER TRAVEL MODE

STICK STEER TRAVEL MODE
  • Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
308 CR (Fixed Boom) Mini Hydraulic Excavator

BIG PERFORMANCE IN A MINI DESIGN

BIG PERFORMANCE IN A MINI DESIGN
  • Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and blade float allows for easy clean up.
308 CR (Fixed Boom) Mini Hydraulic Excavator

SAFETY ON THE JOB SITE

SAFETY ON THE JOB SITE
  • Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.
308 CR (Fixed Boom) Mini Hydraulic Excavator

SIMPLE SERVICE FOR LESS DOWNTIME

SIMPLE SERVICE FOR LESS DOWNTIME
  • Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.
308 CR (Fixed Boom) Mini Hydraulic Excavator

LOWER OPERATING COSTS

LOWER OPERATING COSTS
  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.
308 CR (Fixed Boom) Mini Hydraulic Excavator

UNMATCHED DEALER SUPPORT

UNMATCHED DEALER SUPPORT
  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.
308 CR (Fixed Boom) Mini Hydraulic Excavator
