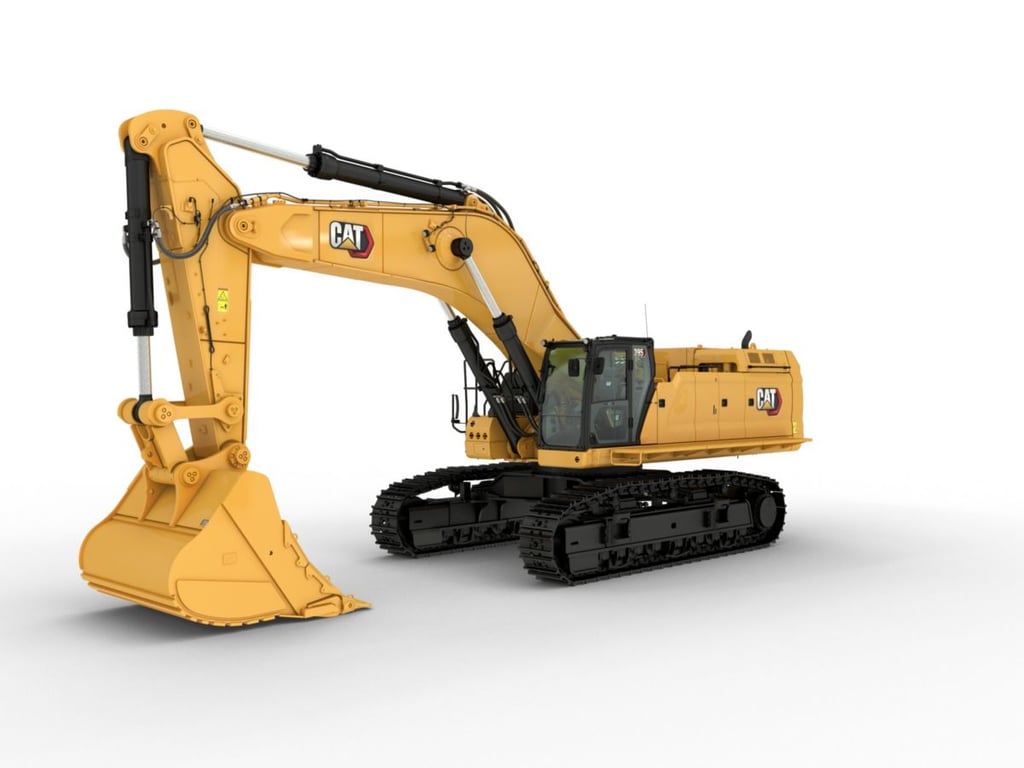

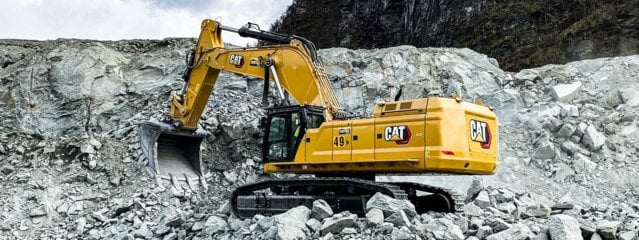

Cat 395

Gravere 37-95 tonn

Maskinvekt: 98 tonn
Skuffestr.: 6 500 l
Nettoeffekt: 404 kW / 542 hk

Se brosjyre Send Forespørsel

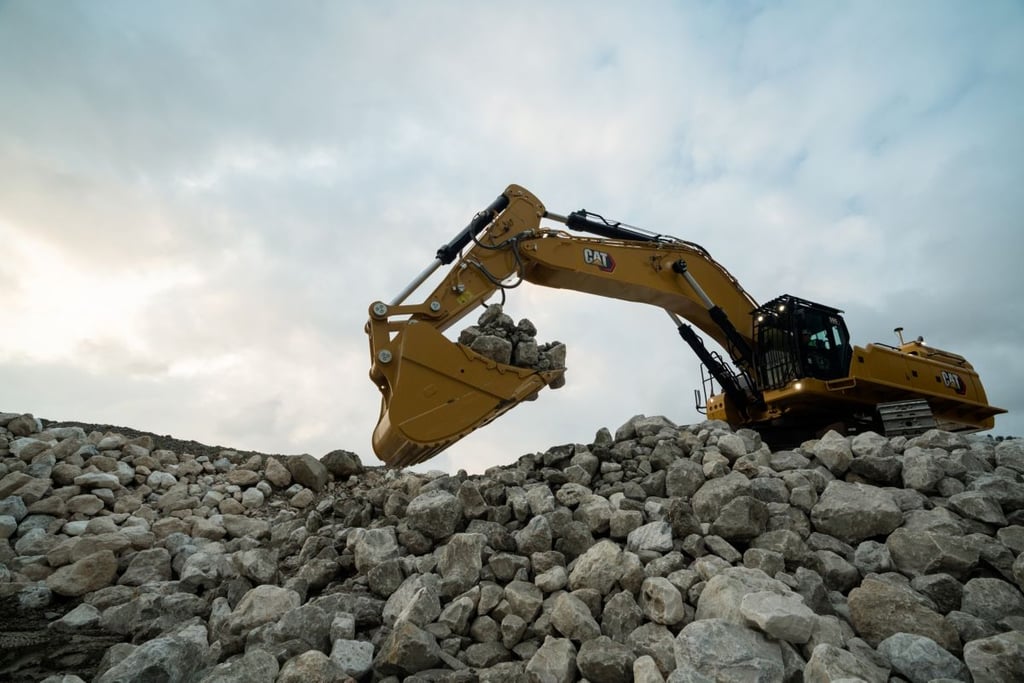

De Cat hydraulische graafmachine 395 is ontworpen om snel en met veel vermogen materiaal te verplaatsen.

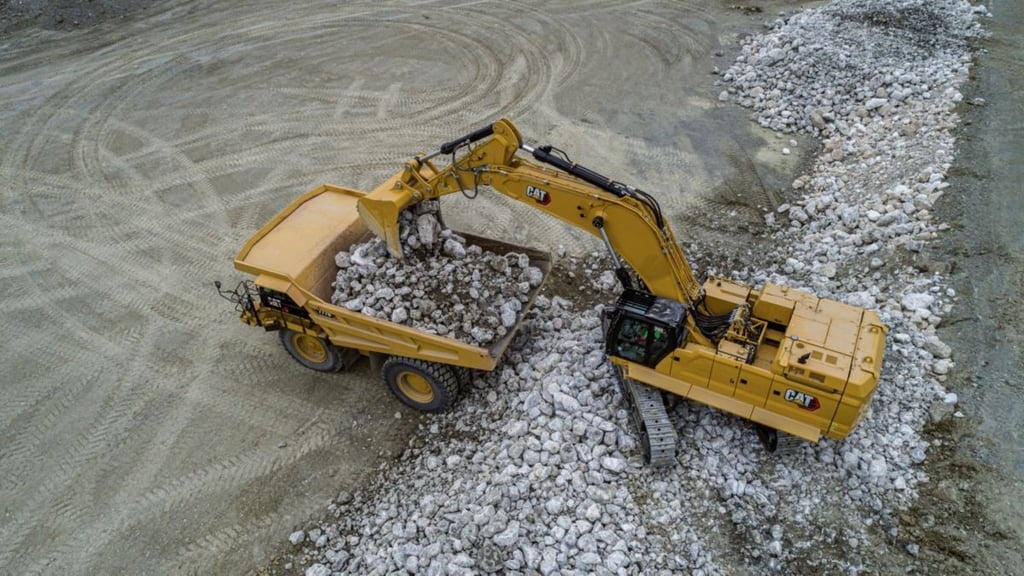

In de Cat hydraulische graafmachine 395 zit standaard Cat Payload, waardoor productie eenvoudig bij te houden is.

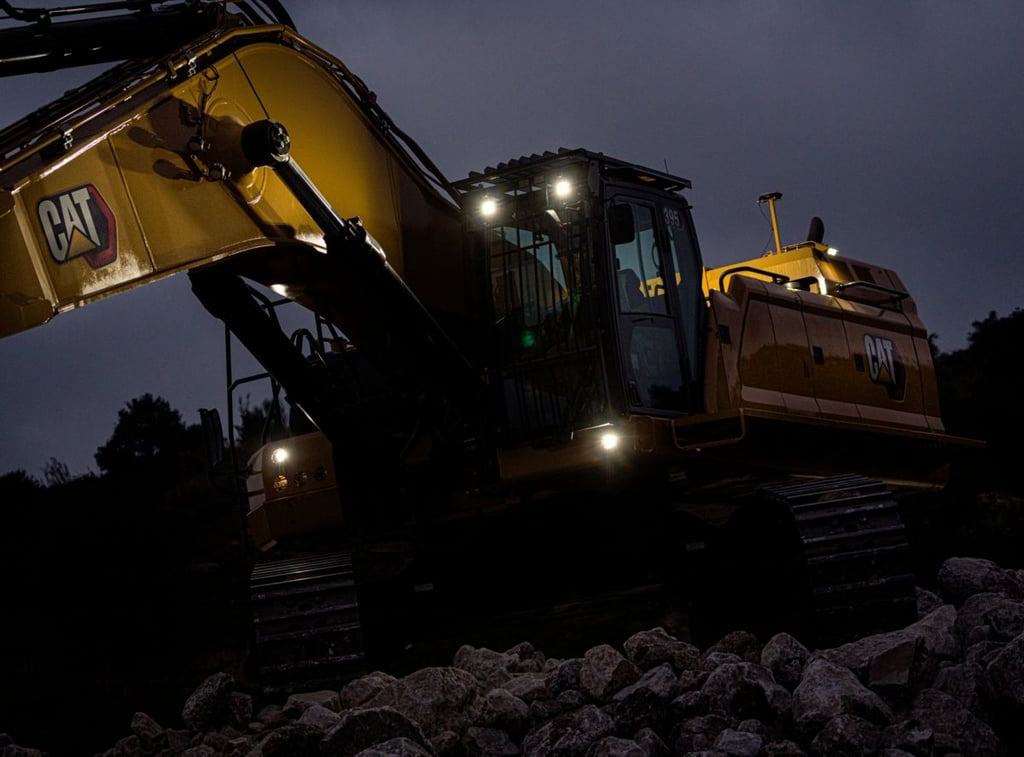

De LED-verlichting van de Cat hydraulische graafmachine 395 helpt het bouwterrein te verlichten voor extra bedrijfsveiligheid.

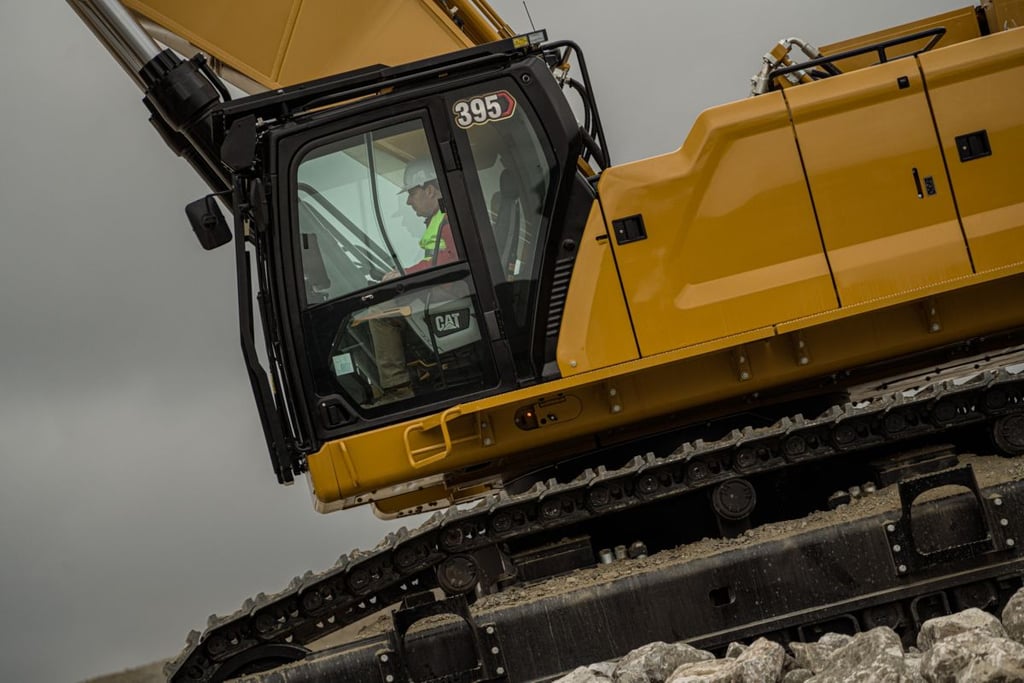

De volledig nieuwe cabine van de Cat hydraulische graafmachine 395 zorgt ervoor dat machinisten comfortabel en productief blijven.

Om Cat 395

Cat 395 gravemaskin på 98 tonn gir deg mer produksjon og holdbarhet og mindre vedlikeholdskostnader.

Spesifikasjoner

Motor

Net Power - ISO 9249	404 kW
Motormodel	Cat C18
Engine Power - ISO 14396	405 kW
Bore	145 mm
Stroke	183 mm
Displacement	18.1 l

Hydraulic System

Main System - Maximum Flow - Implement	1064 l/min
Maximum Pressure - Equipment	37000 kPa
Maximum Pressure - Travel	35000 kPa
Maximum Pressure - Swing	31000 kPa

Swing Mechanism

Swing Speed	6.3 r/min
Maximum Swing Torque	362 kN·m

Weights

Operating Weight

94000 kg

Påfyllingskapasitet

Fuel Tank Capacity	1220 l
Cooling System	71 l
Engine Oil	67 l
Swing Drive	24 l
Final Drive - Each	20 l
Hydraulic System - Including Tank	740 l
Hydraulic Tank	372 l
DEF Tank	80 l

Dimensjoner

Boom	GP 8.4m (25'7")
Stick	R4.4m (14'5")
Bucket	SD 5.2m³ (6.8 yd³)
Shipping Height - Top of Cab	3670 mm
Handrail Height	3750 mm
Shipping Length	15090 mm
Tail Swing Radius	4840 mm
Counterweight Clearance	1640 mm
Ground Clearance	830 mm
Track Length	20.1 ft
Track Length to Center of Rollers	5120 mm
Track Gauge	3510 mm
Transport Width	3880 mm
Note	Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps

Working Ranges & Forces

Maximum Digging Depth	9670 mm
Boom	GP 8.4m (25'7")
Stick	R4.4m (14'5")
Bucket	SD 5.2m³ (6.8 yd³)
Maximum Reach at Ground Level	14710 mm
Maximum Cutting Height	13540 mm
Maximum Loading Height	9250 mm
Minimum Loading Height	3030 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	9560 mm
Maximum Vertical Wall Digging Depth	6770 mm
Bucket Digging Force - ISO	383 kN
Stick Digging Force - ISO	305 kN

Sustainability

Recyclability

98%

Egenskaper

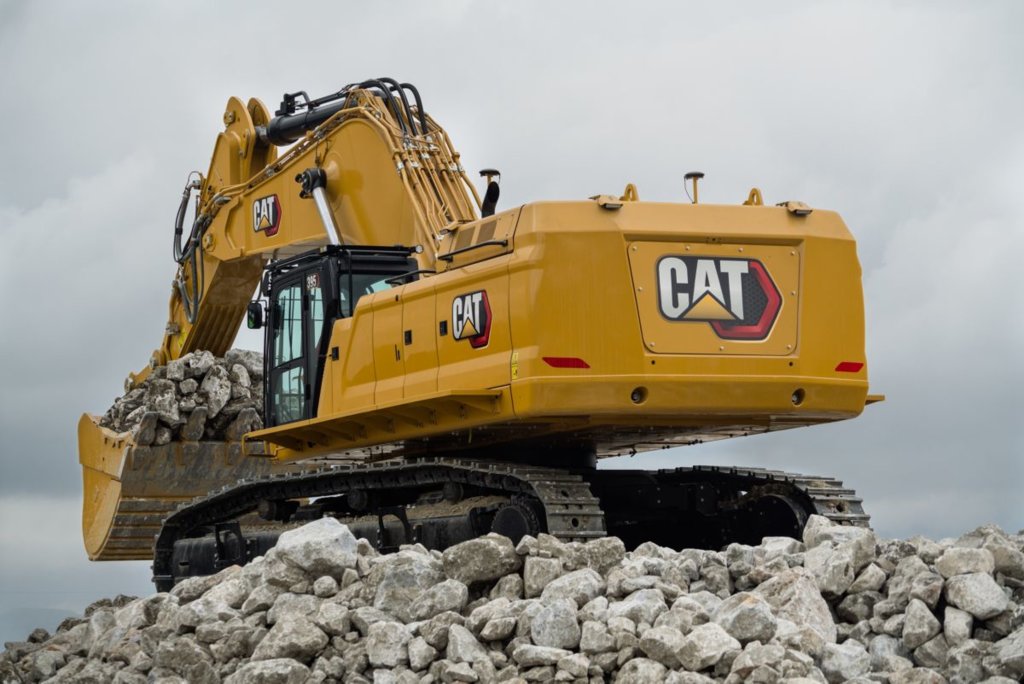

High Performance

The 395 is up to 10 percent more productive than the 390F it replaces.
Swing torque increase of 10 percent makes cycle times much faster.
Stick force increase of 10 percent makes cutting through tough material easier than ever.
Multifunctioning is smoother and more efficient with the new hydrostatic swing circuit.
Booms, sticks, and frames are two times more durable than the previous series, which will give you years of reliable performance in the harshest environments.
Match the excavator to the job with three operating modes: Power, Smart, and ECO.
Advansys bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
Don't let the temperature stop you from working. This excavator has a high-ambient capability of 52°C (125°F) and cold start capability of -18°C (-0.4°F).

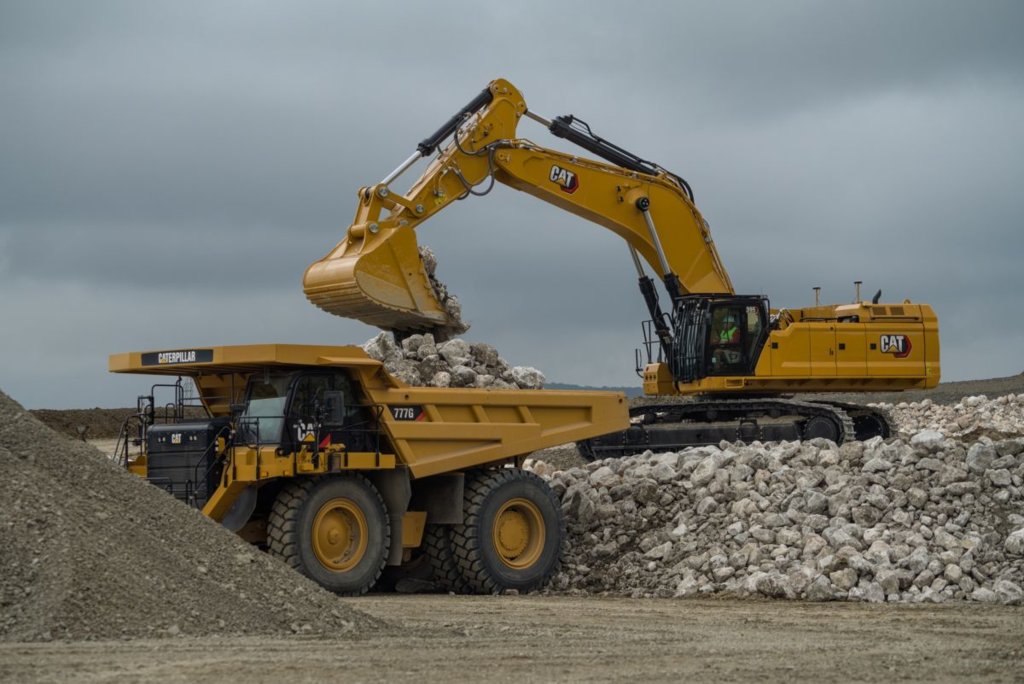

Boost Efficiency and Productivity with Cat Technology

Standard Cat PAYLOAD on-board weighing system: Achieve precise load targets and increase loading efficiency with on-the-go weighing and real-time payload estimates without swinging.
VisionLink™ helps you remotely manage production targets. The monitor's USB port lets you download your results from one shift all the way up to 30 days of work so you can manage progress without needing an internet connection or VisionLink subscription.
Boost productivity versus traditional grading with standard Cat GRADE with 2D system —includes indicate-only and laser capability.
Upgrade easily to optional Cat GRADE with Advanced 2D or 3D.
Remote Troubleshoot connects you to a dealer service pro to help solve your problem and quickly get you to work.
Remote Flash works around your schedule to ensure your machine's software is up to date for optimal performance.
The Cat App helps you manage fleet location, hours, and maintenance schedules; it also alerts you for required maintenance and even allows you to request service from your local Cat dealer.
Standard Product Link provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through VisionLink online interface, helping you improve jobsite efficiency with lower operating costs.

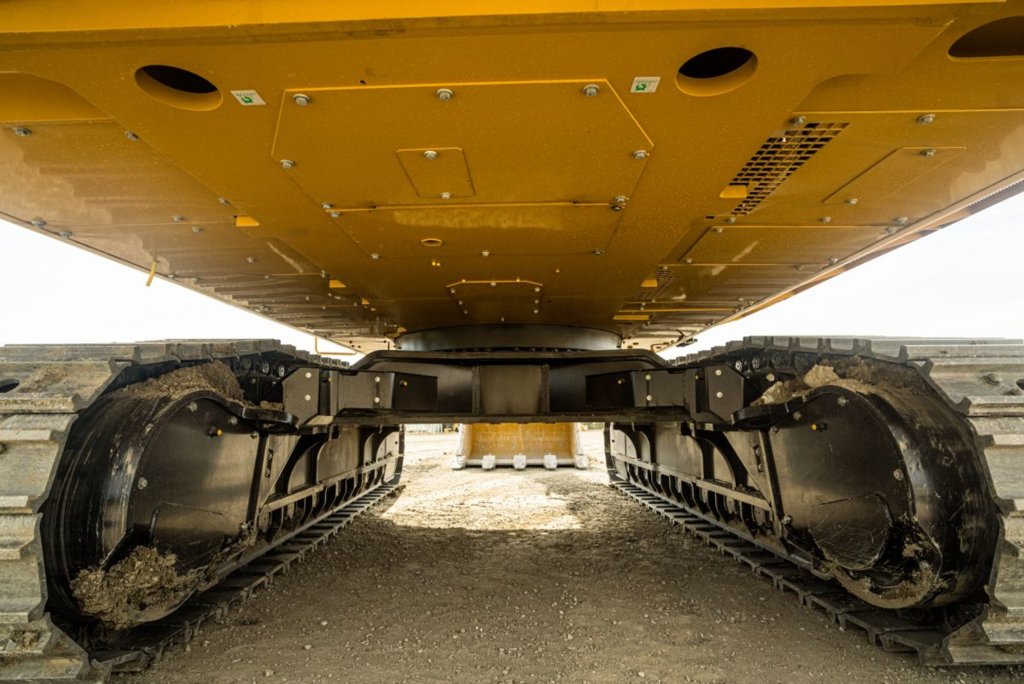

Simple to Operate

Start the engine with a push button; use a Bluetooth key fob or the unique Operator ID function.
Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
Program up to four depth and slope offsets so you can easily get to grade without a grade checker —a real time saver and safety enhancer on the jobsite.
Protect your hammer from overworking. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds —all to prevent wear and tear on the attachment and excavator.
Automatic hydraulic oil warm up gets you to work faster in cold temperatures and helps prolong the life of components.
Navigate quickly on the standard high-resolution 254 mm (10 in) touchscreen monitor or with the aid of the jog dial control.
A second 254 mm (10 in) monitor is available for the Cat GRADE with Advanced 2D and Cat GRADE with 3D.
The Cat PL161 Attachment Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy. The excavator's onboard Bluetooth reader or Cat App on your phone will locate the device automatically.
Save more time and energy with available work tool recognition. A simple shake of the attached tool confirms its identity; it also ensures all the attachment settings are correct so you can get to work quickly and efficiently.
Not sure how a function works or how to maintain the excavator? Always have the operator's manual at your fingertips in the touchscreen monitor.

Work in Comfort in the All-New Cab

Choose between Deluxe and Premium cabs — both with automatic climate control.
Stay warm with the Deluxe heated seat; stay warm and cool with the Premium heated and ventilated seat.
Get in and out of the cab easier using the tip-up left console.
Advanced viscous mounts reduce cab vibration up to 50 percent over previous excavator models.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.
Use the standard radio's USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

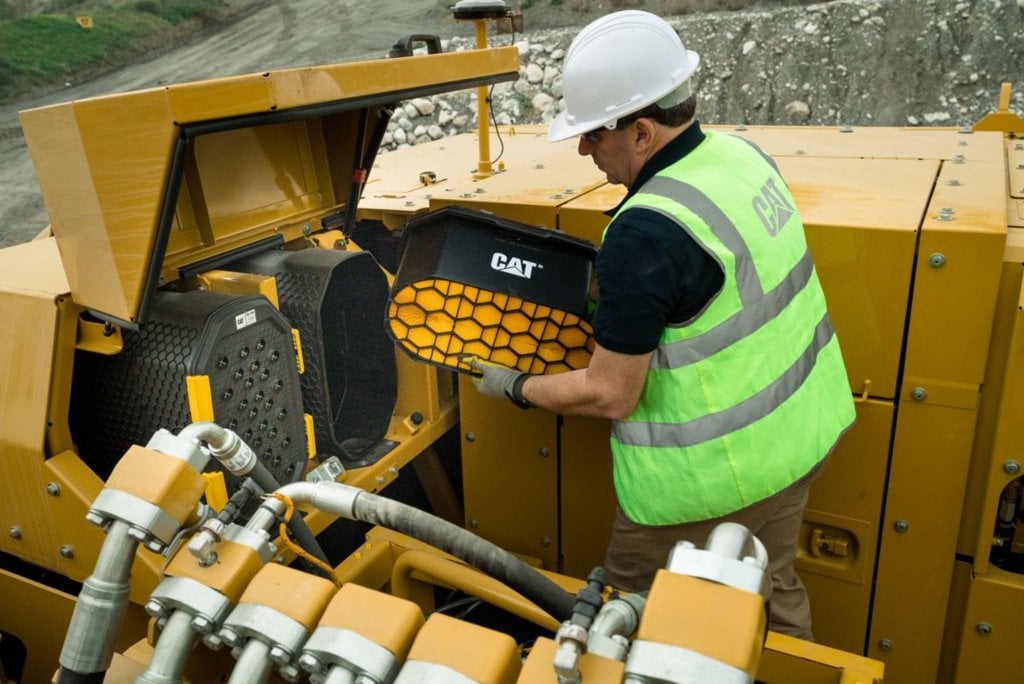

Less Maintenance

Expect up to 20 percent less maintenance cost than the 390F due to reduced hydraulic oil capacity and extended and synchronized service intervals
The excavator is auto lube ready with built-in mounting points; an available auto lube retrofit kit provides additional hardware to mount a grease pump and line guards.
Track your excavator's filter life and maintenance intervals via the in-cab monitor.
Fuel filters are synchronized to be changed at 1,000 hours; they are accessible from the upper platform.
The advanced air intake filter with precleaner has double the dust holding capacity of the previous air intake filter.
The new hydraulic oil filter provides improved filtration performance and longer 3,000 hour replacement interval —50 percent longer than previous filter designs.
The new high-efficiency hydraulic fan has an automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
S·O·S ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

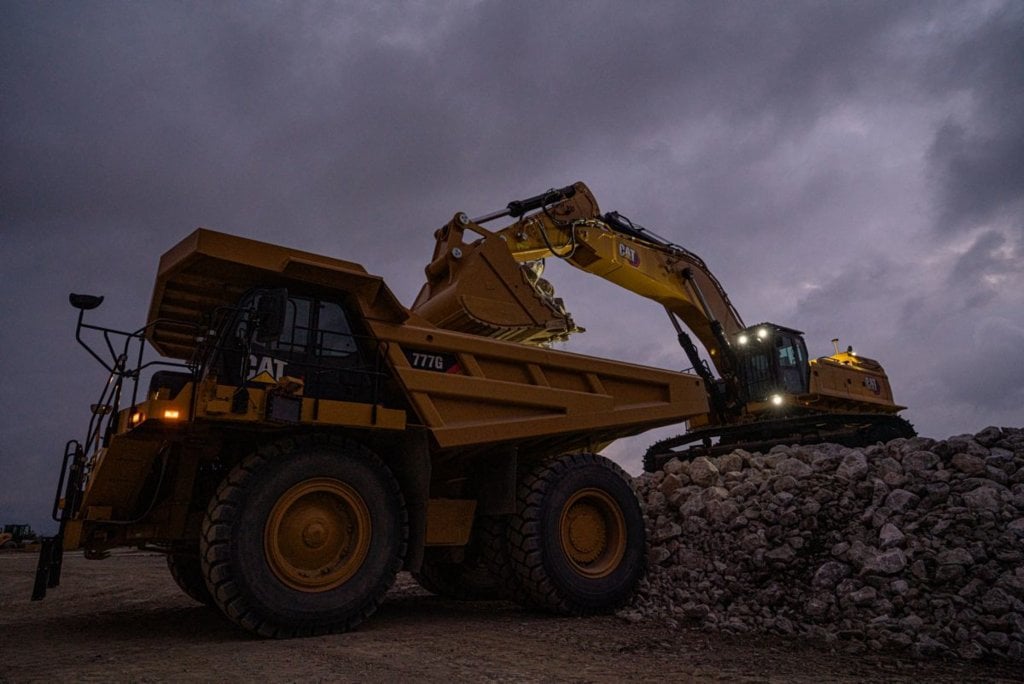

Enhanced Safety

Standard 2D E-Fence is integrated right out of the factory, which prevents the excavator from moving outside of operator-defined set points.
Lift Assist helps you avoid tipping by letting you know if your load is within the excavator's safe working range limits.
Rear and right-hand-sideview cameras are standard. Upgrade to 360° visibility and you'll easily visualize objects and personnel around the excavator in a single view.
See all around the machine with the premium 360° lighting package and its 1800 lm lights on the chassis, cab, boom, sides, and rear.
Serrated steps and anti-skid punch plate on the service platform help prevent slipping.
A travel direction indicator helps operators know which way to activate the travel levers.
Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
