Cat 906

Kompakte hjullastere

Maskinvekt: 5,6 tonn
Skuffestørrelse: 0,9 m³
Bruttoeffekt: 55 kW/ 74 hk

Se brosjyre Send Forespørsel

Kan leies via Pon Rental

Vises på Vei&Anlegg

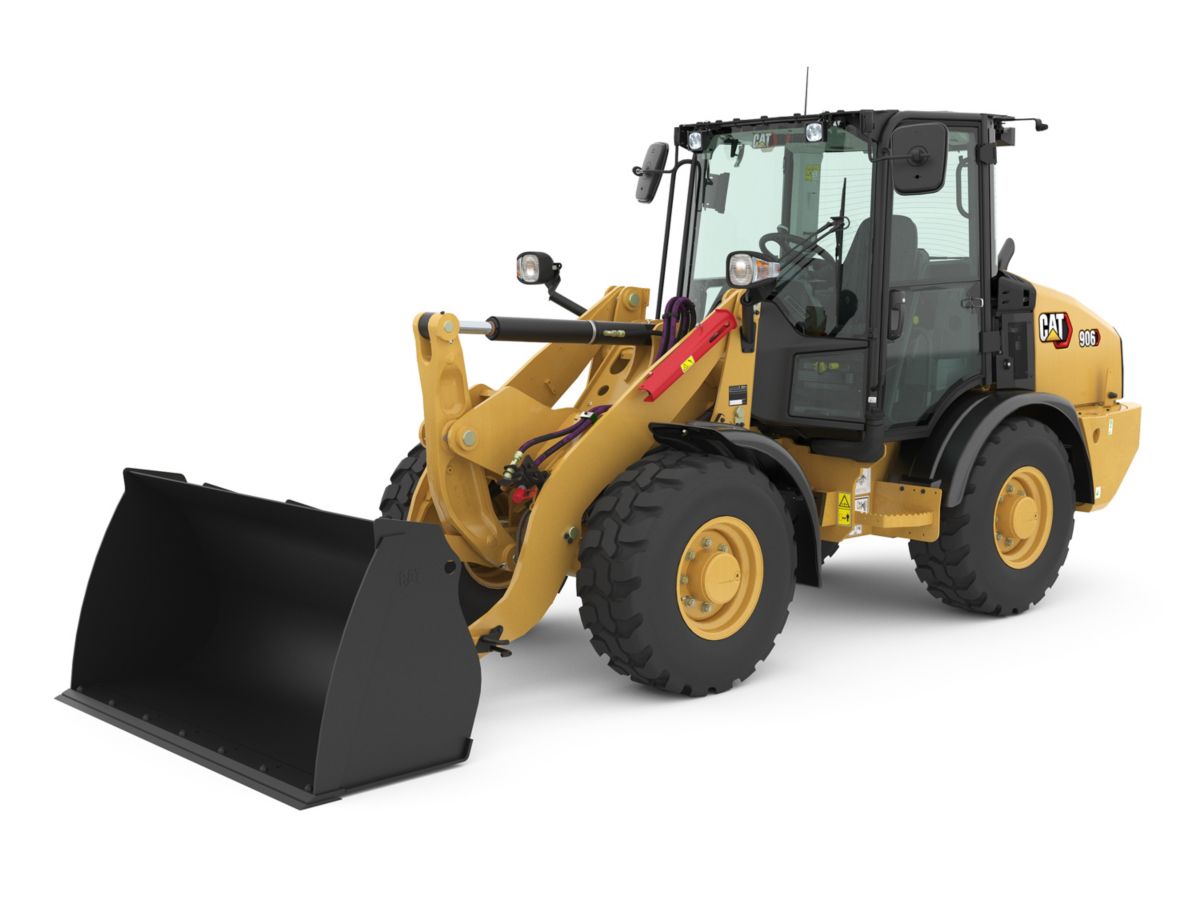

Om Cat 906

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.

Spesifikasjoner

Motor

Maximum Gross Power	55.7 kW
Motormodel	Cat C2.8*
Maximum Engine Speed	2550 rpm
Maximum Gross Power - Rated Engine Speed	2400 r/min
Maximum Gross Power - SAE J1995	55.7 kW
Maximum Gross Power - ISO 14396	55.4 kW
Maximum Gross Power - ISO 14396 (metric)	75.3 mhp
Rated Net Power - Rated Engine Speed	2400 r/min
Rated Net Power - SAE J1349	54.2 kW
Rated Net Power - ISO 9249	53.8 kW
Rated Net Power - 2,400 rpm - ISO 9249 (metric)	73.1 mhp
Maximum Gross Torque - SAE J1995	300 N·m
Maximum Gross Torque - ISO 14396	300 N·m
Maximum Net Torque - SAE J1349	296 N·m
Maximum Net Torque - ISO 9249	295 N·m
Displacement	2.8 l
Bore	90 mm
Stroke	110 mm
Note	*Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)	Maximum gross and net torque measured at 1,600 rpm.
Note (2)	Net power ratings are tested at the reference conditions for the specified standard.
Note (3)	Net power advertised is the power available at the flywheel.

Weights

Operating Weight

5730 kg

Buckets

Bucket Capacities	0.75-1.55 m³ (1.0-2.0 yd³)
Bucket Capacities - General Purpose	0.80-1.35 m³ (1.0-1.7 yd³)
Bucket Capacities - Light Material	1.25-1.55 m³ (1.6-2.0 yd³)
Multi-Purpose	0.75-1.1 m³ (1.0-1.4 yd³)
Note	All capacities are applicable for each model. Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
Note (1)	Bucket capacities stated include BOCE, in line with ISO 7546.

Påfyllingskapasitet

Drivstofftank	70 l
Cooling System	12 l
Engine Crankcase	8.8 l
Axles - Front Center Differential	8.8 l
Axles - Rear Center Differential	8.8 l
Hydraulic System - Including Tank	67.5 l
Hydraulic Tank	44.6 l
Transmission	2.4 l
Note	No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.

Axles

Front	Fixed Locking Differential (standard)
Rear	Fixed Locking Differential (standard)
Note	Oscillation of ±11 degrees via hitch between front and rear frames.

Steering

Steering Articulation Angle - Each Direction	39 °
Maximum Flow - Steering Pump	46.7 l/min
Maximum Working Pressure - Steering Pump	23000 kPa
Steering Cycle Times – (full left to full right) – at High Idle	3 s
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.25 turns or 4.00 turns

Transmission

Forward and Reverse - Speed Range Creep#	10 km/h
Forward and Reverse - Speed Range 1*	10 km/h
Forward and Reverse - Speed Range 2** - High Speed	17 km/h
Forward and Reverse - Speed Range 2** - Standard	19 km/h
Forward and Reverse - Speed Range 3***	40 km/h
Note	#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
Note (1)	*Creep function not available in this gear or above.
Note (2)	**Max speed dependent on model and configuration (standard vs. high speed transmission).
Note (3)	***Reverse is 30 km/h (19 mph).

Tires

Tire Size - Standard	*405/70 R18 SPT9
Tire Size - Optional	405/70 R18 Powerloads
Tire Size - Optional (1)	340/80 R18 XMCL/Bibload
Tire Size - Optional (2)	340/80 R18 TRI 2
Tire Size - Optional (3)	40X14-20 TL, SM/TR
Tire Size - Optional 4	340/80 R18 Duraforce
Note	*This tire has been used for all dimension, stability and performance data.
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level II
Note (1)	Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 71 dB(A).
Note (3)	*Measurements were conducted with the cab doors and windows closed.
Note (4)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). 99 dB(A) Low Sound – Option available.

Loader Hydraulic System

Main Relief - 1st Auxiliary (3rd slice)	23500 kPa
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow	80 l/min
Main Relief - 1st Auxiliary (3rd slice) - High Flow	120 l/min
Main Relief - 2nd Auxiliary (4th slice)	23500 kPa
Main Relief - 2nd Auxiliary (4th slice) - Flow	45 l/min
Hydraulic Cycle Time - Rackback	2.2 s
Hydraulic Cycle Time - Lift	5 s
Hydraulic Cycle Time - Dump	1.6 s
Hydraulic Cycle Time - Float Down	2.8 s
Note	*Adjustable from 20% to 100% of maximum flow through display.

Dimensions - With HPL-V Coupler - Approximate#

Height: Ground to Cab**	2468 mm
Height: Ground to Beacon**	2651 mm
Height: Ground Axle Center**	480 mm
Height: Ground Clearance**	300 mm
Length: Overall*	5369 mm
Length: Rear Axle to Bumper	1391 mm
Length: Hitch to Front Axle	1085 mm
Length: Wheel Base	2170 mm
Clearance: Bucket at 45° *	2499 mm
Clearance: Load over Height**	2900 mm
Clearance: Level Bucket**	3038 mm
Height: Bucket Pin**	3244 mm
Height: Overall**	4115 mm
Reach: Bucket at 45° *	725 mm
Carry Height: Bucket Pin	311 mm
Dig Depth**	77 mm
Width: Bucket	1890 mm
Width: Tread Center	1420 mm
Turning Radius: Over Bucket	4406 mm
Width: Over Tires	1840 mm
Turning Radius: Outside of Tires	4007 mm
Turning Radius: Inside of Tires	2128 mm
Rack Angle at Full Lift	56°
Dump Angle at Full Lift	45°
Rack Angle at Carry	51°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket ^	5730 kg
Tipping Load - Straight - ISO 14397-1 †	4427 kg
Tipping Load - Full Turn - ISO 14397-1 †	3701 kg
Operating Weight: Carriage and Tines ^^	5552 kg
Tipping Load - Straight †	3514 kg
80% of Tip: Firm and Level EN474-3 ††	2364 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class

Dimensions - With SSL Coupler - Approximate

Height - Ground to Cab	2468 mm
Height: Ground to Beacon**	2651 mm
Height: Ground Axle Center**	480 mm
Height - Ground Clearance	300 mm
Length - Overall with Bucket	5527 mm
Length: Rear Axle to Bumper	1391 mm
Length: Hitch to Front Axle	1085 mm
Length - Wheel Base	2170 mm
Clearance - Bucket at 45°	2385 mm
Clearance: Load over Height**	2900 mm
Clearance - Level Bucket	3030 mm
Height - Bucket Pin	3244 mm
Height: Overall**	4205 mm
Reach - Bucket at 45°	822 mm
Carry Height: Bucket Pin	335 mm
Dig Depth	85 mm
Width - Bucket	1890 mm
Width - Tread Center	1420 mm
Turning Radius - Over Bucket	4481 mm
Width - Over Tires	1840 mm
Turning Radius: Outside of Tires	4007 mm
Turning Radius - Inside Tire	2128 mm
Rack Angle at Full Lift	50°
Dump Angle at Full Lift	45°
Rack Angle at Carry	46°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket ^	5835 kg
Tipping Load – Straight – ISO 14397-1 †	3907 kg
Tipping Load – Full Turn – ISO 14397-1 †	3248 kg
Operating Weight: Carriage and Tines ^^	5640 kg
Tipping Load - Straight †	3338 kg
80% of Tip: Firm and Level EN474-3 ††	2254 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class

Egenskaper

CONFIGURED FOR SUCCESS

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines emit equivalent to EU Stage IIIA (U.S. EPA Tier 3) or meets EU Stage V (U.S. EPA Tier 4 Final) with a clean emission module designed to manage itself so you can concentrate on the task at hand.

ENJOY ALL DAY COMFORT

All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.

EFFICIENTLY POWERFUL

Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
“Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.

WORK MADE EASY

All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.

CUSTOMIZE YOUR EXPERIENCE

Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
Machine security is enhanced with a standard keycode or optional Bluetooth® technology.

PURPOSE BUILT SPECIALTY MODELS

Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
The 906 is availble with the following specific handler arrangements: Ag Handler and Waste Handler

AFTERMARKET AND SERVICES

Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
Integrated Technology available to reduce service costs and maintenance.
