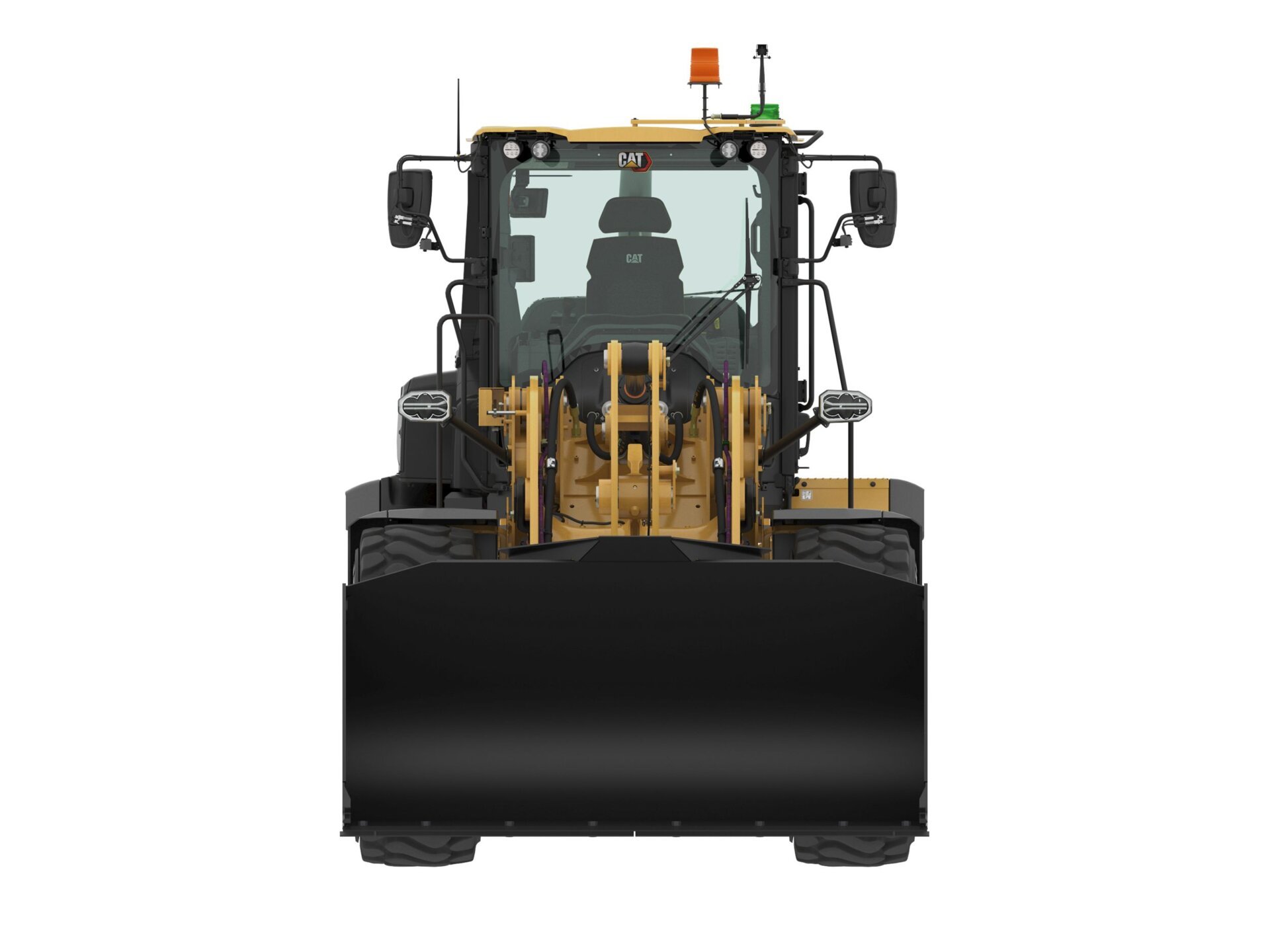

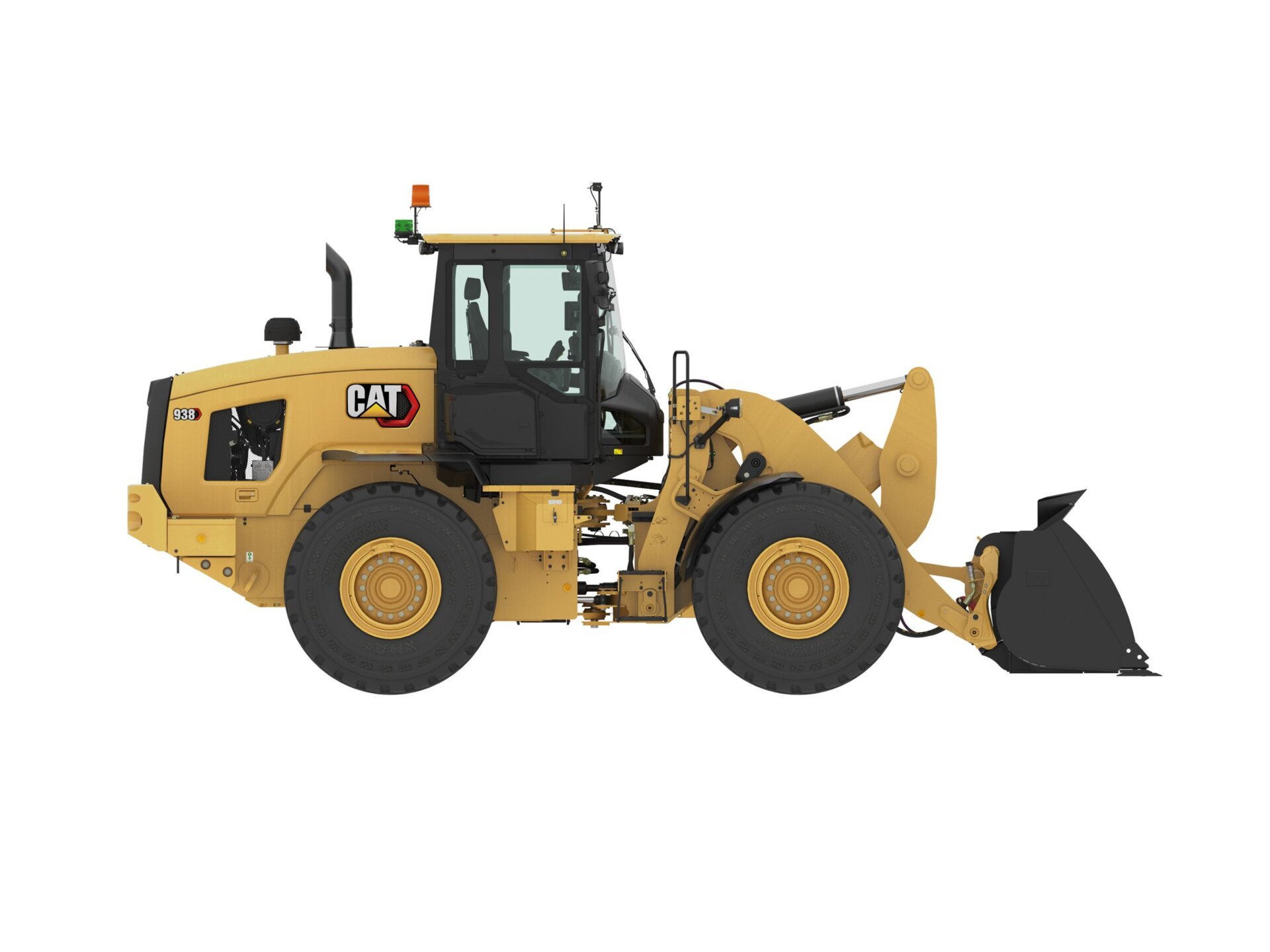

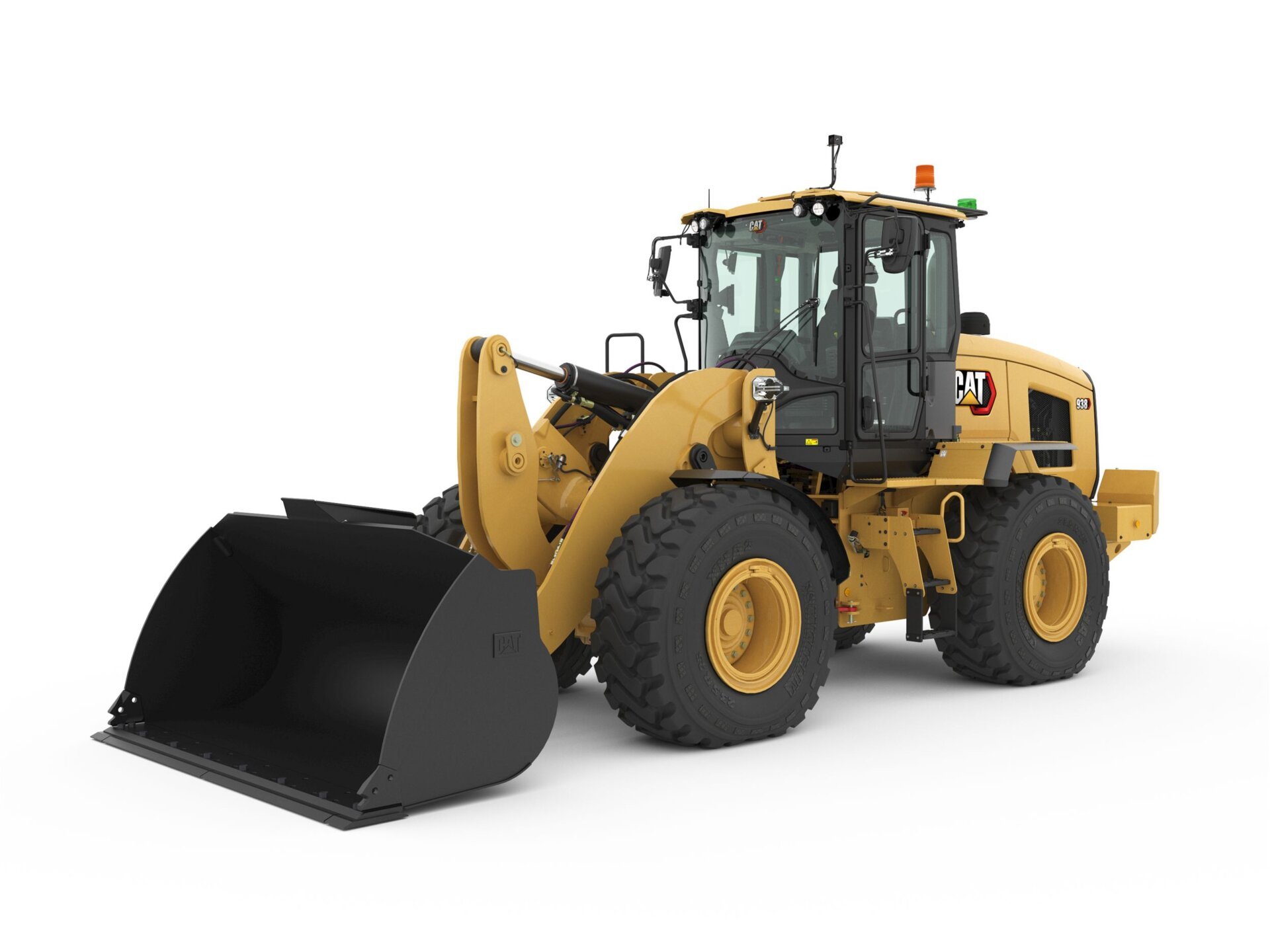

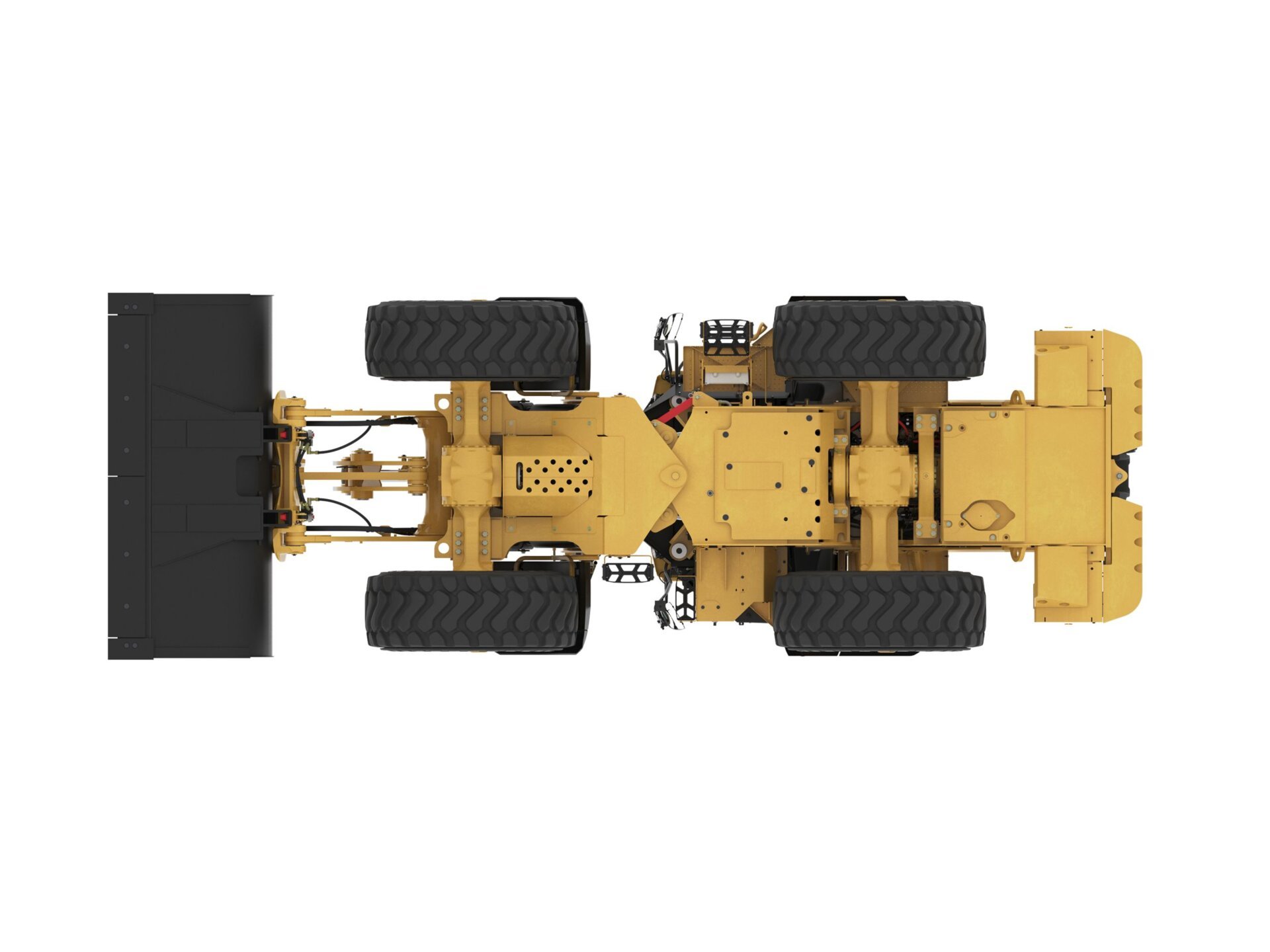

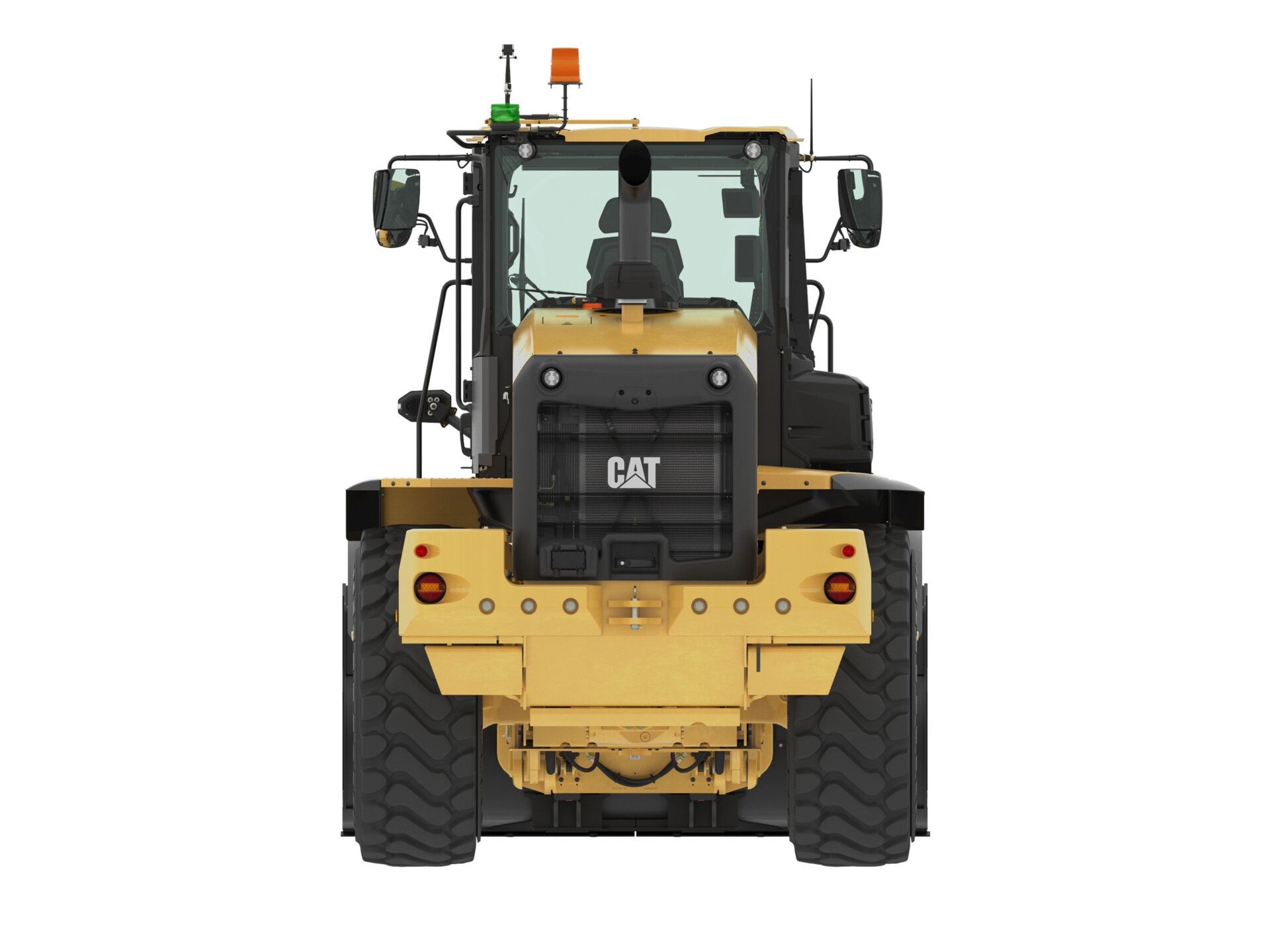

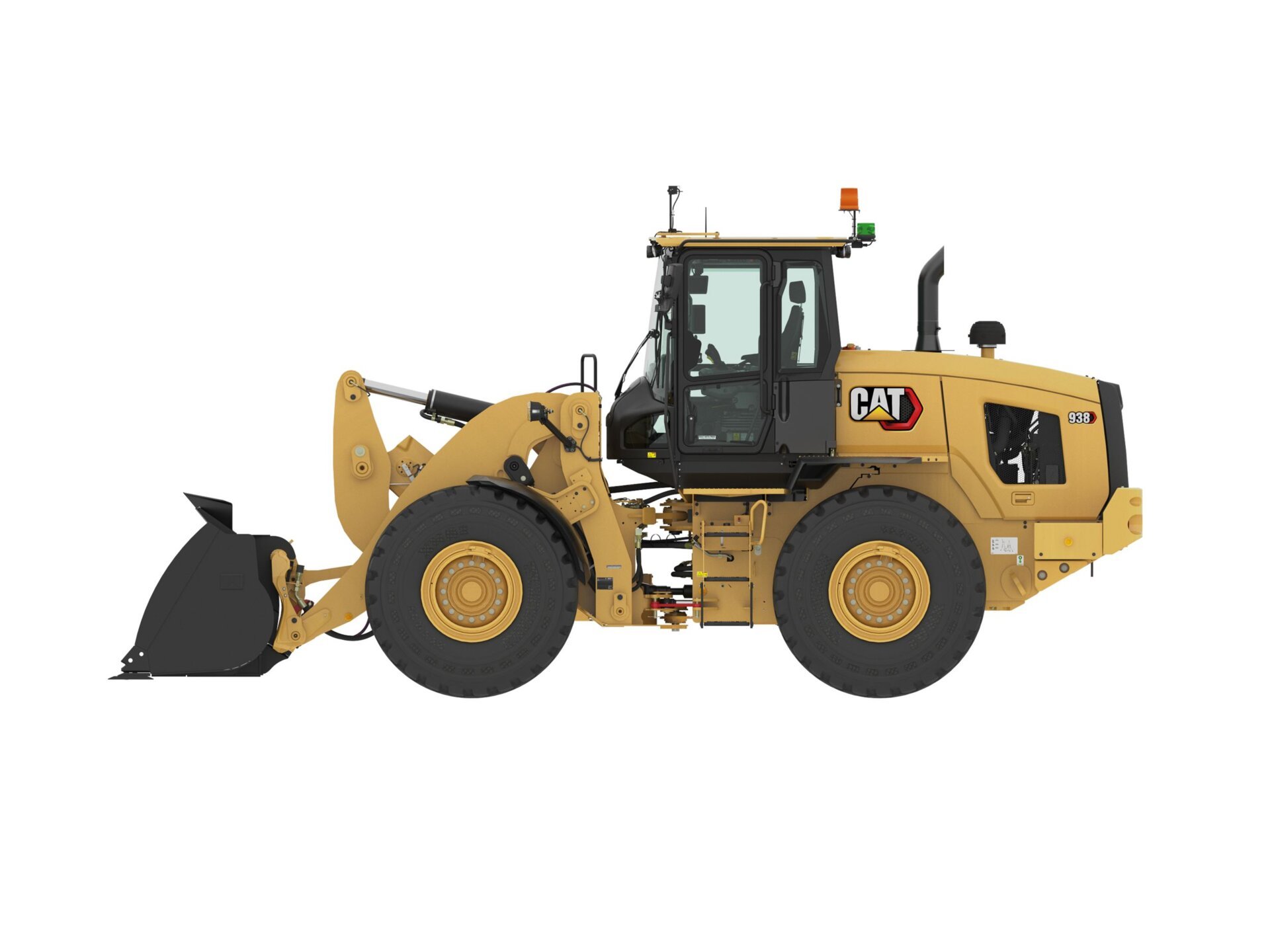

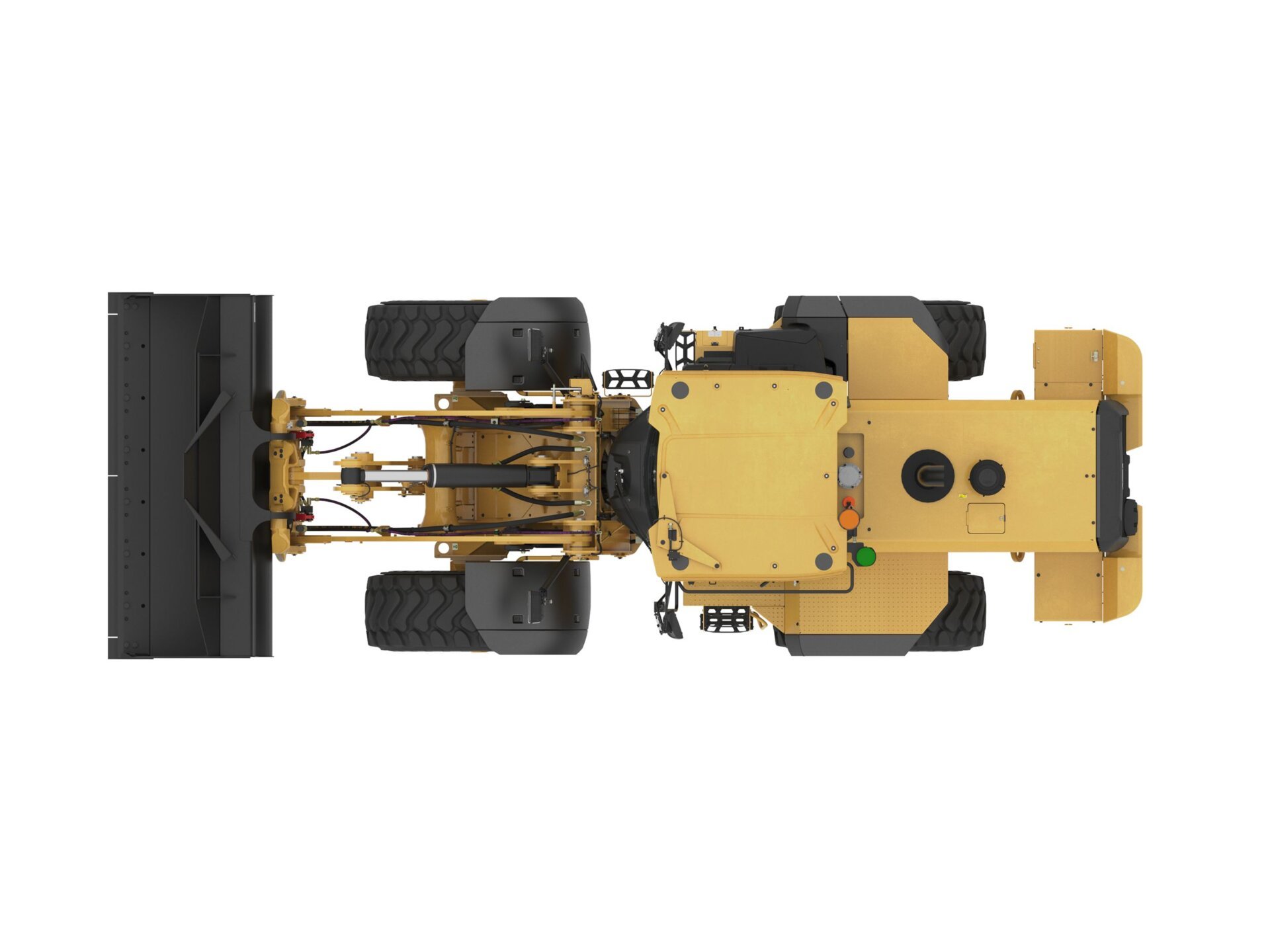

Cat 938

CAT 926 - 938 NEXT GEN

Bruttoeffekt: 143 kW/ 191 hk
Vekt: 16,5 tonn
Standard skuff: 3,1 m³

Se brosjyre Send Forespørsel

Om Cat 938

The 938 Small Wheel Loader sets the standard for productivity, fuel efficiency, operator comfort and low operating costs. Experience the industry benchmark.

Spesifikasjoner

Motor

Rated Gross Power - SAE J1995	143 kW
Motormodel	Cat C7.1*
Performance Mode	Automatic
Rated Gross Power - Rated Engine Speed	1800 r/min
Rated Gross Power - SAE J1995 (DIN)	194 mhp
Rated Engine Power - ISO 14396	140 kW
Rated Engine Power - ISO 14396 (DIN)	191 mhp
Rated Net Power - SAE J1349 at Minimum Fan Speed	138 kW
Rated Net Power - ISO 9249 at Minimum Fan Speed	138 kW
Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed	188 mhp
Maximum Gross Torque - Engine Speed	1400 r/min
Maximum Gross Torque - SAE J1995	912 N·m
Maximum Gross Torque - ISO 14396	900 N·m
Maximum Net Torque - SAE J1349	889 N·m
Maximum Net Torque - ISO 9249	892 N·m
Displacement	7.01 l
Bore	105 mm
Stroke	135 mm
Note	*Meets U.S EPA Tier 4 Final, EU Stage V off-highway, and Japan 2014 emission standards.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture
Note (2)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note (3)	No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.

Weights

Operating Weight	16115 kg
Operating Weight - High Lift	16425 kg

Buckets

Bucket Capacities

1.9-5.0 m3 (2.5-6.5 yd3)

Steering

Steering Cylinder - Bore Diameter	80 mm
Steering Cylinder - Rod Diameter	50 mm
Steering Cylinder - Stroke	399 mm
Maximum Flow - Steering Pump	130 l/min
Maximum Working Pressure - Steering Pump	24130 kPa
Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited	3.1 s
Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed	2.3 s

Loader Hydraulic System

Maximum Flow - Implement Pump	190 l/min
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*	190 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*	160 l/min
Maximum Working Pressure - Implement Pump	28000 kPa
Relief Pressure - Tilt Cylinder	30000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure	28000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure	30000 kPa
Lift Cylinder: Standard Lift Linkage - Bore Diameter	120 mm
Lift Cylinder: Standard Lift Linkage - Rod Diameter	65 mm
Lift Cylinder: Standard Lift Linkage - Stroke	789 mm
Tilt Cylinder: Standard Lift Linkage - Bore Diameter	150 mm
Tilt Cylinder: Standard Lift Linkage - Rod Diameter	90 mm
Tilt Cylinder: Standard Lift Linkage - Stroke	555 mm
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift	5.5 s
Hydraulic Cycle Time - Dump (at Maximum Lift Height)	1.5 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level	2.7 s
Hydraulic Cycle Time - Total Cycle Time	9.7 s
Note	*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.

Påfyllingskapasitet

Drivstofftank	195 l
Cooling System	30 l
Engine Crankcase	20 l
Transmission - Gear Box	8.5 l
Front Axles	35 l
Rear Axles	35 l
Hydraulic System - Including Tank	170 l
Hydraulic Tank	90 l
Diesel Exhaust Fluid (DEF) Tank	19 l
Note	DEF used in Cat systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1:2019.

Transmission

Forward and Reverse - Range 1*	1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2	13 km/h
Forward and Reverse - Range 3	27 km/h
Forward and Reverse - Range 4	40 km/h
Note	*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Tires

Standard Size	20.5 R25, radial (L-3)
Other Choices Include	20.5 R25, radial (L-2), 20.5 R25, radial (L-5), 20.5-25 12PR (L-2), 20.5-25 12PR (L-3), 20.5-25 16PR (L-5), 17.5 R25, radial (L-2), 17.5 R25, radial (L-3), 17.5 R25, radial (L-5), 550/65 R25 radial (L-3), Skidder/Agriculture
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 LEVEL II

Axles

Front	Fixed; Locking differential (standard)
Rear	Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional)

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons).

Sound

Operator Sound Pressure (ISO 6396:2008)	68 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	101 dB(A)
Note (1)	European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.

Sustainability

Recyclability

96%

Dimensions with Bucket - Standard Lift

Height - Ground to Cab**	3340 mm
Height - Ground to Beacon**	3707 mm
Height - Ground to Axle Center**	685 mm
Height - Ground Clearance**	386 mm
Length - Overall*	7656 mm
Length - Rear Axle to Bumper	1968 mm
Length - Hitch to Front Axle	1525 mm
Length - Wheel Base	3050 mm
Clearance - Bucket at 45°*	2834 mm
Clearance - Load over Height**	3354 mm
Clearance - Level Bucket**	3641 mm
Height - Bucket Pin**	3969 mm
Height - Overall**	5273 mm
Reach - Bucket at 45°*	1146 mm
Carry Height - Bucket Pin	394 mm
Dig Depth**	101 mm
Width - Bucket	2750 mm
Width - Tread Center	2083 mm
Turning Radius - Over Bucket	6120 mm
Width - Over Tires	2693 mm
Turning Radius - Outside of Tires	5546 mm
Turning Radius - Inside of Tires	2843 mm
Rack Angle at Full Lift	54 °
Dump Angle at Full Lift	49 °
Rack Angle at Carry	43 °
Departure Angle	33 °
Articulation Angle	40 °
Operating Weight	16115 kg
Note (1)	*Vary with bucket.
Note (2)	**Vary with tire.
Note (3)	Dimensions listed are for a machine configured with 2.5 m³ (3.2 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.

Dimensions with Bucket - High Lift

Height - Ground to Cab**	3340 mm
Height - Ground to Beacon**	3707 mm
Height - Ground to Axle Center**	685 mm
Height - Ground Clearance**	386 mm
Length - Overall*	8397 mm
Length - Rear Axle to Bumper	1968 mm
Length - Hitch to Front Axle	1525 mm
Length - Wheel Base	3050 mm
Clearance - Bucket at 45°*	3415 mm
Clearance - Load over Height**	3561 mm
Clearance - Level Bucket**	4222 mm
Height - Bucket Pin**	4550 mm
Height - Overall**	5853 mm
Reach - Bucket at 45°*	1413 mm
Carry Height - Bucket Pin	612 mm
Dig Depth**	135 mm
Width - Bucket	2750 mm
Width - Tread Center	2083 mm
Turning Radius - Over Bucket	6483 mm
Width - Over Tires	2693 mm
Turning Radius - Outside of Tires	5546 mm
Turning Radius - Inside of Tires	2843 mm
Rack Angle at Full Lift	53 °
Dump Angle at Full Lift	47 °
Rack Angle at Carry	48 °
Departure Angle	33 °
Articulation Angle	40 °
Operating Weight	16425 kg
Note (1)	*Vary with bucket.
Note (2)	**Vary with tire.
Note (3)	Dimensions listed are for a machine configured with 2.5 m³ (3.2 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.

Egenskaper

Enjoy All Day Comfort

Have a seat in the new Cat small wheel loader and enjoy automatic temperature control, class leading sound levels, enhanced all-around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on your jobsite.
An upgrade to multi-view camera and rear object detection gives you an extra eye on the jobsite while the new optional force feedback joystick steering keeps you feeling confident on those long shifts. The operator not present function helps to isolate the machine if you leave the environment; while seat belt notifications give you a gentle reminder to buckle up.

Efficiently Powerful

Experience the difference with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed working in combination with a new auto engine RPM mode. This provides efficiency as standard with a boost in power when you need it. Optimize traction and minimize wheel slip with a new Auto Wheel Torque system tuned to provide peak performance while maximizing tire life and keeping operating costs low. Track your production and accurately hit your load targets with Cat Payload. 250 hours of Cat Payload demonstration will be included as standard with an optional subscription for extended use.

Work Made Easy

Move more with the Caterpillar patented quick loading performance series buckets and optimized Z-bar linkage with enhanced forward visibility that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to confidently handle loads with precise control.
Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer, and drive without compromise. Upgrade to autolube and tire pressure monitoring to make service easy and get to work quicker. Light the way with auto roading lights that come on at night fall.

Customize Your Experience

Meet your application requirements and individual preferences with Caterpillar industry first Hystat™ Operator Modes featuring four unique power train settings. Select classic torque converter for smooth rollout, conventional hystat for aggressive engine braking, an ice mode that maximizes your control on slippery underfoot, and an all new single pedal mode for simplified use.
Fine tune machine performance with adjustments at your fingertips through programmable joysticks, soft touch buttons, and a new jog dial that works in combination with a standard touch screen display. Quickly recall attachment profiles that maintain key settings for versatility on the jobsite and optimal efficiency.

Upgrades and Services

Enjoy a full range of upgrades and accessories to configure your small wheel loader for a broader range of applications.
Utilize readily available services and maintenance parts, including a range of self-service options (SSO) and dealer installed kits.

Purpose Built: Handlers Arrangements - Aggregate Handler

Increased Payload: Additional counterweight improves stability without reducing ground clearance or departure angle to maximize performance.
Long Life Sand and Gravel Buckets: Performance series buckets deliver higher fill factors and better material retention for significant productivity and fuel efficiency improvements. Buckets feature a long floor, open throat, curved side bars and additional serviceable wear plates including corner guards.
Protect your Power Train: Increase your fording depth with optional elevated breathers. Remote mounted high on the machine for the front and rear axles and hydrostatic gear box. Allows settling pond cleanout without contamination.

Purpose Built: Handlers Arrangements - Waste Handler

Guard Your Investment: Choose from a complete range of optional guarding to protect your machine from the harsh environment of a waste handling application. Machine guarding is purpose built to protect the machine’s major components.
Breathe Clean: Maximize your engine life and extend filter cleaning intervals with a turbine pre-cleaner. Keep cool with a reversing fan to purge the single plane, widely spaced core cooling package and brush-less sealed alternator. Breathe clean with a powered pre-cleaner for the operator environment.
Maximize Tire Life: Fine tune your wheel torque to match the underfoot conditions and maximize performance while extending tire life. Standard auto wheel torque and auto differential lock are ideal for waste handling applications.

Sustainability

The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards.
Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Power on Demand, transparent to the operator, provides full-time efficiency and power when you need it.
Tire Pressure Monitoring provides real-time tire pressure information to the operator to help increase tire wear and achieve better fuel efficiency and reduced greenhouse gas emissions.
Intelligent Hystat Transmission helps improves control and reduces fuel consumption and greenhouse gas emissions in load and carry applications.
Variable Displacement Pumps match power to load as application requirements change.
