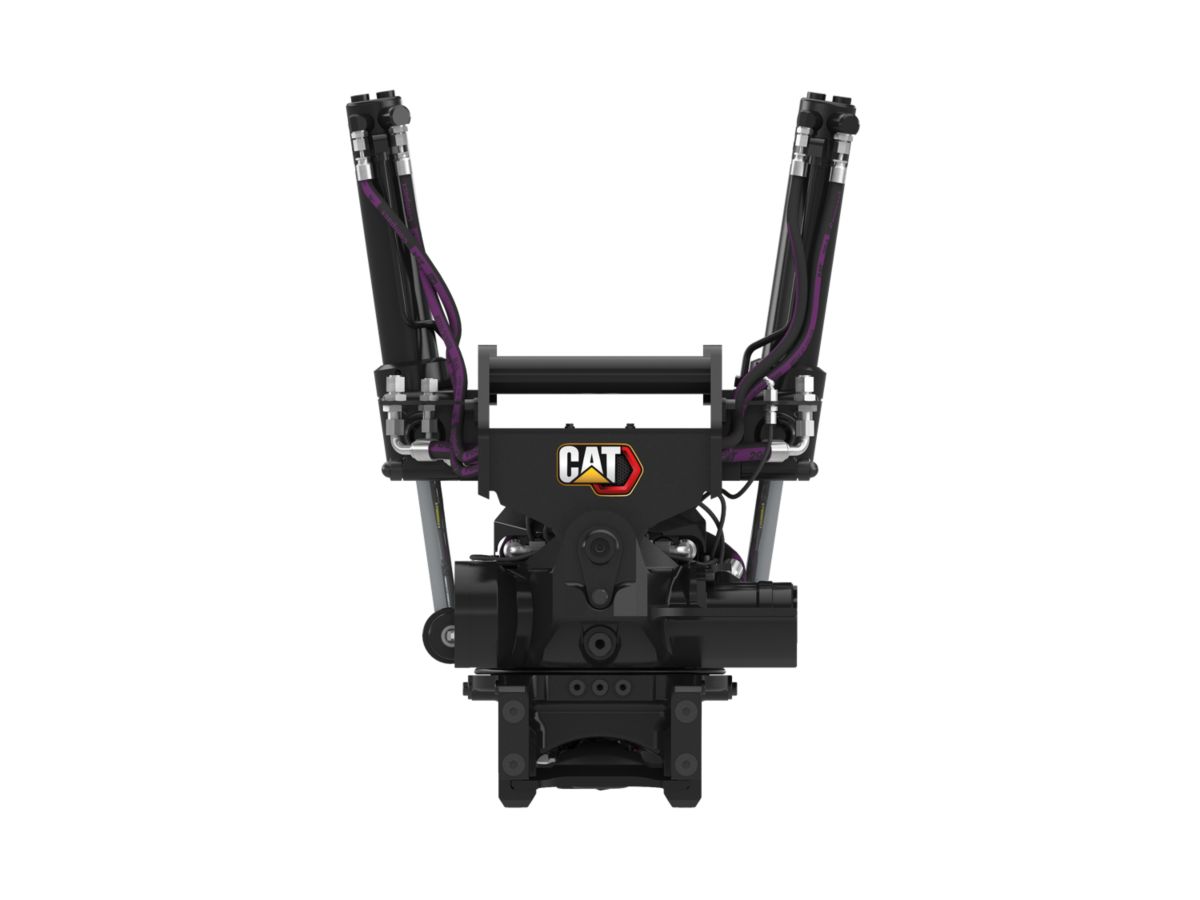

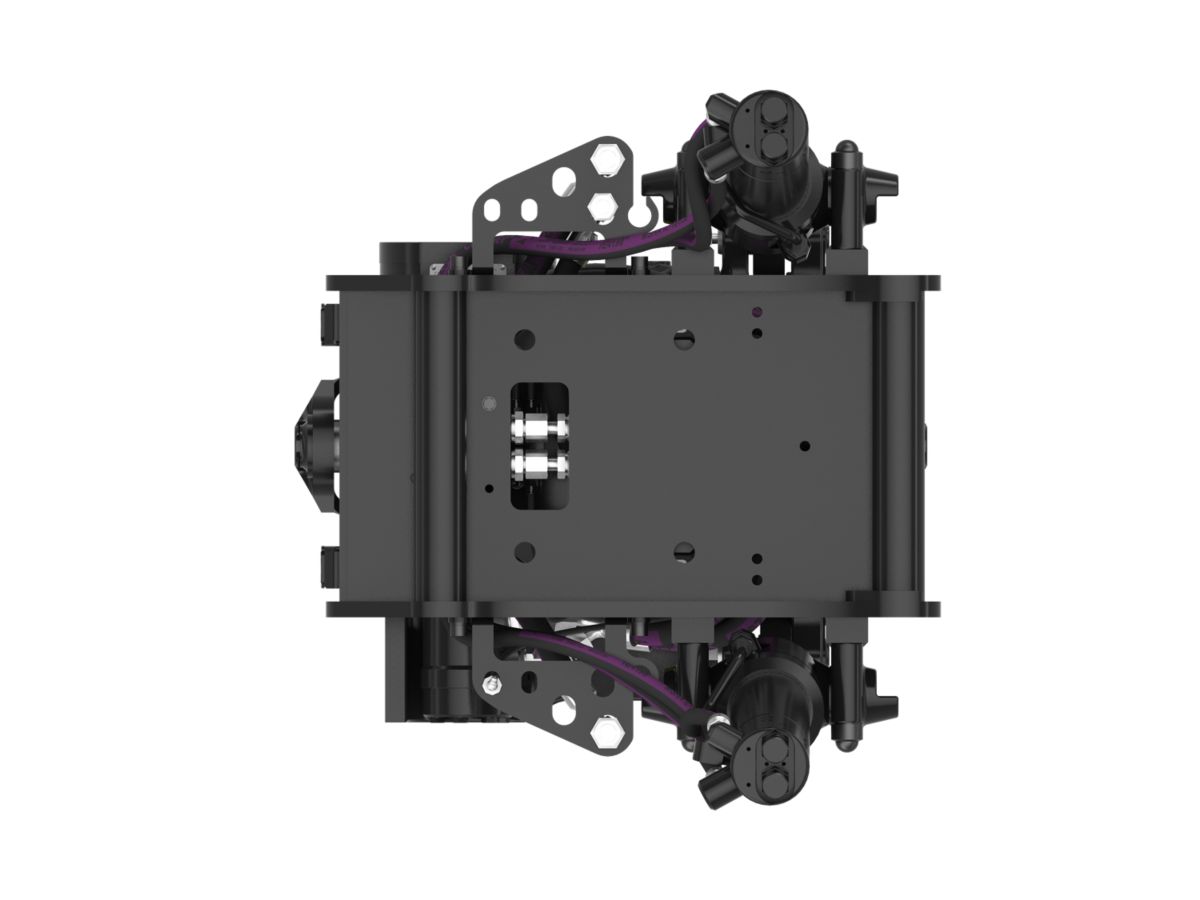

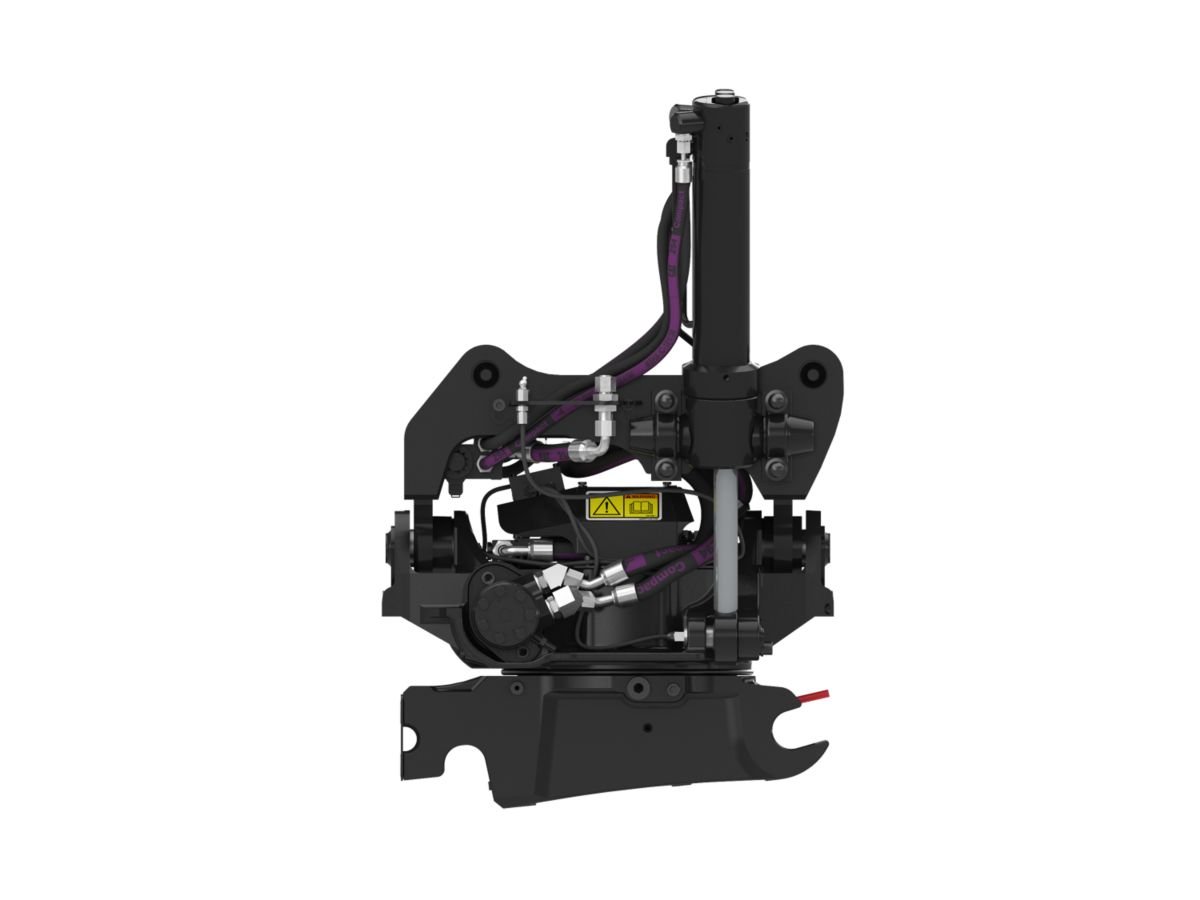

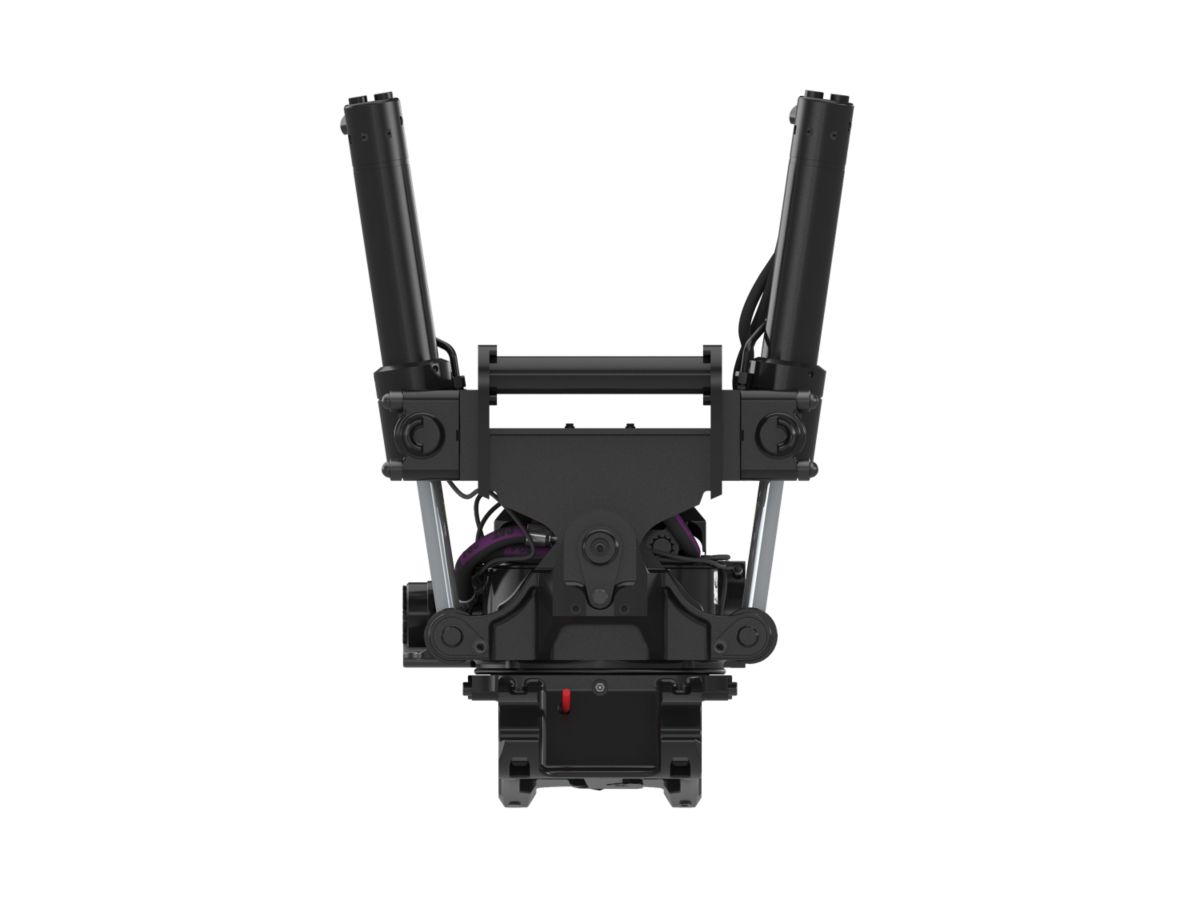

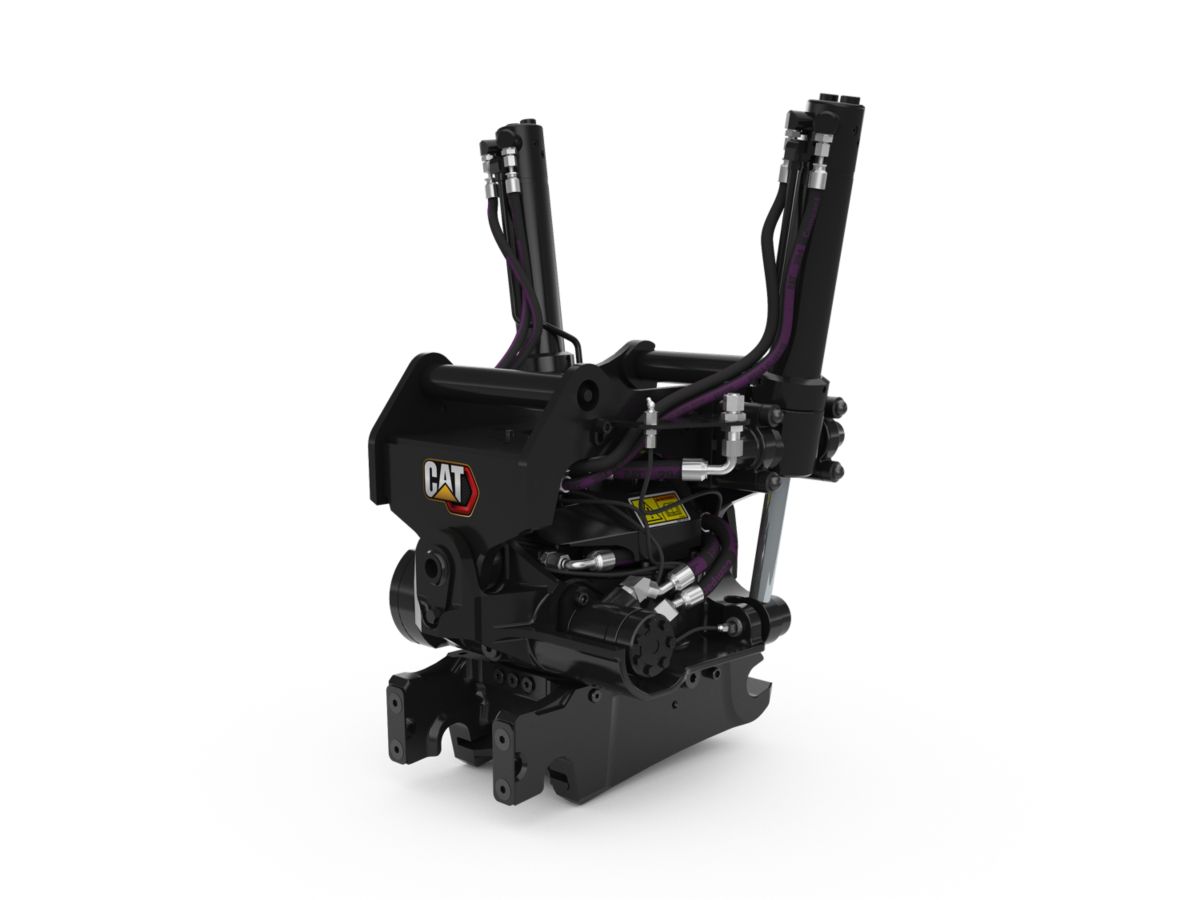

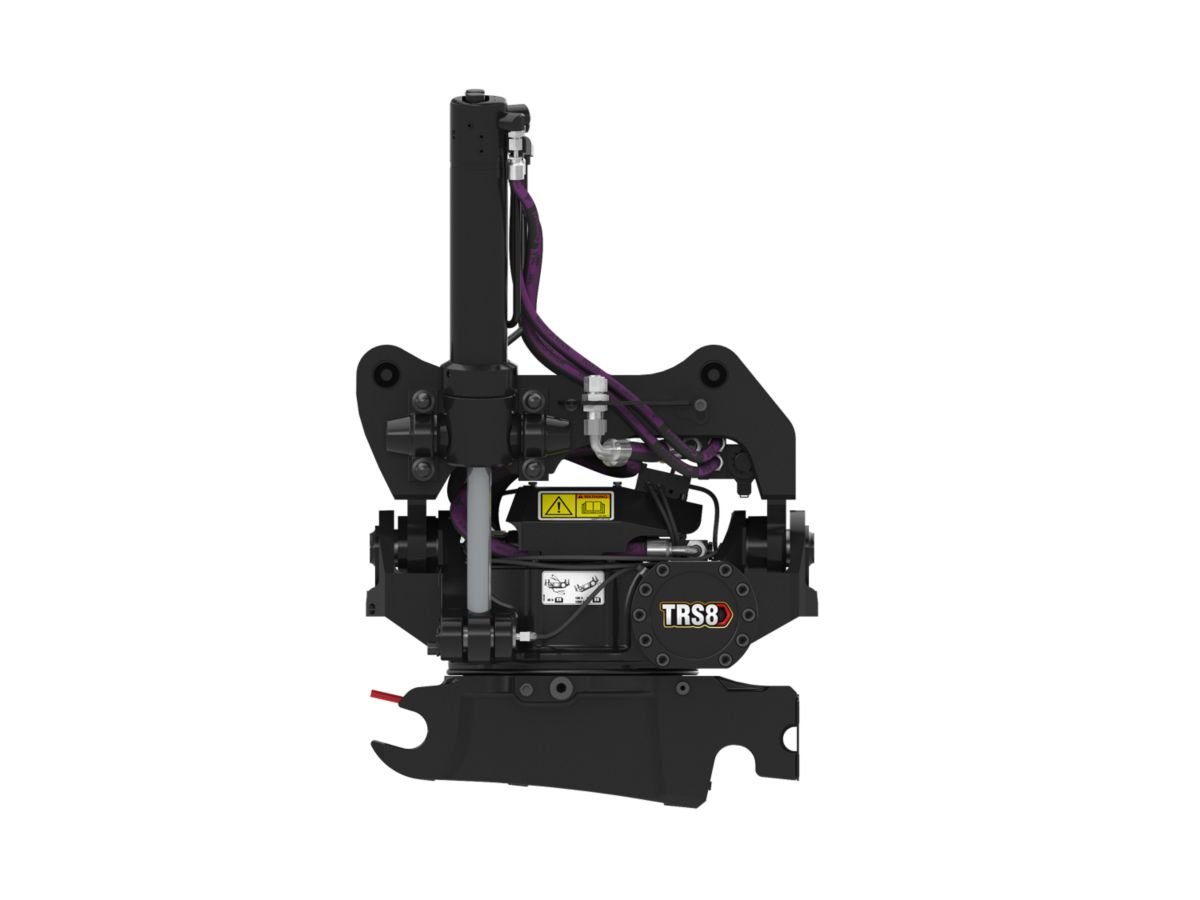

Cat TRS8

Tiltrotatorer

  • Passer kun følgende Cat maskiner: Cat 307.5, 308 og 310
  • Kan bestilles med gripekassett

Om Cat TRS8



Cat tiltrotatorer hjelper deg med å få jobben gjort raskere med kvaliteten du forventer av et Cat produkt. Cat TRS tiltrotator er integrert i din Cat gravemaskin med enkel tilkobling som sikrer optimal samkjøring mellom maskin og tiltrotatoren.

Spesifikasjoner

Machine Class 7-10 Ton Mini Excavators
Interface Options: Top-Bottom S-50 / S-50
Rotation Speed 7 Seconds per 1 Full Rotation
Tilt Angle Range +/- 40 degrees left/right
Optimal Hydraulic Flow 45-75 L/min (12-20 gpm)
Required Hydraulics 1st Auxiliary

Egenskaper

Complete 360 Degree Rotation

Complete 360 Degree Rotation
Provides optimal control of your work tools to provide greater flexibility.

Integrated Central Lubrication System

Integrated Central Lubrication System
A single point of entry for grease allows the entire unit to be greased quickly and easily.

TRS8 Positioning System

TRS8 Positioning System
Upgraded software informs the operator of the attachments position via standard equipped monitoring sensors.

Oil Filled Gearbox

Oil Filled Gearbox
A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.

Heavy Duty Worm Gear

Heavy Duty Worm Gear
Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.

Double Acting Cylinders with Load Hold Valves

Double Acting Cylinders with Load Hold Valves
Valves sustain holding pressures and prevent cylinders movement under load constraints required by directives.

Visual Verification Indicator

Visual Verification Indicator
The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.

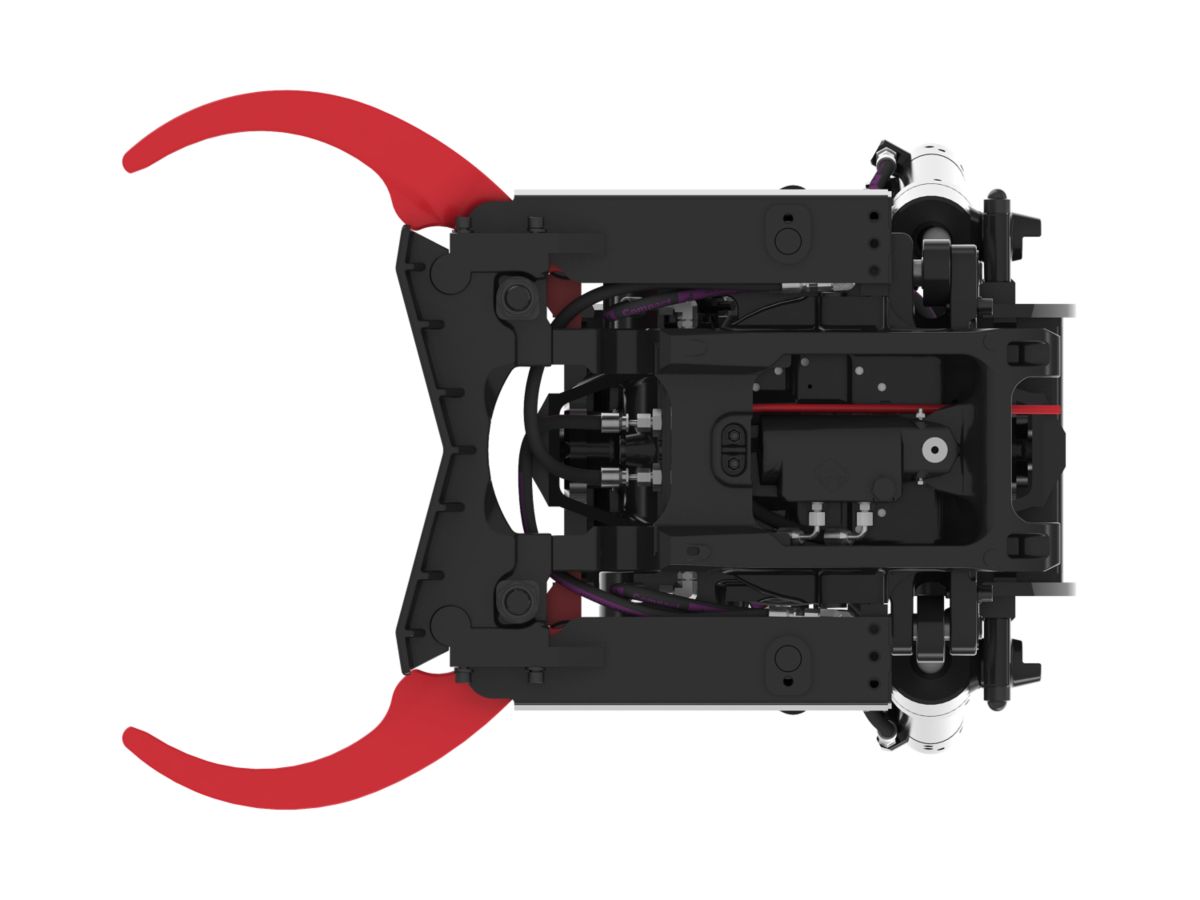

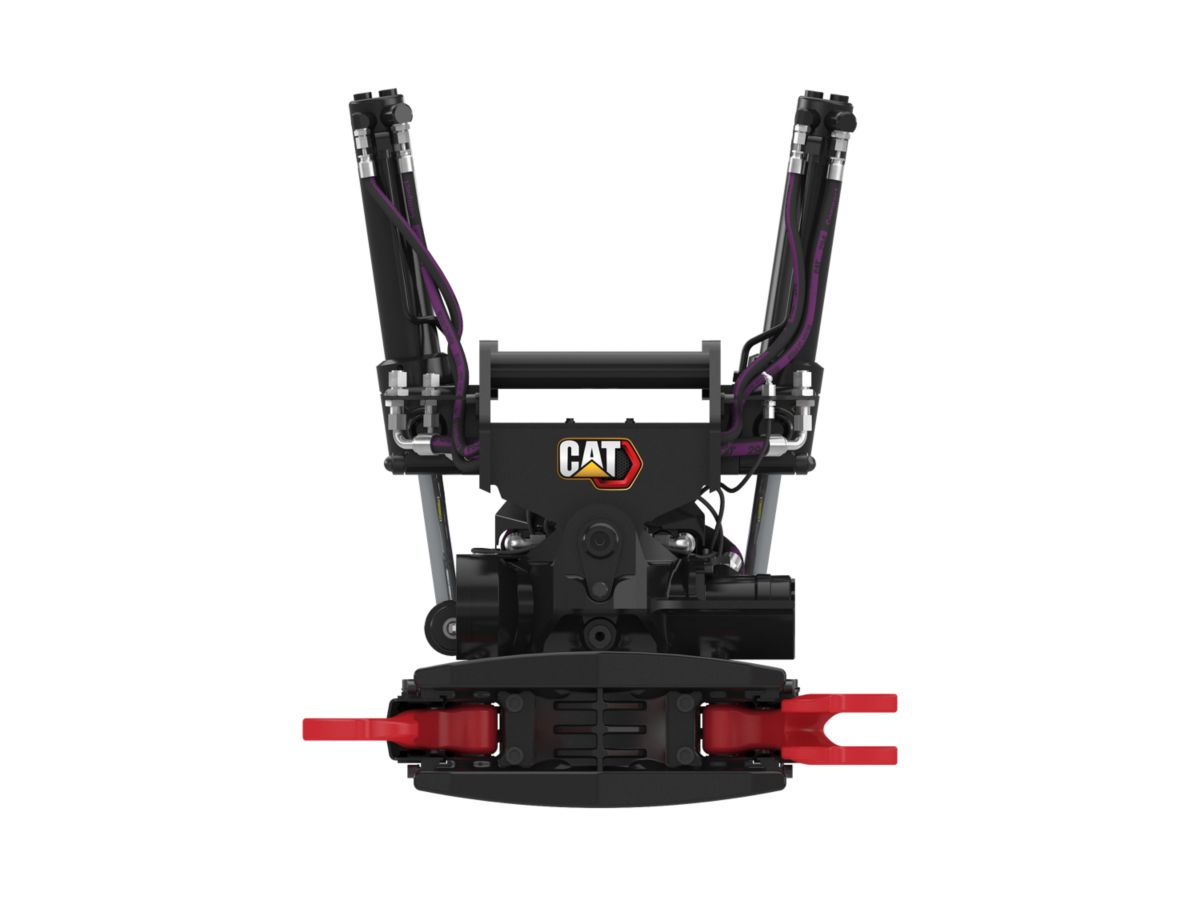

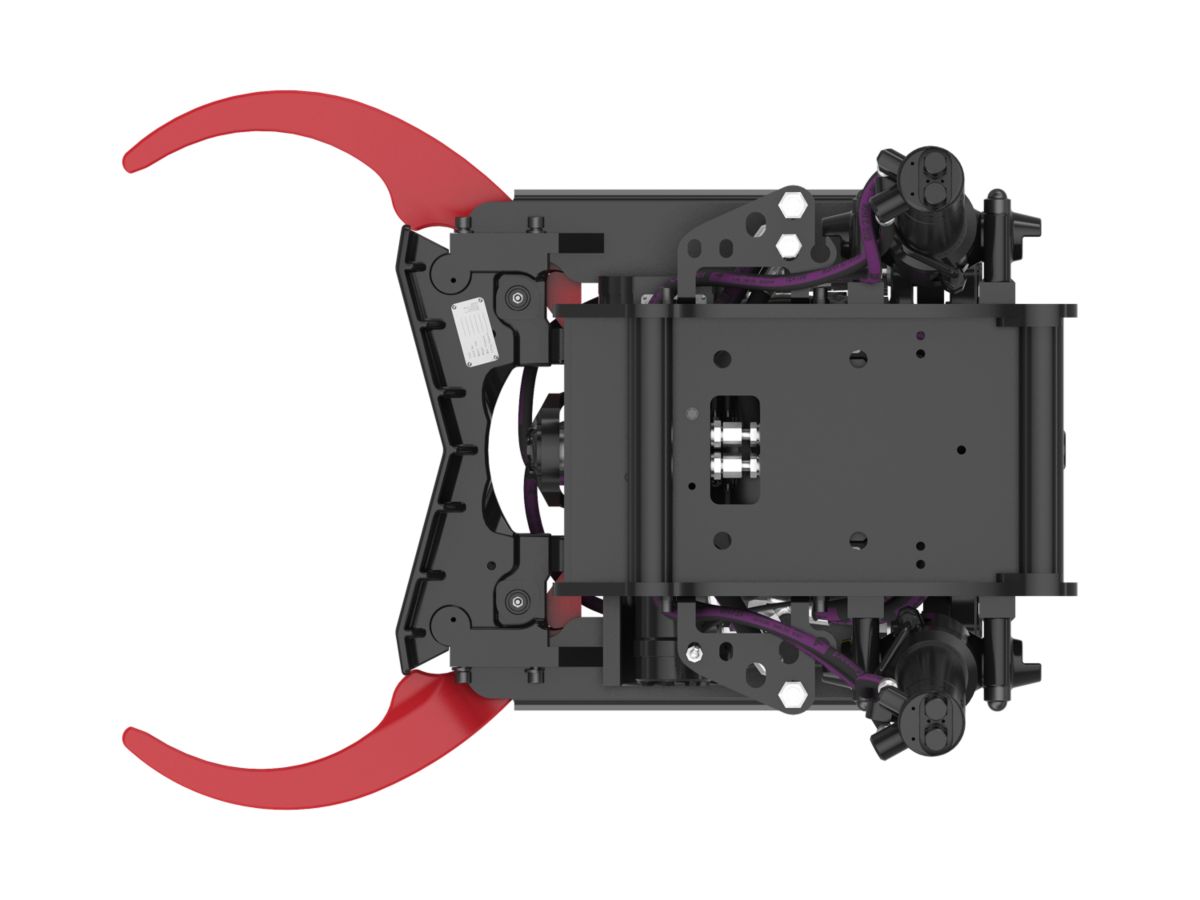

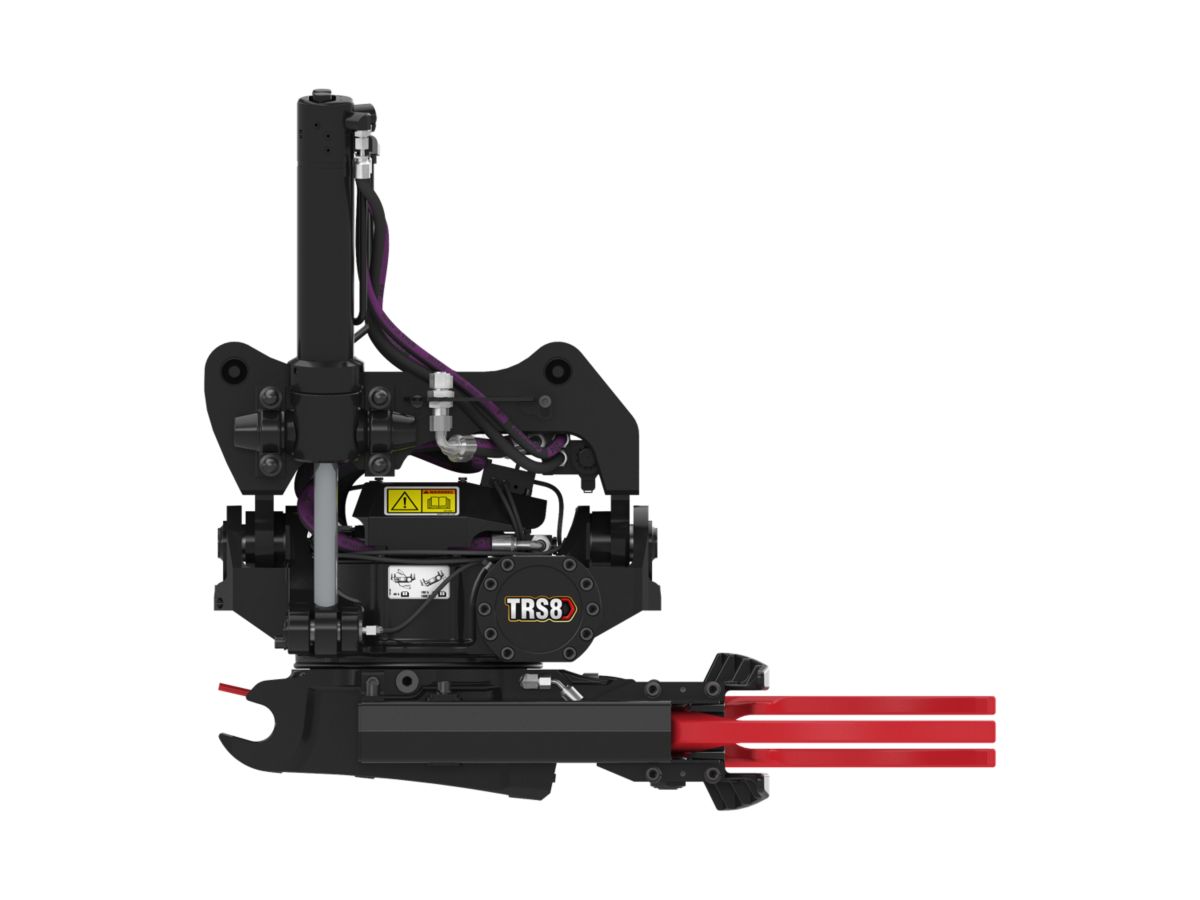

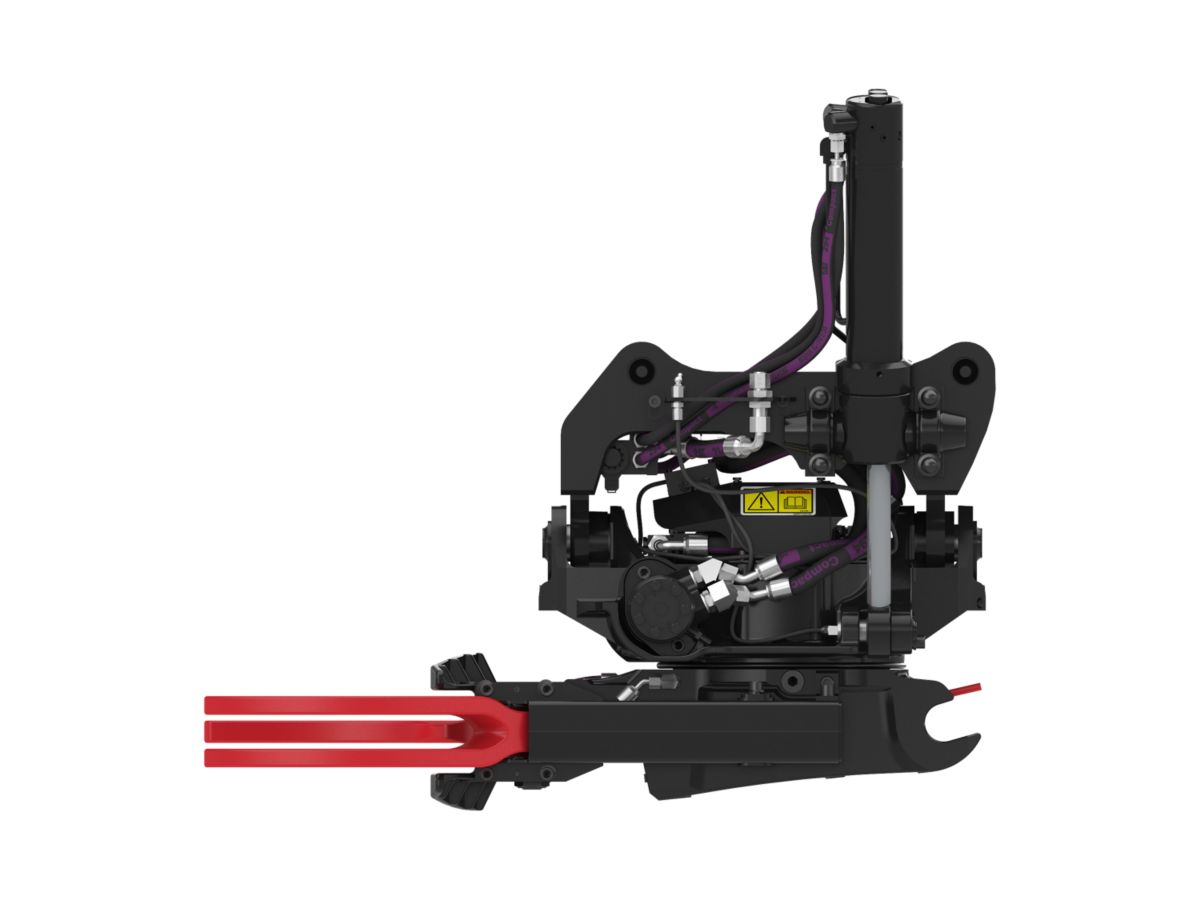

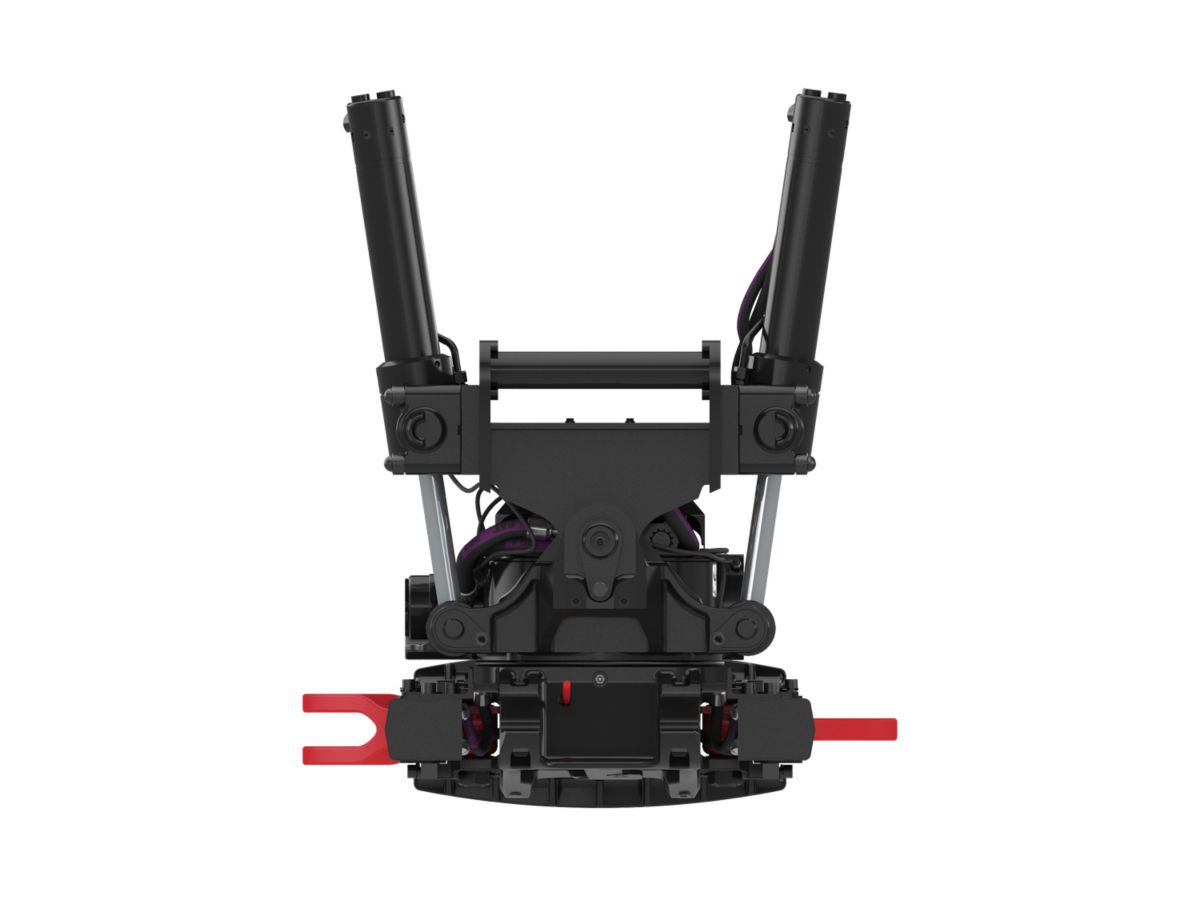

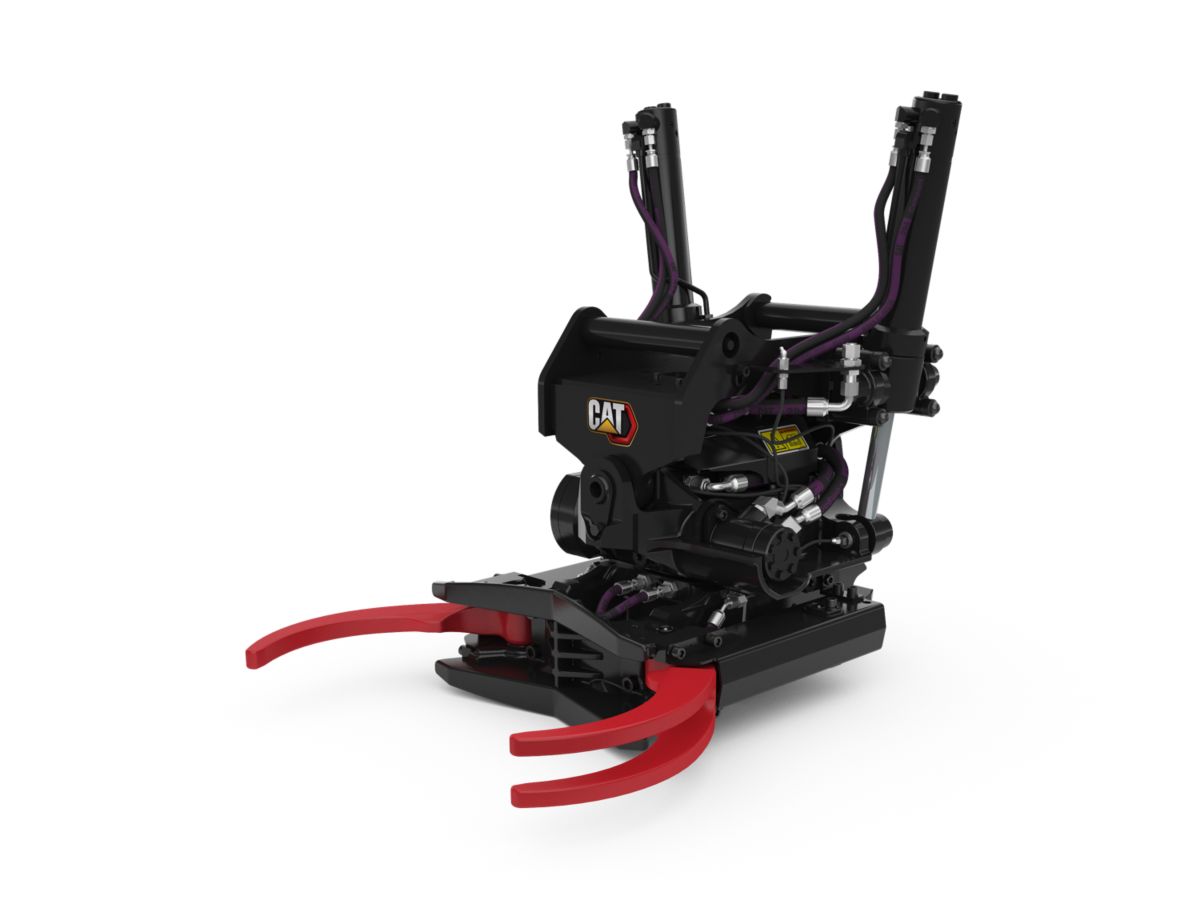

Optional Grapple Attachment

Optional Grapple Attachment
Used to pick up objects such as pipe and debris.

Locking Control System (LCS)

Locking Control System (LCS)
LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.

Compatibility Note

Compatibility Note
Only compatible with the following Next Gen machines and serial numbers:
  • 307.5 - S/N GW7 1 & Up
  • 308 - S/N GG8 1 & Up
  • 308 - S/N GW8 1 & Up
  • 308.5 - S/N GZ8 1 & Up
  • 309 - S/N GG9 1 & Up
  • 309 - S/N GW9 1 & Up
  • 310 - S/N GWT 1 & Up

Se produktet i 360°

Drag your mouse to rotate the product
