Cat 315 GC

Gravere 13-20 tonn

Korthekk
Maskinvekt: 17 tonn
Skuffestr.: 700 l
Nettoeffekt: 74 kW / 100 hk

Kampanjepris: 1.650.000 kr
Leasingpris pr. mnd 27.920 kr.

Nyhet

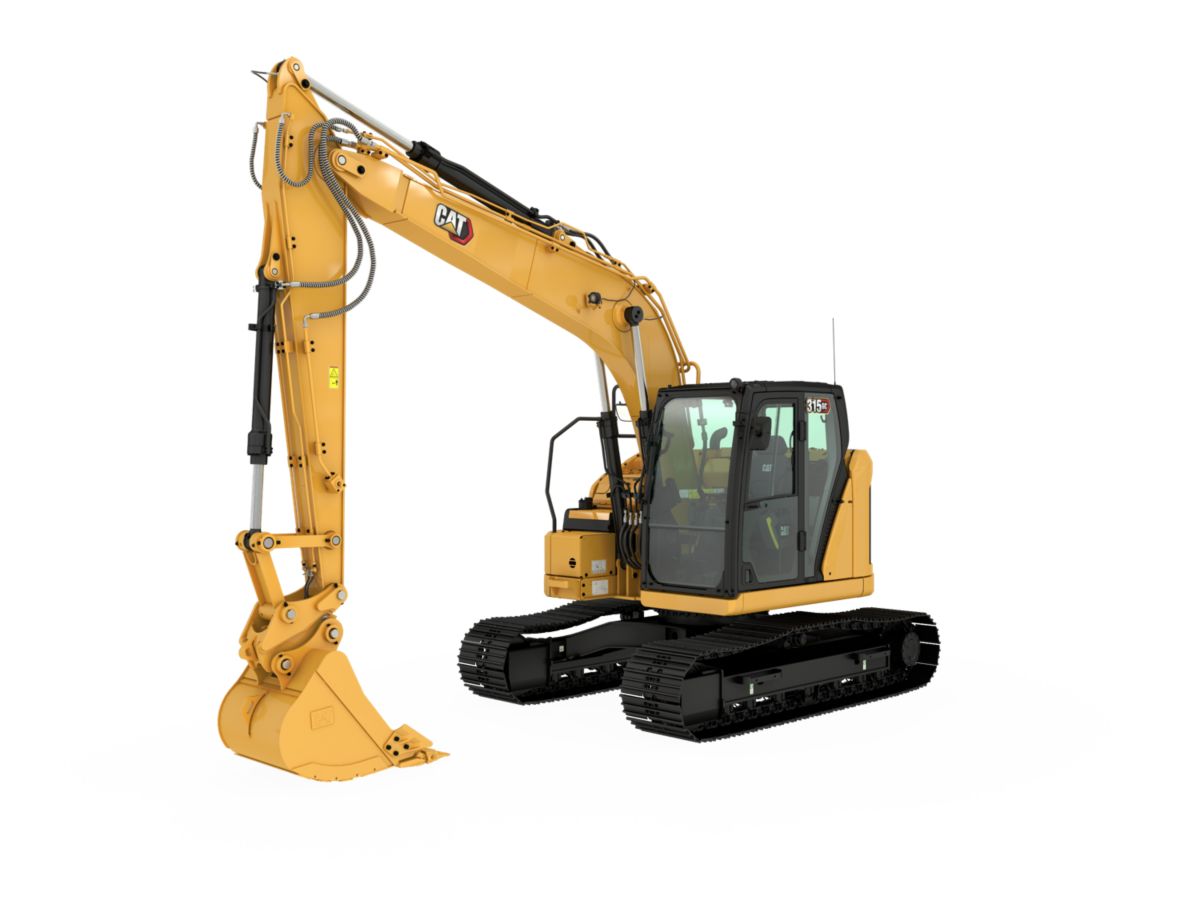

Om Cat 315 GC

Cat® 315 GC korthekk gravemaskin passe for deg som er ute etter en pålitelig graver, til en fornuftig pris. Forenklet servicepunkter, lenger serviceintervaller og drivstoffbesparende funksjoner og komponenter holder eier- og driftskostnadene lave. Kombinert med sin kompakte korthekk design og et stort, ergonomisk førerhus, holder 315 GC deg til å jobbe effektivt og komfortabelt - alt til en lav kostnad per time.

KAMPANJEPRIS: KR 1.650.000 / 27.920 PR MND*

*Leasing via Cat Finance fra 43.910 kr/mnd

Ved 5 års leasing og 10% i forskudd.

Kampanjerente 4,95%

Dette er en per dags dato rente som kan avvike dersom det skjer endringer i penge markedet

Standard GC utstyr

Komfort ROPS førerhytte med mekanisk avfjæret førerstol
Elektrisk fyllepumpe for diesel med autostopp
8" LCD-monitor med touchskjerm
DAB radio
Standard lyspakke
Kamera med sikt bakover og til høyre
Slangebruddsventil på bom- og stikkekrets

GC Kampanjeutstyr

Rototilt: Cat TRS14 S60/S60
Hurtigkobling: Cat S60 med Securelock

Skuffepakke:

Pusseskuffe SD 650l
Graveskuffe SD 700l
Sentralsmøring: Lincoln
Lys: 2stk bomrot
Laminert frontrute
Gjennomsiktig takluke
Bukplate

CAT GC - ØKONOMISKE MASKINER

GC er Caterpillar sine standardmaskiner som er noe lettere utstyrt enn premium - modellene. GC er for deg som ønsker en lønnsom maskin, til oppdrag som ikke krever bruk av banebrytende teknologi. Maskinene er lettere utstyrt, designet drivstoffeffektive- og med lave eier og driftskostnader. Caterpillar GC er et verditilbud til de kundene som ikke ønsker å betale for en løsning de ikke trenger. Samtidig får du den samme pålitelige Cat- merkevaren med høy ytelse, holdbarhet, originale deler, enkel å bruke og med samme kvalitet, i tillegg til at GC-maskinene selvsagt oppfyller utslippsstandardene.

Cat 315 GC har blant annet:

Inntill 25% lavere vedlikeholdskostnader
Opp til 15 % lavere drivstofforbruk (sammenlignet med Cat 315F).
Mulighet for en rekke Cat worktools (arbeidsredskaper)
Kjernekomponentene i maskinen er de samme som premium-modellen, Cat 315.
Nye filter for drivstoff, hydraulikkolje og luft, som gir utvidet levetid
Stor hytte med ergonomisk kontroll og forbedret sikt for komfort og sikkerhet.
Flere effektmodus gjør at du kan tilpasse maskinen til arbeidsoppgaven.

Vil du vite mer om Cat GC, og forskjellen mellom GC og Premium?

Les mer om Cat GC gravemaskiner

_{NORSKE BILDER CAT 315 GC}

Spesifikasjoner

Motor

Net Power - ISO 9249	98 HP
Motormodel	Cat C3.6
Engine Power - ISO 14396	100 HP
Bore	4 in
Stroke	5 in
Displacement	220 in³

Hydraulic System

Main System - Maximum Flow	247 L/min (65 gal/min)
Maximum Pressure - Equipment	5075 psi
Maximum Pressure - Travel	5075 psi
Maximum Pressure - Swing	3770 psi

Swing Mechanism

Swing Speed	11.5 r/min
Maximum Swing Torque	25815 ft·lbf

Weights

Operating Weight

34000 lb

Påfyllingskapasitet

Fuel Tank Capacity	49.4 gal (US)
Cooling System	4 gal (US)
Engine Oil	2.1 gal (US)
Final Drive - Each	0.8 gal (US)
Hydraulic System - Including Tank	36.5 gal (US)
Hydraulic Tank	19 gal (US)

Dimensjoner

Boom	Reach 4.65 m (15'3")
Stick	Reach R3.0 m (9'10")
Bucket	GD 0.53 m³ (0.69 yd³)
Shipping Height - Top of Cab	9.2 ft
Handrail Height	9.4 ft
Shipping Length	24.6 ft
Shipping Length - with Blade	26.5 ft
Tail Swing Radius	5.1 ft
Counterweight Clearance	2.9 ft
Ground Clearance	1.4 ft
Track Length	12.3 ft
Length to Center of Rollers	10 ft
Track Gauge	6.5 ft
Transport Width	8.8 ft

Working Ranges & Forces

Maximum Digging Depth	19.6 ft
Boom	Reach 4.65 m (15'3")
Stick	Reach R3.0 m (9'10")
Bucket	GD 0.53 m³ (0.69 yd³)
Maximum Reach at Ground Level	28.5 ft
Maximum Cutting Height	31.7 ft
Maximum Loading Height	23.6 ft
Minimum Loading Height	6.8 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	19.1 ft
Maximum Vertical Wall Digging Depth	17 ft
Minimum Working Equipment Radius	7.3 ft
Bucket Digging Force - ISO	22180 lbf
Stick Digging Force - ISO	13330 lbf

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 hg of refrigerant which has a CO2 equivalent of 1.144 metric tonnes.

Egenskaper

FUEL SAVING PERFORMANCE MATCHED TO THE JOB

Use up to 15 percent less fuel than the 315F to keep you moving and productive on the jobsite.
Work confidently in space-restricted areas. Dig, swing, and dump within a working space of 3.96 m (12 ft 11 in).
Easily work on slopes and move around the jobsite with 10 percent more swing torque.
The advanced hydraulic system provides the optimum balance of power and efficiency while providing the control needed for precise digging requirements.
Smart mode meets your power needs by automatically matching engine and hydraulic power to digging conditions.
Get higher production in demanding applications, easier penetration into piles, and faster cycle times with Cat® Advansys™ bucket tips. Quickly change tips with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
The Cat C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

LOWER MAINTENANCE COSTS

Expect up to 25 percent less maintenance costs than the 315F.
Quickly check and service your machine with all daily maintenance points accessible from ground level.
Check the engine oil level quickly and safely from the ground. Fill and check engine oil on top of the machine with a conveniently located second dipstick.
The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50 percent longer than previous filter designs.
Track your machine’s filter life and maintenance intervals on the in-cab monitor.
S·O·S^SM ports are located at ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.

WORK IN COMFORT IN THE ALL-NEW CAB

Increase operator productivity with an all-new, 13 percent larger cab.
The cab has a wide seat that adjusts for operators of all sizes.
Get in and out of the cab easier using the tip-up left console.
Advanced viscous mounts reduce cab vibration.
Control the excavator comfortably with easy-to-reach controls, all located in front of you.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

RELIABLE, WHATEVER THE ENVIRONMENT

Don’t let the temperature stop you from working. The 315 GC has a standard high-ambient temperature capability of 52° C (125° F) without derate and cold-start capability of -25° C (-13° F).
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
The track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
The sloped track frame prevents mud and debris accumulation, helping reduce the risk of track damage.

SIMPLE TO OPERATE

Start the engine with the push of a button or the unique Operator ID function.
Program your preferred power mode and joystick settings using your operator ID. The excavator will automatically remember your selections.
Navigate quickly on the standard high-resolution touchscreen monitor or with the aid of the jog dial control.
The Cat Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy. The available Bluetooth reader or Cat App on your phone will locate the device automatically.
Not sure how a function works or how to maintain your machine? Simply access the operator’s manual through the touchscreen monitor.

SAFETY

Access all daily maintenance points from ground level – no need for you to climb on top of the machine.
The standard ROPS cab meets ISO 12117-2:2008 requirements.
Smaller cab pillars, larger windows, and a wider skylight hatch provide 60 percent greater vertical visibility.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
A ground-level shut-off switch stops all fuel to the engine and shuts down the machine when activated.
A rearview and right-side-view camera are standard, increasing safety and visibility.
New service platform design provides easy, safe, and quick access to the upper service platform. Prevent slipping with the anti-skid punch plate on the platform steps.
Optional boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose power.
Brightly colored seatbelts allow easy recognition of properly utilized safety restraints.
