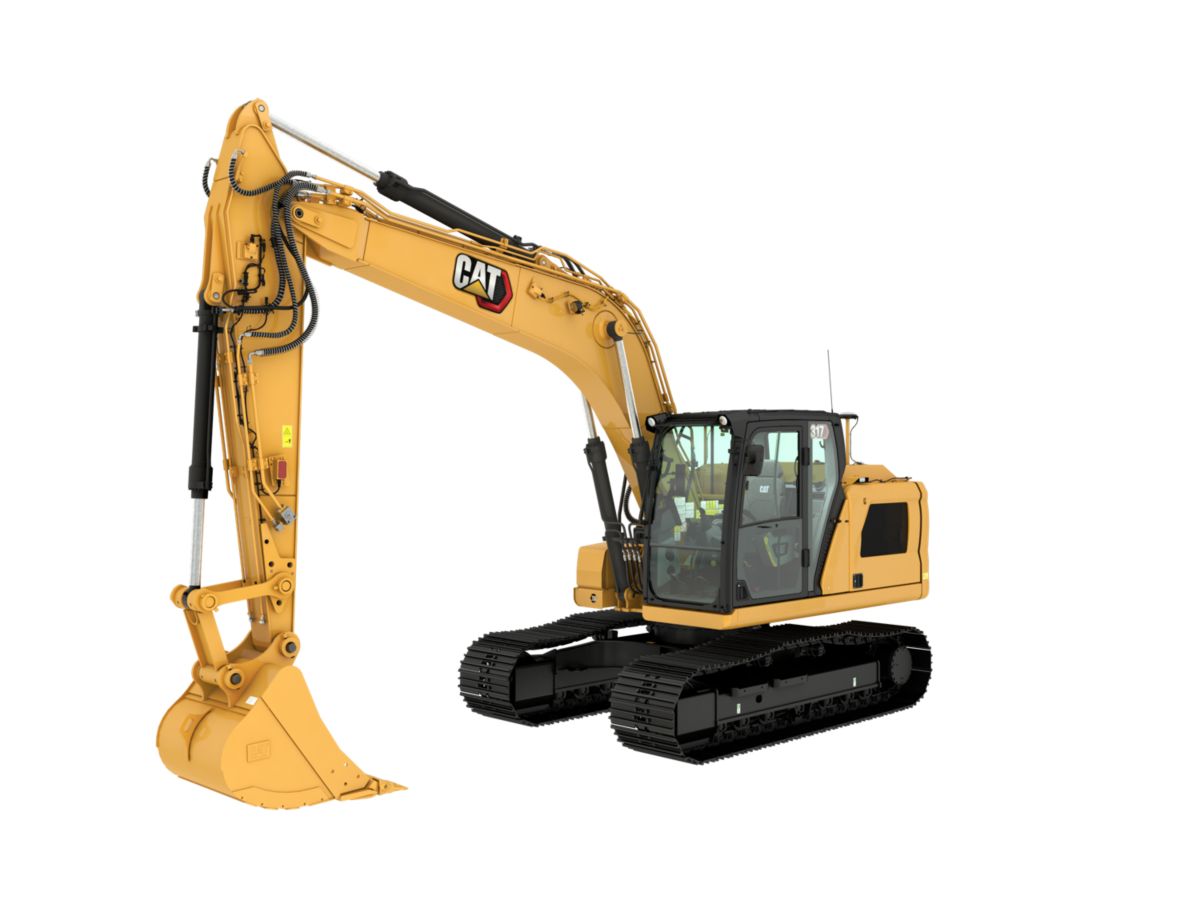

Cat 317

Gravere 13-20 tonn

Maskinvekt: 19 tonn

Skuffestr.: 900 l

Bruttoeffekt: 98 kW/ 131 hk

Se brosjyre Send Forespørsel

Kan leies via Pon Rental

Nyhet

Om Cat 317

Cat 317 beltegraver øker produktiviteten på arbeidsplassen din. Standard, brukervennlige Cat®-teknologier, ytelsesoppgraderinger og lave drivstoff- og vedlikeholdskostnader lar deg flytte materiale hele dagen med høy hastighet og presisjon.

Kan leveres med VA-Bom
Fabrikkintegrert med Cat TRS tiltrotator
Innebygd Cat teknologi som øker førerens effektivitet og forenkler bruken av maskinen
Drivstoff-effektiv med steg V motor og økt hydraulisk kapasitet
Flere effektmodus og smartmodus
Premium førermiljø
Elektriske spaker
Forbedret sikkerhet og sikt
Enklere vedlikehold og økt serviceintervall

_{Norske bilder Cat 317}

Spesifikasjoner

Motor

Net Power - ISO 9249	130 HP
Motormodel	Cat C4.4
Engine Power - ISO 14396	131 HP
Bore	4 in
Stroke	5 in
Displacement	269 in³

Hydraulic System

Main System - Maximum Flow	296 L/min (78 gal/min)
Maximum Pressure - Equipment	5076 psi
Maximum Pressure - Travel	5076 psi
Maximum Pressure - Swing	3741 psi

Swing Mechanism

Swing Speed	8.7 r/min
Maximum Swing Torque	44990 ft·lbf

Weights

Operating Weight

38900 lb

Påfyllingskapasitet

Fuel Tank Capacity	71.6 gal (US)
Cooling System	7.4 gal (US)
Engine Oil	4 gal (US)
Final Drive - Each	1.6 gal (US)
Hydraulic System - Including Tank	24.8 gal (US)
Hydraulic Tank	23 gal (US)
DEF Tank	5.9 gal (US)

Dimensjoner

Boom	Reach 5.1 m (16'9")
Stick	Reach R2.6 m (8'6")
Bucket	GD 0.65 m³ (0.85 yd³)
Shipping Height - Top of Cab	9.6 ft
Handrail Height	9.6 ft
Shipping Length	28 ft
Tail Swing Radius	8.2 ft
Counterweight Clearance	3.3 ft
Ground Clearance	1.4 ft
Track Length	13 ft
Length to Center of Rollers	10.4 ft
Track Gauge	6.5 ft
Transport Width	8.2 ft

Working Ranges & Forces

Maximum Digging Depth	19.9 ft
Boom	Reach 5.1 m (16'9")
Stick	Reach R2.6 m (8'6")
Bucket	GD 0.65 m³ (0.85 yd³)
Maximum Reach at Ground Level	28.7 ft
Maximum Cutting Height	29.3 ft
Maximum Loading Height	20.7 ft
Minimum Loading Height	7.6 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	19.2 ft
Maximum Vertical Wall Digging Depth	19.2 ft
Minimum Working Equipment Radius	9.8 ft
Bucket Digging Force - ISO	27880 lbf
Stick Digging Force - ISO	17980 lbf

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.9 hg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.

Egenskaper

High Performance and Productivity

Increased breakout forces and hydraulic power increase productivity by up to eight percent over the previous model.
The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
Reduce fuel consumption by up to five percent over the previous model.
Match your machine to the job with power modes. Let Smart mode automatically match engine and hydraulic power to working conditions. Power mode constantly provides maximum productivity, and ECO mode minimizes fuel consumption in less-demanding applications.
Get higher production in demanding applications, easier penetration into piles, and faster cycle times with Cat Advansys™ bucket tips. Quickly change tips with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
The Cat C4.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 (Tier 4 Final)emission standards.
Don’t let the temperature stop you from working. The 317 has an optional cold-start capability of -25°C (-13°F).

Boost Efficiency and Productivity with Cat Technologies

Boost productivity up to 45 percent versus traditional grading with the standard Cat GRADE with 2D system – includes indicate-only and laser capability.
Dig with guidance to depth, slope, and horizontal distance to grade. You can set up to four different depth and slope targets to help save time and money.
Standard 2D E-Fence prevents your machine from moving outside operator-defined parameters.
Achieve precise load targets and increase loading efficiency with standard Cat PAYLOAD which provides on-the-go weighing and real-time estimates of your payload without swinging.
Standard Grade Assist keeps you on grade – simply and effortlessly – with single-level digging.
Set your desired bucket angle and let Bucket Assist automatically maintain the angle in slope, leveling, fine grading, and trenching applications.
Keep the tracks on the ground in lifting and hard digging applications with Boom Assist.
Automatically stop excavator swing at the operator-defined set points in truck loading and trenching applications with Swing Assist, saving you effort and fuel.
Upgrade to Cat GRADE with Advanced 2D to create and edit grade designs with ease on a second high-resolution 254 mm (10 in) touchscreen monitor.
Upgrade to Cat GRADE with 3D to create and edit designs with ease and see the front linkage’s full range of motion on a second high-resolution 254 mm (10 in) touchscreen monitor.
Know the excavator’s exact position relative to GPS and GLONASS systems. The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
Use the excavator’s onboard cell technology to quickly connect to 3D services like Trimble Connected Community or Virtual Reference Station.
Remote Troubleshoot connects you to a dealer service pro to help solve your problem and quickly get you to work.
Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance.
The Cat App helps you manage fleet location, hours, and maintenance schedules; it also alerts you for required maintenance and even allows you to request service from your local Cat dealer
Standard Product Link™ automatically and accurately collects data from your connected assets – any type and any brand. Information such as location, hours, fuel usage, productivity, idle time, maintenance alerts, diagnostic codes, and machine health can be viewed online through web and mobile applications.

Work in Comfort in the All-New Cab

Increase operator productivity with an all-new, larger cab. Comfort, Deluxe, and Premium cab options vary by region.
The Comfort cab is equipped with a mechanical suspension seat. The Deluxe seat is heated and air adjustable, while the Premium seat is heated and cooled and adjusts automatically.
Get in and out of the cab easier using the tip-up left console.
Advanced viscous mounts reduce cab vibration.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

Simple to Operate

Start the engine with the push of a button, a Bluetooth key fob, a smartphone app, or the unique Operator ID function.
Program your preferred power mode and joystick settings using your operator ID. The excavator will automatically remember your selections.
Navigate quickly on the standard high-resolution touchscreen monitor or with the aid of the jog dial control.
The Cat PL161 Attachment Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy. The excavator’s onboard Bluetooth reader or Cat App on your phone will locate the device automatically.
Save time and energy with work tool recognition. A simple shake of the attached tool confirms its identity ensuring all attachment settings are correct, so you can get to work quickly and efficiently.
Not sure how a function works or how to maintain your machine? Simply access the operator’s manual through the touch screen monitor.

Lower Maintenance Costs

Expect up to 20 percent less maintenance costs over the previous model.
Quickly check and service your machine with all daily maintenance points accessible from ground level.
Check the engine oil level quickly and safely from the ground. Fill and check engine oil on top of the machine with a conveniently located second dipstick.
Track your machine’s filter life and maintenance intervals on the in-cab monitor.
The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50 percent longer than previous filter designs.
S·O·S^SMports are located at ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.

Safety

Access all daily maintenance points from ground level – no need for you to climb on top of the machine.
The standard ROPS cab meets ISO 12117-2:2008 requirements.
A ground-level shutoff switch stops all fuel to the engine and shuts down the machine when activated.
A rearview and right-side-view camera are standard. Upgrade to 360° visibility to easily see objects and personnel around the excavator in a single view.
New service platform design provides easy, safe, and quick access to the upper service platform. Prevent slipping with the anti-skidpunch plate on the platform steps.
Optional boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose power.
Brightly colored seatbelts allow easy recognition of properly utilized safety restraints.
Antennas have theft-prevention bolts; a special tool makes them easy to remove at the end of a shift.
